Williams Sound ADP 016 – Headset Y-Splitter for Digi-Wave DLT 400

Product Overview

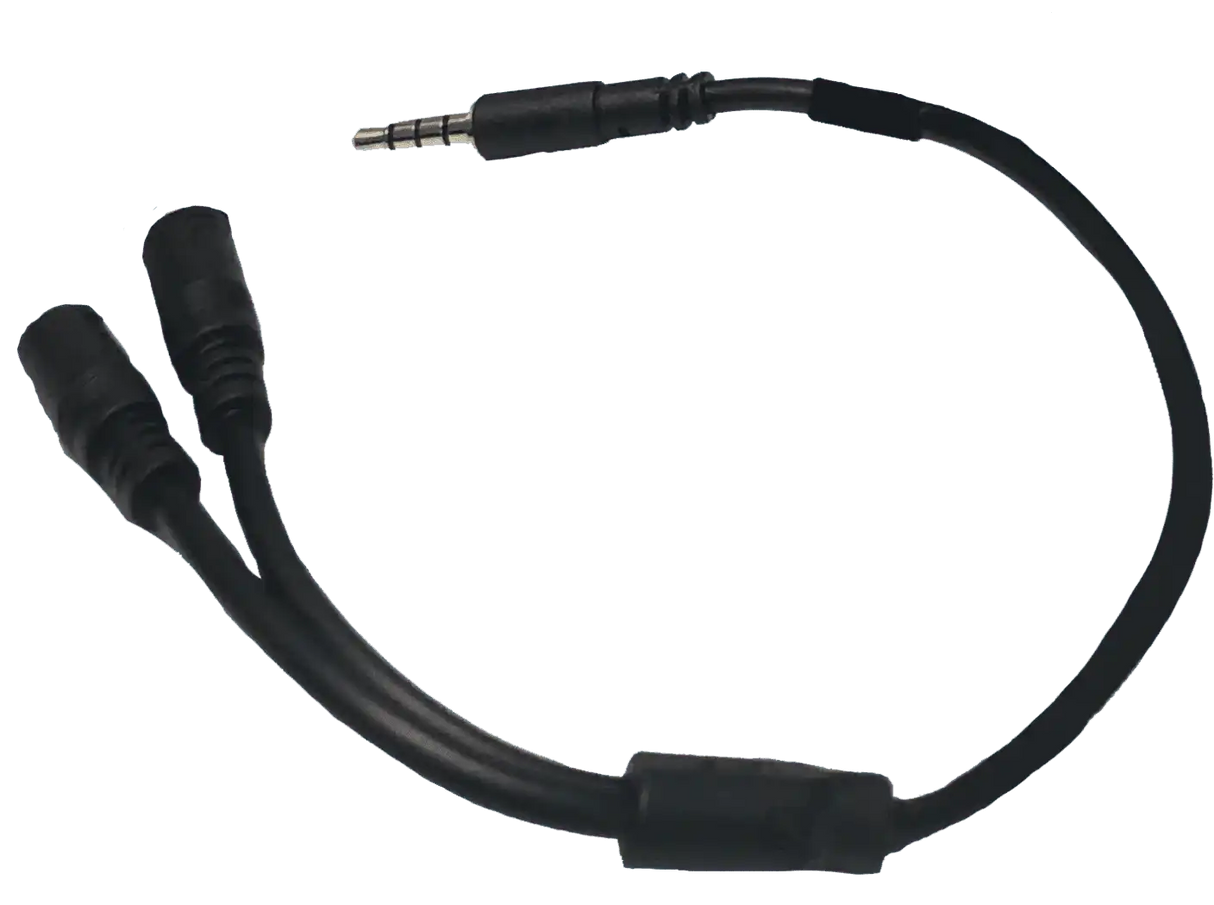

The Williams Sound ADP 016 is a headset Y-splitter adapter that enables use of the MIC 068 and MIC 088 headset microphones with the Digi-Wave DLT 400 transceiver. The cable presents two female 3.5 mm inputs — one for the microphone and one for the headphone — combined into a single TRRS male connector that mates with the DLT 400's headset jack. This adapter is the required interface for deploying standard 2-plug headset accessories with the Digi-Wave 400 series transceiver.

Product Description

The ADP 016 Y-splitter bridges the connection between two-plug headset microphones and the single TRRS combo jack on the Digi-Wave DLT 400 transceiver. Without this adapter, the MIC 068 and MIC 088 headset microphones — which use separate 3.5 mm mono plugs for audio output and microphone input — cannot be directly connected to the DLT 400. The Y-splitter combines both the microphone and earphone signal paths into the TRRS connector required by the transceiver's headset port. AV integrators deploying Digi-Wave 400 series systems for tour guide, simultaneous interpretation, or two-way communication applications who want to use the MIC 068 or MIC 088 headset accessory should include this adapter in their kit. The compact form factor adds minimal bulk to the transceiver setup. Note that this adapter is for the DLT 400 specifically; users of other Digi-Wave transceivers should verify headset compatibility before ordering.

Key Features

• TRRS Male Output — Single TRRS connector matches the headset jack on the Digi-Wave DLT 400 transceiver.
• Dual Female 3.5 mm Inputs — Separate jacks for microphone and headphone signals from two-plug headset accessories.
• MIC 068 and MIC 088 Compatible — Required adapter for connecting these headset microphones to the DLT 400.
• Compact Build — Minimal added bulk to the transceiver and headset combination.
• 90-Day Warranty — Standard Williams Sound accessory coverage.
