Williams AV BA SYS1 – Infinium Auracast System with 2 Receivers

Product Overview

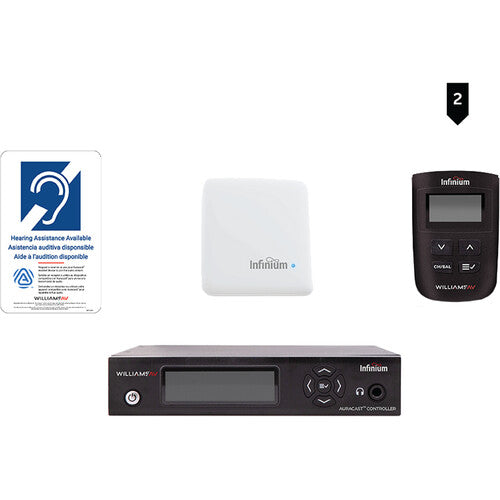

The Williams AV Infinium BA SYS1 is a complete Auracast assistive listening system for commercial AV environments, packaging the Infinium CT1 controller and transmitter with two BA R1 receivers, headphones, neckloops, a 2-bay charger, rack mount kit, and ADA signage. Built on Bluetooth LE Audio broadcast, it delivers low-latency, high-fidelity audio to unlimited Auracast-enabled hearing aids, cochlear implants, and headphones — plus the included venue receivers — making it a turnkey ADA-compliant hearing solution for smaller venues and meeting spaces.

Product Description

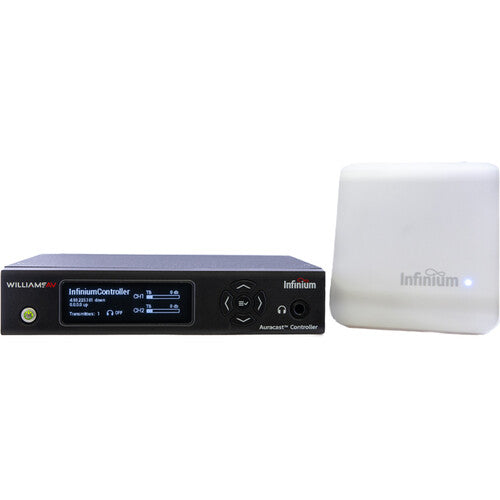

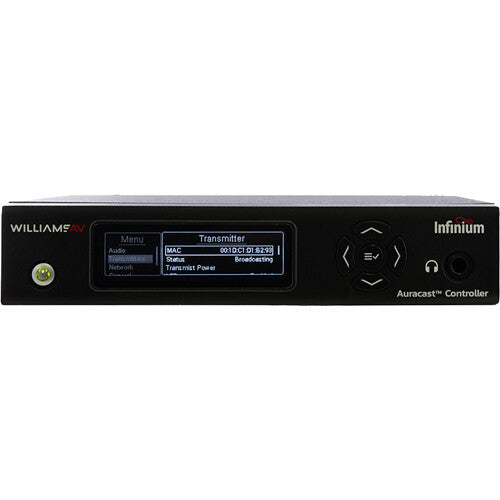

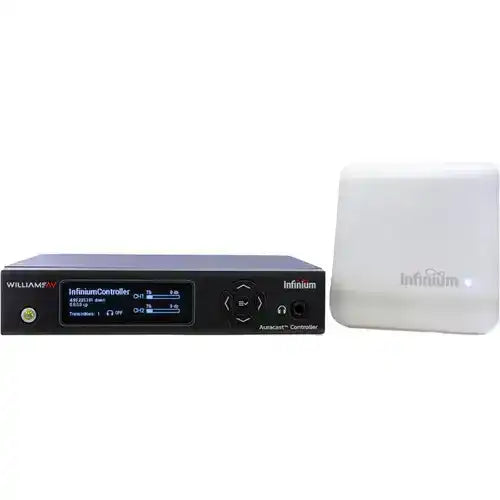

The SYS1 gives integrators everything needed to commission Auracast broadcast audio in a single SKU. The rack-mount-ready controller accepts analog line-level or Dante network audio and is configured from its front-panel OLED display or remotely through a built-in web interface, with live audio monitoring available outside the coverage area for commissioning and troubleshooting. The included RPK 005 rack mount kit secures the half-rack controller in a standard 19-inch equipment rack.

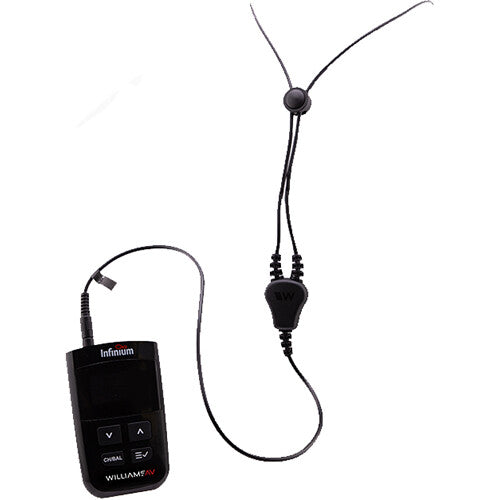

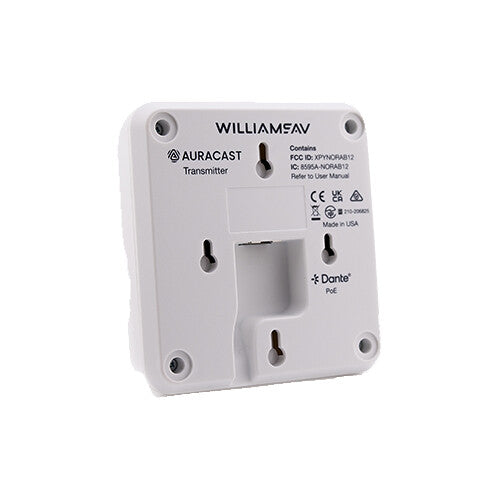

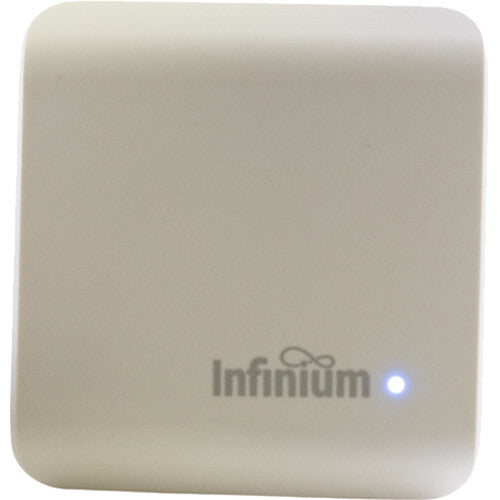

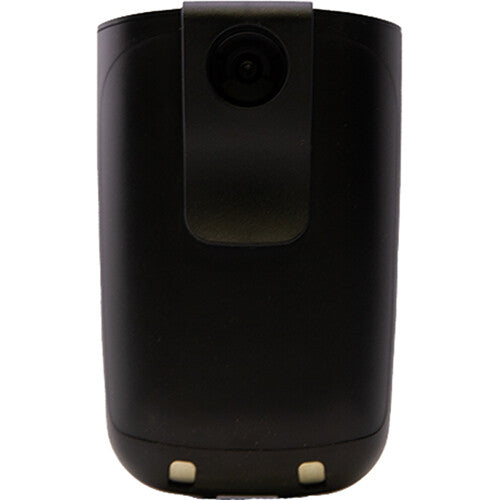

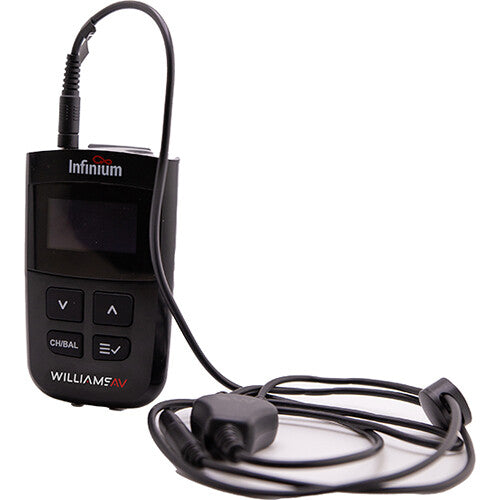

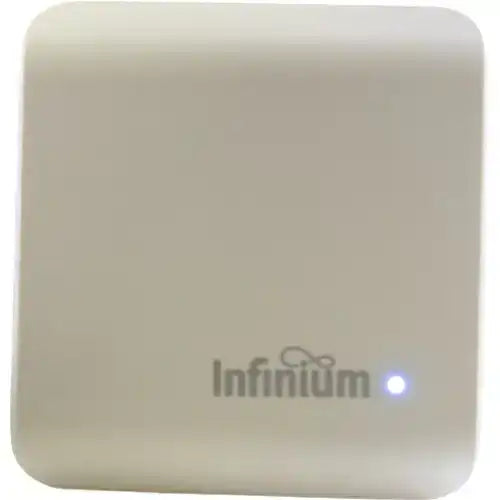

The low-profile transmitter installs on a ceiling, wall, or shelf and connects to the controller with one CAT cable carrying audio, control, and PoE power, providing omnidirectional Auracast coverage up to 100 meters (328 ft). Guests with Auracast-enabled personal devices connect directly to the broadcast with no receiver count limit, while the two included Infinium R1 receivers — with headphones and T-coil neckloops — satisfy the venue-provided receiver portion of ADA assistive listening requirements. Each receiver features the largest OLED display in its class, per-ear balance control, and more than 20 hours of battery life, recharging in the included 2-bay drop-in charger. The Auracast ADA wall plaque completes signage requirements.

Venues expecting higher receiver demand should consider the Infinium Auracast system with 4 receivers, and additional R1 receivers and accessories are available in the Williams AV collection at Creation Networks.

Key Features

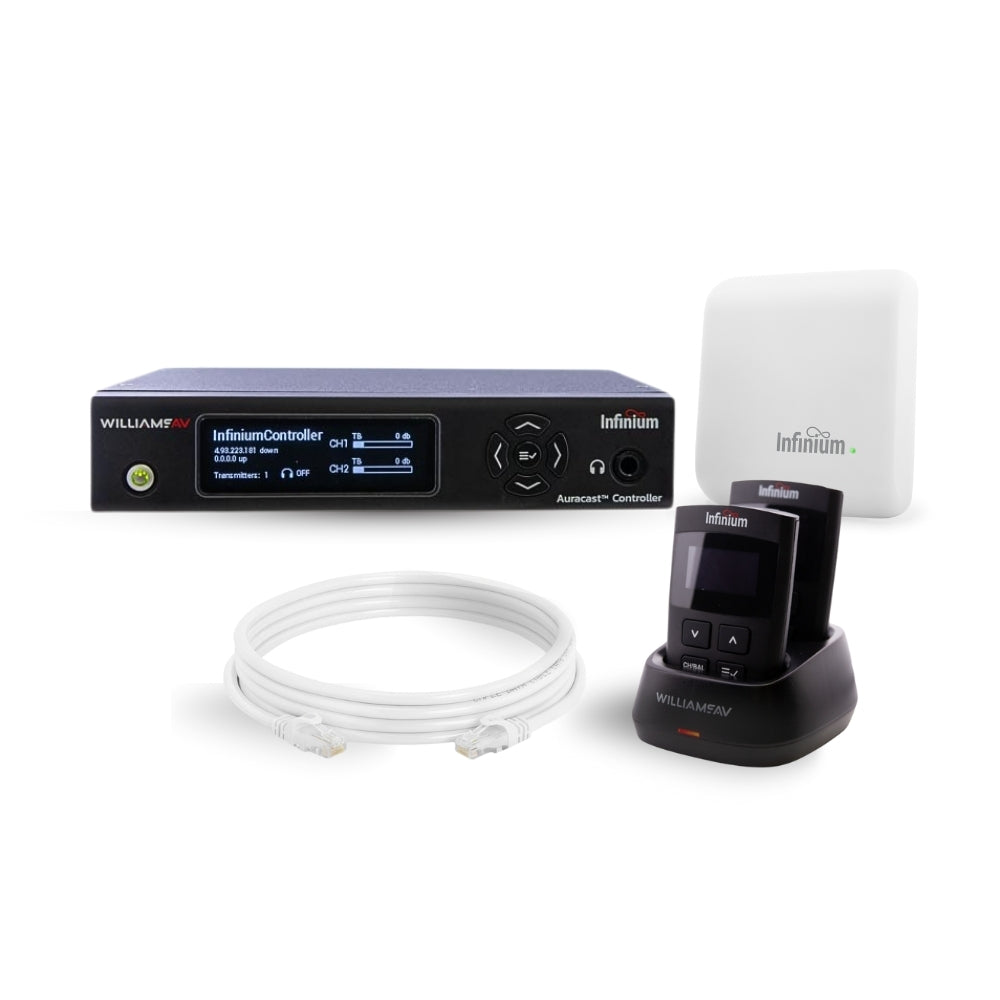

• Complete Turnkey Package — The SYS1 includes the CT1 controller and transmitter, two R1 receivers, headphones, neckloops, a 2-bay charger, ADA signage, and a rack mount kit for a single-SKU deployment.
• Pro AV Controller with Dante — The rack-mount-ready controller accepts analog and Dante inputs and is configured from the front panel or a web interface for remote management.
• Single-Cable Transmitter Setup — One CAT cable delivers audio, control, and PoE power to the transmitter, with omnidirectional coverage up to 100 meters (328 ft).
• Unlimited Auracast Listeners — Bluetooth LE Audio broadcast serves any number of Auracast-enabled hearing aids, cochlear implants, and headphones simultaneously, alongside the included receivers.

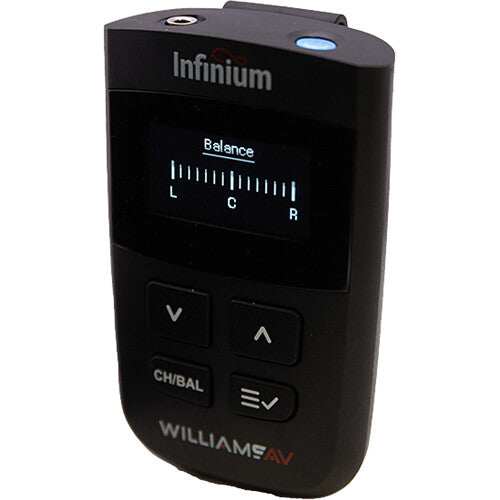

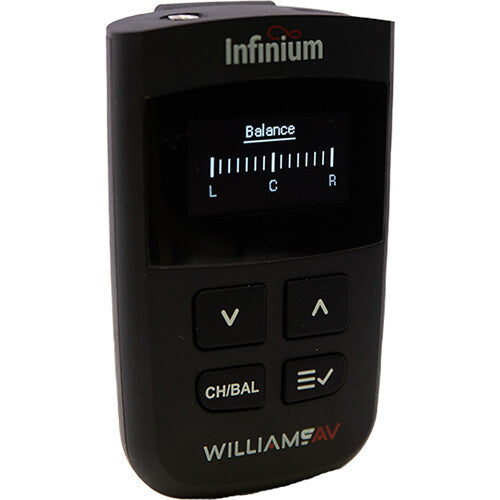

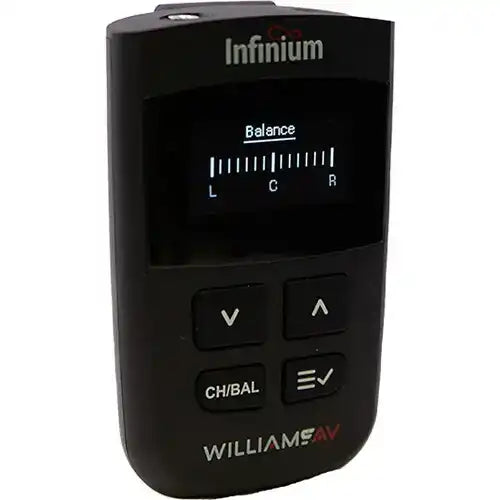

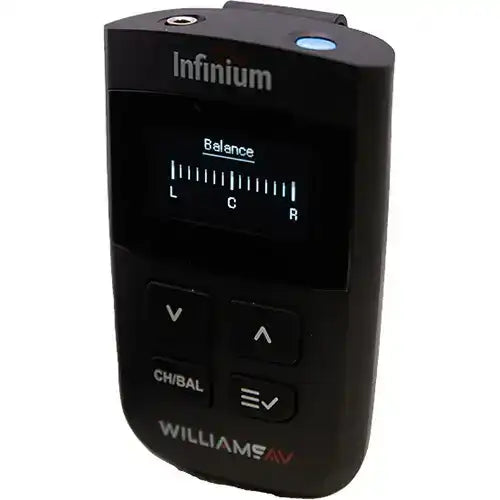

• Ergonomic R1 Receivers — Each receiver offers the largest display in its class, per-ear balance control, tactile buttons, and more than 20 hours of battery life.
• ADA Compliance Out of the Box — Venue-provided receivers, T-coil neckloops, and the included Auracast ADA wall plaque address assistive listening compliance requirements together.
• Multilingual and Audio Description Ready — The Infinium platform supports multilingual event audio and audio description channels in addition to assistive listening.
• Remote Monitoring — Technicians can configure, monitor, and listen to the broadcast through the web interface from outside the coverage area.

Typical Applications

• Conference room
• Boardroom
• Training room
• House of worship
• Government space
• Multi-purpose room
• Commercial meeting space

Technical Specifications

System Includes

Controller

Transmitter

Receiver (each)

Warranty

2 years, parts and labor

Frequently Asked Questions

Is the SYS1 enough for ADA compliance?

The SYS1 includes two venue-provided receivers, T-coil neckloops, and an Auracast ADA wall plaque — the core elements of an ADA-compliant assistive listening system. Required receiver counts scale with seating capacity, so larger venues may need additional R1 receivers or the 4-receiver SYS2 package.

Can guests use their own hearing aids or earbuds?

Yes. Any Auracast-enabled hearing aid, cochlear implant, or headphone can join the broadcast directly, with no limit on the number of simultaneous listeners. The included R1 receivers serve guests without Auracast-capable devices.

How does the system connect to an existing AV system?

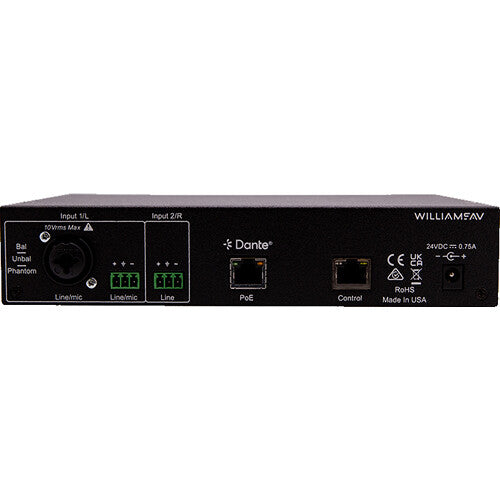

The controller accepts analog line-level audio or a Dante network feed, so it drops into conference room DSP systems, house-of-worship consoles, and networked audio infrastructures without format converters.

How involved is the installation?

The controller mounts in a standard 19-inch rack using the included RPK 005 kit, and the transmitter requires a single CAT cable run from the controller for audio, control, and PoE power. Configuration is handled from the front panel or web interface.

Can the system handle interpretation or audio description?

Yes. The Infinium platform supports multilingual event audio and audio description in addition to assistive listening, broadcast over Auracast channels.

What warranty covers the system?

Williams AV provides a 2-year parts and labor warranty on the Infinium system components.
