Williams AV DW SYS3ACM-00 – Digi-Wave 12-User Production Intercom System

Product Overview

The Williams AV DW SYS3ACM-00 is a complete twelve-user Digi-Wave production intercom system for larger broadcast, event, and house-of-worship crews. It delivers full-duplex, license-free 2.4 GHz two-way communication among twelve operators with no fixed base station, making it a scalable wireless intercom system for professional AV production. The kit bundles twelve ACM transceivers, headsets, cases, and a wheeled carry case.

Product Description

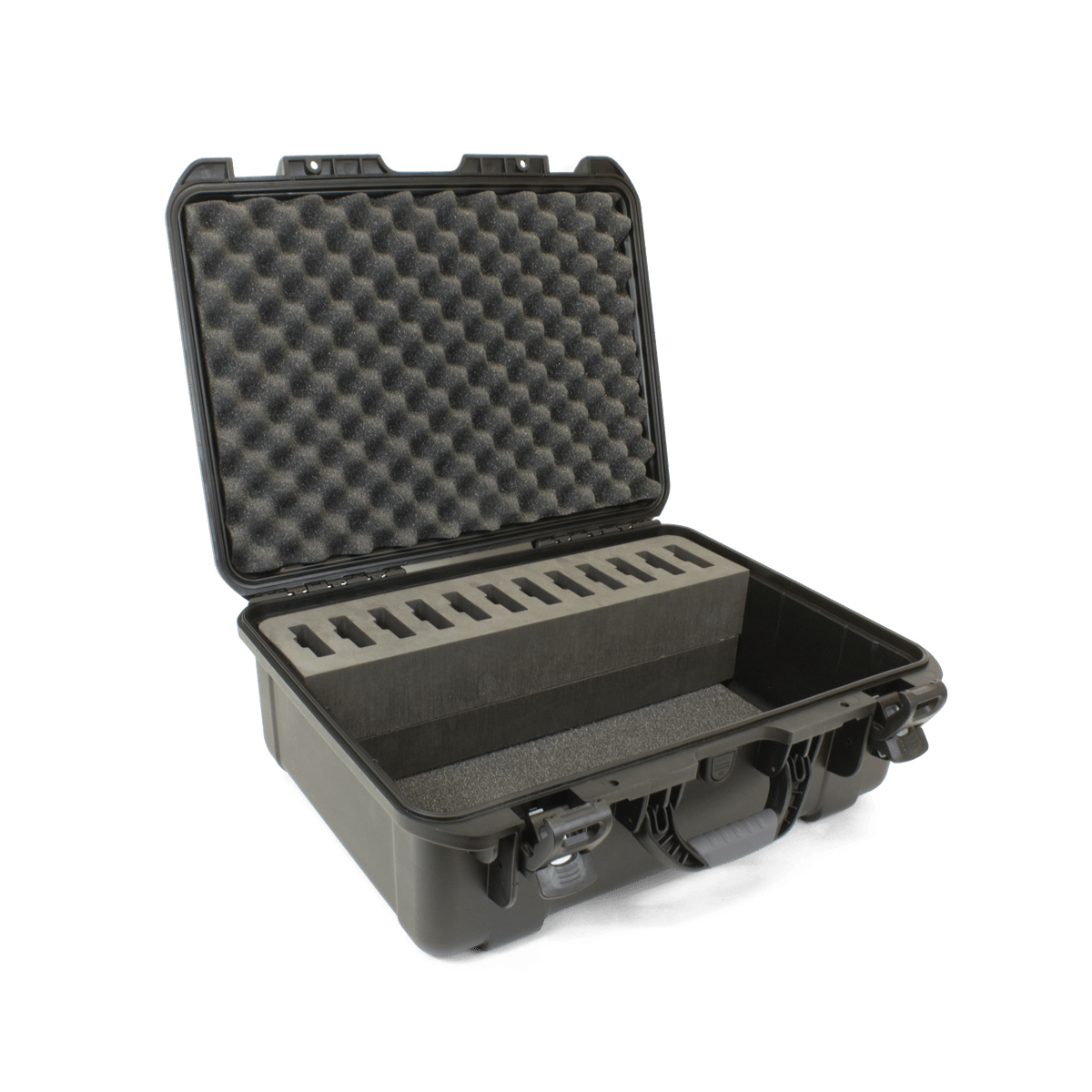

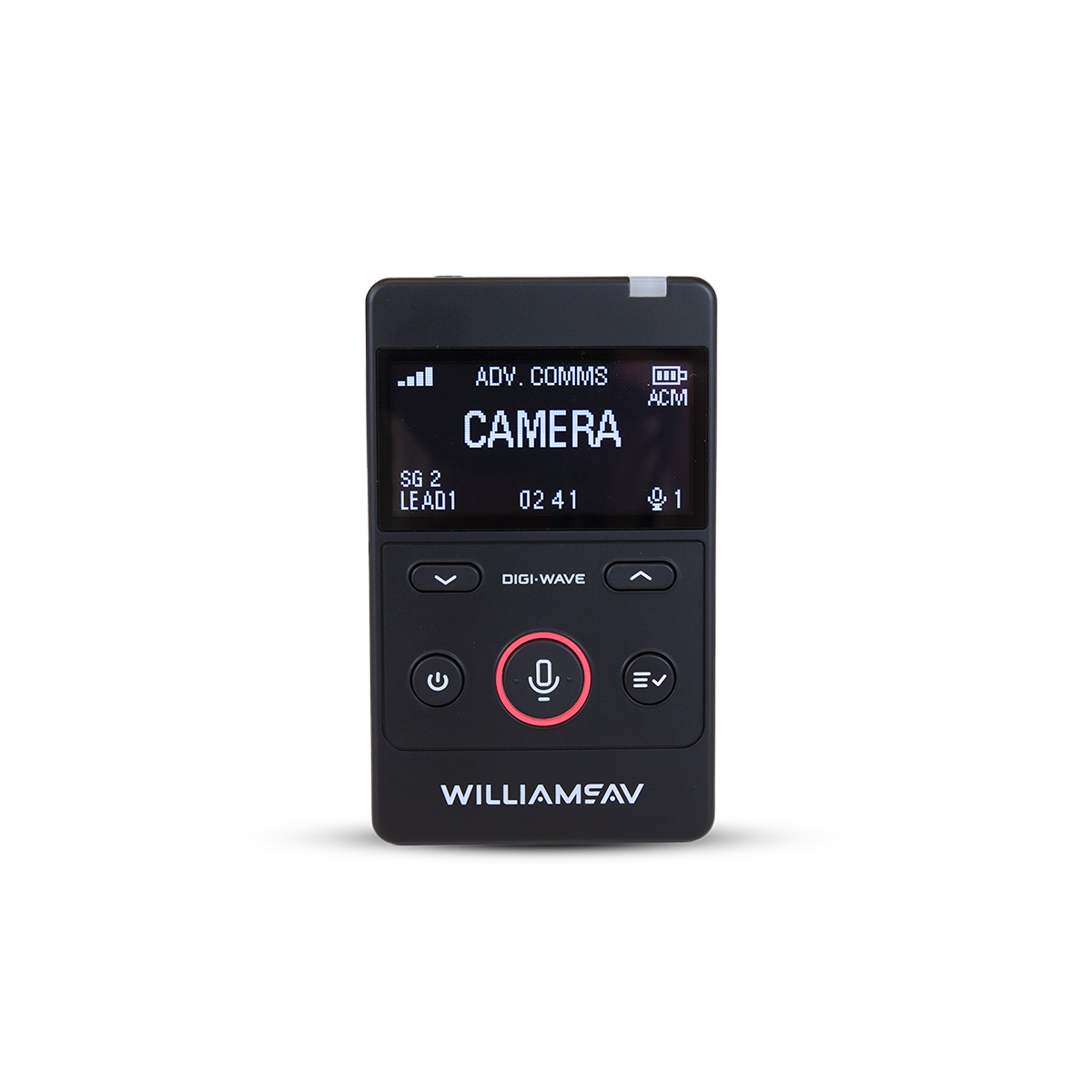

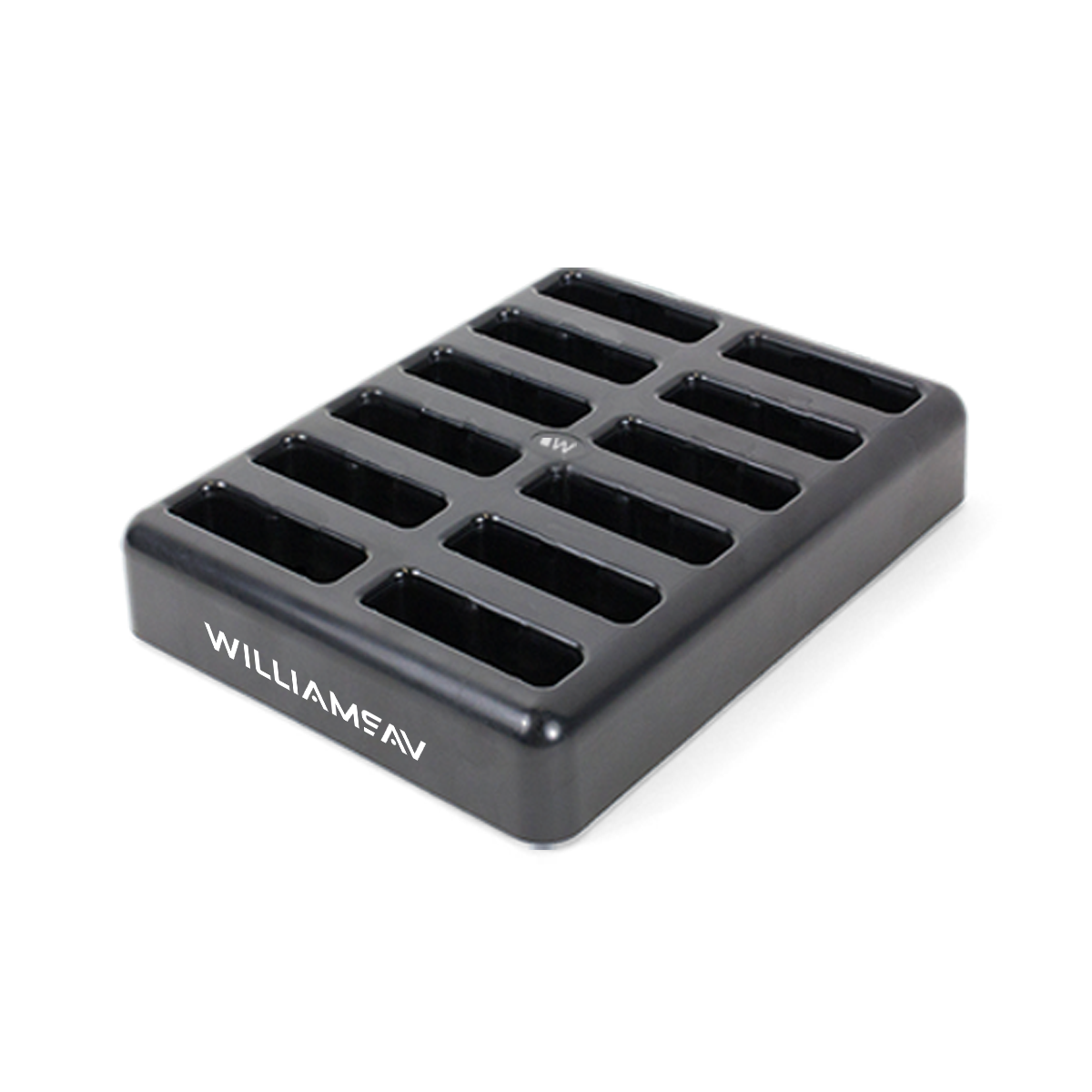

The DW SYS3ACM-00 extends the Digi-Wave intercom platform to twelve users based on the 400 Series with Advanced Communication Mode. It includes twelve DLT 400-ACM transceivers, twelve single-muff production headset microphones, twelve protective cases, a 12-bay charger, and a wheeled carry case for transport. ACM supports leader and guest roles, up to four subgroups, all-call, and private calls; any transceiver can act as the main sync unit to define coverage, and units can be wired to a Digi-Wave Connect for constant power in fixed positions. Operating license-free in 2.4 GHz with frequency hopping, the system resists interference and needs no RF coordination. Transceivers charge over USB-C or the 12-bay charger, reaching a full charge in about five hours. This configuration suits multi-position productions and installations that rotate a large crew. Add DLR 400 RCH receivers for listen-only staff.

Key Features

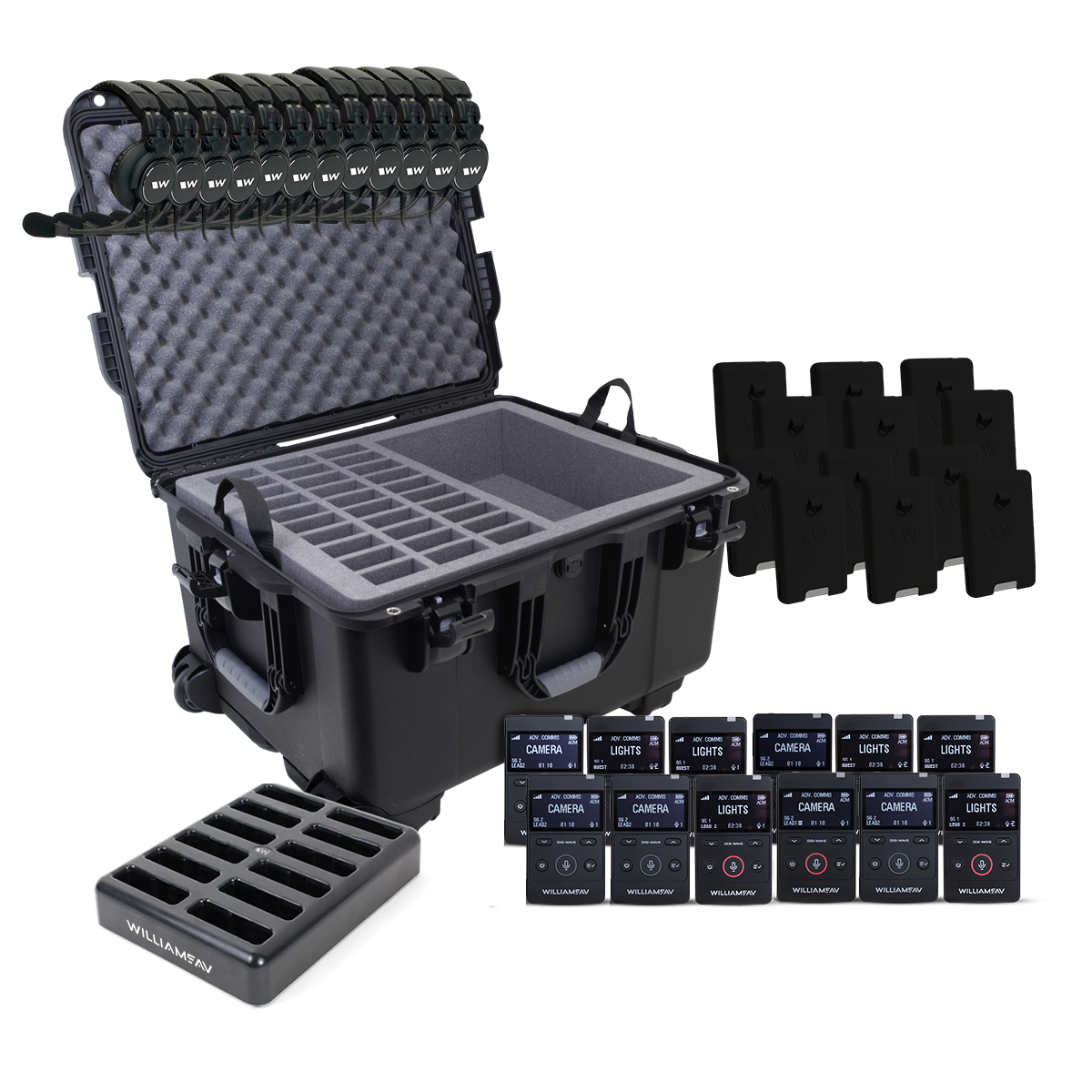

• Twelve-user intercom kit — Twelve ACM transceivers, headsets, cases, and 12-bay charger in a wheeled case.
• Full-duplex communication — Real-time two-way talk among all users.
• Subgroups and private calls — Up to four subgroups, all-call, and private-call functions.
• License-free 2.4 GHz — Frequency-hopping operation, no coordination required.
• Transport-ready — Wheeled carry case for large mobile crews.
• USB-C / 12-bay charging — Full charge in about five hours.
• Expandable — Add transceivers or receivers within the Digi-Wave 400 Series.

Typical Applications

• Broadcast studio and large live event production intercom
• House of worship multi-position production coordination
• Auditorium and multi-purpose room crew communication
• Commercial meeting spaces and training rooms

Technical Specifications

Full specifications: Williams AV Digi-Wave 400 spec sheet.

Frequently Asked Questions

How many users does it support?
Twelve full-duplex transceivers with headsets, expandable within the Digi-Wave 400 Series.

Does it require a base station?
No. Any transceiver can be the main sync unit; the system is portable.

Does it need frequency coordination?
No. It operates license-free in 2.4 GHz with frequency hopping.

Can listen-only staff join?
Yes, using DLR 400 RCH receivers in the same system.

How is it charged and transported?
Via the included 12-bay charger; a wheeled carry case is included for transport.

What warranty and support are included?
Two-year parts and labor; Creation Networks provides design and integration support.
