Williams AV DLT 400-ACM – Digi-Wave Production Intercom Transceiver

Product Overview

The Williams AV DLT 400-ACM is a Digi-Wave 400 Series transceiver with the Advanced Communication Module, built for portable two-way production intercom. It provides full-duplex, license-free 2.4 GHz communication with channel naming, subgroups, and private-call functions, making it a flexible wireless intercom transceiver for broadcast studios, houses of worship, and event production. The bodypack transceiver operates without a fixed base station.

Product Description

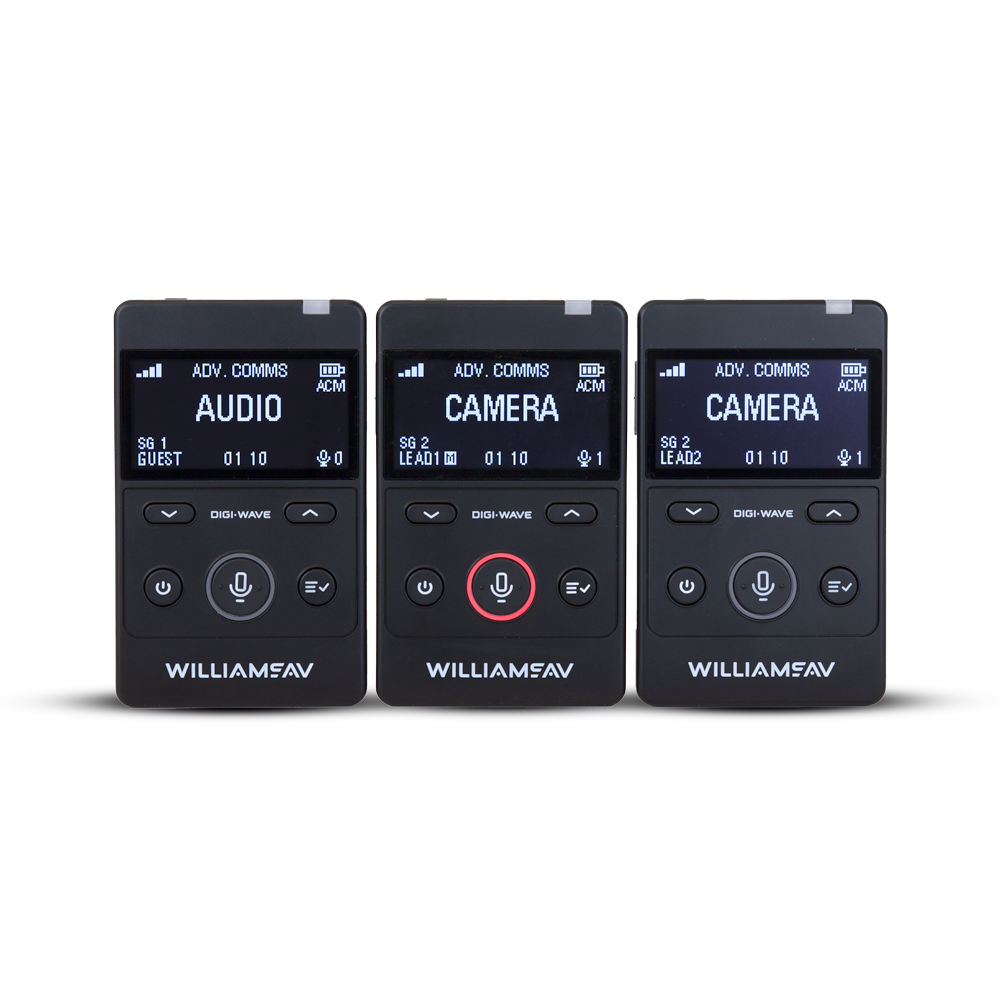

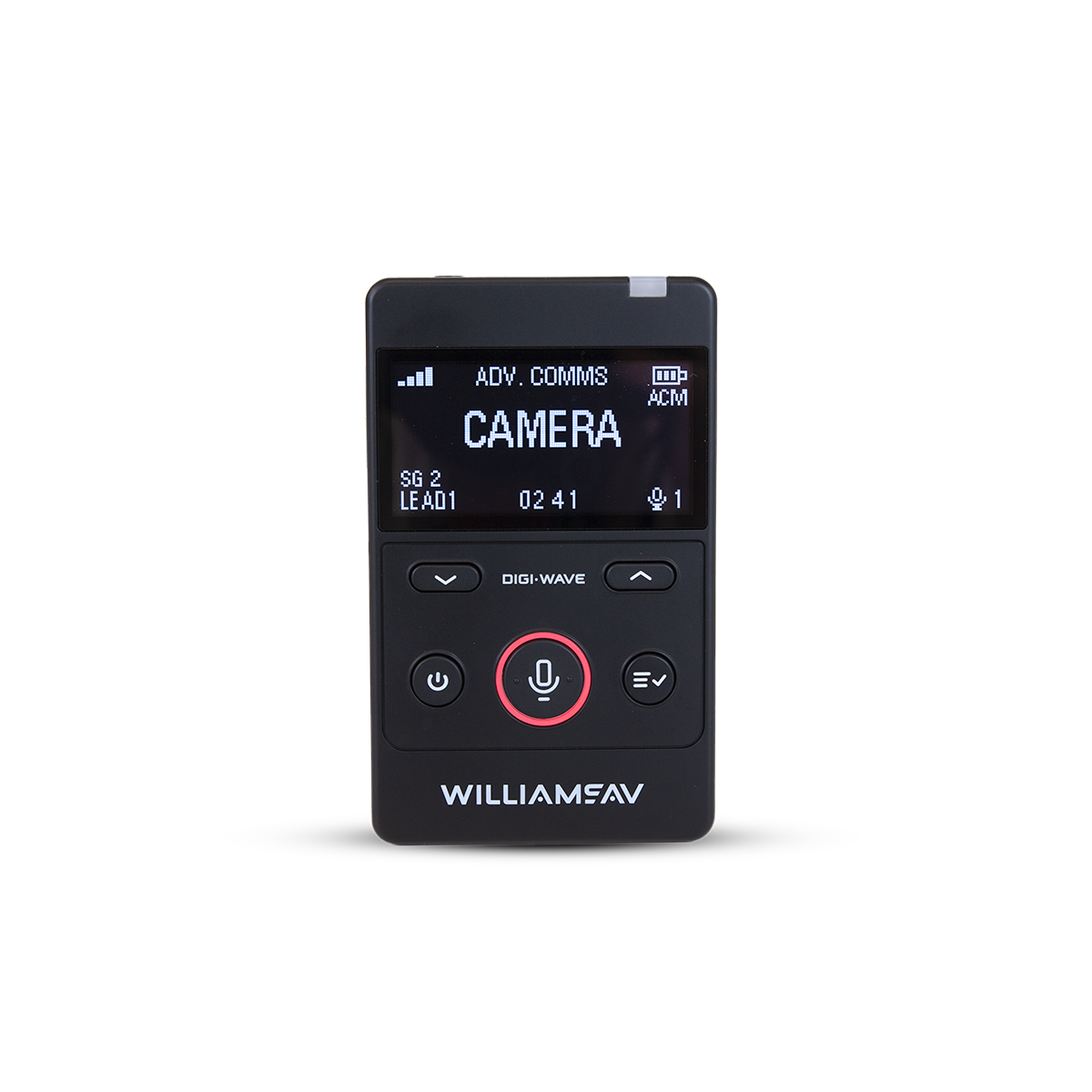

The DLT 400-ACM is a bodypack Digi-Wave transceiver configured for Advanced Communication Mode (ACM), a full-duplex intercom workflow with leader and guest roles, up to four subgroups, all-call, and private calls. It operates in the license-free 2.4 GHz band with a frequency-hopping algorithm to resist interference in RF-dense venues, so no frequency coordination is required. Any unit can be assigned as the main sync unit to define coverage, and units can be wired to a Digi-Wave Connect (DWD 401) for constant power in fixed positions. The transceiver charges over USB-C or a compatible Williams AV charging station, with a full charge in about five hours from its internal lithium-polymer battery. A 3.5 mm jack accepts headsets, earphones, or neckloops for talk and listen. The DLT 400-ACM is compatible across the Digi-Wave 400 Series and pairs with production headsets, the CHG 412 charger, and DLR 400 RCH receivers for listen-only participants.

Key Features

• Full-duplex intercom — Real-time two-way communication without push-to-talk.
• Advanced Communication Mode — Leader/guest roles, up to four subgroups, all-call, and private calls.
• License-free 2.4 GHz — Frequency-hopping operation resists interference; no coordination required.
• Flexible sync — Any unit can act as main sync to define system coverage.
• USB-C charging — Internal lithium-polymer battery, full charge in about five hours.
• Standard 3.5 mm jack — Works with headsets, earphones, and neckloops.
• 400 Series compatible — Integrates with existing Digi-Wave transceivers and receivers.

Typical Applications

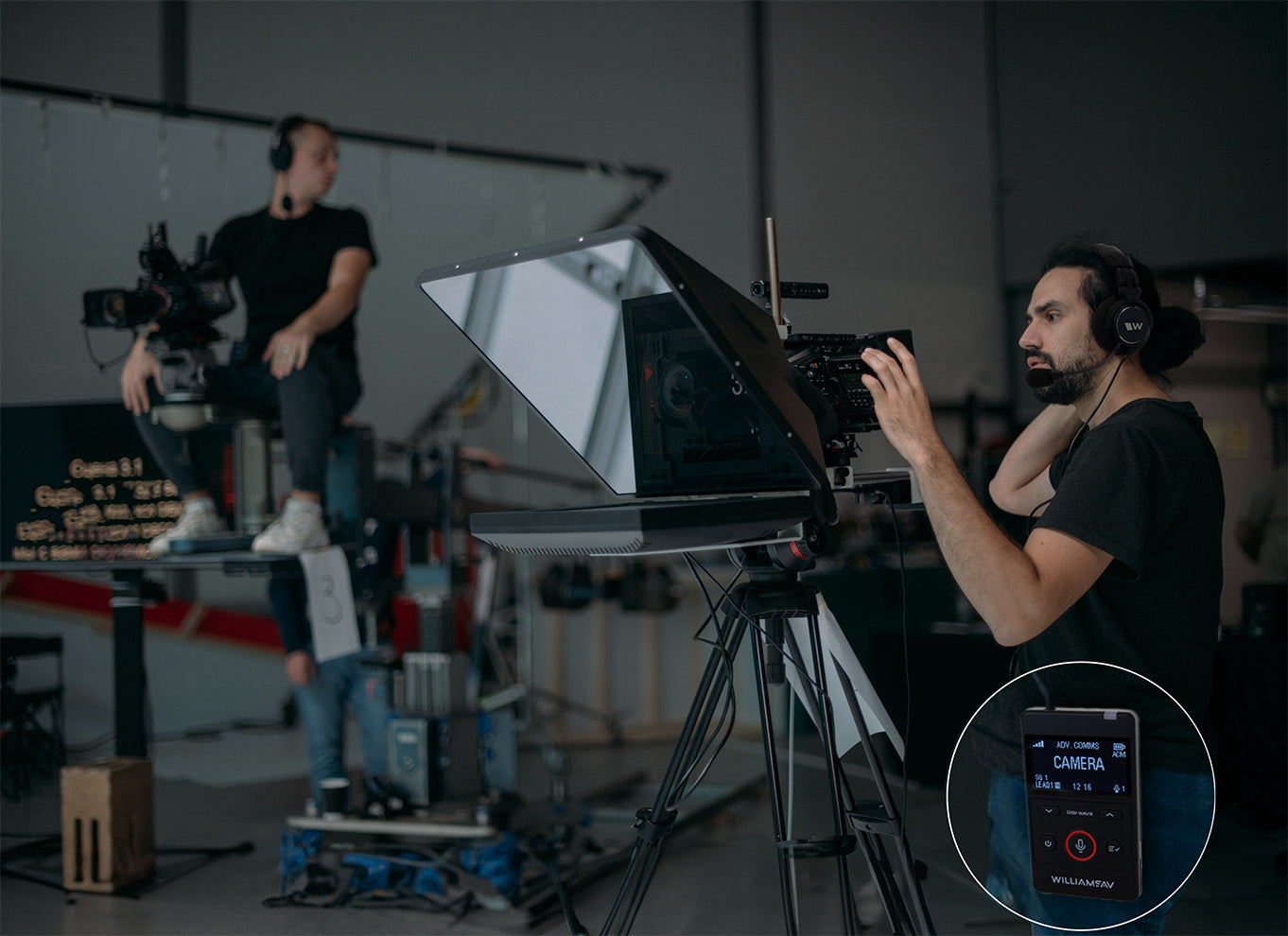

• Broadcast studio and event production intercom
• House of worship volunteer and production coordination

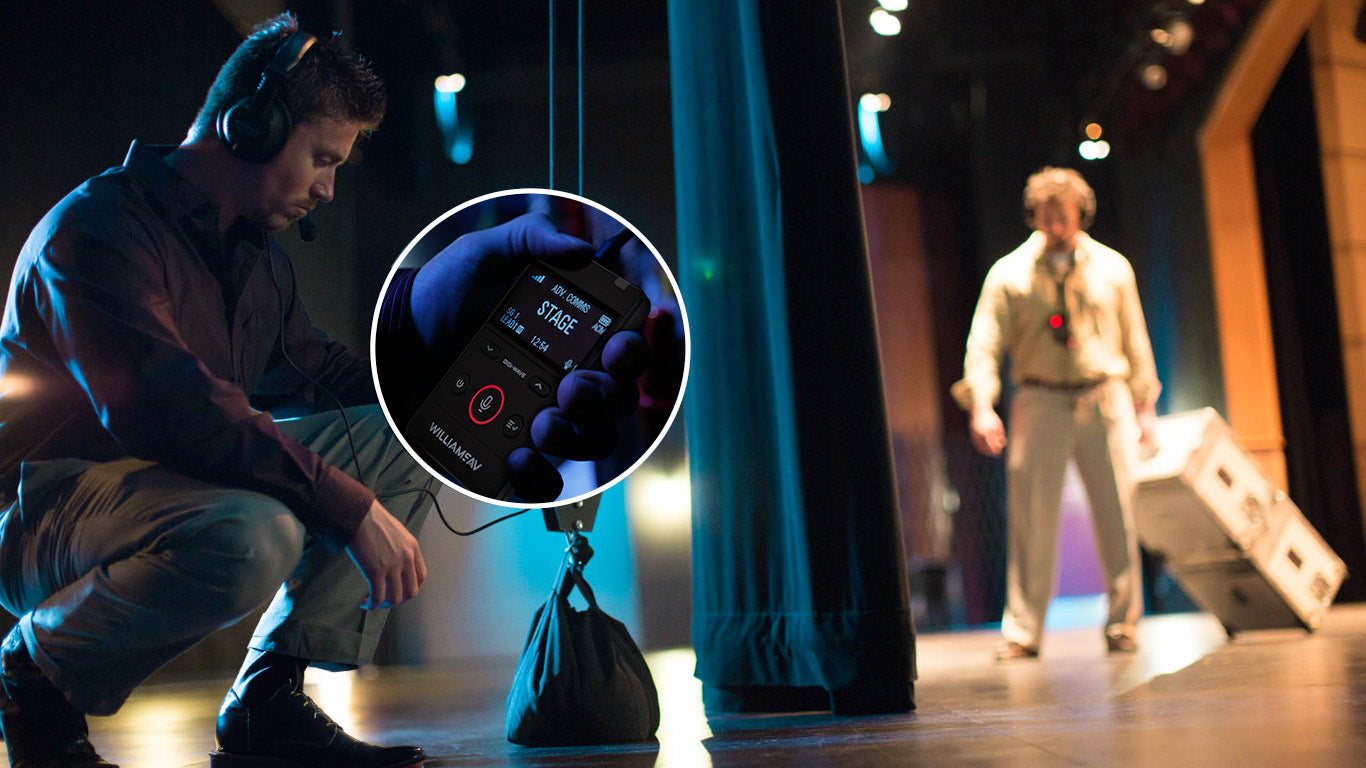

• Auditorium and multi-purpose room crew communication
• Commercial meeting spaces and training rooms

Technical Specifications

Full specifications: Williams AV Digi-Wave 400 transceiver spec sheet.

Frequently Asked Questions

What does ACM add?

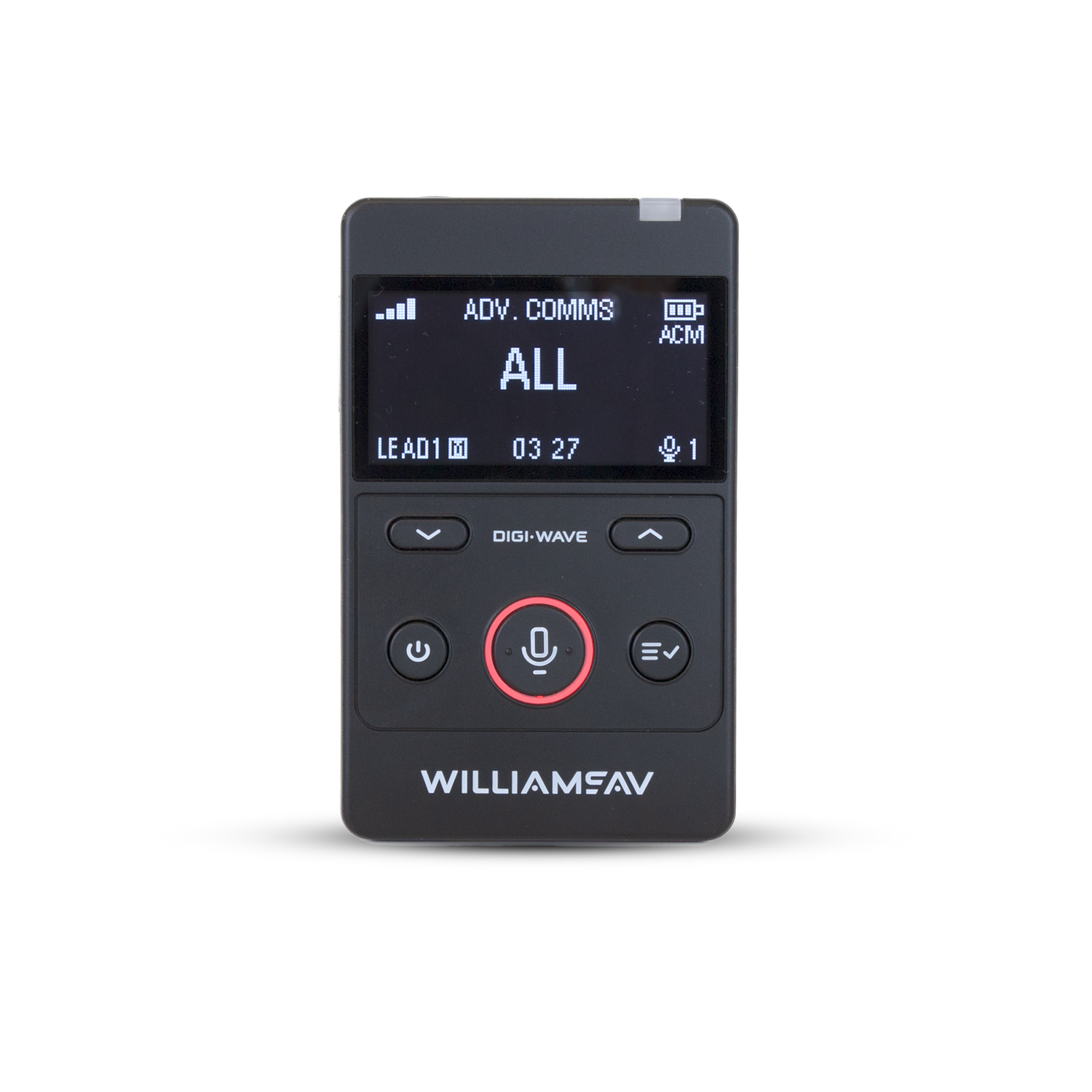

Advanced Communication Mode provides full-duplex intercom with leader/guest roles, up to four subgroups, all-call, and private calls.

Does it need frequency coordination?
No. It operates license-free in the 2.4 GHz band with frequency hopping to avoid interference.

How is it charged?
Over USB-C or a compatible Williams AV charging station; a full charge takes about five hours.

Can listen-only users join?
Yes, using DLR 400 RCH receivers within the same Digi-Wave system.

Is it compatible with our existing Digi-Wave units?
Yes, it is compatible across the Digi-Wave 400 Series.

What warranty and support are included?
Two-year parts and labor; Creation Networks provides design and integration support.
