Williams AV IR SYS30-00 – Infrared Assistive Listening System (PoE)
Product Overview
The Williams AV IR SYS30-00 is a complete, medium-area infrared assistive listening system with Power over Ethernet, built for room-contained audio in commercial AV installations. It pairs the SoundPlus T3 infrared transmitter with two four-channel receivers, headphones, a neckloop, and a charging kit, making it a turnkey infrared assistive listening system for courtrooms, boardrooms, and government spaces. Because infrared stays inside the room, it delivers the signal privacy that RF and Wi-Fi systems cannot.
Product Description
The IR SYS30-00 provides everything an integrator needs to deploy a contained infrared assistive listening system in a single room. At its core is the IR T3 medium-area infrared transmitter, which broadcasts on up to two channels (2.3/2.8 MHz or 3.3/3.8 MHz) for dual-language interpretation or a single assistive-listening feed. The system includes two WIR RX22-4N four-channel infrared receivers, headphones, a neckloop for telecoil users, a two-bay charger, rechargeable batteries, and a remote power kit for the emitter. Infrared coverage reaches up to 32,000 ft2 single-channel with the included receivers when emitters are placed for line-of-sight. Power over Ethernet and a universal 48 VDC supply give installers flexible cabling, and RS-232 control supports integration with third-party AV control systems. The system is ideal where confidentiality is required, and additional receivers, earphones, and WIR RX22 receivers can be added as capacity grows.
Key Features

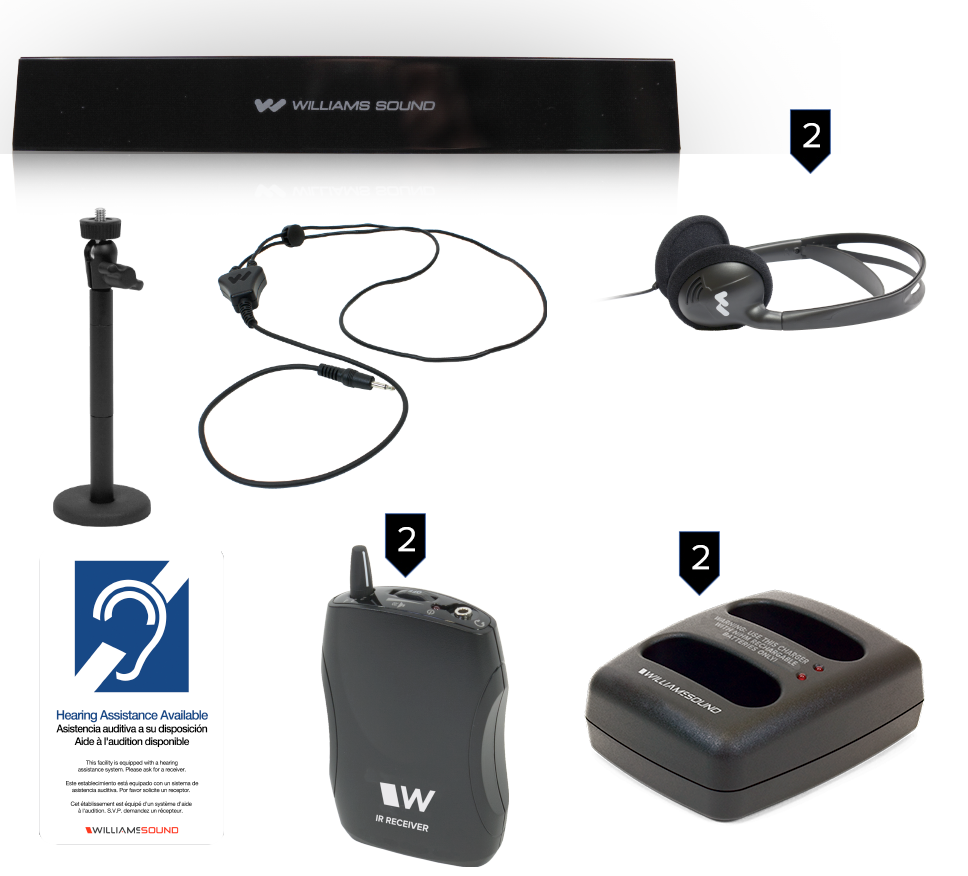

- Turnkey infrared system — Transmitter, two receivers, headphones, neckloop, charger, and power kit in one package.
- Room-contained privacy — Infrared signal does not pass through walls, ideal for courtrooms and confidential meetings.
- Two-channel capability — Supports dual-language interpretation or a single assistive-listening feed.
- PoE-ready — Power over Ethernet plus universal 48 VDC supply for flexible installation.
- Large coverage — Up to 32,000 ft2 single-channel with the included receivers and proper emitter placement.

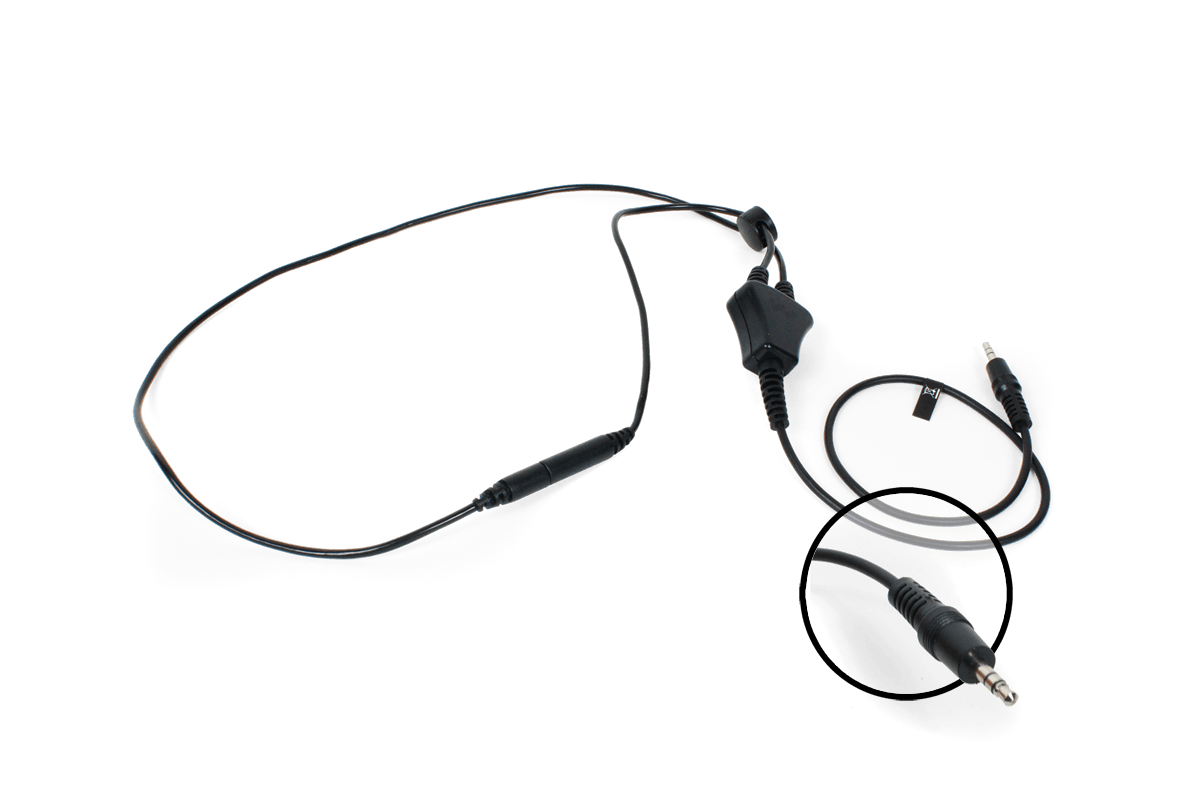

- Telecoil support — Included neckloop serves hearing-aid users with a T-coil.
- Control integration — RS-232 monitoring and control for third-party AV systems.
Typical Applications
- Courtrooms and government spaces requiring contained audio
- Boardroom and conference room assistive listening
- Auditorium and multi-purpose room interpretation
- Training rooms and commercial meeting spaces
Technical Specifications
| Technology | Infrared (line-of-sight, room-contained) |

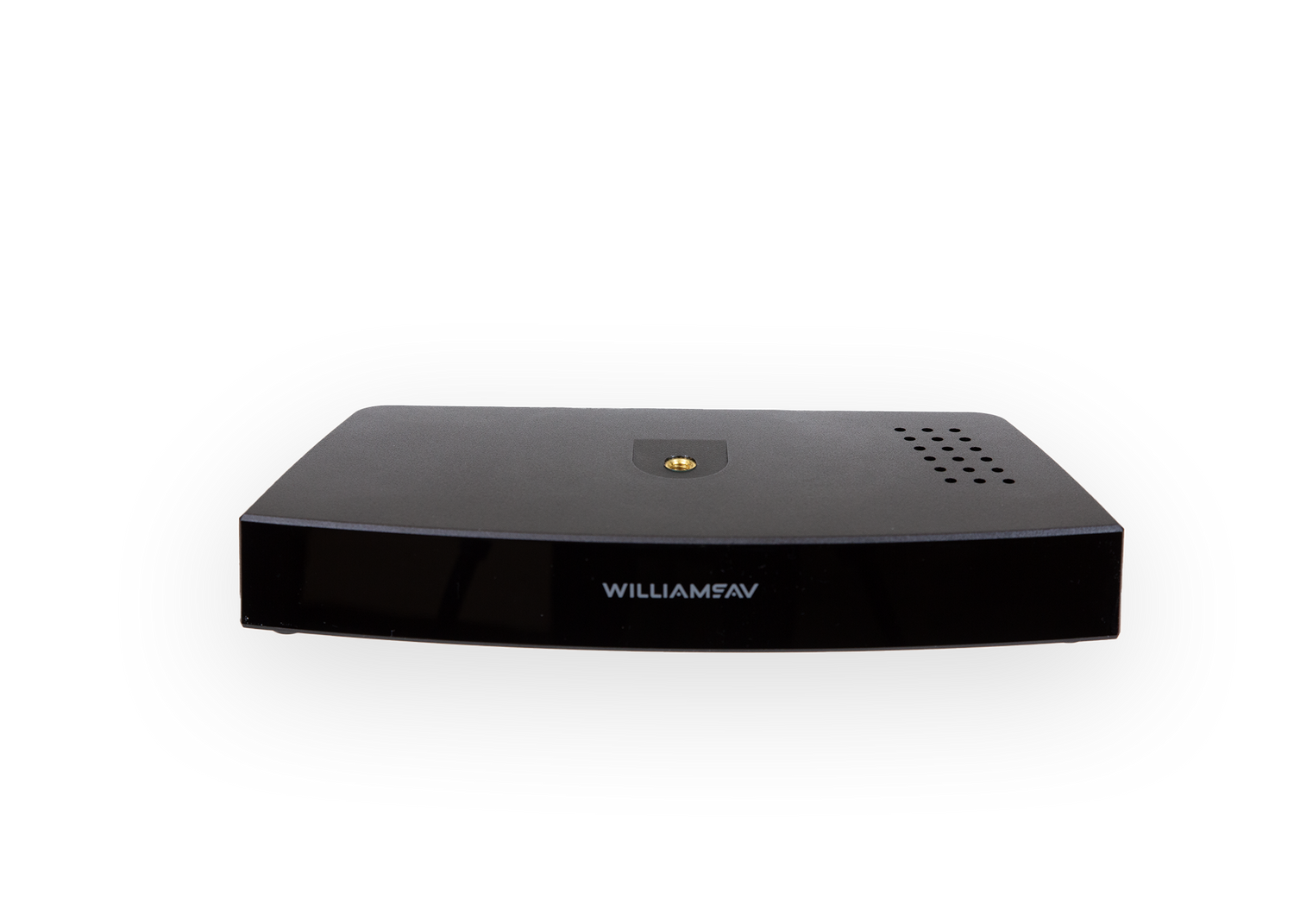

| Transmitter | IR T3 medium-area, 2.3/2.8 or 3.3/3.8 MHz |

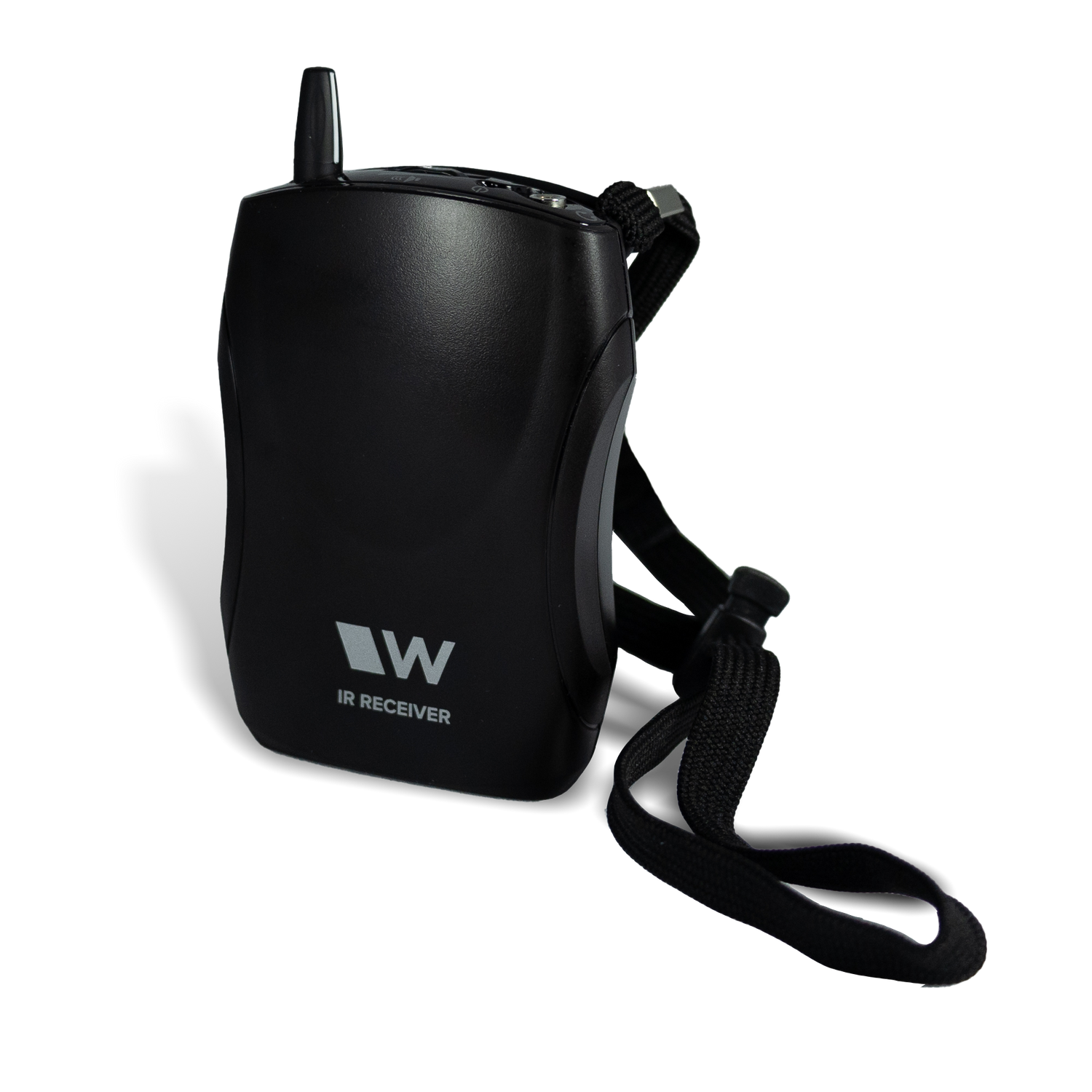

| Included receivers | 2 x WIR RX22-4N (4-channel) |
| Coverage | Up to 32,000 ft2 (single-channel) |
| Power | 48 VDC universal supply; optional PoE |

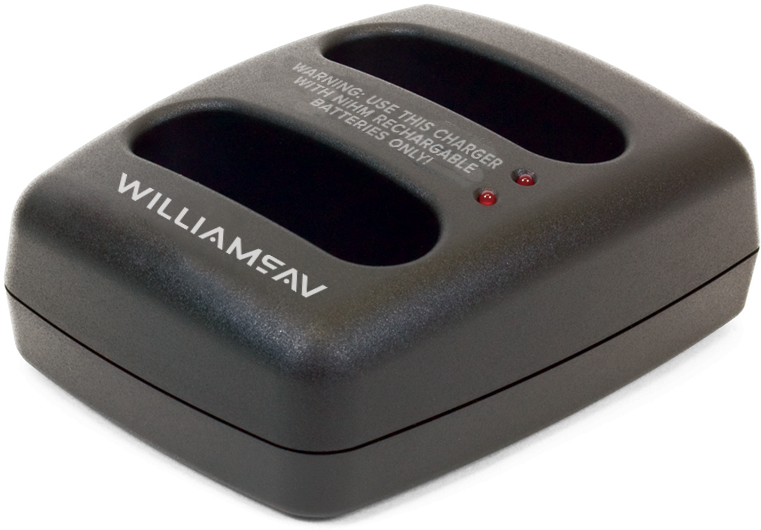

| Includes | Headphones, neckloop, 2-bay charger, rechargeable batteries, PoE kit |
| Warranty | 2-year parts and labor |
Full specifications: Williams AV SoundPlus T3 infrared system spec sheet.
Frequently Asked Questions
Why infrared instead of RF for this space?
Infrared is contained within the room, so it provides privacy required in courtrooms and confidential government meetings.
How many listeners can it support?
The included receivers cover typical rooms; additional WIR RX22 receivers and earphones can be added for larger audiences.
How is the transmitter powered?
Via the included 48 VDC universal supply or optional Power over Ethernet.
Does it support hearing aids?
Yes. The included neckloop delivers audio to hearing aids and cochlear implants equipped with a telecoil.
Can it be controlled by a third-party AV system?
Yes, through RS-232 monitoring and control.
What warranty and support are included?
A two-year parts-and-labor warranty; Creation Networks provides design and integration support.
