Vizrt TriCaster Vizion Ultimate Production Bundle

Product Overview

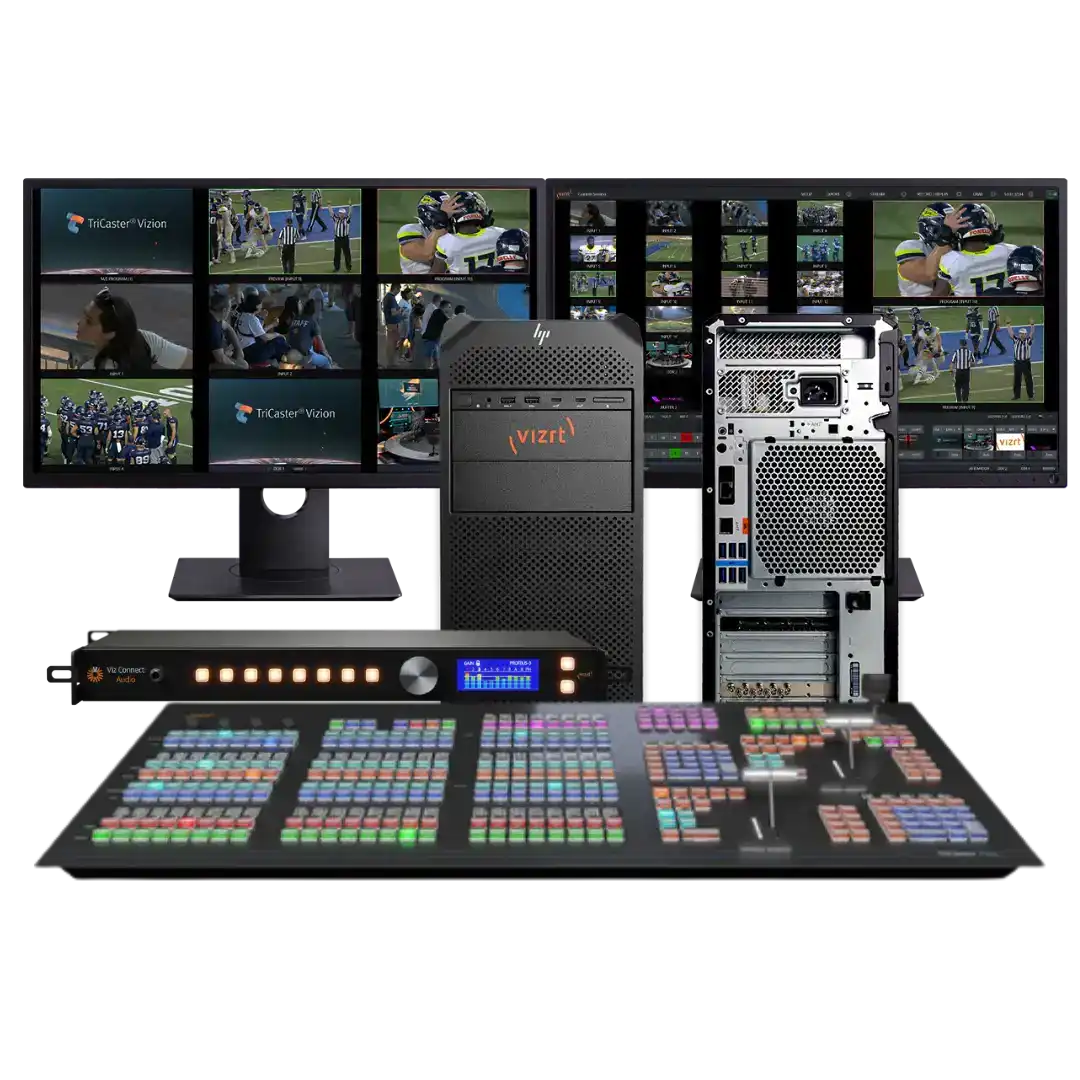

The Vizrt TriCaster Vizion Ultimate Production Bundle is Vizrt's most complete all-in-one live broadcast package, combining the TriCaster Vizion Tower with 16 SDI I/O, the Flex Dual Control Panel, and a Viz Connect Audio license into a single purchase. This TriCaster Vizion ultimate bundle is designed for broadcast engineers, live production directors, and system integrators who want a complete, pre-configured broadcast production system with physical control surface and audio network management — ready to deploy in broadcast studios, houses of worship, campus athletics facilities, and large-format live event venues.

Product Description

The Ultimate Production Bundle brings together three production-critical components: the TriCaster Vizion Tower with 16 SDI I/O as the production core, the Flex Dual Control Panel for tactile physical production control, and Viz Connect Audio for professional audio network management. The TriCaster Vizion Tower 16 SDI delivers 44 simultaneous inputs (any mix of 16 bidirectional 12G-SDI ports and NDI sources), eight M/E banks, UHD 4K60 production, 56 NDI outputs, and the full Viz Flowics graphics platform with a 36-month Basic subscription — all running as a perpetual license on the HP Z4 G5 workstation tower. The Flex Dual Control Panel provides 24 direct cross-point buttons, dual T-bars, a full-sized joystick, two 10-key dynamic menu systems, and LCD-labeled source buttons, connecting to the TriCaster over NDI via standard Ethernet — no dedicated hardware cable required. Viz Connect Audio extends audio network management with Dante, AES67, and NDI audio routing and monitoring. This bundle eliminates the need to source these components separately, providing a fully integrated broadcast system at a combined price that represents meaningful savings over individual component purchases. AI-assisted production tools, advanced chroma key and virtual set compositing, five media players, and a 44-channel audio mixer complete the feature set. A 3-year hardware warranty and 1-year standard support are included.

Key Features

• TriCaster Vizion Tower 16 SDI I/O — Full broadcast production platform: 44 inputs, 16 bidirectional 12G-SDI ports, 8 M/Es, 4K60, 56 NDI outputs.
• Flex Dual Control Panel Included — 24 direct cross points, dual T-bars, joystick, LCD labels, 2 ME banks; connects via NDI over Ethernet.
• Viz Connect Audio Included — Professional NDI audio network management with Dante and AES67 support.
• Viz Flowics Graphics — 36-month Basic subscription; broadcast-grade motion graphics, animated lower thirds, and 140+ ready-to-use templates.
• 8 Mix Effects (M/E) Banks — Eight independent M/E banks for complex multi-layer live production.
• UHD 4K60 Production — Full 2160p 59.94 across SDI, NDI, and all mix outputs.
• AI Production Automation — Built-in AI tools reduce operator workload during live broadcasts.
• 44-Channel Audio Mixer — NDI-native audio with DSP processing; Viz Connect Audio extends routing and monitoring.
• 5 Media Players + 15 Buffers — Complete in-production playback capability for clips, stills, graphics, and audio.
• HP Z4 G5 Workstation Tower — Enterprise-grade hardware with 3-year hardware warranty and 1-year standard support.

Typical Applications

• Broadcast studio
• House of worship
• Sports production
• Campus athletics
• Auditorium
• Government space
• Corporate all-hands room
• Training room

Technical Specifications

Frequently Asked Questions

What is included in this bundle exactly?

The Ultimate Production Bundle includes: (1) TriCaster Vizion Tower with 16 SDI I/O (perpetual license, HP Z4 G5 hardware), (2) Vizrt Flex Dual Control Panel (FG-003289-R001), and (3) Viz Connect Audio license. A 36-month Viz Flowics Basic subscription is also included with the TriCaster Vizion.

Does the Flex Dual Control Panel require a separate Ethernet cable run to the TriCaster?

The Flex Dual connects to the TriCaster Vizion via NDI over any standard Ethernet network. It does not require a dedicated point-to-point cable — it can operate over the same production network as other NDI devices, including from a separate room or location.

Can the Flex Dual Control Panel control other TriCaster systems besides the Vizion?

The Flex Dual is compatible with TriCaster TC1, TC1 Pro, Vectar, and TriCaster 2 Elite in addition to the Vizion platform. This makes it a flexible long-term investment that can be reused across system upgrades.

Is a monitor, keyboard, or mouse included?

No. Operator monitors, keyboard, and mouse must be sourced separately. The Flex Dual Control Panel replaces or supplements software-based control but does not provide a display.

What does Viz Connect Audio add beyond the built-in audio mixer?

The TriCaster Vizion includes a 44-channel NDI audio mixer. Viz Connect Audio adds network-level audio management — Dante and AES67 routing, source monitoring, and expanded I/O control — for facilities running complex audio-over-IP infrastructure.

Is this bundle available for government or educational procurement?

Yes. Creation Networks works with government agencies and educational institutions. Contact us for quote documentation, cooperative purchasing options, or institutional pricing discussions.
