Vizrt TriCaster Vizion Tower 16 & Flex Dual Control Panel

Product Overview

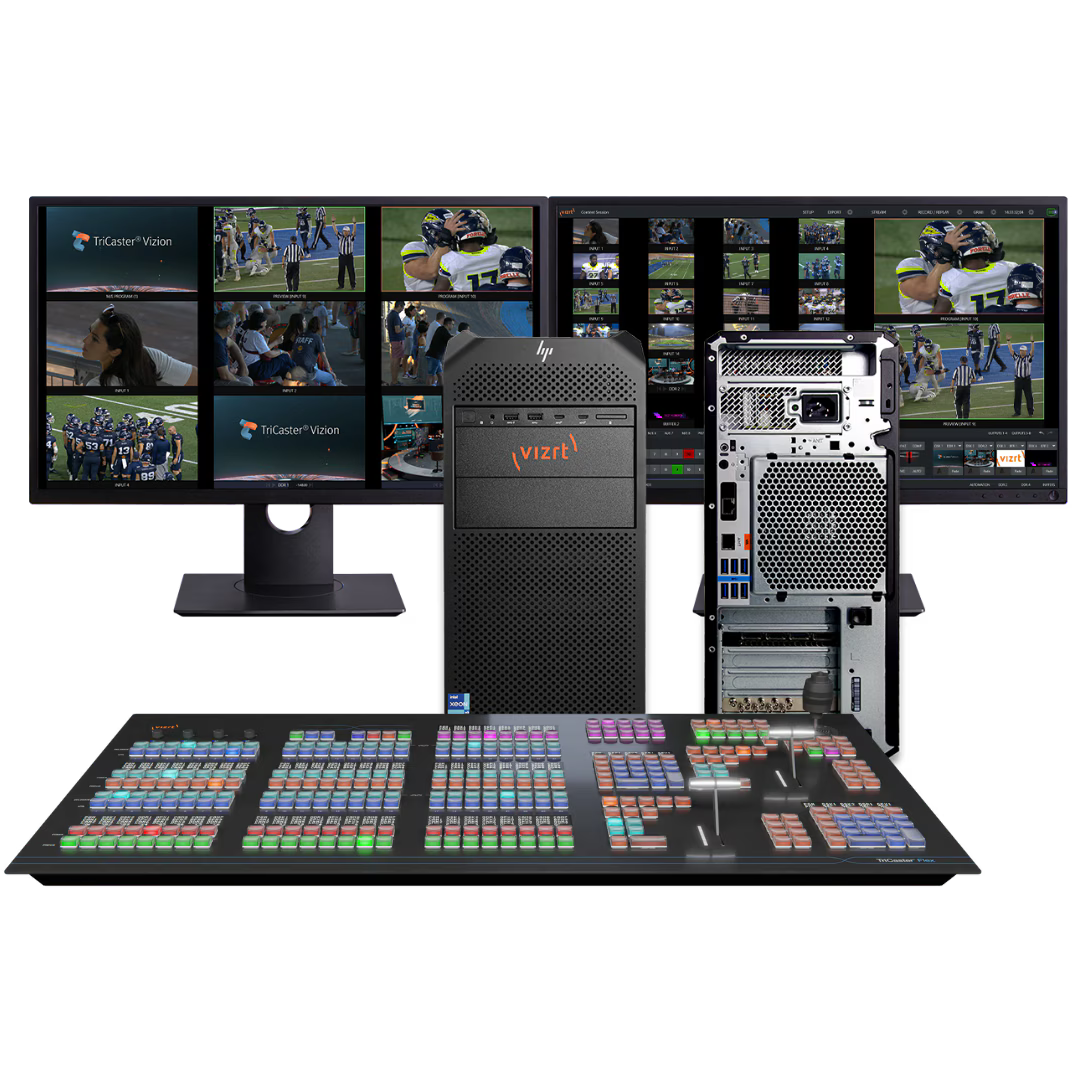

The Vizrt TriCaster Vizion Tower 16 & Flex Dual Control Panel bundle pairs the TriCaster Vizion Tower with 16 SDI I/O with the Flex Dual Control Panel, delivering a broadcast-ready production system with full physical control surface integration. This TriCaster Vizion Tower bundle is optimized for broadcast studios, sports production environments, and houses of worship requiring 16-channel SDI connectivity, deep NDI integration, and a professional hardware control surface for demanding live productions with multiple operators or complex switching workflows.

Product Description

This bundle packages two mission-critical production components: the TriCaster Vizion Tower with 16 SDI I/O as the production core and the Flex Dual Control Panel as the operator interface. The TriCaster Vizion Tower 16 SDI provides 44 simultaneous inputs across 16 bidirectional 12G-SDI ports and full NDI capacity, eight M/E banks, UHD 4K60 production, 56 NDI outputs, Viz Flowics graphics with a 36-month Basic subscription, AI production automation, five media players, 15 media buffers, and a 44-channel NDI-native audio mixer — all on the HP Z4 G5 workstation tower with a perpetual license. The Flex Dual Control Panel provides 24 direct cross-point buttons across two M/E banks, dual T-bars for smooth manual transitions, a full-sized joystick for PTZ camera control and effects, two 10-key dynamic menu systems for deep production control, and LCD-labeled source buttons for fast source identification. The panel connects to the TriCaster Vizion over NDI via standard Ethernet, allowing the control surface to be positioned at the operator station while the tower hardware sits in a machine room or production rack. The 3-year hardware warranty and 1-year standard support are included with this bundle.

Key Features

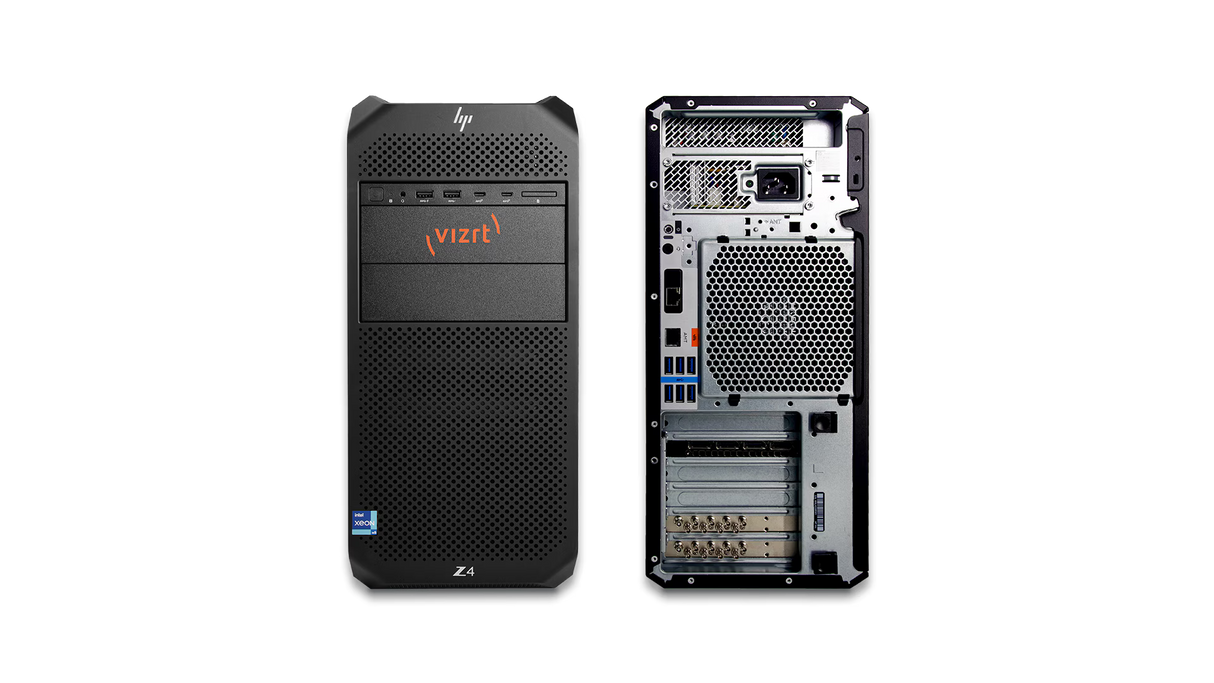

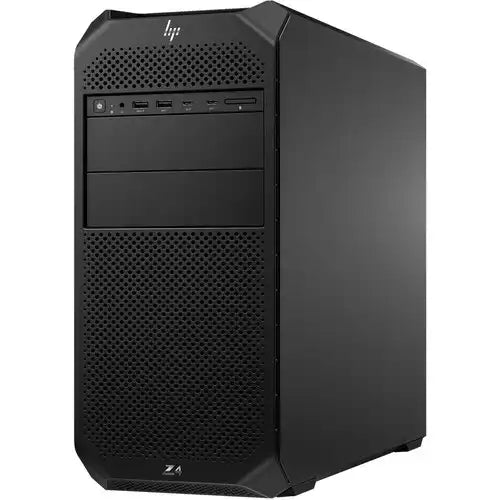

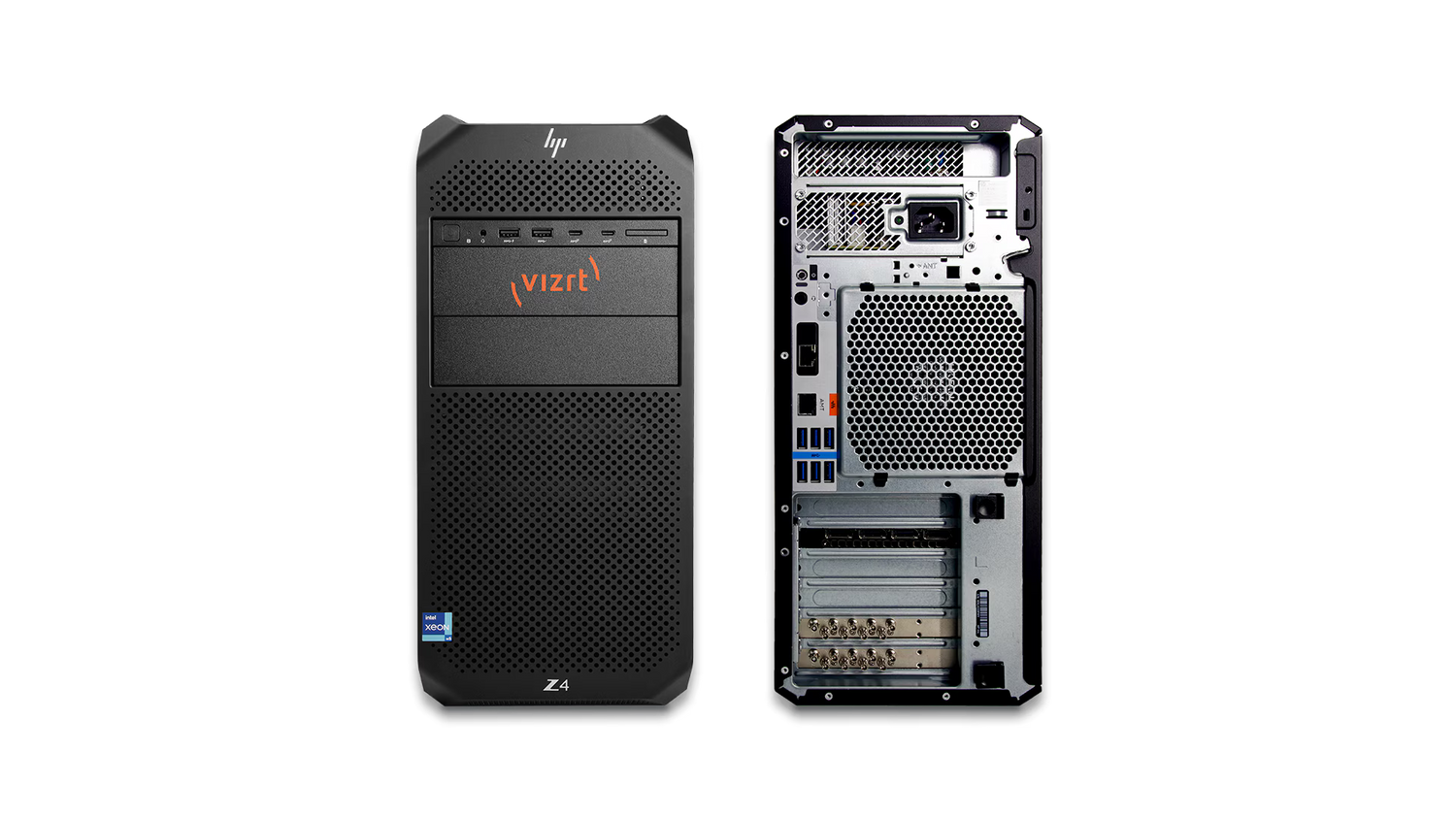

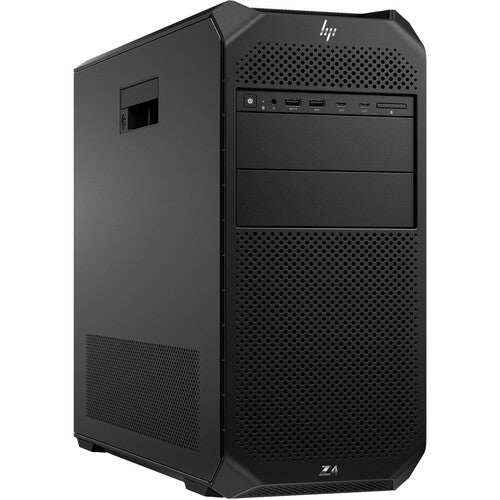

• TriCaster Vizion Tower 16 SDI I/O — 44 inputs, 16 bidirectional 12G-SDI, 8 M/Es, 4K60, 56 NDI outputs; perpetual license on HP Z4 G5.
• Flex Dual Control Panel — 24 cross points, 2 M/E banks, dual T-bars, full joystick, LCD labels; NDI-connected over Ethernet.
• Physical Production Control — Tactile T-bar transitions, illuminated buttons, and joystick control for PTZ cameras and effects.
• UHD 4K60 Production — Full 2160p 59.94 across SDI, NDI, and mix outputs.
• 8 Mix Effects (M/E) Banks — Eight independent M/E banks for multi-layer broadcast production compositing.
• Viz Flowics Graphics — 36-month Basic subscription; motion graphics, lower thirds, animated templates, data integrations.
• AI Production Automation — Built-in AI tools automate production workflows and reduce manual crew requirements.
• 44-Channel Audio Mixer — NDI-native with DSP; talkback and microphone inputs on the Flex Dual add IFB communication capability.
• 5 Media Players + 15 Buffers — Complete playback capability for clips, stills, graphics, and audio in live production.
• NDI Network Control — Flex Dual operates over the production network, supporting separation of control surface from production hardware.

Typical Applications

• Broadcast studio
• Sports production
• Campus athletics
• House of worship
• Auditorium
• Government space
• Corporate all-hands room

Technical Specifications

Frequently Asked Questions

Is there a difference between this bundle and the Vizion Tower 16 & Flex Bundle (TCVIZ16TFLEX)?

Both bundles include the TriCaster Vizion Tower 16 SDI I/O and the Flex Dual Control Panel. Contact Creation Networks to confirm whether any component, support tier, or licensing differences exist between SKU BDL-000000117 and TCVIZ16TFLEX before purchasing.

Does the Flex Dual support talkback communication with camera operators?

Yes. The Flex Dual includes talkback input and microphone input with a headphone output, enabling IFB-style communication between the production operator and camera talent or remote contributors.

Can two Flex Dual panels control one TriCaster Vizion simultaneously?

Multiple Flex Dual panels can be connected to a single TriCaster Vizion over the NDI network. Contact Creation Networks to confirm supported configurations and any operational limitations for multi-panel setups.

Does this bundle include Viz Connect Audio?

No. Viz Connect Audio is not included. It is available separately or as part of the Ultimate Production Bundle on Creation Networks.

What is the lead time for this bundle?

Lead times vary. Contact Creation Networks for current availability and shipping estimates for this bundle configuration.
