Vizrt TriCaster Vizion Rack 8 & Flex Dual Control Panel

Product Overview

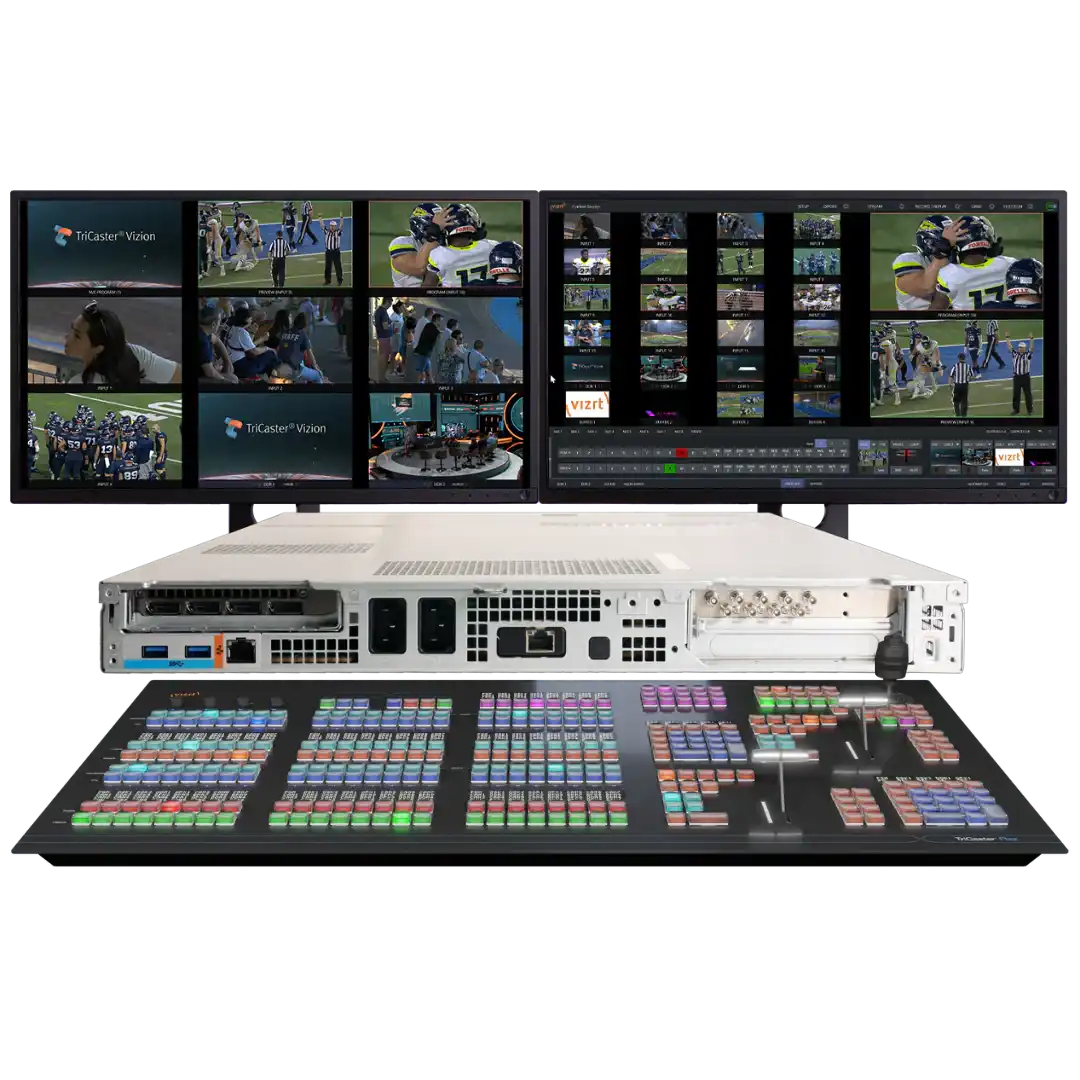

The Vizrt TriCaster Vizion Rack 8 & Flex Dual Control Panel bundle combines the TriCaster Vizion 1RU with 8 SDI I/O and the Flex Dual Control Panel into a complete rack-based broadcast production system with physical operator control. This TriCaster Vizion 1RU bundle is engineered for broadcast facilities, houses of worship, and campus media programs that need a space-efficient rack-mount system with direct 8-channel SDI connectivity and a professional tactile control surface — particularly where the production hardware installs in an equipment rack separate from the operator position.

Product Description

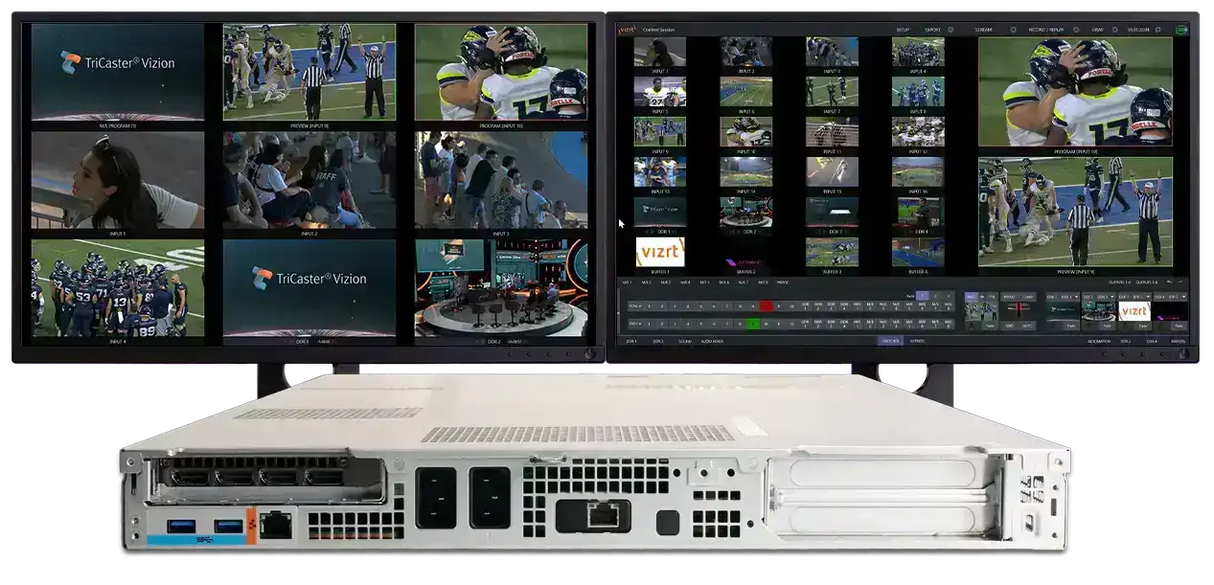

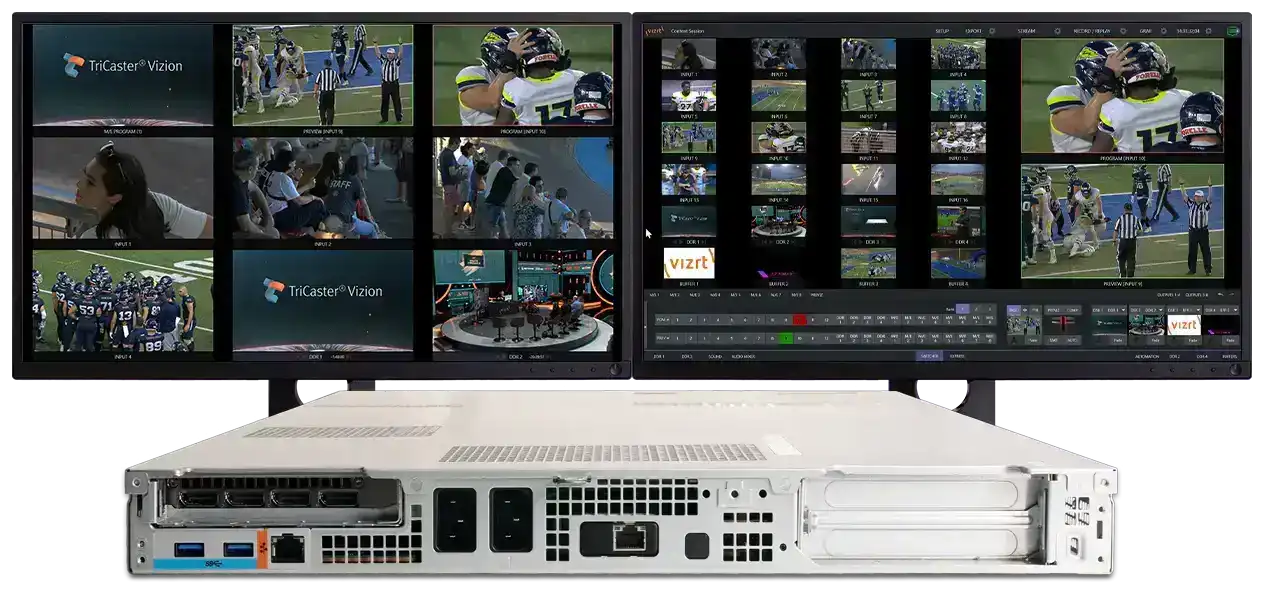

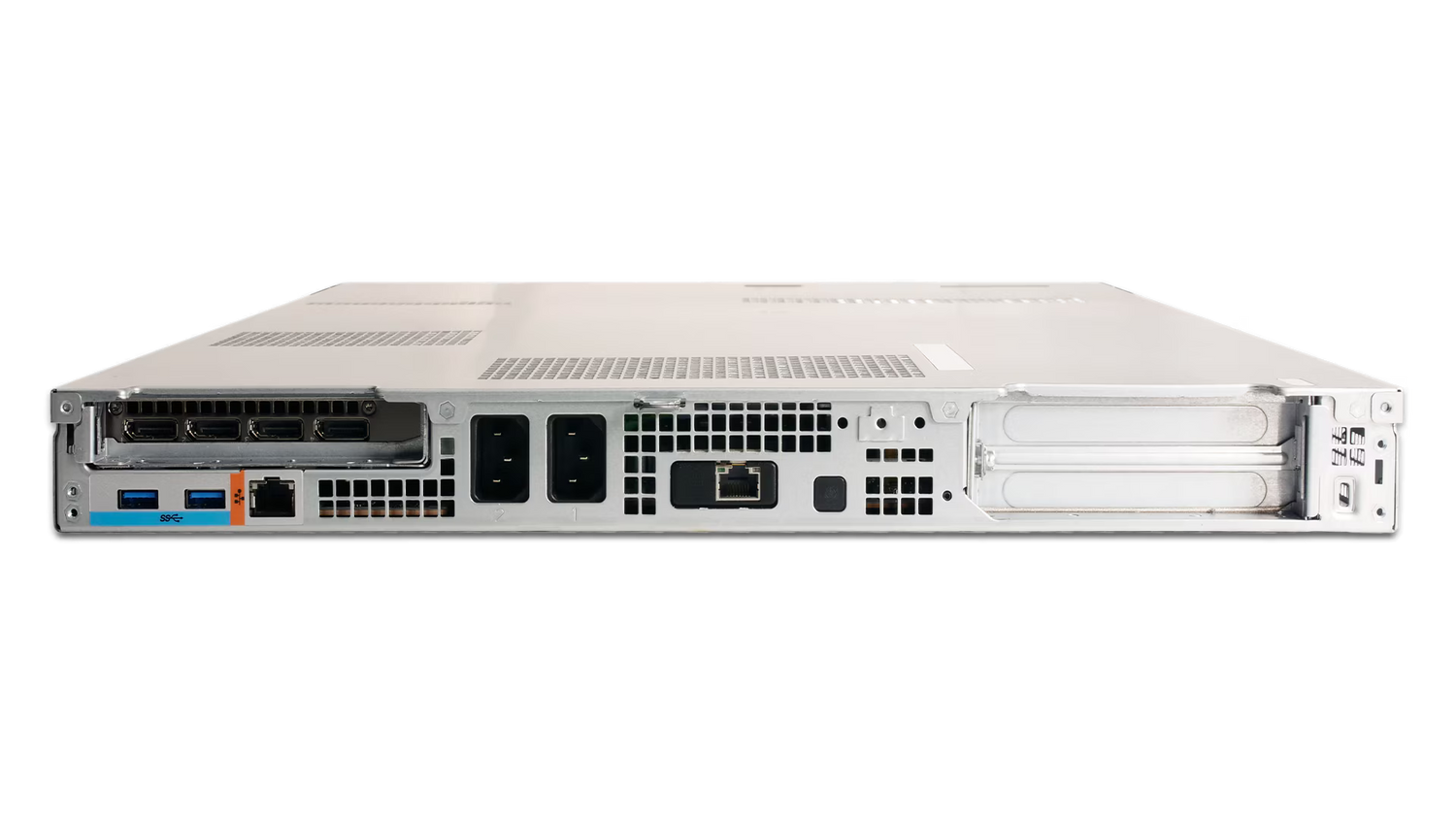

This bundle pairs the TriCaster Vizion 1RU 8 SDI production unit with the Flex Dual Control Panel to deliver a complete broadcast system where the hardware and the operator interface are separate, connected units. The 1RU rack unit provides 44 total inputs across eight bidirectional 12G-SDI ports and full NDI capacity, eight M/E banks, UHD 4K60 production, 56 NDI outputs, Viz Flowics graphics (36-month Basic subscription), AI production automation, five media players, 15 media buffers, and a 44-channel NDI-native audio mixer — all running as a perpetual license on the HP Z4 G5 rack platform. The Flex Dual Control Panel delivers production-grade tactile control with 24 direct cross-point buttons, two M/E banks, dual T-bars for smooth transitions, a full-sized joystick for camera and effects control, two 10-key dynamic menu systems, and LCD-labeled source buttons. Like all Flex Dual panels, it connects via NDI over Ethernet — meaning the panel can sit at any operator desk on the network while the 1RU hardware remains in the equipment rack. Talkback input, microphone input, and headphone output on the panel provide IFB communication for camera operators and talent. The 3-year hardware warranty and 1-year standard support are included.

Key Features

• TriCaster Vizion 1RU with 8 SDI I/O — Rack-mount production: 8 bidirectional 12G-SDI, 44 NDI inputs, 8 M/Es, 4K60, 56 NDI outputs.
• Flex Dual Control Panel — 24 cross points, 2 M/E banks, dual T-bars, joystick, LCD labels; NDI-connected over Ethernet.
• Separate Hardware and Control Surface — 1RU in the rack, Flex Dual at the operator desk; connected over the production network.
• UHD 4K60 Production — Full 2160p 59.94 across SDI, NDI, and all mix outputs.
• 8 Mix Effects (M/E) Banks — Eight independent M/E banks for professional multi-layer production.
• Viz Flowics Graphics — 36-month Basic subscription; broadcast-grade motion graphics and animated lower thirds.
• AI Production Automation — Built-in AI tools for automated production workflows.
• 44-Channel Audio Mixer — NDI-native audio with DSP; Dante/AES67 via optional license.
• Talkback and IFB Capability — Flex Dual includes talkback input, mic input, and headphone output for production communication.
• 5 Media Players + 15 Buffers — Full in-production playback for clips, stills, graphics, and audio.

Typical Applications

• Broadcast studio
• House of worship
• Sports production
• Campus athletics
• Auditorium
• Government space
• Corporate all-hands room

Technical Specifications

Frequently Asked Questions

What is the maximum distance between the Flex Dual panel and the TriCaster 1RU unit?

Because the Flex Dual connects over NDI via Ethernet, the physical distance is limited only by your network infrastructure. On a standard LAN, hundreds of meters are possible. Over a WAN or VPN, remote production is also supported.

Can this rack bundle be upgraded to 16 SDI I/O later?

The 1RU form factor currently supports up to 8 SDI I/O. For 16 SDI I/O, the Tower form factor is required. Contact Creation Networks to discuss upgrade options if higher SDI channel counts are anticipated.

Is keyboard and mouse control still available in addition to the Flex Dual?

Yes. The TriCaster Vizion software UI is always accessible via keyboard and mouse on the connected display. The Flex Dual complements this with tactile switching and transition control.

Does this bundle include training or onboarding resources?

Vizrt provides access to Viz University, the on-demand training platform covering TriCaster Vizion operation. Contact Creation Networks for information on additional onboarding support or integration services.
