Vizrt TriCaster Vizion (2RU Rack-Mount) — Enterprise Live Production Platform

What is the Vizrt TriCaster Vizion?

The TriCaster Vizion is the enterprise flagship of Vizrt's TriCaster family, built for broadcasters, sports networks, and stadiums running sophisticated, high-input-count multi-camera productions. It supports up to 44 simultaneous video inputs, up to 16 configurable 12G/3G/HD-SDI I/O ports, 8 M/E buses, and is offered in a choice of five hardware configurations plus a cloud deployment option — the first TriCaster available with either a perpetual or subscription license.

How does the TriCaster Vizion work?

Vizion scales far beyond Prizm's input count, supporting 44 simultaneous external video inputs across any combination of compatible sources at resolutions up to UHD 60fps, plus 44 IP inputs via NDI with support for key and fill. Its 8 M/E buses — double Prizm's 4 — give large production teams the layering depth for complex, multi-source broadcasts, backed by 7 media players, 15 media buffers, and an extensive keying system: 44 input keyers, 4 media player keyers, 8 M/E keyers, a dedicated PREVIZ keyer, and 15 buffer keyers, all built on the same LiveMatte chroma/luma keying technology used across the TriCaster family. Vizion is also the only TriCaster offered across five distinct hardware configurations built on HP and Matrox platforms, so an organization can size the physical system to its exact input, output, and budget requirements rather than being locked into one fixed configuration. Cloud deployment is available as an alternative to on-premises hardware, and enhanced remote production tools — including Live Call Connect — support distributed production teams and remote contributors as standard parts of the workflow. Like Prizm, Vizion supports LivePanel Pro's modern, browser-based control experience, and it's the platform TriCaster Vizion AI/R — Vizrt's real-time AI-keying and augmented reality graphics subscription add-on — is built for.

What are the key features of the TriCaster Vizion?

• Multi-Source Input Mastery: 44 simultaneous video inputs supporting any combination of compatible sources in resolutions up to UHD at 60fps, including NDI with key and fill support; ideal for multi-camera productions.
• Unlimited Output Distribution: Up to 8 independent HD or 2 UHD video mix outputs with simultaneous IP and SDI delivery, plus 56 total IP outputs via NDI including 8 video mix outputs, 16 direct SDI source outputs, media player outputs, and 3 multiviewer displays.
• Studio-Grade Audio & Media Engine: 44-channel integrated audio mixer with full 8-channel audio, DSPs, and 4x8x8 input routing, native NDI® audio support, embedded audio on all SDI connections, and integrated Dante™ and AES67 networking protocols.
• TriCaster Vizion AI/R: Broadcast-class AI and AR without the complexity. Real-time AI-powered keying and augmented reality graphics delivered as an optional subscription to TriCaster Vizion, making professional visual storytelling accessible to organizations of every size, from newsrooms to sports to corporate broadcast production.
• Smart Automation & Control: Integrated DataLink™ for real-time automated data input from webpages, spreadsheets, databases, and RSS feeds; macros, MIDI, 3rd party control, and hotspots; web-based control interface.
• Multi-Channel Recording & Content Library: 8 M/E channels, up to 44 total configurable recording inputs with 4 DDRs and 3 streaming encoders, 7 total media players, 15 media buffers (10 animation with GIF, 5 graphic), instant replay on each input, and 4TB internal SSD storage.
• Flexible Deployment & Licensing: Support for up to 44 simultaneous PTZ robotic cameras, Live Call Connect for Zoom/Teams/Conference calling, cloud-rendered Viz Flowics graphics, and flexible deployment; on-premises 2RU hardware with on-board audio and redundant power.

Where is the Vizrt TriCaster Vizion typically used?

• National and regional broadcast networks
• Stadiums and major sports production
• Enterprise media organizations
• Large-scale corporate and government broadcasting
• Productions needing AI-keying and AR graphics workflows

Real-World Results

Norwegian production company Mediability chose TriCaster Vizion for a corporate client needing to manage several studio zones and multiple camera feeds at once while holding to broadcast-grade standards, according to Mediability CEO Nils Olav Sundsteigen. In Madrid, Nueva Economía Fórum used TriCaster Vizion to produce an eight-camera broadcast of an award ceremony honoring the President of the European Parliament at the Teatro Real, in front of more than 1,400 attendees — a scale of production the organization's General Director Diego Rodriguez credits the system with making possible.

Technical Specifications

Frequently Asked Questions

How does Vizion differ from TriCaster Prizm?

Vizion scales to 44 simultaneous inputs and up to 16 configurable SDI ports versus Prizm's 16 NDI inputs and 8 SDI ports, and doubles the M/E bus count (8 vs. 4) for more complex, larger-scale productions.

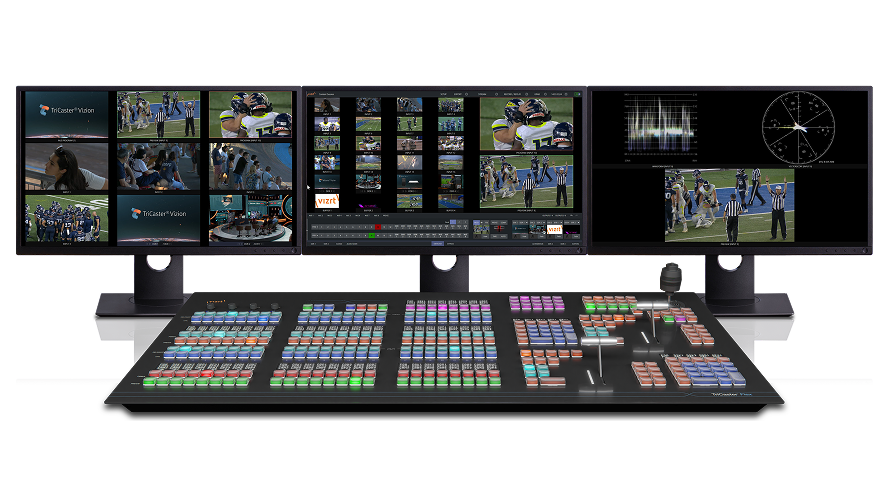

Can Vizion be deployed in the cloud instead of on-premises hardware?

Yes. Vizion offers a cloud deployment option alongside five different on-premises hardware configurations built on HP and Matrox platforms.

What is TriCaster Vizion AI/R?

It's an annual subscription add-on exclusive to Vizion that pairs real-time AI-keying with augmented reality graphics in one integrated package, aimed at delivering studio-grade AR capability without a dedicated virtual studio build or specialist operator.

Is Vizion available as a subscription rather than a one-time purchase?

Yes — Vizion is the first TriCaster offered with either a perpetual license or a subscription license, giving organizations budget flexibility.

What audio networking protocols does Vizion support?

Vizion integrates Dante and AES67 networking protocols alongside native NDI audio and embedded audio on all SDI connections, run through a 44-channel mixer with 4x8x8 input routing.

Does Creation Networks design and install TriCaster systems?

Yes. As a nationwide AV integrator, Creation Networks provides system design, installation, and support alongside the equipment — contact us at 888-230-3661 or sales@creationnetworks.net for a project quote.
