Vizrt TriCaster Prizm — Live Production and Broadcast Platform

What is the Vizrt TriCaster Prizm?

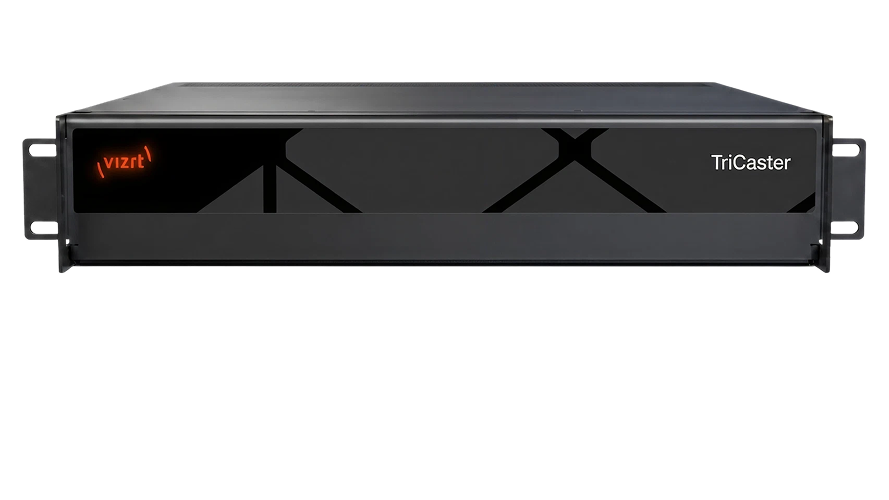

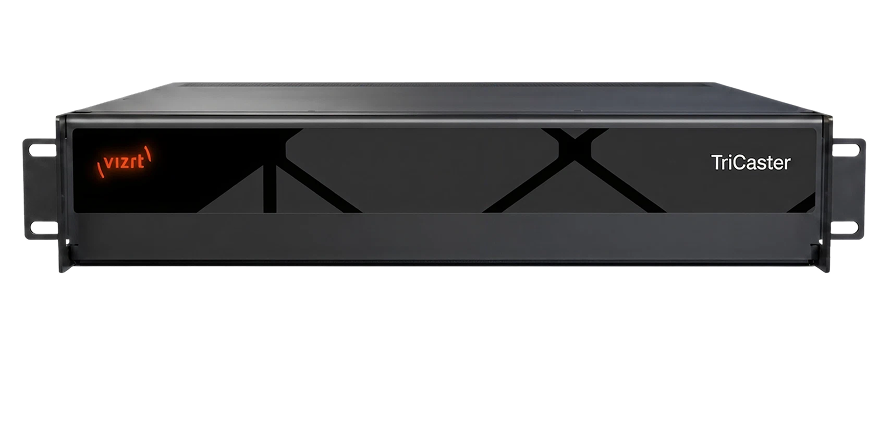

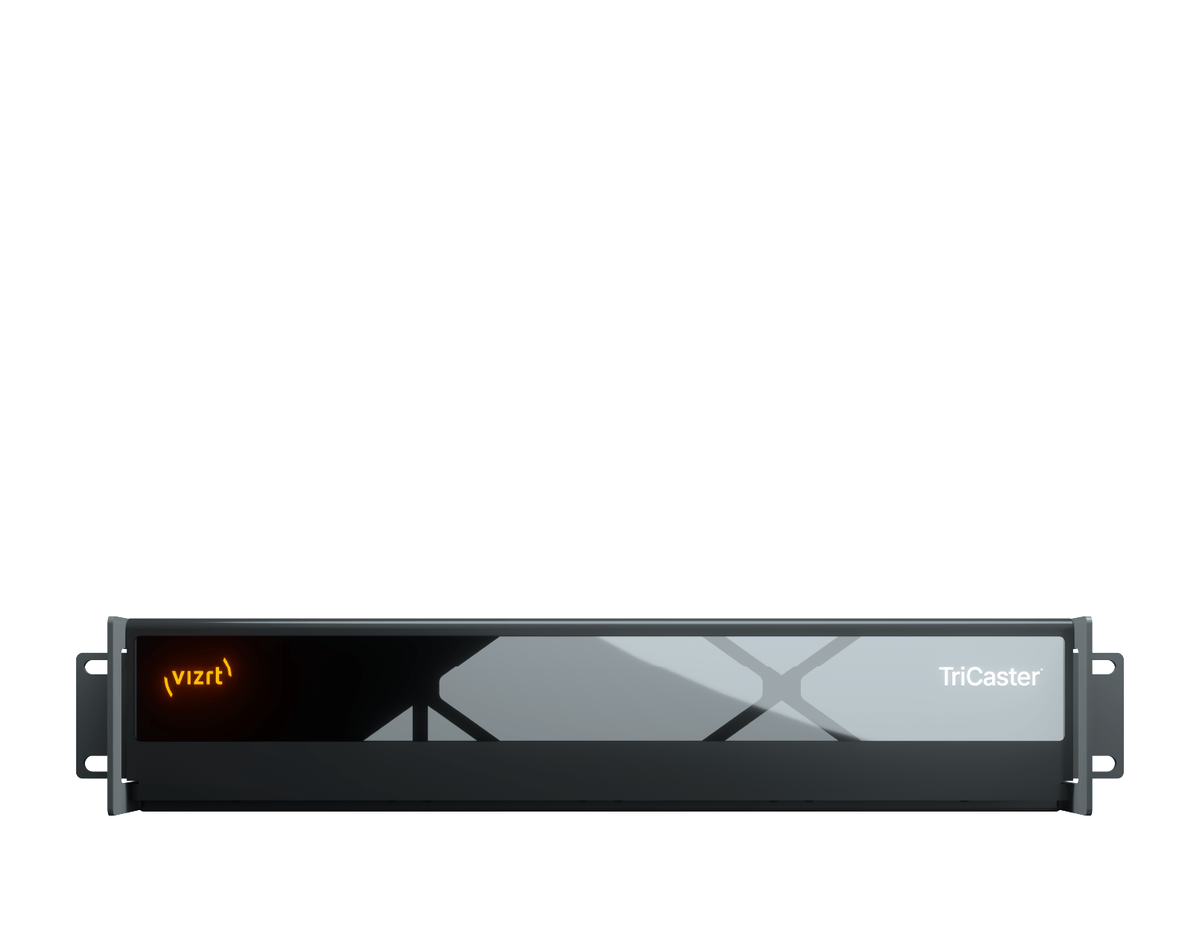

The TriCaster Prizm redefines the heart of the TriCaster portfolio, replacing the TC1, TC410 Plus, and TC1 Pro with a single, scalable platform for organizations that need professional production capabilities without unnecessary complexity. Whether producing school broadcasts, worship services, live events, or corporate communications, Prizm is built to grow on one platform from day one — a 2RU rack-mounted system with 16 total video inputs, up to 8 configurable SDI I/O ports, 4TB of internal storage, and support for up to 2160p60 sessions.

How does the TriCaster Prizm work?

Prizm runs 4 M/E buses with full 4-layer, 4-key support per bus, giving an operator considerably more simultaneous layering headroom than an entry-level switcher while still being simple enough for a small crew to run alone. Integrated LiveMatte chroma and luma keying works across every input, media player, and M/E bus — 16 input keyers, 5 media player keyers, 4 M/E keyers, and 1 PREVIEW keyer in total — and 5 media players backed by 15 media buffers (10 animation with GIF support) keep replay clips, lower-thirds, and sound cues ready to trigger. DataLink pulls in real-time automated data — webpages, spreadsheets, databases, and RSS feeds — directly into a running show, while 30+ built-in LiveSet virtual sets add studio backdrops without a physical build. Prizm is one of only two TriCaster models (alongside Vizion) that support LivePanel Pro, Vizrt's next-generation browser-based control surface: a modern widget-based interface with low-latency video previews, intelligent state awareness, and real-time system feedback, accessible from any device on the network rather than only from a dedicated hardware control panel. On the camera side, Prizm controls up to 16 PTZ cameras simultaneously via serial or network protocols, and its 16-channel integrated audio mixer runs full DSP processing with native Dante networking, AES67, and WDM audio drivers — with the SDI version adding support for up to 8 channels of embedded SDI audio.

What are the key features of the TriCaster Prizm?

• Massive Video Input Capacity: 16 total simultaneous external video inputs supporting any combination of compatible sources in resolutions up to UHD at 60fps (2160p 59.94), including support for NDI® key and fill.
• Flexible Output Architecture: 4 independent HD or UHD outputs via both SDI and IP, with up to 4 video mix outputs (1080p/60fps or 2160p/60fps), 8 direct IP source outputs, media player outputs, and 3 multiviewer outputs for comprehensive monitoring.
• Professional Audio Integration: 16-channel integrated audio mixer with full DSP capabilities, balanced stereo inputs, mic input, and native Dante™ networking with AES67 and WDM audio drivers. (SDI version adds support for up to 8 channels of embedded SDI audio)
• Advanced Keying & Compositing: Integrated LiveMatte™ technology with 16 input keyers, LiveSet™ virtual sets with 30+ included effects, 5 media player keyers, 4 M/E keyers, and 1 PREVIEW keyer for sophisticated layering and effects.
• Smart Automation & Control: Integrated DataLink™ for real-time automated data input from webpages, spreadsheets, databases, and RSS feeds; macros, MIDI, 3rd party control, and hotspots; web-based control interface.
• Media Management & Recording: 5 media players, 15 media buffers, 10 animation buffers with GIF support, 8 configurable recording channels, and 4TB internal storage for comprehensive content management.
• Connectivity & Integration: PTZ support for up to 16 simultaneous cameras via serial/network protocols, conference calling for Zoom/Teams/NDI, signal monitoring with waveform/vectorscope, and genlock I/O.

Where is the Vizrt TriCaster Prizm typically used?

• School and campus broadcasts
• Houses of worship
• Live events
• Corporate communications
• Multi-room enterprise standardization

Technical Specifications

Frequently Asked Questions

What legacy TriCaster models does Prizm replace?

Prizm replaces the TC1, TC410 Plus, and TC1 Pro, consolidating them into a single, scalable platform.

What is LivePanel Pro and why does it matter?

LivePanel Pro is Vizrt's next-generation browser-based control surface, exclusive to Prizm and Vizion. It offers a modern widget-based interface, low-latency video previews, and real-time system feedback from any networked device, rather than requiring a dedicated hardware control panel.

How many PTZ cameras can Prizm control?

Up to 16 PTZ cameras simultaneously, via serial or network control protocols.

What audio networking does Prizm support?

A 16-channel integrated audio mixer with full DSP, native Dante networking, AES67, and WDM audio drivers; the SDI version adds up to 8 channels of embedded SDI audio.

Does Prizm support conference call integration?

Yes — Zoom, Microsoft Teams, and NDI-based conference calling are supported directly.

Does Creation Networks design and install TriCaster systems?

Yes. As a nationwide AV integrator, Creation Networks provides system design, installation, and support alongside the equipment — contact us at 888-230-3661 or sales@creationnetworks.net for a project quote.
