Vizrt TriCaster Mini — All-in-One Live Production System

What is the Vizrt TriCaster Mini?

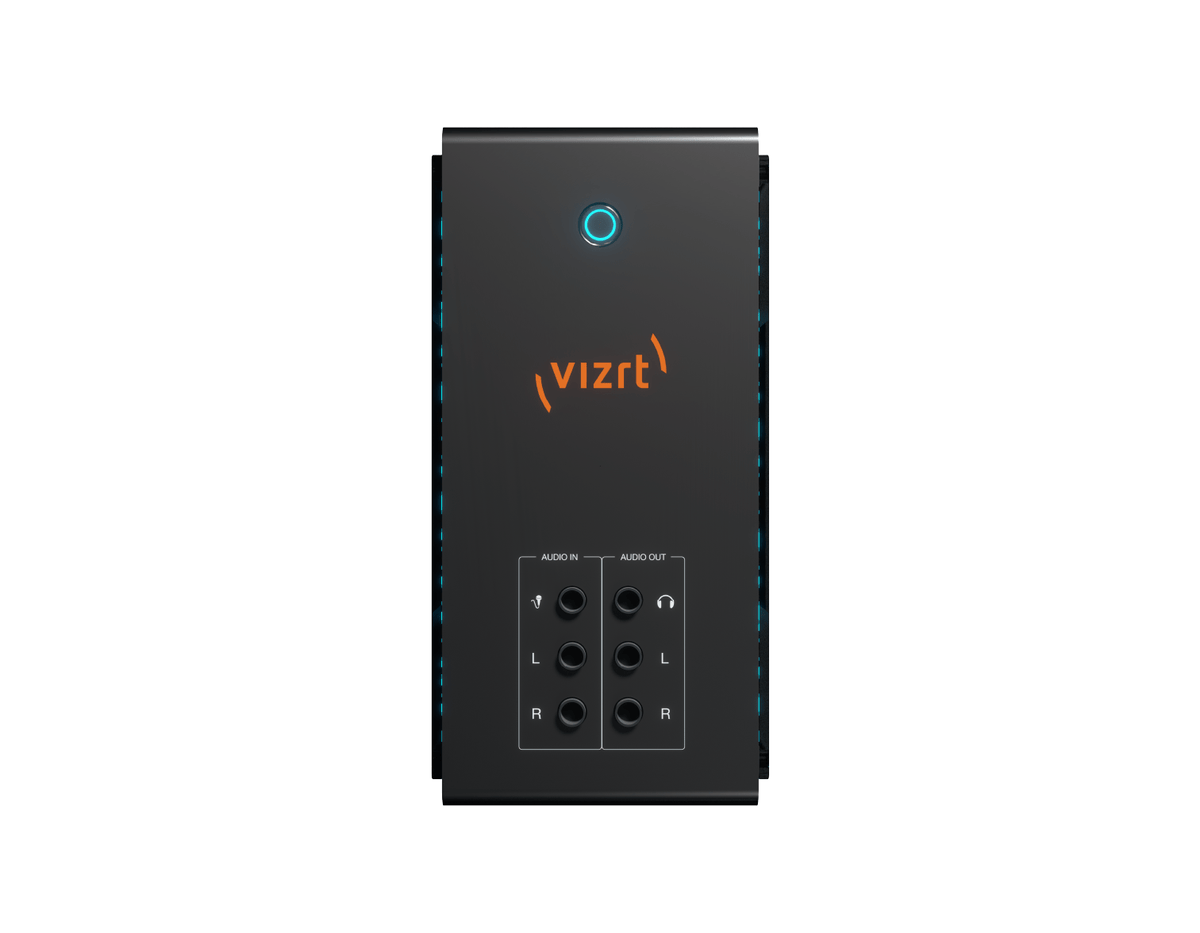

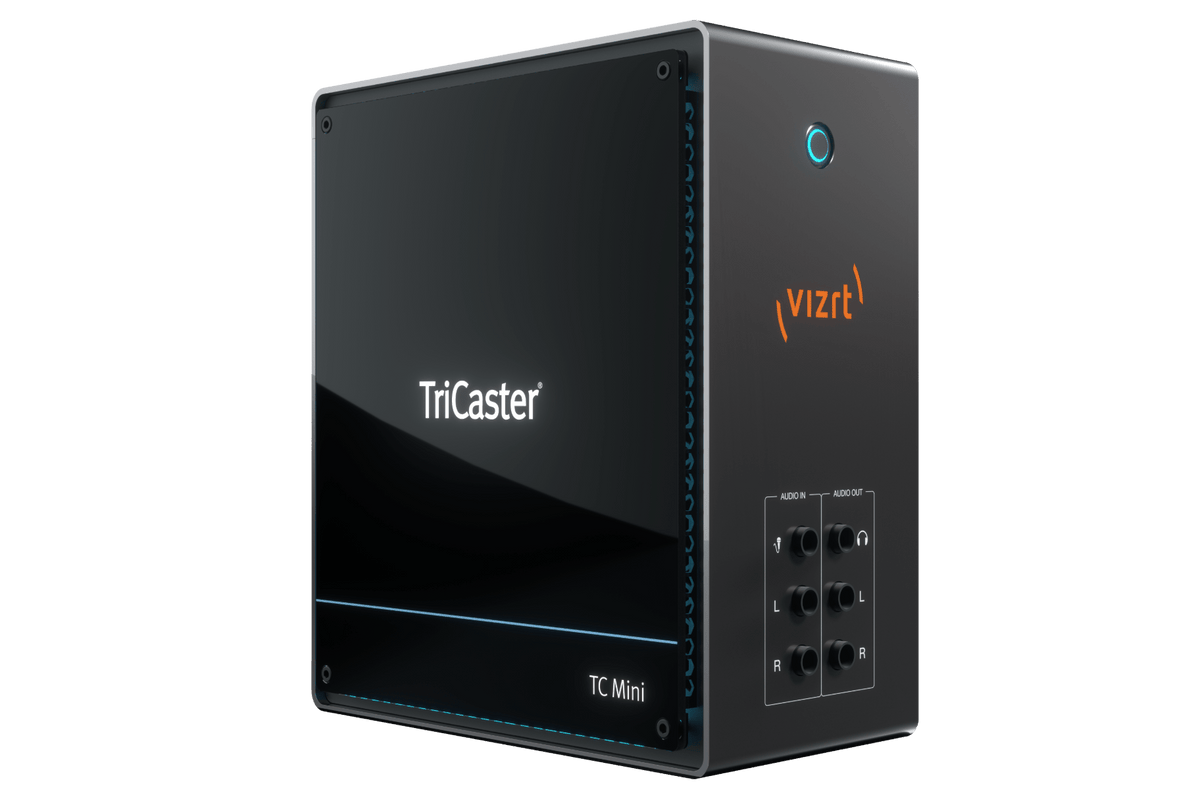

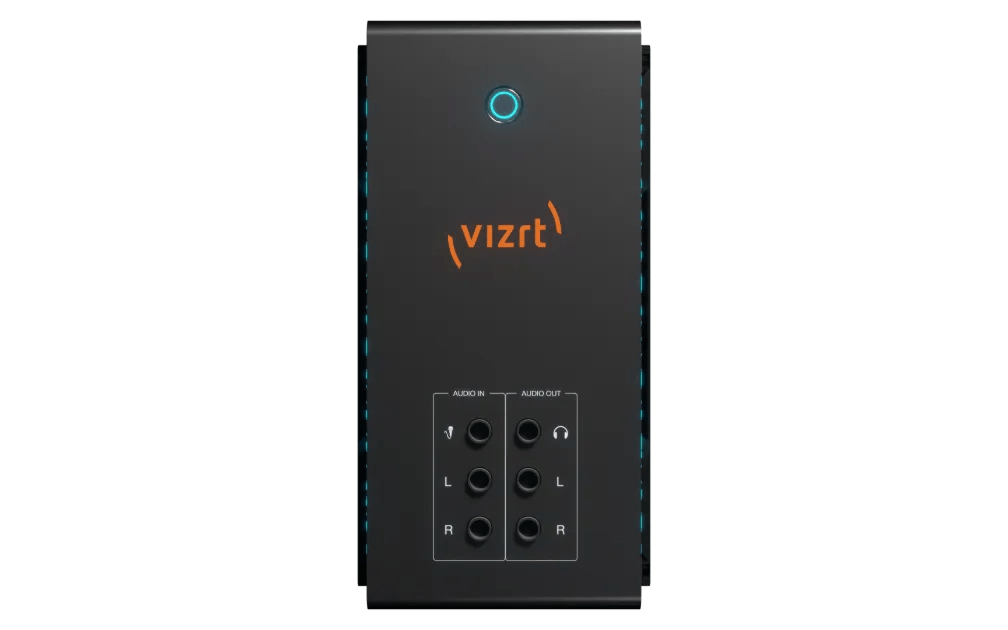

The TriCaster Mini is the entry point into Vizrt's TriCaster family of all-in-one live production systems, giving producers at any level a genuine path to network-quality multi-camera video without a full broadcast budget. It's available two ways — as the Mini X, a compact all-in-one desktop hardware unit, or as the Mini S, a software-only license deployable on your own certified hardware — with 8 total video inputs, 4 output mixes, and up to 2160p60 session resolution on the hardware version.

How does the TriCaster Mini work?

At its core, the Mini X (or Mini S software) runs a full live production switcher: 4 M/E buses with re-entry support, 2 DSK channels, and integrated LiveMatte chroma/luma keying across every input, media player, and M/E bus, letting an operator build layered graphics packages without a separate keying device. Its Live Link feature renders web pages directly inside a production, pulling graphics, images, or internal training-platform video straight from a browser without needing a third-party capture app. Four built-in media players (2 DDR, 1 GFX, 1 Sound) plus 15 media buffers give an operator ready access to lower-thirds, replay clips, and sound cues, while 30+ built-in LiveSet virtual sets add a studio backdrop without a physical set build. On the input side, the system accepts up to 8 total IP video inputs via NDI in any mix of standard resolutions and frame rates, plus support for up to 8 simultaneous PTZ robotic cameras over serial or IP control — useful for a small crew running multiple remote-controlled cameras without a dedicated camera operator per angle. DataLink brings in real-time automated data — webpages, spreadsheets, scoreboards, RSS feeds, and more — directly into a running production, and native Skype TX support handles up to 2 simultaneous Skype video call inputs with tally and talkback built in.

What are the key features of the TriCaster Mini?

• Democratized Live Production: TriCaster Mini brings professional video production within reach for content creators, streamers, podcasters, corporate communications, and educational institutions; full TriCaster capabilities without enterprise infrastructure requirements.
• Integrated Creative Workflow: 4 M/E buses with integrated LiveMatte™ chroma and luma keying (8 input keyers plus additional M/E and buffer keyers), composition engine for DVE-style motion sequences, and 30+ live virtual sets with LiveSet™ technology—create sophisticated productions immediately.
• Multi-Channel Recording & Streaming: 4 recording channels from either IP or mix outputs, 2 independent streaming outputs with stream archive, real-time social media publishing, and support for all major streaming platforms, reach your audience anywhere.
• Smart Automation & Control: Integrated DataLink™ for real-time automated data input from webpages, spreadsheets, databases, and RSS feeds; macros, MIDI, 3rd party control, and hotspots; web-based control interface.
• Flexible Audio & Media Management: Integrated multi-channel audio mixer with stereo support and DSP, native NDI® audio with embedded audio support, integrated Dante™ and AES67 networking; media players, buffers, and animation support with GIF capability.
• Choose Your Deployment: Compact desktop form factor (Mini X) with integrated connectivity and a perpetual license; making professional production accessible to any budget.

Where is the Vizrt TriCaster Mini typically used?

• Houses of worship
• K-12 and higher education broadcast programs
• Small-budget live streaming and content creation
• Corporate and campus media production

Technical Specifications

Frequently Asked Questions

What's the difference between TriCaster Mini X and Mini S?

Mini X is a complete all-in-one desktop hardware system, while Mini S is a software-only license you deploy on your own certified hardware — the core production feature set is shared between both.

How many cameras can the Mini control at once?

The Mini supports up to 8 simultaneous PTZ robotic cameras via serial (RS232/RS422) or IP control, with an integrated preset system.

What is Live Link used for?

Live Link renders web pages directly inside the production, letting an operator pull graphics, images, or video from any webpage — including internal training platforms — without a separate capture application.

Can the Mini record multiple angles at once?

Yes. It provides 4 recording channels that can capture from either IP or mix outputs, retaining alpha channel data for post-production flexibility.

Does the Mini support Dante audio networking?

Yes, with integrated Dante and AES67 networking support alongside native NDI audio.
