Vizrt TriCaster Flex Dual Control Panel

Product Overview

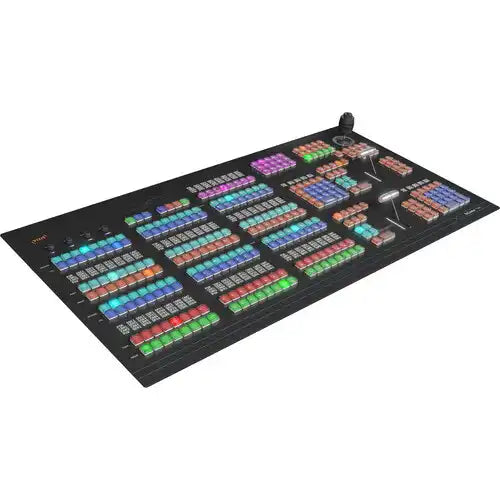

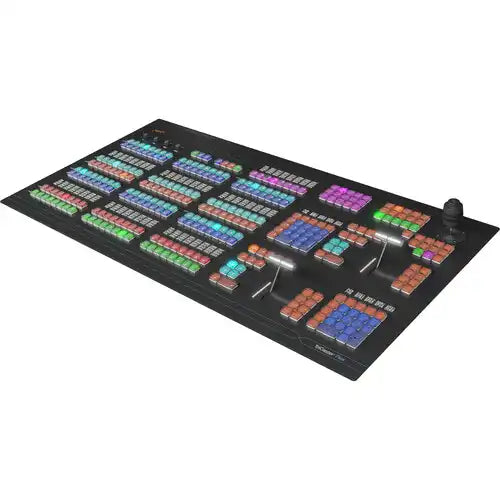

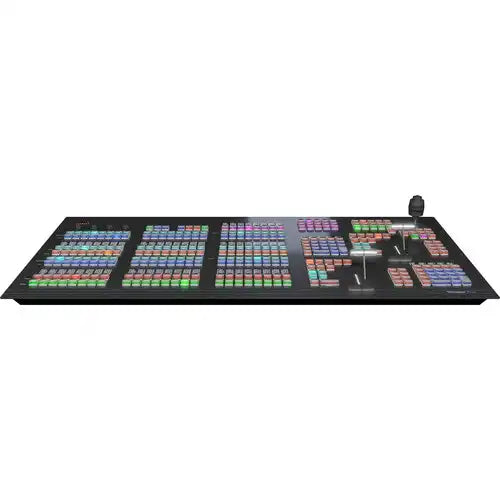

The Vizrt TriCaster Flex Dual Control Panel (FG-003289-R001) is a professional NDI-native hardware control surface designed for TriCaster live production systems, giving broadcast operators tactile physical control over switching, transitions, audio, and PTZ cameras without requiring a dedicated point-to-point cable connection. This TriCaster Flex Dual control panel connects to any compatible TriCaster over standard Ethernet using NDI, enabling operators to work from any position on the production network — from an adjacent desk to a remote location — while maintaining full production control of the TriCaster system.

Product Description

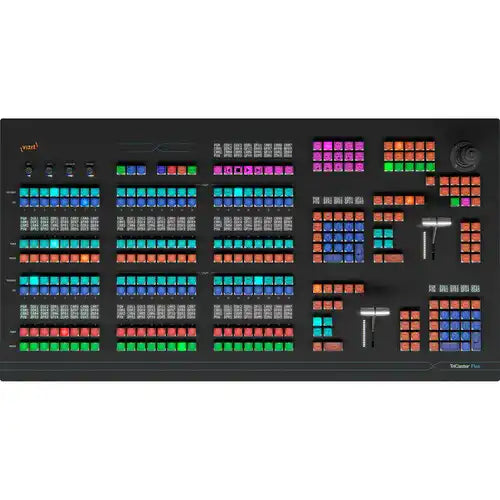

The Flex Dual Control Panel provides 24 direct cross-point buttons across two M/E banks, dual T-bars for smooth manual video transitions, a full-sized joystick for PTZ camera positioning and effects control, and two 10-key dynamic menu systems for deep access to production parameters — all in a desktop form factor designed for professional broadcast operation. LCD screens on source buttons provide on-the-fly source labeling, eliminating ambiguity in fast-paced live production. Two pairs of 1/4" stereo audio inputs and outputs expand the audio ecosystem at the operator position. Talkback input, microphone input, and a headphone output support IFB communication with camera operators and talent. Two USB-A ports accommodate peripheral devices. As an NDI-native panel, the Flex Dual discovers and connects to TriCaster systems automatically over the production network — no custom driver installation or dedicated serial connection required. It is compatible with the full current TriCaster family: Vizion, TC1 Pro, TC1, Vectar, and TriCaster 2 Elite. This compatibility makes the Flex Dual a long-term control surface investment that transfers to future TriCaster platform upgrades without replacement. The Flex Dual is available as a standalone unit or included in bundle configurations with TriCaster systems across the Creation Networks catalog.

Key Features

• 24 Direct Cross-Point Buttons — Two M/E banks of 12 source buttons each with LCD labeling for fast, accurate source selection.
• Dual T-Bar Transitions — Two independent T-bars for smooth manual video transitions across M/E banks.
• Full-Sized Joystick — Controls PTZ camera positioning and effects within the TriCaster production environment.
• Two 10-Key Dynamic Menu Systems — Deep access to production parameters, transitions, and TriCaster controls from the physical panel.
• LCD Source Labels — Each source button displays the assigned source name via integrated LCD for on-the-fly labeling.
• NDI-Native Connectivity — Connects to TriCaster over standard RJ45 Ethernet via NDI; no dedicated cable or custom driver required.
• Remote Operation Capable — Operates from anywhere on the network, including separate rooms, control rooms, or remote locations over WAN.
• 1/4" Stereo Audio I/O — Two pairs of 1/4" stereo inputs and outputs expand audio connections at the operator position.
• Talkback and IFB — Talkback input, microphone input, and headphone output for production communication with cameras and talent.
• USB-A Ports — Two USB-A ports for connecting keyboards, mice, or other peripheral devices.
• Broad TriCaster Compatibility — Compatible with TriCaster Vizion, TC1 Pro, TC1, Vectar, and TriCaster 2 Elite.
• Desktop Form Factor — Designed for operator desk placement; does not require rack mounting.

Typical Applications

• Broadcast studio
• House of worship
• Sports production
• Campus athletics
• Auditorium
• Government space
• Corporate all-hands room
• Training room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the Flex Dual require a specific firmware or software version to work with TriCaster Vizion?

The Flex Dual requires current TriCaster software and Flex panel firmware. Vizrt periodically releases firmware updates via the Flex Control Panel support page. Ensure both the TriCaster Vizion and the Flex Dual are running current firmware versions before deployment. Check the Vizrt support portal for the latest firmware downloads.

Can the Flex Dual control multiple TriCaster systems?

The Flex Dual connects to a single TriCaster at a time. It can be re-assigned to a different TriCaster on the same network, but simultaneous control of multiple systems from one Flex Dual is not supported.

Can multiple Flex Dual panels control a single TriCaster?

Yes. Multiple Flex Dual panels can be connected to a single TriCaster Vizion or compatible system simultaneously, supporting multi-operator production environments. Contact Creation Networks to confirm specific multi-panel configurations for your workflow.

Is the Flex Dual compatible with the TriCaster Mini or Mini X?

The Flex Dual is designed for TriCaster Vizion, TC1 Pro, TC1, Vectar, and TriCaster 2 Elite. Compatibility with the TriCaster Mini or Mini X should be confirmed directly with Vizrt or Creation Networks before purchase.

What network switch specifications are recommended for optimal Flex Dual performance?

A managed Gigabit Ethernet switch on the same production network as the TriCaster is sufficient for Flex Dual operation. Ensure the network supports NDI traffic — a dedicated VLAN or production network isolated from general IT traffic is recommended for professional installations.

Is a rack-mount option available for the Flex Dual?

The Flex Dual is a desktop form factor panel and is not rack-mountable as shipped. Third-party rack drawer or shelf solutions can accommodate it in a rack environment. Contact Creation Networks for installation integration guidance.
