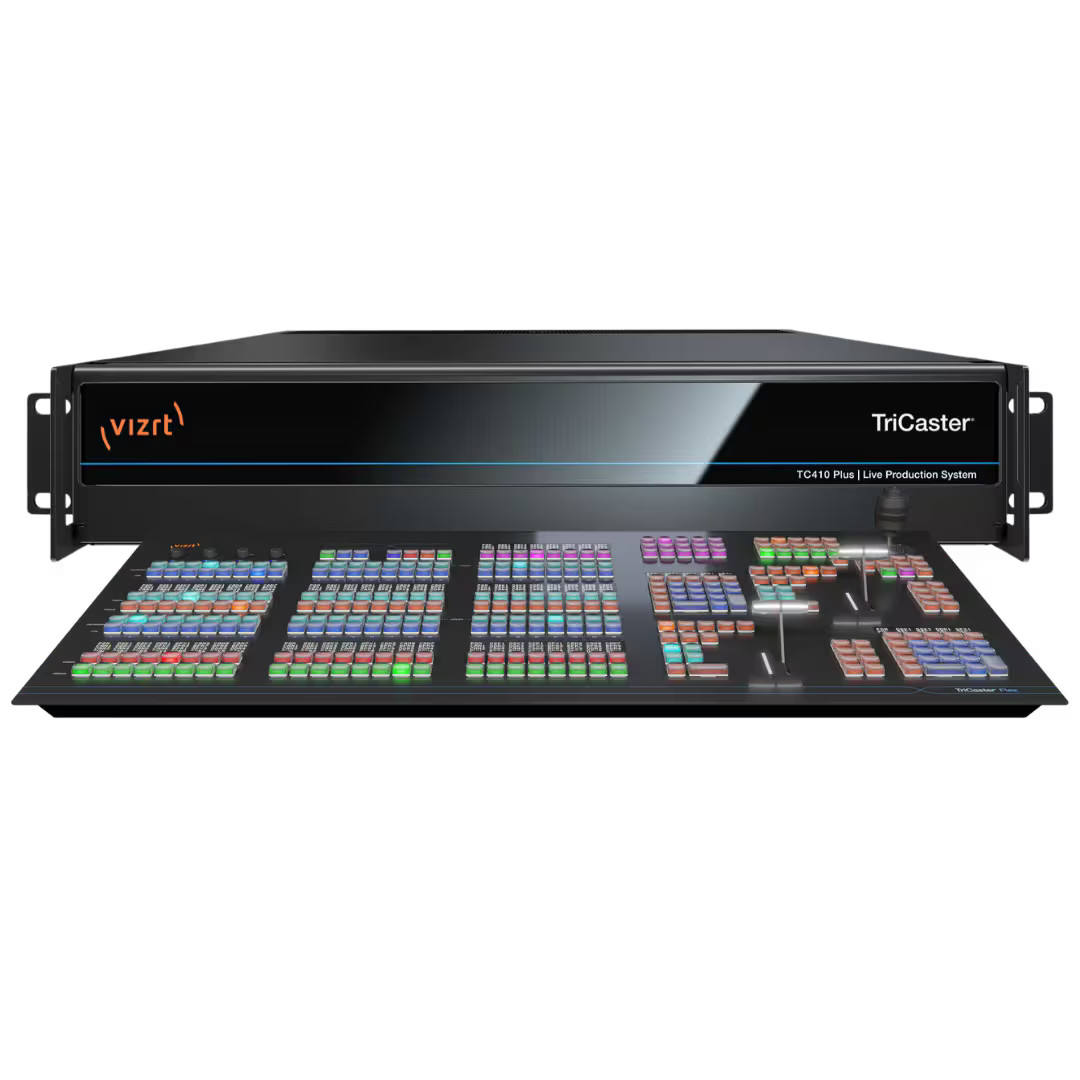

Vizrt TriCaster 410 Plus & Flex Dual Control Panel

Product Overview

The Vizrt TriCaster 410 Plus & Flex Dual Control Panel bundle combines the entry-level TriCaster TC410 Plus production system with the Flex Dual Control Panel, providing a complete broadcast production workflow with physical tactile control at the most accessible price point in the Vizrt lineup. This TriCaster 410 Plus bundle is designed for AV managers, houses of worship, university broadcast programs, corporate media teams, and small market broadcasters who need a proven all-in-one live production system with a hardware control surface for multi-camera switching without the investment of higher-end platforms.

Product Description

The TriCaster TC410 Plus is a 2RU integrated live production system delivering 27 total source channels including 8 external inputs — four HD/SD-SDI and eight NDI — with two HD-SDI outputs, four NDI mix outputs, and two simultaneous live streams. It supports 1080p 59.94 production with multi-platform streaming, four-channel audio mixing, 3TB of internal storage, and a comprehensive virtual set library with more than 30 included professional environments. Advanced features include chroma key, animated transitions, and multi-format simultaneous streaming. The Flex Dual Control Panel adds 24 direct cross-point buttons, dual T-bars, full-sized joystick, two 10-key dynamic menu systems, and LCD-labeled source buttons, connecting to the TC410 Plus over NDI via Ethernet for flexible operator positioning. This bundle is an effective starting point for organizations building their first structured broadcast production system, providing the physical workflow of a dedicated control surface alongside the TC410 Plus's proven production capabilities. For organizations anticipating growth to 4K production or larger input counts, the TriCaster Vizion or TC1 Pro platforms available on Creation Networks provide clear upgrade paths.

Key Features

• TriCaster TC410 Plus (2RU) — 27 source channels, 4 SDI + 8 NDI external inputs, 1080p 59.94 production, 3TB storage.
• Flex Dual Control Panel — 24 cross points, dual T-bars, joystick, LCD labels, 2 M/E banks; NDI-connected over Ethernet.
• Multi-Platform Streaming — Two simultaneous live streams to multiple platforms and services.
• 4 NDI Mix Outputs — IP video outputs to NDI-capable monitors, recorders, and downstream systems.
• 30+ Virtual Sets — Professional virtual environments with real-time reflections, animated camera movements, and AR effects.
• Chroma Key — Production-grade green screen compositing built into the system.
• 3TB Internal Storage — Built-in storage for recording and media playback; external USB 3.0 expansion supported.
• Physical Control Surface — Flex Dual provides tactile production control over NDI without dedicated cabling.
• SDI and NDI Mixed Input — Accepts both direct SDI cameras and NDI IP sources in the same production.
• 2RU Rackmount Chassis — Standard rack-mount form factor for equipment room installation.

Typical Applications

• Broadcast studio
• House of worship
• Campus athletics
• Corporate all-hands room
• Auditorium
• Government space
• Training room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Is the TC410 Plus capable of 4K UHD production?

No. The TC410 Plus supports up to 1080p 59.94. For 4K UHD production, the TriCaster TC1 Pro or TriCaster Vizion platforms are required. Contact Creation Networks to discuss upgrade options.

Can the Flex Dual Control Panel be reused on a future TriCaster Vizion or TC1 Pro?

Yes. The Flex Dual is compatible with the full current TriCaster family including TC1 Pro, Vizion, and Vectar. Purchasing this bundle preserves the Flex Dual as a long-term asset that transfers to any future TriCaster upgrade.

Does the TC410 Plus include any graphics capabilities?

Yes. The TC410 Plus includes TriCaster's built-in graphics system with title tools, animated transitions, lower thirds, and the virtual set library. It does not include Viz Flowics. For Viz Flowics-based graphics workflows, consider the TriCaster Vizion platform.

What streaming destinations does the TC410 Plus support?

The TC410 Plus supports two simultaneous live streams using RTMP and other standard streaming protocols, compatible with YouTube, Facebook, Twitch, and custom RTMP endpoints.

Is external storage supported for recording?

Yes. In addition to 3TB of internal storage, the TC410 Plus supports external storage expansion via USB 3.0, allowing recording to external drives for extended-duration productions.
