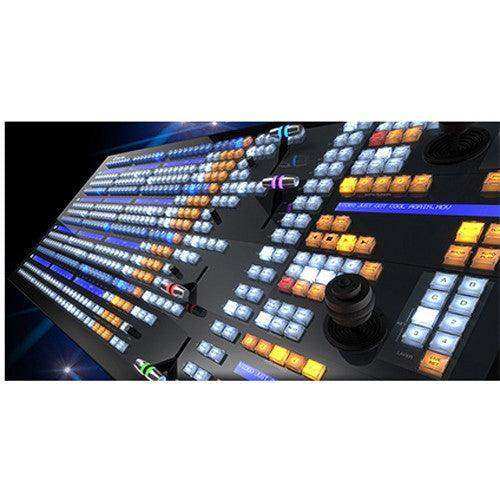

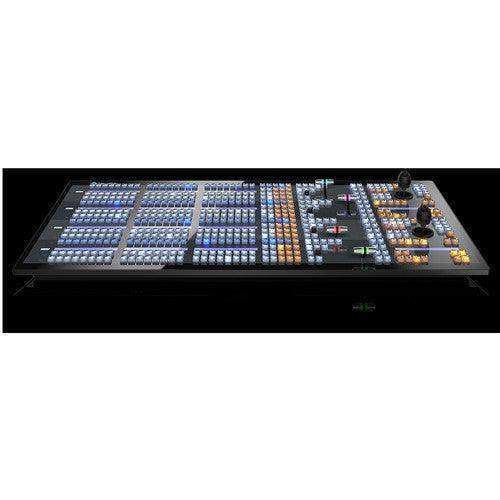

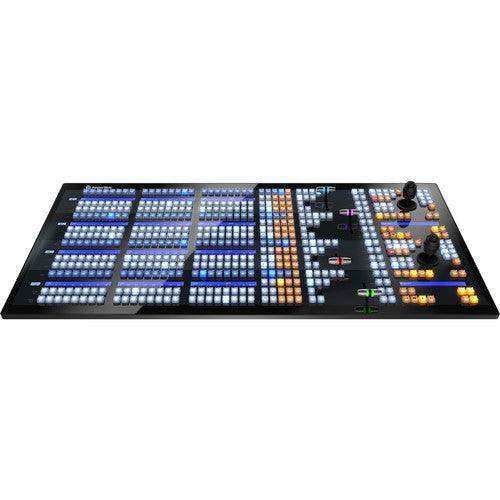

Vizrt 4Stripe IP Series 4-Stripe Control Panel for TriCaster TC1 - FG-001938-R001

Product Overview

The Vizrt IP Series 4-Stripe Control Panel (FG-001938-R001) is a professional-grade hardware controller engineered for the TriCaster TC1 live production system. Designed for broadcast engineers and live production directors who demand full hands-on control, this IP-based control panel delivers multi-bus switching, independently assignable stripes, and precision T-bar operation over a standard network connection. It supports multi-engine control, making it well suited for large-scale live event production, broadcast studios, and high-traffic production environments where simultaneous operator workflows are required.

Product Description

The 4-Stripe panel connects to the TriCaster TC1 via IP, eliminating the need for proprietary cabling and allowing flexible placement across the production desk or control room. Each of the four independently assignable control stripes gives operators direct access to switcher sources, M/E buses, and preview/program rows, replicating the layout of a full broadcast switcher panel. Backlit buttons, variable T-bar illumination, and LCD label displays reduce operator error under low-light broadcast conditions. The panel is also compatible with TriCaster 1 Pro and TriCaster 2 Elite, protecting the investment as facilities scale their production infrastructure. At 35.7 x 11.96 inches, the panel sits cleanly on a standard production desk without requiring rack mounting. For system integrators building permanent broadcast studios or mobile production units, this control surface provides the tactile feedback and layout clarity that software-only interfaces cannot replicate.

Key Features

• IP-Based Connectivity — Connects to TriCaster TC1 over standard Ethernet, enabling flexible placement without proprietary cabling.
• Four Independently Assignable Stripes — Each stripe maps to a separate bus or M/E row, supporting complex multi-bus live production workflows.

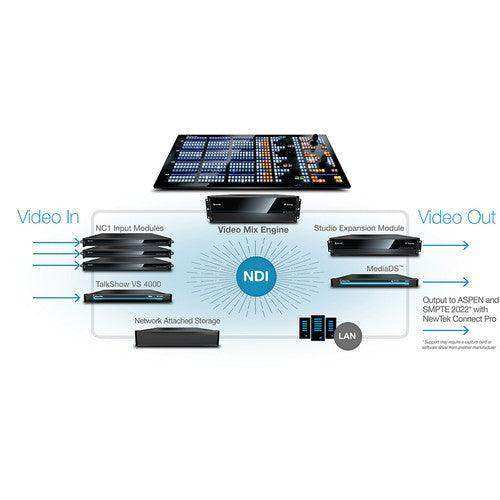

• Multi-Engine Network Control — Supports control of multiple TriCaster systems across the network from a single panel.
• Variable T-Bar Illumination — Backlit T-bar provides real-time visual feedback on transition progress during live switching.
• LCD Label Displays — Per-button LCD labels update dynamically to reflect current source assignments, reducing operational errors.
• Backlit Source Buttons — Illuminated buttons remain clearly visible in darkened production environments and mobile broadcast trucks.
• Compatibility with TC1, 1 Pro, and 2 Elite — Works across Vizrt's current TriCaster lineup, future-proofing installations as systems are upgraded.
• Desktop Form Factor — Fits on a standard production desk without rack mounting hardware required.

Typical Applications

• Broadcast studio production control rooms
• Live sports and event production
• Houses of worship with permanent TriCaster installations
• Mobile production trucks and fly-pack deployments
• University broadcast programs and media centers

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the 4-Stripe panel require a separate power supply?

The panel connects via IP over Ethernet. Check with your TriCaster TC1 installation guide for specific power and network requirements for the control panel.

Can the 4-Stripe panel control multiple TriCaster systems simultaneously?

Yes. The IP-based architecture supports multi-engine control, allowing a single panel to manage multiple TriCaster systems on the same network — useful in multi-room broadcast facilities.

Is this panel compatible with TriCaster 2 Elite?

Yes. The FG-001938-R001 is compatible with TriCaster TC1, TriCaster 1 Pro, and TriCaster 2 Elite.

Can I use this panel in a mobile production truck?

Yes. Its desktop form factor and IP connectivity make it well suited for fly-pack and mobile truck deployments where cable runs must be minimized.

What is the difference between the 4-Stripe and the 2-Stripe panel?

The 4-Stripe panel provides four independently assignable control stripes versus two, giving operators access to more buses and M/E rows simultaneously — important in complex, multi-source live productions.
