Vizrt 3Play Vivid With Control Panel — 8-Input 4K Instant Replay System (BDL-000000149)
Vizrt 3Play Vivid With Control Panel — 8-Input 4K Instant Replay System (BDL-000000149) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Vizrt 3Play Vivid With Control Panel — 8-Input 4K Instant Replay Sy...
Vizrt 3Play Vivid (3PV) is Vizrt's flagship instant replay system for live sports and event production, sitting above the 3P2 and 3P1 in the Viz 3Play family. It delivers 8-channel replay at up to 2160p60 with 8 concurrent capture streams, 8 external inputs, 2 outputs, and simultaneous record/playback across all angles — on-prem or in the cloud — bundled with the 3Play Control Panel for hands-on operation.
Key capabilities
- 8-channel replay at up to 2160p60, with 8 concurrent capture streams and simultaneous record/playback while previewing all angles
- 10-bit HDR and SDR workflows with professional-grade color correction
- Built-in dual-channel telestration via integrated NDI Telestrator Pro — real-time annotation and transport control from any compatible networked device
- Real-time playlist sharing across 3Play, TriCaster, and other compatible devices on the network
- LivePanel compatible for browser-based control from any networked device
- Macro triggering across NDI, GPI, and MIDI — automate command sequences and cross-platform workflows
- Animated transitions with full stinger control, automatic audio management, and multi-output flexibility
- Social media integration — publish highlights directly to Facebook, X, and YouTube without leaving the live environment
- Automatic session clean-up — auto-exports marked clips and clears unprotected sessions to manage storage
Full of features that set you up to win.
Intuitive Asset Management
3Play® Vivid is a 10-channel replay solution, and offering mix of 8 inputs via SDI and NDI. 3Play Vivid gives championship-level connection with any workflow.
10-Bit HDR Workflows
Capture and replay every moment in full broadcast quality with expanded color depth and dynamic range, revealing details in highlights and shadows that 8-bit workflows miss. Future-proof your productions with HDR capability built in, ensuring your replays stay competitive with major network standards.
Shareable Playlists
3Play® Vivid really is a team player, for the first time, it allows other 3Play and TriCaster® devices to access shareable playlists; operators can simply sync the entire playlists on the network which can be tagged with player names or numbers - offering unprecedented speed and flexibility across your workflow.
Telestration
Start telling the story from the first replay. With built-in NDI® Telestrator Pro technology, analysts, commentators, coaches, and scouts have the tools they need to annotate on screen and roll immediate replays from their connected devices. Rich visuals, responsive controls, and more-3Play® Vivid brings pro-style telestration to the studio, the sideline, and the film room for breaking-down plays, evaluating talent, game-planning for opponents, and explaining techniques.
Playback Zoom & Tracking
Give fans the best view of every critical and controversial plays-in real time, slow motion, or frame-by-frame. Quickly zoom in and out of replays to enrich the playback during live fast action games. 3Play® Vivid gives operators ultimate control to accurately scrub or step, frame by frame, through a replay for those mission critical calls and plays.
Social Media Integration
Take over timelines and feeds without leaving the live environment, sharing real-time highlights and screen captures directly from 3Play® Vivid to your social media accounts. Upload the best shots and clips to Facebook, X, YouTube, and more—complete with comments and hashtags—and provide instant updates for fans and followers on their computers and mobile devices.
Intuitive Asset Management
Exercise your clock management skills as you save valuable time logging, organizing, and retrieving content. From tagging events and clips with detailed metadata in a flash using your own custom coding system, to instantly filtering top plays by team, player, type, or period with the intelligent search engine, managing your assets with 3Play® Vivid is fast, efficient, at a fraction of the time typically required.
Next Level Automation
Experience new levels of efficiency and productivity with a comprehensive macro automation system that permits you to record, store, edit, and automate your favorite settings and custom command sequences. With the flexibility to run macros from any combination of compatible control interfaces and support for cross-platform automation, you can match your workflows to the available equipment and personnel at hand.
Automatic Session Clean-Up
3Play® Vivid now offers operators the opportunity to manage their storage space by auto exporting marked clips, and when finished, delete unprotected sessions. This saves operators critical time and mitigate risk in production with intelligent drive management that runs behind the scenes.
User Experience
Keep your eye on the ball with fully adjustable single-screen or multi-screen monitoring. With a dedicated user interface display, two configurable multiviewers, selectable workspace layouts, customizable viewports, multi-angle replay preview windows, visual indicators, language localization, and more, you can easily personalize the 3Play® Vivid environment to your preferences
Technical specifications (per Vizrt's official spec sheet)
- Network Video Input: 8x resolution-independent IP video inputs via NDI at rates up to 4K60p
- SDI Video Input/Output: 8x SDI connections, configurable per session as 6 input / 2 output (3 in + 1 out at 12G) or 4 input / 4 output (2 in + 2 out at 12G); 12G/3G/HD-SDI supporting 2160p 59.94/50/29.97/25, 1080p 59.94/50/29.97/25, 1080i 59.94/50, 720p 59.94/29.97/25
- Video Output: 2x session-format outputs (A/B) with simultaneous IP and SDI delivery
- Multiviewer Output: 3x multiviewer outputs via DisplayPort
- Recording: 8x simultaneous recording channels, QuickTime SpeedHQ format (4:2:2 encoding, 32-bit audio)
- Storage: 8TB internal, expandable via USB and network storage
- DSK: 1x DSK channel per output with independent source selection and transition
- Local Audio Input: SDI embedded per configuration, plus 1x balanced stereo pair (1/4") and 1x mic input (1/4")
- Local Audio Output: SDI embedded per configuration (A/B out only), plus 1x balanced stereo pair (1/4") and 1x headphone out (1/4")
- Genlock: Genlock input I/O board supporting SD (Bi-level) or HD (Tri-level) reference
- Networking: 1x 10 GbE, 1x 2.5 GbE, 1x 1 GbE (all RJ-45)
- USB: 2x USB 2.0, 5x USB 3.2 Gen2, 1x USB 3.2 Gen2x2 (Type-C, 5V/3A)

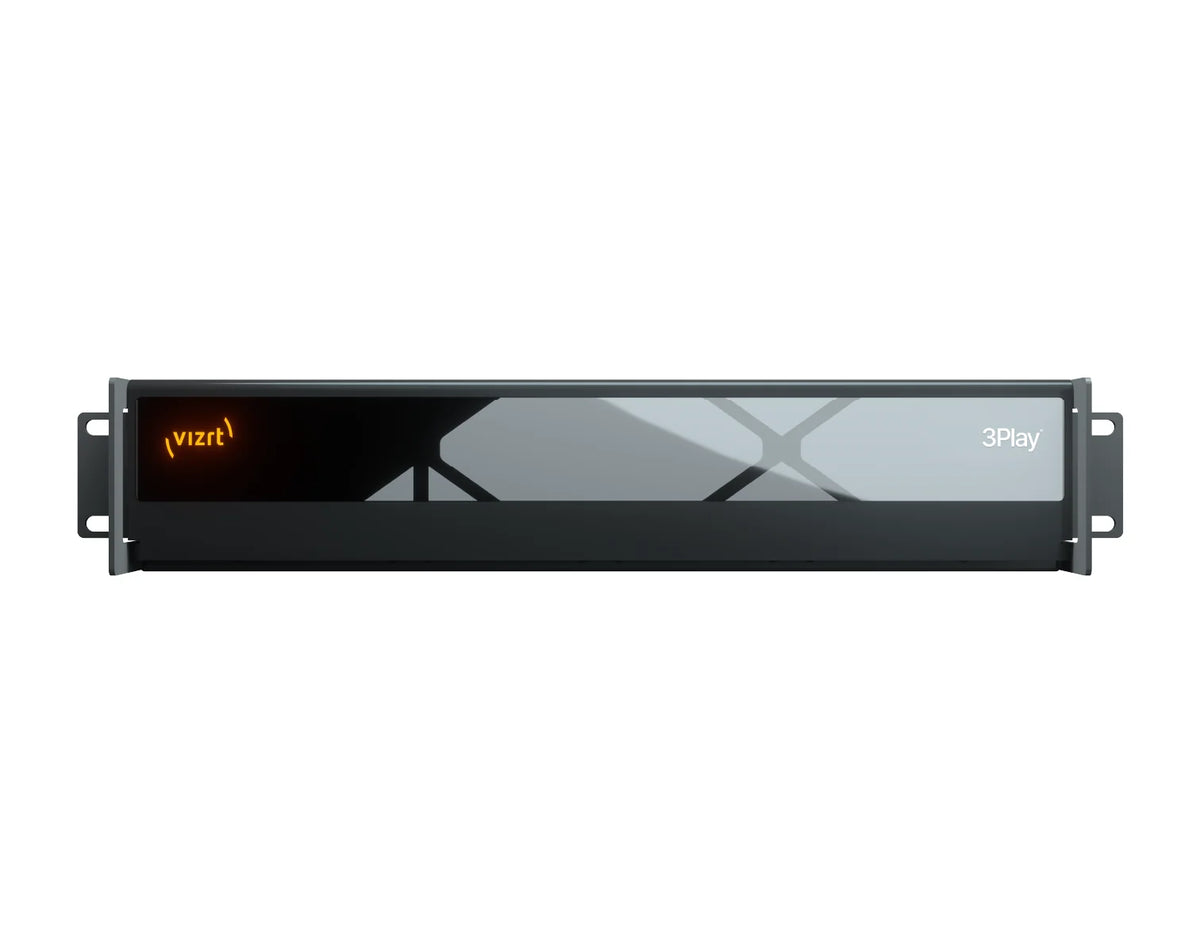

- Physical: 2RU chassis with 500W PSU; 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm); 32 lbs (14.5 kg) in packaging
- Control protocols: AMP (Advanced Media Protocol) for third-party remote control, GPI via JLCooper Electronics eBox interface, standard MIDI support
Included 3Play Control Panel
The bundled control surface gives operators a precision T-Bar, jog wheel, speed presets, a dedicated 3Play TAGS keypad for fast metadata entry, and dynamic backlighting that shows playback speed and control mode at a glance — built for fast recording, replay, switching, highlights publishing, and asset management in a live production environment.
This is a newly released flagship model in the Viz 3Play lineup — contact us for current lead time and configuration options.
LivePanel Compatibility
Viz 3Play 3P1 natively supports control from the browser of any compatible networked device via LivePanelTM. Available as an optional purchase, LivePanel includes a touchscreen-friendly software control panel and LivePanel Builder for custom user interfaces, with premium customization services.
