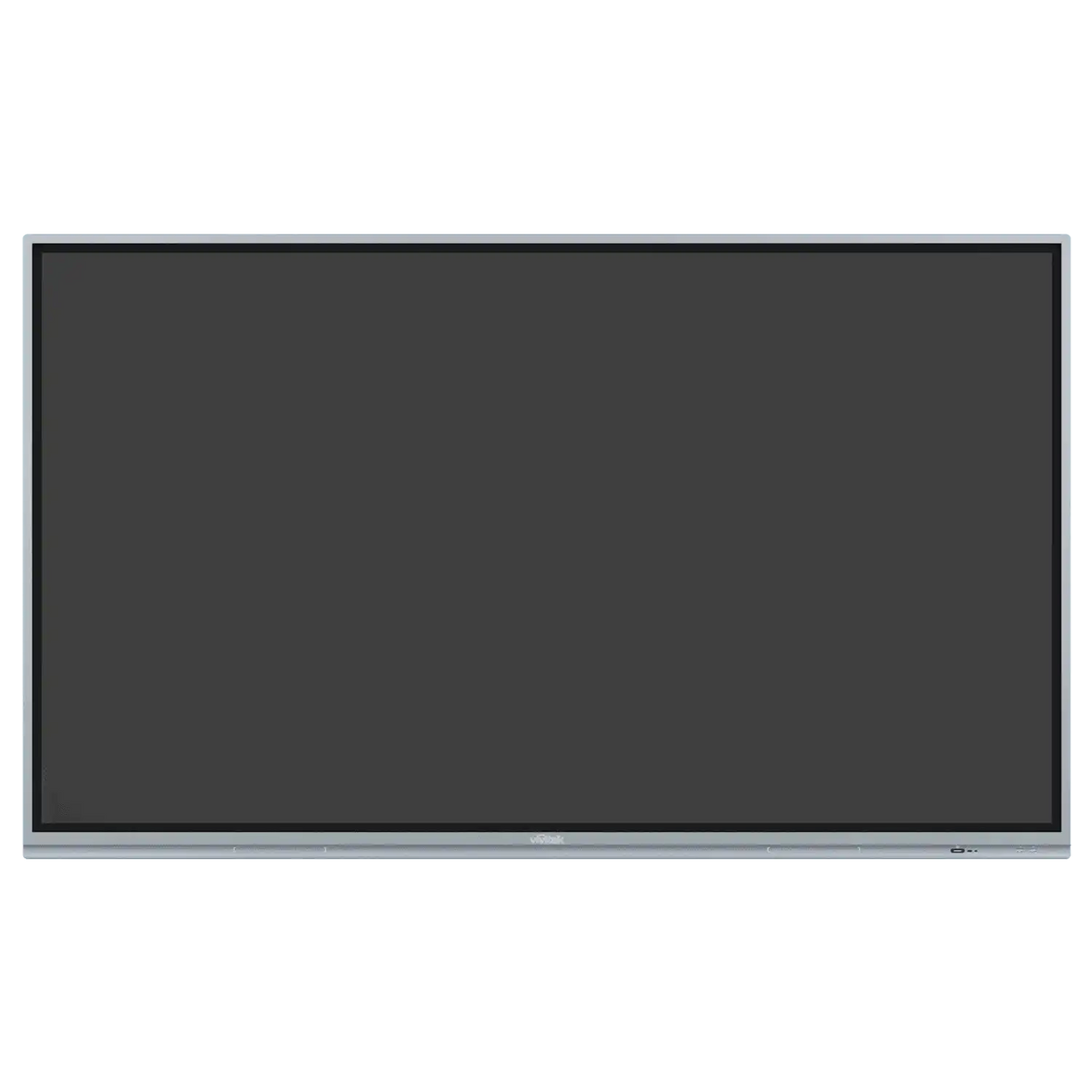

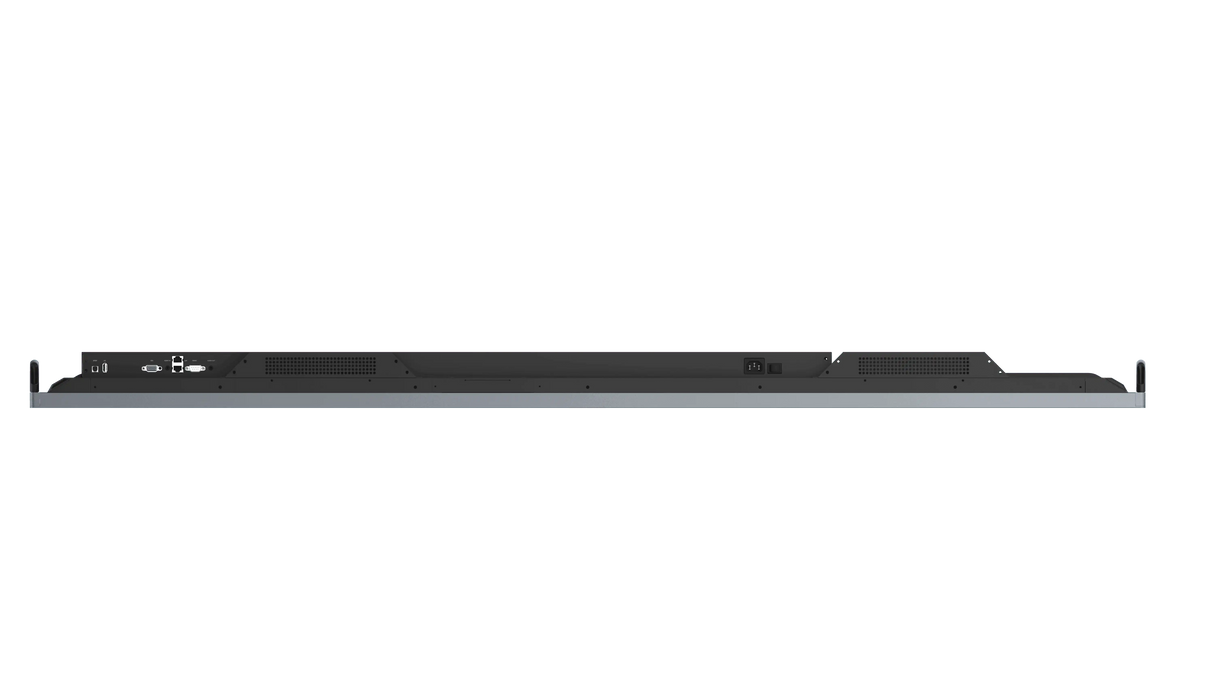

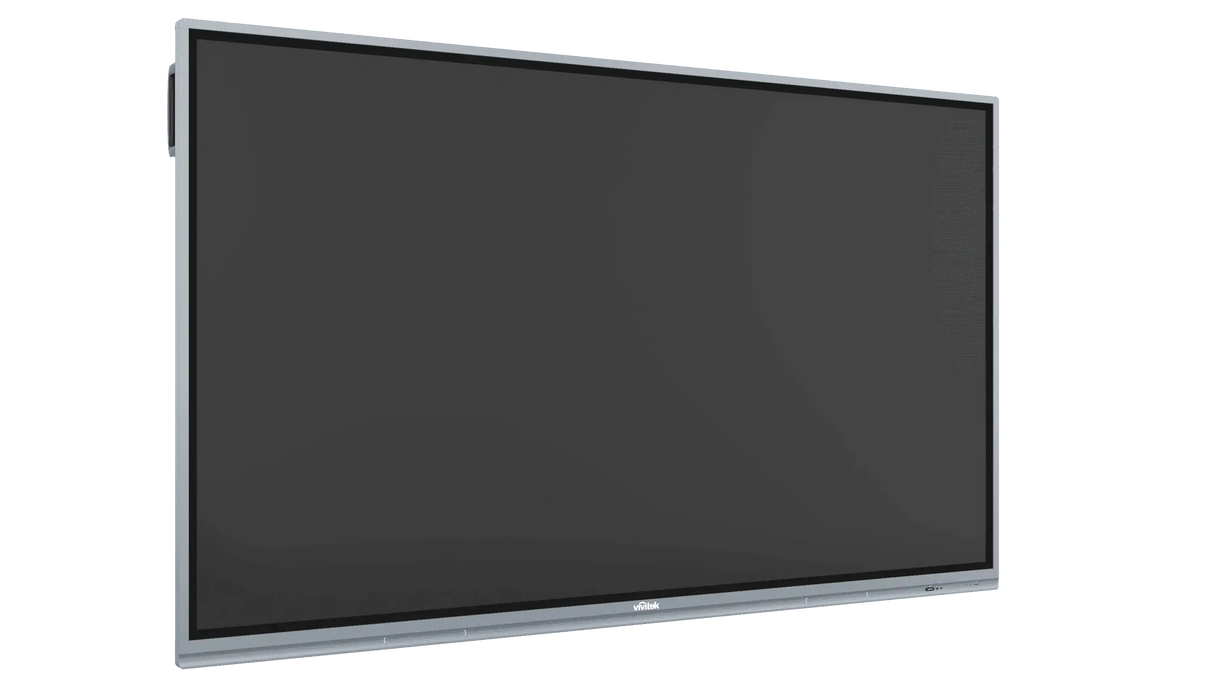

Vivitek EK865I 86" Multi-touch Interactive UHD LED 330 Nits

Vivitek SKU: EK865I
No reviews

Sale price$11,000.00


The new NovoTouch EK series of interactive 4K displays offer the most complete solution for engaging hybrid meetings and classes. The displays feature NovoConnect Wireless Collaboration, Video Conferencing, BYOM (optional) and NovoDS Digital Signage functionalities. NovoTouch is available in 65”, 75” and 86” display sizes, all with UHD 4K resolution.

NovoTouch is designed to take business meetings and education sessions to a new level of collaboration and interaction.

  • 86” display with ultraHD 4K (3840x2160) resolution for outstanding details and stunning visuals
  • Backlit D-LED (IPS panel) technology for brighter pictures, flawless colors, richer textures, and extra wide viewing angels (178o/178o)
  • Preconfigured with NovoConnect wireless presentation and collaborative system for cable-free and hassle-free presenting in the classroom
  • Connect up to 64 users simultaneously, and allow 4 people to present on one display to facilitate large group work
  • Optional LauncherPlus wireless dongle connects to any visitor’s laptop for a direct plug-n-play WiFi connection without impacting an existing network
  • High contrast ratio and fast response time deliverables crisp, readable content
  • Interactive functionality with up to a 20-point finger touch capabilities (10-point writing, 20-point touch) for on-screen annotation, drawing and common gesture controls
  • Simple wireless display and true fast collaboration solution thanks to WiFi 6, 802.11AX dual-band 2.4/5GHz support
  • Provide API or Remote Manager with IT management software with automatic discovery and configuration

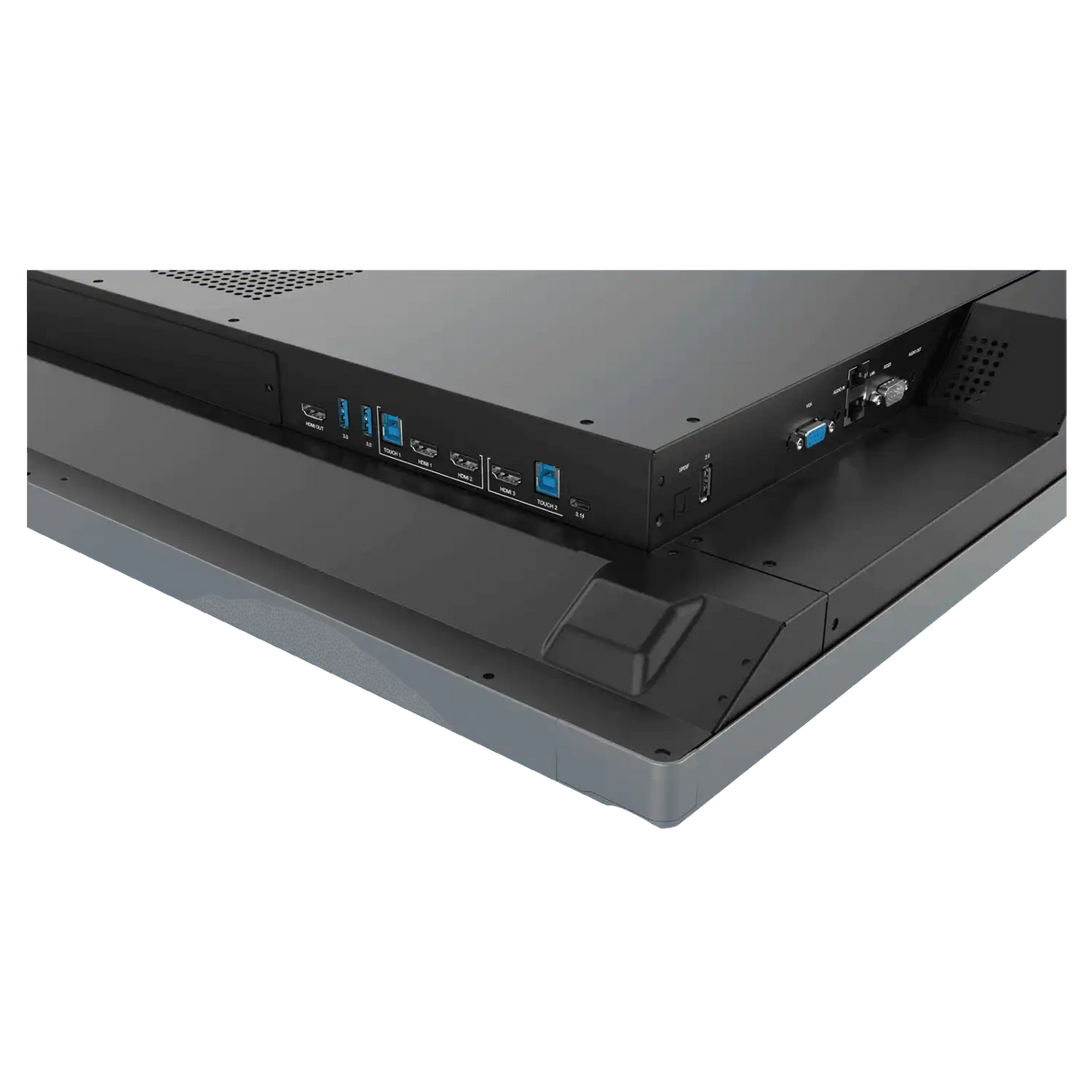

  • Full suite of connectivity ports including HDMI-In VGA-In, Audio-In/Out, LAN, RS232 and USB.
  • Front bezel USB 3.0 ports for quick connection to USB memory drives and data
  • 4mm thick toughened glass for added protection against scratches or screen damage
  • Support HDMI-IN on presentation or digital signage mode
  • Built-in NovoDS capability as an all-in-one digital signage solution, easy to set up and manage via Windows/Mac software or Cloud service
  • Daily auto-reboot and low blue light support
  • VESA compliant mounting for easy installation
  • Powerful front-facing stereo audio speakers with up to 32W of total power (16Wx2) and multiple audio- in/out ports
Display Type/Technology Backlit D-LED (IPS Panel)
Panel Size 86”
Brightness (Typ) 350cd/m2
Contrast Ratio (Typ) 1,200:1
Native Resolution 4K Ultra-HD (3840 x 2160)
Viewing Angle (H/V) 178º/178º
Aspect Ratio 16:9
Response Time (MS) 8ms (Typ)
Refresh Rate (Hz) 60Hz
Estimated Life Time (Typ) 30,000 hours (Min)
Display Color (Bit) 1.07 billion (10-bit)
Installation Orientation Landscape
Daily Operation (Hours/Days) 16/7
Interactivity Technology Infrared Touch
Touch Points Writing 10 Point (Standard)
Touch 20 Point (Standard)
Accuracy Finger ±1.0mm (Over 90% area)
Passive Pen ±1.0mm (Over 90% area)
Response Time < 10ms
Touch Resolution 32,768 x 32,768
Surface Protection 4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness)
Touch Tools Finger, Stylus, Glove, Opaque Objects
Operating System System Version Android™ v9.0
CPU Multi-Core High-Performance ARM®CPU
GPU 4*Mali™ G52
Internal Storage 64GB (eMMC Flash)
Connectivity Input Display HDMI v2.0 (x3) (HDCP v2.2 Compliant), USB Type C (x1), VGA-In (x1)
Audio Audio-In (3.5mm) (x1)
Output Display HDMI-Out v1.4(x1)-1080P@60Hz (option)
Audio Audio-Out (3.5mm) (x1), SPDIF-Out (x1)
Internet LAN (RJ45, 10/100/1000M) (x2)
Control RS232-In (x1)
Wireless Wifi (USB Module) WiFi 6, IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
Bluetooth BT 5.0
I/R Receiver Front (x1) (±25° Angle, >8m Distance)
USB Front USB 3.0 (x2)
Side USB Type C (x1)
• Support up to 65W / display input USB 3.0 (x2) USB Type B (x2) (For Touch Port)
Bottom USB 2.0 (x1)
Window Module (Option) Slot 1: Standard Intel 80pin OPS (Option)
Audio Speakers 16W (x2) (Stereo)
Power Power Supply (Internal) AC 100 - 240V, 50/60Hz (5.0A)
Consumption 500W
Standby Mode <0.5W (Standby)
Physical Characteristics Dimension (L x H x D) 1,957 x 1,160 x 86mm
Weight 70.8kg
VESA Mounting (FPMPMI) 6 – M8 × 25mm, 800 x 400mm
Color Grey
Audio Built-in Lighting Sensor
Accessories Standard AC Power Cord (3m), WiFi 6 USB Module, HDMI Cable,Touch USB Cable, Audio Cable, Stylus (x2), Remote Control (W/Batteries), Documentation Kit, Wall Mount Kit
Optional * Sensor Box (including Air Quality/ Temperature Detector, Motion Sensor, NFC Reader, Proximity Sensor)
* Standard Intel OPS
* LauncherPlus WQL400
