Vivitek DW770UST – WXGA 3,500 Lumen Ultra-Short Throw DLP Projector

Product Overview

The Vivitek DW770UST is a WXGA (1280×800) ultra-short throw DLP projector delivering 3,500 ANSI lumens with a 0.35:1 throw ratio, projecting a 100-inch image from approximately 44 cm (15.75 inches) from the screen surface. Designed for education and corporate deployments where space constraints prevent standard-throw installation, the DW770UST eliminates shadow obstruction and presenter glare while providing Crestron RoomView network management and a built-in 20W stereo speaker system for classroom audio reinforcement.

Product Description

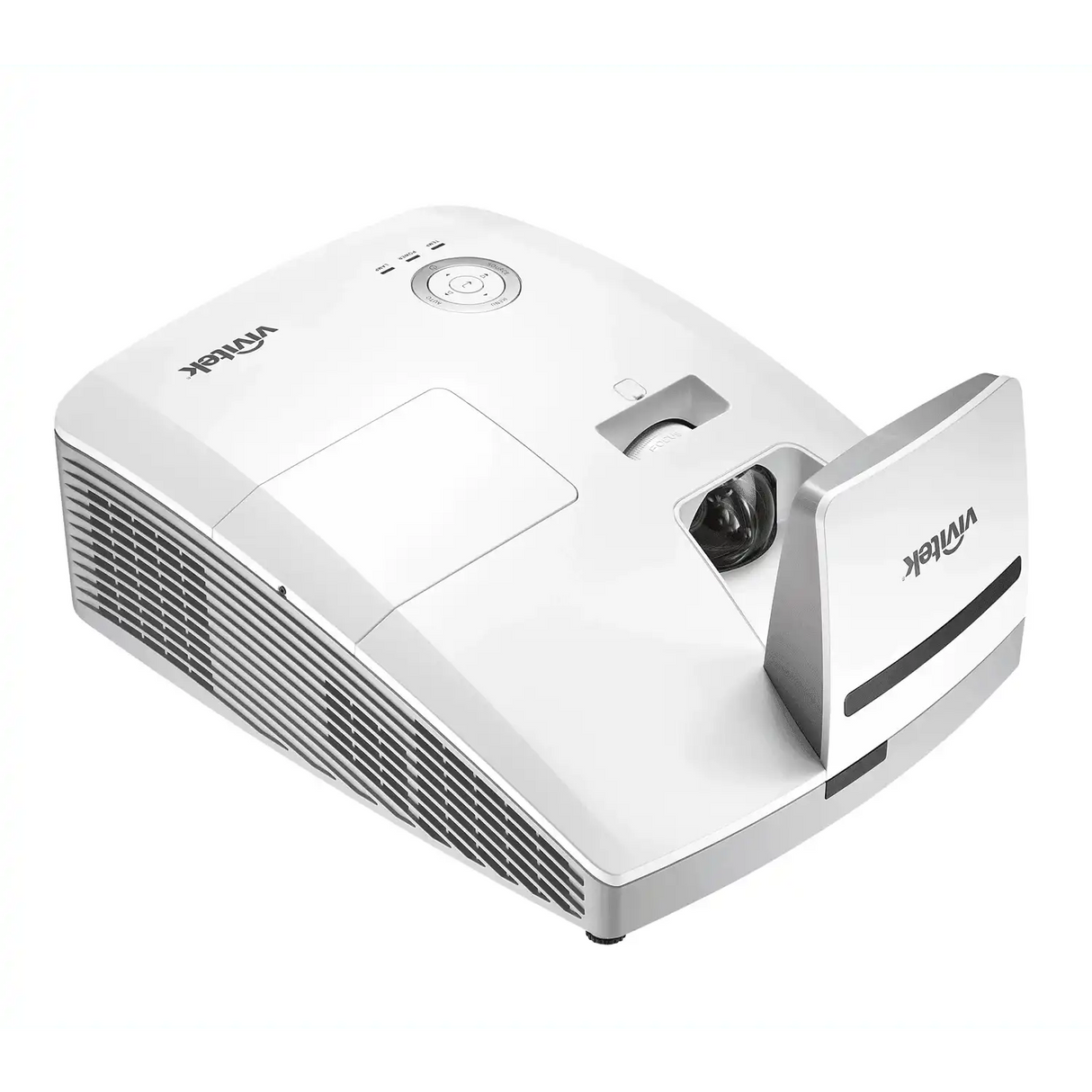

The DW770UST uses DLP and BrilliantColor technology with a 10,000:1 contrast ratio to produce clear imagery under ambient classroom lighting. Its ultra-short throw optical path, with an embedded reflective mirror and low-profile chassis, allows ceiling or table installation directly adjacent to the projection surface. A sealed optical engine with enhanced ventilation reduces dust sensitivity and eliminates filter maintenance requirements.

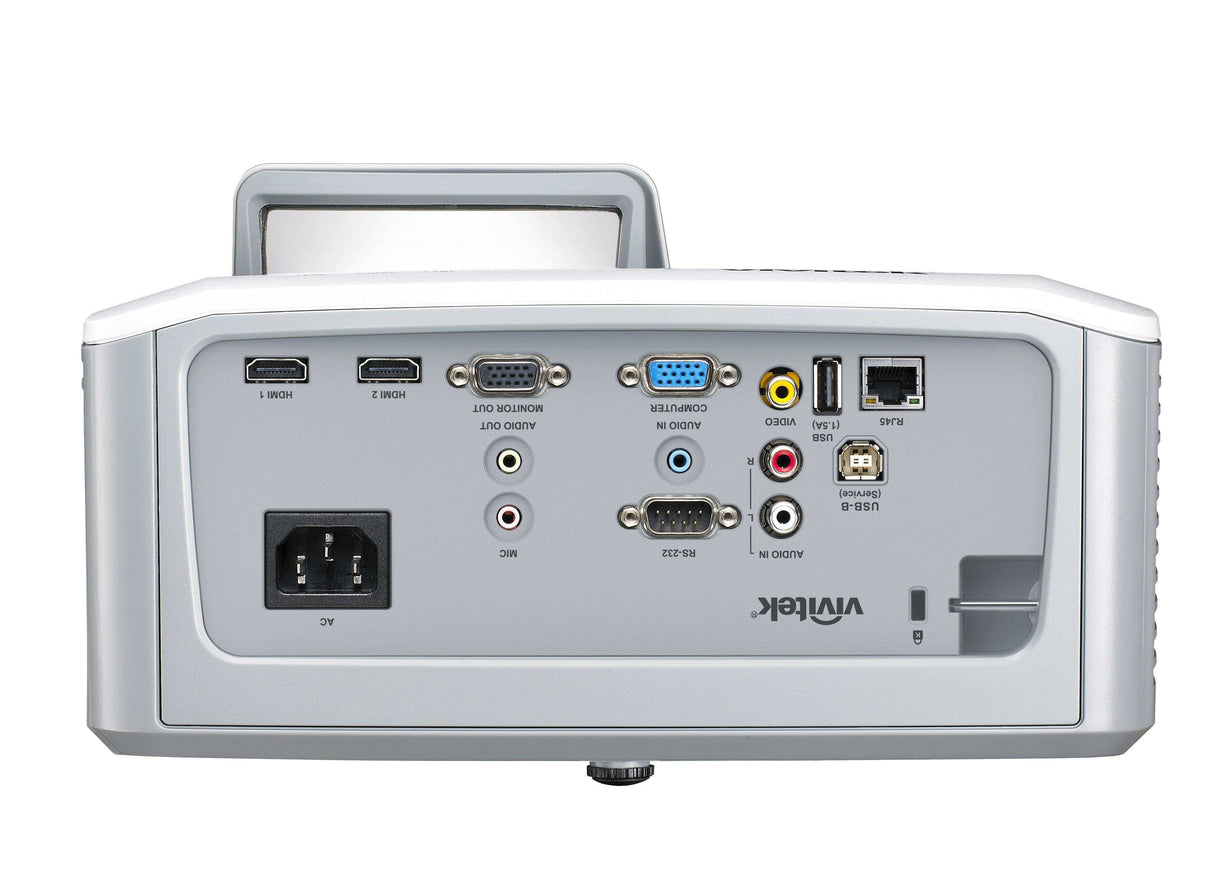

HDMI 2.0 inputs with 4K signal support allow connection to current-generation computers and media sources. Crestron RoomView, TCP/IP Telnet, and RS-232 support provide certified AV management system integration. Built-in 20W stereo audio (2×10W) with microphone input handles classroom audio reinforcement without external amplification. A top-loading lamp access cover simplifies on-site lamp replacement, and the lamp is rated for up to 12,000 hours in Dynamic Eco mode, reducing replacement frequency in fixed installations.

Key Features

• 0.35:1 Ultra-Short Throw Ratio — Projects a 100-inch image from approximately 44 cm, eliminating shadow obstruction and presenter glare.
• 3,500 ANSI Lumens — Clear, bright imagery under ambient classroom and training room lighting.
• WXGA Native Resolution (1280×800) — 16:10 native format for accurate display of laptop and document camera output.
• 4K Signal Compatibility via HDMI 2.0 — Accepts 4K UHD input for connection to current-generation sources.
• 10,000:1 Contrast Ratio — Produces distinct image detail for presentation graphics and text.
• Crestron RoomView Certified — TCP/IP, Telnet, and RS-232 network control for enterprise AV management integration.
• 20W Built-In Stereo Audio — Dual 10W speakers with microphone input for classroom audio reinforcement.
• 12,000-Hour Lamp Life (Dynamic Eco) — Extended service intervals for high-utilization fixed installations.
• Sealed Optical Engine — Filter-free, dust-resistant design reduces maintenance requirements.

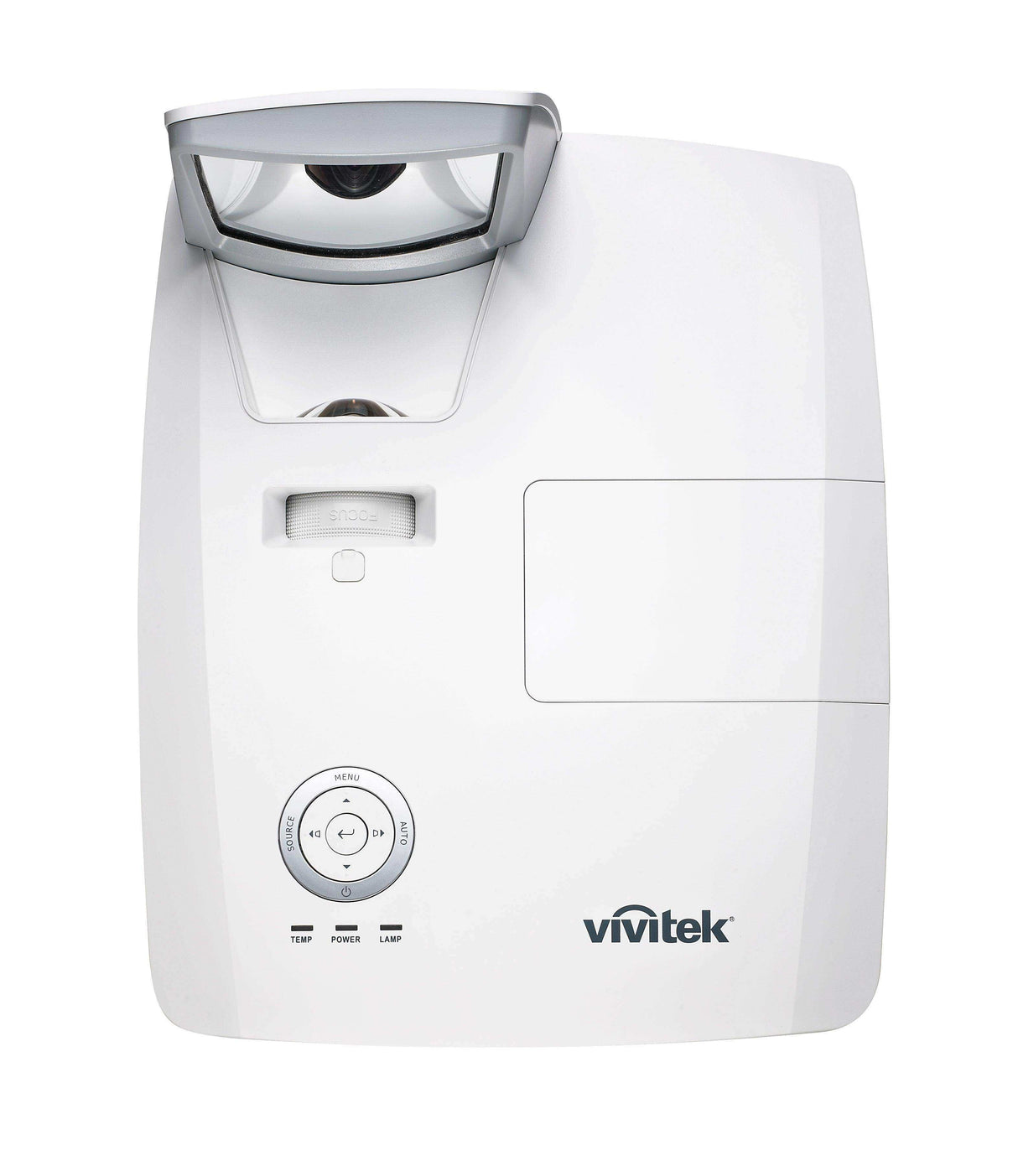

• Top-Loading Lamp Access — Simplifies lamp replacement without removing the projector from its mount.

Typical Applications

• K–12 and higher education classrooms requiring large-format shadow-free front projection
• Corporate training rooms and conference rooms with limited throw depth
• Government and municipal meeting rooms with fixed short-throw installation
• Multi-purpose rooms requiring portable ultra-short throw capability

Technical Specifications

Frequently Asked Questions

What installation distance does the DW770UST require for a 100-inch screen?

The DW770UST projects a 100-inch image from approximately 44 cm (15.75 inches), enabling installation directly under or adjacent to the projection surface in standard classrooms.

Does the DW770UST include interactive whiteboard capability?

No. The DW770UST is a standard ultra-short throw projector without built-in interactivity. The DW771USTI model adds dual-pen interactive support. Both are available at Creation Networks.

Is the DW770UST Crestron compatible?

Yes. The DW770UST is Crestron RoomView certified and supports RS-232 and TCP/IP Telnet for integration with enterprise AV room management systems.

What is the lamp life for the DW770UST?

Up to 12,000 hours in Dynamic Eco mode, reducing replacement frequency for high-utilization fixed classroom installations.

Does the DW770UST require filter maintenance?

No. The sealed optical engine is filter-free, eliminating periodic filter cleaning or replacement.
