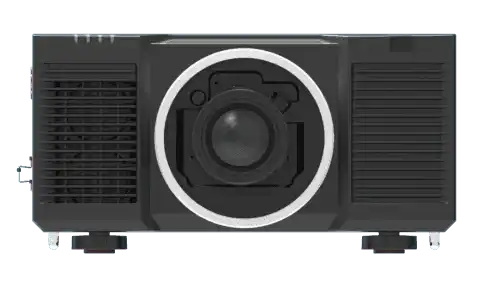

Vivitek DU9900Z-BK – WUXGA 22,000 Lumen Laser Large Venue Projector

Product Overview

The Vivitek DU9900Z-BK is a single-chip WUXGA laser projector delivering 22,000 ANSI lumens, designed for large venue projection in auditoriums, house of worship, rental and staging, and professional ProAV installations. Built on a solid-state laser-phosphor light source rated to 20,000+ hours, it eliminates lamp replacement cycles that drive up total cost of ownership in demanding commercial deployments. The DU9900Z-BK supports 360-degree installation, portrait mode, built-in hardware edge blending and warping, and HDBaseT connectivity — making it an AV integration-ready platform for multi-projector and large-screen installations.

Product Description

The DU9900Z-BK is engineered for ProAV rental, staging, large venue, and house of worship applications where brightness, reliability, and installation flexibility are non-negotiable. Producing 22,000 ANSI lumens through DLP DarkChip3 and BrilliantColor technologies, the projector delivers sharp WUXGA (1920 x 1200) native resolution with a 16:10 aspect ratio across image sizes from 40 to 500 inches diagonal. The 20,000:1 contrast ratio (up to 30,000:1 with Dynamic Black) ensures clean blacks even in ambient-light environments common to large venue commercial spaces.

The laser-phosphor light source provides instantaneous power-on and power-off — no warm-up or cool-down cycles — and the airtight sealed optical engine with filter-less design eliminates scheduled maintenance intervals that add labor cost over the system's life. The built-in hardware edge blending and warping functionality supports multi-projector arrays and curved screen installations without requiring external processing hardware. Five interchangeable motorized lenses cover throw ratios from 0.9:1 to 7.0:1, with electronic horizontal and vertical lens shift (±50% V / ±15% H) and lens memory for position recall.

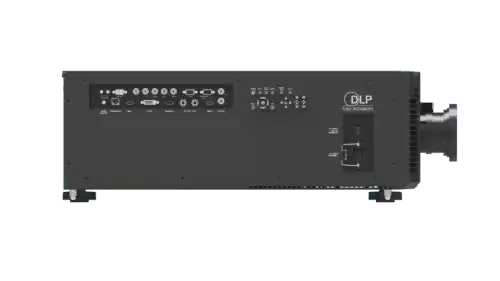

Connectivity for commercial AV system integration includes dual HDMI 1.4, DVI-D, Component via 5 BNC, VGA in/out, dual 3G-SDI in/out, HDBaseT/LAN (RJ45), RS-232 in/out, wired remote, and dual 12V trigger outputs. HDBaseT extends signal and control distribution over standard CAT5e/6 up to 100 meters, reducing cabling infrastructure costs. The projector supports 24/7 continuous operation, 3D frame sequential and dual-channel formats, and Picture-in-Picture from two simultaneous sources.

Key Features

• 22,000 ANSI Lumens — Single-chip DLP output suitable for large auditoriums, arenas, and high-ambient-light installation environments.
• WUXGA Native Resolution (1920 x 1200) — 16:10 format delivers crisp text, data graphics, and video for commercial presentations and live production.
• 20,000+ Hour Laser-Phosphor Light Source — Eliminates lamp replacement and delivers consistent brightness over the system lifecycle, reducing maintenance cost.
• Built-In Hardware Edge Blending and Warping — Supports multi-projector arrays, curved screens, and mapped surfaces without external processing hardware.
• 360° Installation and Portrait Mode — Mounts in any orientation including floor-up, inverted, and 90° portrait for maximum installation flexibility.
• HDBaseT Connectivity — Distributes HDMI signal and control over CAT5e/6 up to 100m, reducing long cable runs in large venue rack-mount AV systems.
• Dual 3G-SDI In/Out — Supports broadcast-grade signal routing for production environments and live event deployments.
• Five Interchangeable Motorized Lenses — Throw ratios from 0.9:1 to 7.0:1 with lens memory cover all large venue throw distances.
• Electronic H/V Lens Shift (±50% V / ±15% H) — Motorized offset adjustment enables precise image placement without physical projector repositioning.
• Instantaneous Power On/Off — No pre-heating or post-cooling required, enabling rapid deployment in rental and staging applications.
• Airtight Sealed Optical Engine — Filter-less, dust-resistant design rated for continuous commercial operation in varied environments.
• Picture-in-Picture (PIP) — Simultaneous display from two digital input sources for multi-source commercial presentations.

Typical Applications

• Auditorium
• House of worship
• Broadcast studio
• Large venue commercial meeting space
• Government space
• Multi-purpose room (rental and staging)

Technical Specifications

Frequently Asked Questions

Does the DU9900Z-BK include a lens?
No. The projector ships body-only. Five optional interchangeable motorized lenses are available separately at creationnetworks.net/collections/vivitek, covering throw ratios from 0.9:1 to 7.0:1.

What power supply does the DU9900Z-BK require for full brightness output?
Full 22,000 ANSI lumen output requires a 200–240V supply (NEMA 6-15). At lower voltages, brightness output is reduced.

Is built-in edge blending sufficient for multi-projector arrays, or is external hardware required?
The DU9900Z-BK includes hardware edge blending and warping natively. External blending hardware is not required for most multi-projector installations, including curved and mapped screen surfaces.

How does HDBaseT integration work for AV system distribution?
The HDBaseT port supports distribution of HDMI video, RS-232 control, IR, and LAN over a single CAT5e/6 cable run up to 100 meters, which simplifies rack-mount AV infrastructure in large venue installs.

Can the DU9900Z-BK operate 24/7 in fixed installation environments?
Yes. The laser-phosphor light source and sealed optical engine are rated for continuous 24/7 operation with up to 20,000 hours of lamp-free runtime.

What is the warranty on the DU9900Z-BK?
Vivitek provides a standard commercial warranty on large venue projectors. Contact creationnetworks.net for current warranty terms and support options.

Does the projector support 3D content?
Yes. The DU9900Z-BK supports frame sequential and dual-channel 3D formats via 3D Sync In/Out connections.
