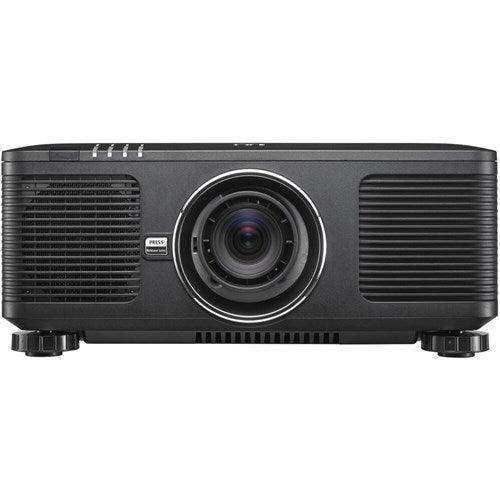

Vivitek DU8395Z-BK – WUXGA 15,000 Lumen Laser Phosphor Large Venue Projector

Product Overview

The Vivitek DU8395Z-BK is a WUXGA laser-phosphor projector delivering a constant 15,000 ANSI lumens for large venue, house of worship, and professional installation applications. Built on a sealed optical engine with a 20,000+ hour rated laser light source, the DU8395Z-BK supports mapping, edge blending, picture-in-picture, and 3G-SDI/HDBaseT connectivity — making it an integration-ready platform for complex multi-projector and large-format commercial AV deployments. The projector ships body-only with eight optional motorized lenses covering throw ratios from 0.38:1 to 8.26:1.

Product Description

The DU8395Z-BK is designed for professional AV installers and integrators who require sustained high brightness, low maintenance overhead, and flexible installation geometry in permanent large venue deployments. The laser-phosphor engine maintains a constant 15,000 ANSI lumen output — unlike lamp-based systems that lose brightness progressively — and the built-in color sensor continuously calibrates color and brightness ratios over the projector's lifecycle. The 3,000,000:1 dynamic contrast ratio delivers clean black levels across Rec.709, EBU, SMPTE, and Dynamic Black color modes.

The sealed optical engine and airflow-optimized chassis support instantaneous power-on/off and 24/7 continuous operation without scheduled maintenance intervals. The DU8395Z-BK is rated for 30,000+ hours in Eco mode, further extending the total cost of ownership advantage over lamp-based alternatives in corporate, education, government, and worship installation environments.

AV integration connectivity includes HDMI, 3G-SDI, HDBaseT, BNC for YPbPr/RGBHV, VGA in/out, composite, S-Video, RS-232, IR input, and dual 12V trigger for screen automation. HDBaseT distributes HDMI video, audio, LAN, and control signals over a single CAT5e/6 cable, reducing rack-mount infrastructure and long-run cabling in large venue installs. Eight optional motorized lenses with Lens Positioning System (LPS) memory enable precise throw matching and repeatable lens recall across installation and maintenance cycles.

Key Features

• 15,000 ANSI Lumens — Constant Output — Laser-phosphor engine maintains sustained brightness without the progressive lumen decay characteristic of lamp-based systems.
• Built-In Color Sensor — Automatically maintains color accuracy and optimal brightness ratios over the projector's operational life.
• 3,000,000:1 Dynamic Contrast Ratio — Delivers clean black levels and vivid highlight separation across Rec.709, EBU, SMPTE, and Dynamic Black modes.
• WUXGA Native Resolution (1920 x 1200) — 16:10 format for high-detail commercial data, video, and graphics in large-format projection.
• 20,000+ Hour Laser Light Source (30,000+ in Eco Mode) — Eliminates lamp replacement cycles and reduces maintenance cost in permanent commercial installations.
• Built-In Hardware Edge Blending and Warping — Supports multi-projector arrays, curved surfaces, and projection mapping without external blend processing hardware.
• Eight Optional Motorized Lenses (0.38:1 – 8.26:1) — Wide throw range with Lens Positioning System (LPS) memory for repeatable recall of focus, zoom, and shift positions.
• HDBaseT Interface — Distributes HDMI video, audio, LAN, and control signals over a single CAT5e/6 cable for simplified large venue cabling infrastructure.
• 3G-SDI Connectivity — Supports broadcast-grade signal routing for ProAV and production environments.
• Picture-in-Picture (PIP) / Picture-by-Picture (PBP) — Simultaneous display from two independent digital input sources for multi-feed commercial applications.
• 360° Installation and Portrait Mode — Operates in any orientation including floor-up, inverted ceiling, and 90° portrait for maximum installation flexibility.
• Crestron RoomView and eControl Compatible — LAN control integration for commercial AV control system management over network infrastructure.

Typical Applications

• Auditorium
• House of worship
• Large venue commercial meeting space
• Government space
• Broadcast studio
• Multi-purpose room
• Training room (large format)

Technical Specifications

Frequently Asked Questions

Does the DU8395Z-BK include a lens?
No. The projector ships body-only. Eight compatible motorized lenses are available separately at creationnetworks.net/collections/vivitek, with throw ratios from 0.38:1 to 8.26:1.

How does the built-in color sensor benefit long-term commercial installations?
The color sensor continuously monitors and adjusts color output to maintain calibrated brightness and color accuracy over the laser source's rated life, reducing the need for periodic manual recalibration in fixed-install environments.

Is the DU8395Z-BK compatible with Crestron control systems?
Yes. The projector supports LAN control via Crestron RoomView and Crestron eControl, as well as RS-232 and IR control for integration with standard commercial AV control platforms.

Can the DU8395Z-BK be used in multi-projector edge-blended configurations?
Yes. Built-in hardware edge blending and warping support multi-projector display walls, curved screens, and projection mapping applications without requiring external processing hardware.

What is the total usable laser life in Eco mode?
In Eco mode, the DU8395Z-BK's laser-phosphor light source is rated for 30,000+ hours of operation, significantly extending the system's maintenance-free lifecycle compared to standard operating mode (20,000+ hours).

What warranty does the DU8395Z-BK carry?
Vivitek provides commercial warranty coverage on large venue projectors. Contact creationnetworks.net for current warranty terms and dealer support options.
