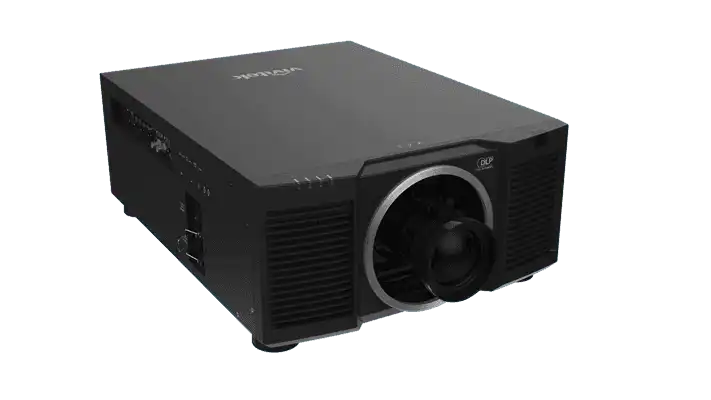

Vivitek DU9800Z-BK WUXGA 18000 Lumens 20000 Laser projector (Black)
Regular price
$30,000.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Vivitek | SKU:
DU9800Z-BK
Vivitek DU9800Z-BK WUXGA 18000 Lumens 20000 Laser projector (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Vivitek DU9800Z-BK WUXGA 18000 Lumens 20000 Laser projector (Black)
Regular price
$30,000.00
Unit price
/
Unavailable
The DU9800Z Single Chip WUXGA Laser Projector delivers 18,000 ANSI Lumens with its laser light source, the DU9800Z delivers up to 20,000 hours of operation. Additionally, the projector presents many benefits to System Integrators due to its small form factor and light weight that enables simple and swift installation. Vivitek offers a new Constant Brightness feature to help reduce blending maintenance and customise brightness with a built-in light sensor inside the projector monitors the level of light. The DU9800Z is very stable projector and is ideally suited to 24/7 operation with low user intervention.
Features
- Bright 18,000 ANSI lumens with a native WUXGA (1,920 x 1,200) resolution for impeciablle colors and outstanding details
- DLP DarkChip3 and BrilliantColor technologies for optimal black levels and vibrant colorful images
- Sold state laser phosphor light source for reliable projection and performance
- Environmentally friendly lamp-less design that is mercury-free and energy efficient
- Almost maintenance-free with up to 20,000 hours of operating time
- Advanced video processor for fluid video streaming and 10-bit programmable RGB color adjustments
- Laser light source produces rich colors for an incredible cincematic like movie experience
- Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
- Built-in hardware edge blending and warping functionality
- Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
- Picture-in-Picture (PIP) for simultaneously image projection from two different active sources
- Full suite of display connectivity inputs and outputs including: HDMI v1.4, DVI-D, Component (5 BNC) , VGA-In, 3G-SDI-In/Out, VGA-Out, HDBaseT
- HDBaseT interface with support for distribution of digitalvideo content over standard CAT5e/6 LAN cable
- Portrait mode projection allows the projector to be easily setup and installed in a 90-degree installation
- 360-degree operation and projection design for set up in all angles
- Instantaneous power-on & off, so no need for system pre-heating and postcooling
- Optimized system layout with high efficiency cooling system
Specs
| Native Resolution | WUXGA (1920 x 1200) |
| Brightness | 18000 ANSI Lumens |
| Contrast Ratio | 3,000,000 : 1 |
| Max. Supported Resolution | WUXGA (1920 x 1200) @60Hz |
| Native Aspect Ratio | 16:10 |
| Lamp Life and Type | Lamp free design. Laser light source lasts up to 20,000 hours |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.96” DMD |
| Throw Ratio | 5 optional lenses from 0.84:1 to 7.00:1 throw ratio range |
| Image Size (Diagonal) | depending on lens selection |
| Projection Distance | depending on lens selection |
| Zoom Ratio | Motorized Zoom & Focus |
| Lens Shift Range | Vertical: +/-50%; Horizontal: +/-15% |
| Offset | Motorized Lens Shift |
| Keystone Correction | Vertical: +/-40°; Horizontal: +/-60° |
| Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) |
| I/O Connection Ports | VGA-In (15pin D-Sub), HDMI (x2), Display Port, DVI-D, Component (5 BNC) (RGBHV) , VGA-Out (15pin D-Sub), RJ45 (1: HDBaseT/LAN), 12v Trigger (x2), RS-232, 3D-Sync (x2: In and Out), 3G-SDI (x2: In and Out), Remote Jack(wire remote) |
| Dimensions (W x D x H) | 530 x 693 x 248 mm |
| Weight | 48 kg |
| Noise Level | 43dB (Normal Mode) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 1800W (Normal Mode), <0.5W (Standby) |
| Control Software | PJ - Control V3.0.0.4 |
| 3D Ready(DLP link, PC+Video) | Yes |
| Standard Accessories | HDMI Cable, User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
| Optional Accessories | Remote Control P/N: 5041848301 |
| Warranty | Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first) |
