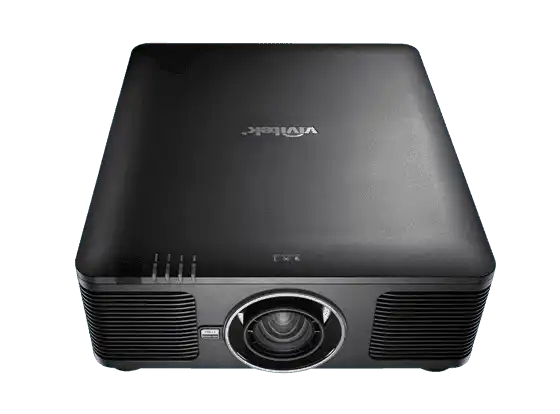

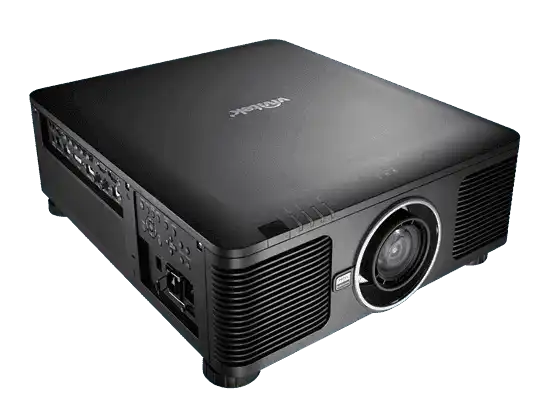

This Vivitek Professional Large Venue Projector in Black offers exceptional picture clarity and string visual performance with around 13,500 lumens brightness. The projector offers a constant brightness and excellent color performance making use of a long-lasting laser light source. Additionally, it uses DLP technology for rich picture quality offering a 10,000:1 contrast ratio for bright projections. With a maximum of 8 optional lenses from 0.38:1 to 5.31-8.26:1 throw ratio, the projector ensures installation flexibility at any location. The long-lasting laser light source of the projector offers constant brightness and color performance for 20,000 hours of operations.
Features
- DLP® technology for vibrant and rich picture quality
- 13,500 ANSI lumens of brightness, WUXGA resolution, and 10,000:1 contrast ratio for clear, crisp and bright projection
- Long lasting laser light source for constant brightness level and color performance for up to 20,000 hours operations. Designed for heavy duty 24/7 operations with 360° installation angle flexibility
- 3G-SDI & HDBaseT for robustness for long signal transmission
- Installation flexibility is ensured with 8 optional lenses from 0.38:1 to 5.31-8.26:1 throw ratio range
- Motorized and wide lens shift range allows easy placement of the projector without distorting the image
- Projection image alignment is built-in, along with multi-screen edge-blending, warping and keystone correction features
- Constant Brightness – designed to reduce the need for regular recalibration of the projectors, especially when edge blended. A built-in light sensor inside the projector monitors the level of light so that when a reduction in light is detected, the projector will regulate dynamically the electricity power to increase the light output to your pre-defined brightness level, and thus maintaining a constant level of brightness
- Easy projector monitor and control over network
Specs
| Native Resolution |
WUXGA (1920 x 1200) |
| Brightness |
13500 ANSI Lumens |
| Contrast Ratio |
10,000:1 |
| Max. Supported Resolution |
WUXGA (1920 x 1200) @60Hz |
| Native Aspect Ratio |
16:10 |
| Lamp Life and Type |
Lamp free design. Laser light source lasts up to 20,000 hours |
| Display Type |
Single chip DLP® Technology by Texas Instruments |
| Chip Size |
0.67” DMD |
| Throw Ratio |
8 optional lenses from 0.38 to 8.26:1 throw ratio range |
| Zoom Ratio |
Motorized Zoom & Focus |
| Lens Shift Range |
Vertical: +64%, -33%; Horizontal: +24%, -14% |
| Offset |
Motorized Lens Shift |
| Keystone Correction |
Vertical: +/-40°; Horizontal: +/-60° |
| Video Compatibility |
SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) |
| I/O Connection Ports |

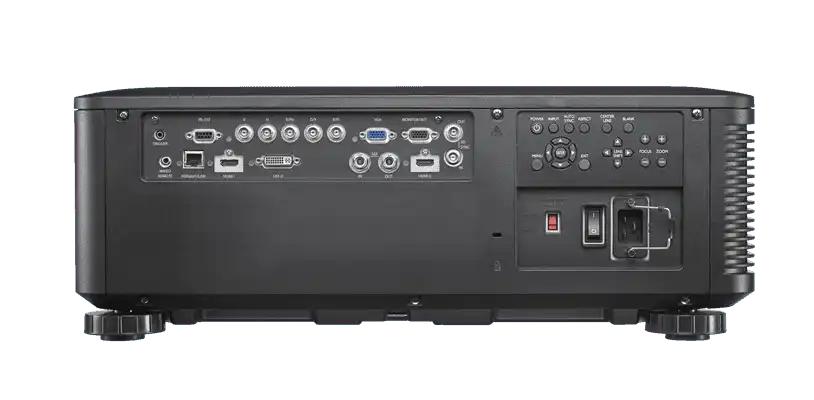

VGA-In (15pin D-Sub), HDMI (x2), DVI-D, Component (5 BNC) (RGBHV) , VGA-Out (15pin D-Sub), RJ45 (1: HDBaseT/LAN), 12v Trigger, RS-232, 3D-Sync (x2: In and Out), 3G-SDI (x2: In and Out), Remote Jack(wire remote) |
| Dimensions (W x D x H) |
500 x 580 x 205 mm |
| Weight |
28 kg |
| Noise Level |
42dB (Normal Mode) |
| Power |
Supply: AC 100-240V. 50/60Hz. Consumption: <0.5W (Standby) |
| 3D Ready(DLP link, PC+Video) |
Yes |
| Standard Accessories |
VGA Cable, User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
| Optional Accessories |
Remote Control P/N: 5042221900 |
| Warranty |
Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first) |
