Vivitek DU8190Z-BK – WUXGA 10,000 Lumen Laser Large Venue Projector
Product Overview
The Vivitek DU8190Z-BK is a WUXGA laser projector delivering 10,000 ANSI lumens for large venue, corporate, and professional AV installation environments. With a 20,000+ hour laser-phosphor light source, built-in hardware edge blending and warping, HDBaseT, 3G-SDI, and motorized D88 series lens compatibility, the DU8190Z-BK provides AV system integrators with a high-brightness installation platform across auditoriums, houses of worship, and large-format commercial meeting spaces. The projector ships body-only.
Product Description
The DU8190Z-BK operates on a sealed laser-phosphor engine rated to 20,000+ hours, delivering WUXGA (1920 x 1200) native resolution at 10,000 ANSI lumens with DLP DarkChip3 and BrilliantColor technologies. Instantaneous power-on/off, filter-less sealed design, and 24/7 continuous operation capability reduce total cost of ownership across long-lifecycle commercial installations in corporate, government, and institutional environments.

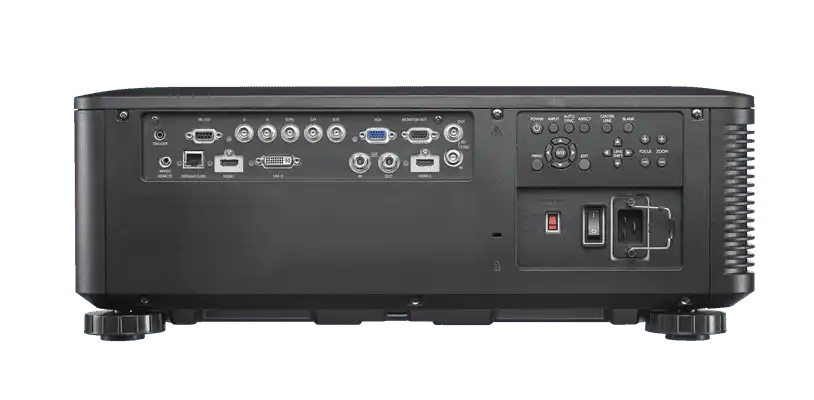

AV integration connectivity includes HDMI, 3G-SDI in/out, HDBaseT (CAT5e/6 to 100m), BNC for YPbPr/RGBHV, VGA in/out, RS-232 in/out, composite, S-Video, IR, and dual 12V trigger outputs. Built-in edge blending and warping support multi-projector display arrays without external processing hardware. D88 series interchangeable motorized lenses provide a wide throw range with motorized H/V lens shift and Lens Position Memory. Portrait mode and 360° installation flexibility complete the deployment capability set for commercial AV integrators.
Key Features
- 10,000 ANSI Lumens — WUXGA (1920 x 1200) — High-brightness large venue projection in 16:10 native format for corporate and institutional installations.
- 20,000+ Hour Laser-Phosphor Light Source — Lamp-free, mercury-free; eliminates replacement cycles for the installation lifecycle.
- Built-In Hardware Edge Blending and Warping — Multi-projector display array support without external processing hardware.
- D88 Series Interchangeable Motorized Lenses — Wide throw range with H/V shift and Lens Position Memory (sold separately).
- HDBaseT and 3G-SDI — Long-distance signal and control distribution for large venue AV infrastructure.
- 360° Installation and Portrait Mode — Full orientation flexibility for commercial AV installation geometries.
- Sealed Filter-Less Optical Engine — No filter maintenance required; suitable for 24/7 commercial operation.
- Instantaneous Power On/Off — No warm-up or cool-down delays for event-driven commercial AV environments.
Typical Applications
- Auditorium
- House of worship
- Large venue commercial meeting space
- Government space
- Multi-purpose room
- Boardroom
Technical Specifications
| Specification | Value |
|---|---|
| Display Technology | Single Chip DLP DarkChip3 by Texas Instruments |
| Brightness | 10,000 ANSI Lumens |
| Native Resolution | WUXGA (1920 x 1200), 16:10 |
| Light Source | Laser Phosphor — 20,000+ hours |
| Edge Blending / Warping | Yes (Built-In) |
| Lens Shift | Motorized H/V with Lens Position Memory |
| Connectivity | HDMI, 3G-SDI In/Out, HDBaseT (RJ45), BNC (YPbPr/RGBHV), VGA In/Out, S-Video, Composite, IR, RS-232, 12V Trigger ×2 |
| Projection Methods | Table, Ceiling (Front/Rear), 360°, Portrait |
| Color | Black (DU8190Z-BK) — body only, lens not included |
Frequently Asked Questions
Does the DU8190Z-BK include a lens?
No. Body-only. D88 series motorized lenses are available separately at creationnetworks.net/collections/vivitek.
Can the DU8190Z-BK operate in a multi-projector edge-blended installation?
Yes. Built-in hardware edge blending and warping support multi-projector arrays without external processing hardware.
What control protocols are supported for AV system integration?
RS-232, LAN via HDBaseT (RJ45), and IR for Crestron, AMX, Extron, and similar commercial AV control systems.
Is 24/7 continuous operation supported?
Yes. The sealed laser-phosphor engine and 20,000+ hour rated light source are designed for continuous commercial operation.
What warranty applies to the DU8190Z-BK?
Vivitek provides commercial warranty coverage on large venue projectors. Contact creationnetworks.net for current terms.
