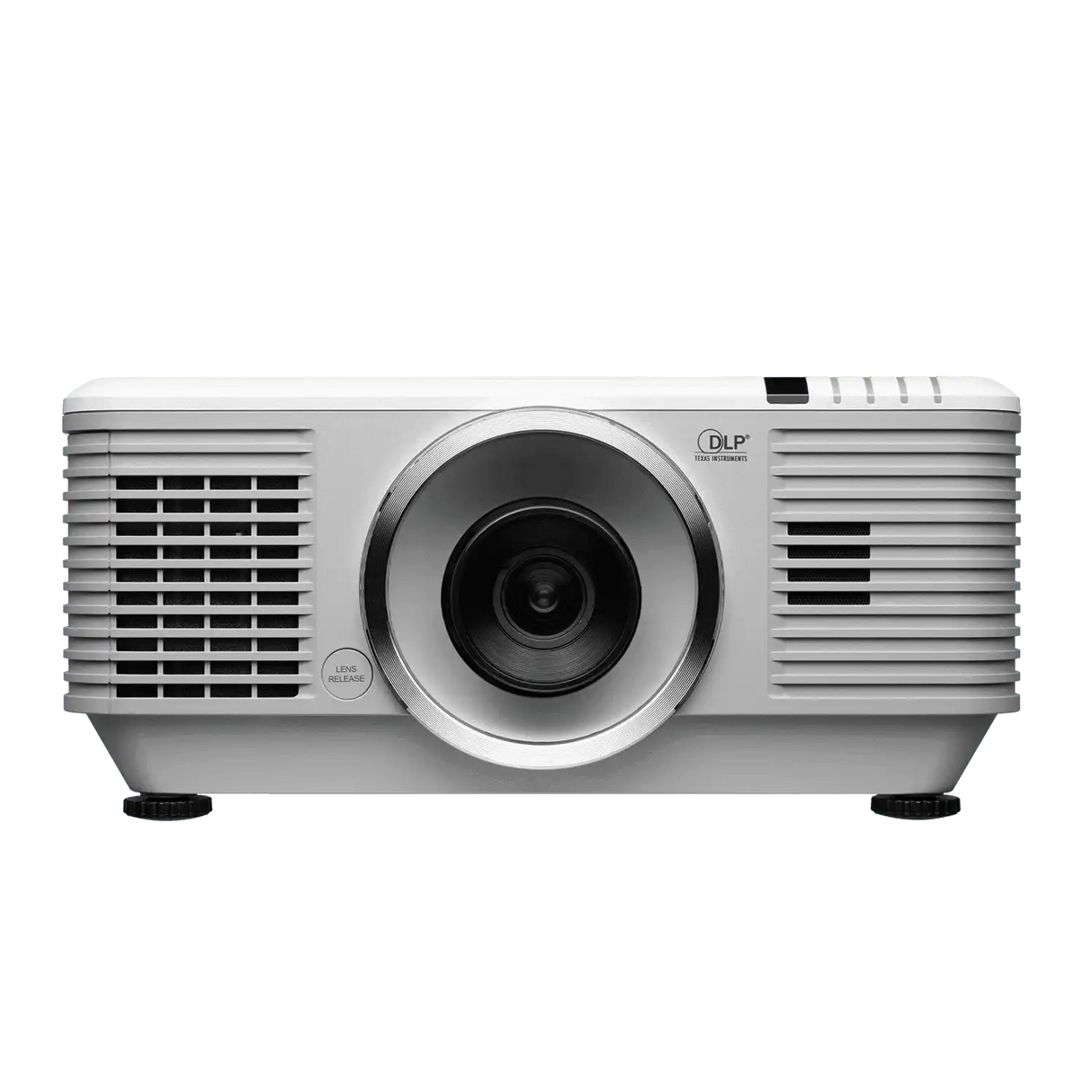

Vivitek DU8090Z-WH – WUXGA 8,000 Lumen Laser Large Venue Projector (White)

Product Overview

The Vivitek DU8090Z-WH is the white-chassis variant of the DU8090Z WUXGA laser projector, delivering 8,000 ANSI lumens from a 20,000+ hour laser-phosphor light source. Designed for mid-to-large corporate conference rooms, auditoriums, and professional installation environments where a white chassis matches ceiling or architectural finishes, the DU8090Z-WH includes built-in hardware edge blending and warping, HDBaseT, 3G-SDI, and support for the D88 series interchangeable motorized lens system. The black version (DU8090Z-BK) is also available at creationnetworks.net.

Product Description

The DU8090Z-WH delivers WUXGA (1920 x 1200) native resolution at 8,000 ANSI lumens using DLP DarkChip3 and BrilliantColor technologies with a 20,000:1 contrast ratio. Its sealed laser-phosphor optical engine is maintenance-free for 20,000+ hours, supporting 24/7 continuous commercial operation without lamp replacement requirements. This makes it well suited for permanent corporate installations in conference rooms, boardrooms, and all-hands spaces where operational continuity is prioritized.

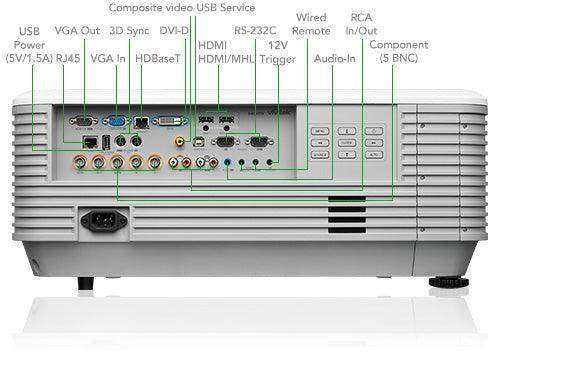

The DU8090Z-WH shares the same AV integration feature set as the black model: HDMI, 3G-SDI, HDBaseT (LAN + signal over CAT5e/6 to 100m), BNC for YPbPr/RGBHV, VGA in/out, RS-232, composite, S-Video, IR, and dual 12V trigger outputs. D88 series interchangeable motorized lenses cover the full commercial throw range with Lens Position Memory. Portrait mode and 360° installation flexibility allow deployment in any physical orientation required by the installation geometry.

Key Features

• White Chassis — Ceiling-Mount Ready — Matches white ceiling and architectural finishes for discreet commercial AV installation in corporate and institutional environments.
• 8,000 ANSI Lumens — WUXGA (1920 x 1200) — Commercial-grade brightness in 16:10 native format for conference rooms and auditoriums.
• 20,000:1 Contrast Ratio — DLP DarkChip3 for deep blacks and high-contrast commercial imagery.
• 20,000+ Hour Laser-Phosphor Light Source — Lamp-free, mercury-free, maintenance-free for the installation lifecycle.
• Built-In Hardware Edge Blending and Warping — Multi-projector display array support without external processing hardware.
• D88 Series Interchangeable Motorized Lenses — Wide throw range with motorized H/V shift and Lens Position Memory (sold separately).
• HDBaseT and 3G-SDI — Long-distance AV signal and control distribution for large venue infrastructure.
• 360° Installation and Portrait Mode — Full orientation flexibility for commercial AV integration in any geometry.
• Instantaneous Power On/Off — Conference room-ready; no warm-up or cool-down delays.

Typical Applications

• Conference room
• Boardroom
• Auditorium
• House of worship
• Government space
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Is a black version of the DU8090Z available?
Yes. The DU8090Z-BK (black) is available at creationnetworks.net/collections/vivitek.

Does the DU8090Z-WH ship with a lens?
No. The projector is body-only. Compatible D88 series motorized lenses are available separately at creationnetworks.net/collections/vivitek.

Can the DU8090Z-WH be used in multi-projector blended installations?
Yes. Built-in hardware edge blending and warping support multi-projector display arrays without external processing hardware.

What commercial AV control protocols are supported?
RS-232, LAN via HDBaseT (RJ45), and IR control for integration with Crestron, AMX, Extron, and similar commercial control platforms.

What warranty applies?
Vivitek provides commercial warranty coverage on large venue projectors. Contact creationnetworks.net for current terms.
