Vivitek DU8090Z-BK – WUXGA 8,000 Lumen Laser Large Venue Projector
Product Overview
The Vivitek DU8090Z-BK is a WUXGA laser projector delivering 8,000 ANSI lumens for mid-to-large corporate meeting rooms, auditoriums, and professional installation environments. Featuring a 20,000+ hour laser-phosphor light source, built-in edge blending and warping, HDBaseT, 3G-SDI, and support for the D88 interchangeable motorized lens system, the DU8090Z-BK provides AV integrators with a cost-effective large venue laser projection platform with a low total cost of ownership. Available in black (BK); a white version (DU8090Z-WH) is also available at creationnetworks.net.
Product Description
The DU8090Z-BK uses DLP DarkChip3 and BrilliantColor technologies to produce WUXGA (1920 x 1200) resolution at 8,000 ANSI lumens with a 20,000:1 contrast ratio. The sealed laser-phosphor optical engine operates maintenance-free for 20,000+ hours, making it an appropriate choice for corporate environments and government spaces where reliability and low operational cost are primary procurement considerations. Instantaneous power-on/off supports event-driven operation in conference rooms and multi-purpose spaces without pre-heating delays.
AV integration connectivity includes HDMI, 3G-SDI, HDBaseT (CAT5e/6 distribution up to 100m), BNC for YPbPr/RGBHV, VGA in/out, RS-232, composite, S-Video, IR input, and dual 12V trigger for screen automation. D88 series interchangeable motorized lenses cover an extended throw range with motorized H/V lens shift and Lens Position Memory. Built-in edge blending and warping support multi-projector commercial display arrays without external processors. Portrait mode and 360° installation flexibility complete the installation capability set for diverse commercial AV deployment scenarios.
Key Features
- 8,000 ANSI Lumens — WUXGA (1920 x 1200) — High brightness in 16:10 native format for corporate conference rooms, auditoriums, and multi-purpose commercial spaces.
- 20,000:1 Contrast Ratio — DLP DarkChip3 and BrilliantColor deliver deep blacks and vivid imagery for commercial presentations and events.
- 20,000+ Hour Laser-Phosphor Light Source — Maintenance-free operation for the installation lifecycle; mercury-free and lamp-free design.
- Built-In Hardware Edge Blending and Warping — Multi-projector commercial display support without external processing hardware.
- D88 Series Interchangeable Motorized Lenses — Wide throw range options with motorized H/V shift and Lens Position Memory (sold separately).
- HDBaseT and 3G-SDI — Long-distance AV signal and control distribution over standard CAT5e/6 infrastructure.
- 360° Installation and Portrait Mode — Full orientation flexibility for commercial AV installations in any physical configuration.
- Instantaneous Power On/Off — No warm-up or cool-down required; suited for conference room and event-production use.
- 12V Trigger Outputs — Automated screen and system actuation for integrated commercial AV environments.
Typical Applications
- Conference room
- Boardroom
- Auditorium
- House of worship
- Government space
- Multi-purpose room
- Training room
Technical Specifications
| Specification | Value |
|---|---|
| Display Technology | Single Chip DLP DarkChip3 by Texas Instruments |
| Brightness | 8,000 ANSI Lumens |
| Native Resolution | WUXGA (1920 x 1200), 16:10 |
| Contrast Ratio | 20,000:1 |
| Light Source | Laser Phosphor — 20,000+ hours |
| Edge Blending / Warping | Yes (Built-In) |
| Lens Shift | Motorized H/V with Lens Position Memory |

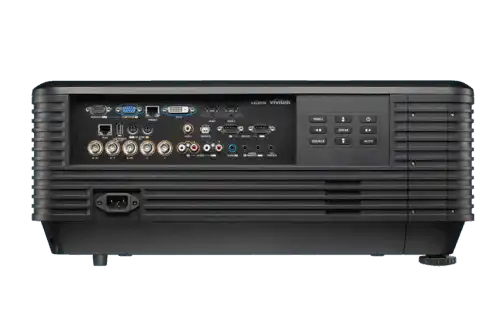

| Connectivity | HDMI, 3G-SDI, HDBaseT (RJ45), BNC (YPbPr/RGBHV), VGA In/Out, S-Video, Composite, IR, RS-232, 12V Trigger ×2 |
| Projection Methods | Table, Ceiling (Front/Rear), 360°, Portrait |
| Color | Black (DU8090Z-BK) — body only, lens not included |
Frequently Asked Questions
Does the DU8090Z-BK ship with a lens?
No. The projector is a body-only unit. Compatible D88 series motorized lenses are available separately at creationnetworks.net/collections/vivitek.
Is a white version available?
Yes. The DU8090Z-WH (white) is available at creationnetworks.net/collections/vivitek for installations where chassis color must match ceiling or wall finishes.
What control system protocols does the DU8090Z-BK support?
The projector supports RS-232 (DB-9), LAN via HDBaseT (RJ45), and IR for integration with commercial AV control platforms including Crestron, AMX, and Extron.
Can this projector support multi-projector edge-blended displays?
Yes. Built-in hardware edge blending and warping support multi-projector commercial array configurations without external processing requirements.
What warranty applies?
Vivitek provides commercial warranty coverage on large venue projectors. Contact creationnetworks.net for current terms.
