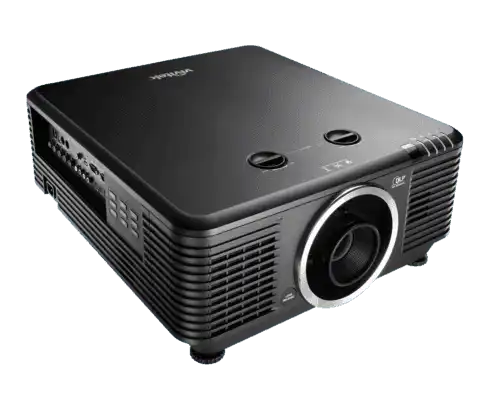

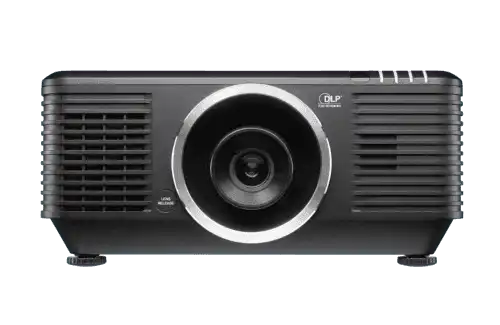

Vivitek DU7098Z-BK – WUXGA 7,000 Lumen Laser Corporate AV Projector

Product Overview

The Vivitek DU7098Z-BK is a WUXGA laser projector delivering 7,000 ANSI lumens, engineered for mid-to-large corporate meeting rooms and professional commercial installation environments with a low total cost of ownership. Operating on a 20,000+ hour laser-phosphor light source, the DU7098Z-BK includes built-in edge blending, HDBaseT, 3G-SDI, and D88 series motorized lens compatibility in a body-only configuration. A white version (DU7098Z-WH) is available at creationnetworks.net.

Product Description

The DU7098Z-BK targets corporate, education, retail, and government installations where a balance of high brightness, long operating life, and low maintenance cost is the primary procurement consideration. The sealed laser-phosphor optical engine delivers WUXGA (1920 x 1200) resolution in 16:10 format at 7,000 ANSI lumens, with instantaneous power-on/off eliminating the warm-up and cool-down cycles that slow conference room operation with lamp-based systems. Built-in hardware edge blending and warping enable multi-projector commercial display configurations without external blend processors.

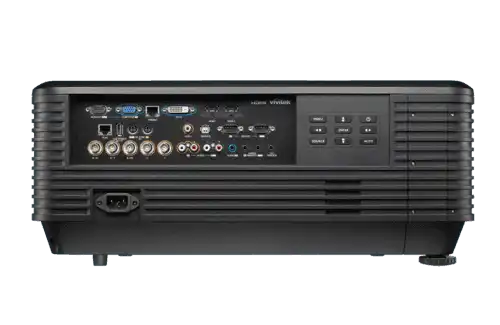

Connectivity for AV system integration includes HDMI, 3G-SDI in/out, HDBaseT over CAT5e/6, BNC for YPbPr/RGBHV, VGA in/out, RS-232, composite, S-Video, IR input, and dual 12V trigger outputs. D88 series interchangeable motorized lenses (sold separately) cover the full commercial throw range with motorized H/V lens shift and Lens Position Memory. Crestron RoomView and eControl LAN support enables integration with standard commercial AV control infrastructure in corporate deployment environments.

Key Features

• 7,000 ANSI Lumens — WUXGA (1920 x 1200) — Mid-to-large venue brightness in 16:10 format for corporate conference rooms and multi-purpose commercial spaces.
• 20,000+ Hour Laser-Phosphor Light Source — Lamp-free, mercury-free operation; eliminates replacement costs for the installation lifecycle.
• Low Total Cost of Ownership — Sealed engine, no filter maintenance, laser longevity, and instantaneous on/off minimize operational expenses.
• Built-In Hardware Edge Blending and Warping — Multi-projector commercial display support without external hardware.
• HDBaseT and 3G-SDI — Long-distance AV signal and control distribution for large venue infrastructure.
• D88 Series Motorized Lenses (sold separately) — Commercial throw range with Lens Position Memory for repeatable recall.
• Crestron RoomView / eControl Compatible — LAN-based commercial AV control system integration.
• 360° Installation and Portrait Mode — Full orientation flexibility for commercial AV installation.

Typical Applications

• Conference room
• Boardroom
• Auditorium
• House of worship
• Government space
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Is a white version available?
Yes. The DU7098Z-WH is available at creationnetworks.net/collections/vivitek.

Does the projector include a lens?
No. D88 series motorized lenses sold separately at creationnetworks.net/collections/vivitek.

Is multi-projector edge blending supported?
Yes. Built-in hardware edge blending and warping without external hardware requirements.

What control systems are compatible?
Crestron RoomView, eControl, RS-232, and IR for standard commercial AV control platforms.
