Vivitek DK10000Z-BK – 4K UHD 10,000 Lumen Large Venue Laser Projector

Product Overview

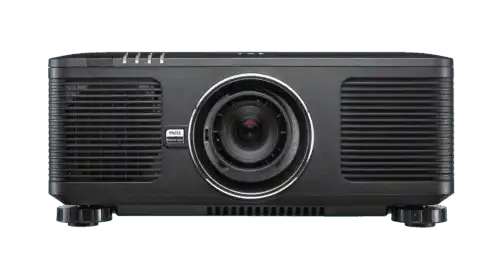

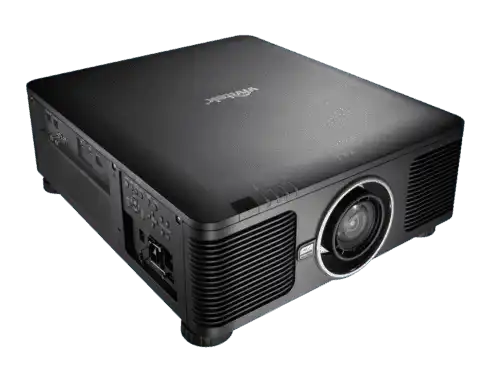

The Vivitek DK10000Z-BK is a single-chip 4K-UHD DLP laser projector delivering 10,000 ANSI lumens for large venue, museum, and professional AV installation applications. Utilizing Texas Instruments' 4K-UHD XPR technology, it renders 8.3 million pixels with precise alignment in a compact chassis that weighs under 64 lbs — significantly lighter than competing 3-chip 4K systems. The projector ships body-only and supports eight motorized interchangeable lenses, built-in edge blending and warping, 3G-SDI, HDBaseT, and 360° installation for maximum deployment flexibility.

Product Description

The DK10000Z-BK is purpose-built for large venue commercial deployment where 4K-UHD resolution, high sustained brightness, and low maintenance cost are required across multi-year installation lifecycles. The 10,000 ANSI lumen output paired with a 100,000:1 dynamic contrast ratio (3,000,000:1 with Dynamic Black) delivers image quality suitable for museum exhibits, themed entertainment environments, and large-format conference room projection.

The laser-phosphor light source provides 20,000+ hours of rated operating life with no lamp replacements, reducing the total cost of ownership in fixed installation and 24/7 digital signage contexts. Vivitek's sealed optical engine, rated IP6X for dust ingress protection, maintains consistent brightness over time without filter cleaning. A tri-mode cooling system — combining liquid, air, and thermoelectric (TEC) components — dissipates heat from critical optical elements to ensure stable long-term performance.

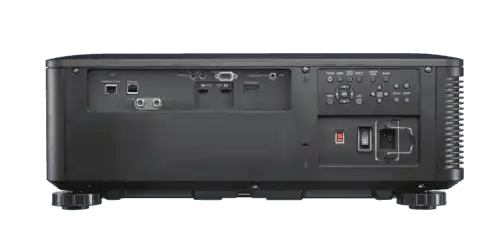

AV system integration is supported through HDMI 2.0 ×2, DisplayPort 1.2, DVI-D, HDBaseT (RJ45), 3G-SDI in/out, RS-232 in/out, and 12V trigger outputs. Eight motorized lens options with lens position memory enable precise throw matching from 0.38:1 to 8.26:1, covering installations from ultra-short throw meeting room setups to long-throw auditorium deployments. Built-in edge blending, warping, keystone correction, and Picture-in-Picture (PIP) / Picture-by-Picture (PBP) modes support complex multi-source and multi-projector display configurations without external processing hardware.

Key Features

• 4K-UHD Resolution (3840 x 2160) via Single-Chip XPR — Texas Instruments XPR technology delivers 8.3 million pixels with perfect alignment in a compact, single-chip DLP package.
• 10,000 ANSI Lumens / 100,000:1 Dynamic Contrast — High-output performance for large-format commercial projection in ambient light conditions.
• 20,000+ Hour Laser-Phosphor Light Source — Lamp-free operation eliminates replacement costs and maintenance downtime in fixed commercial installations.
• IP6X-Sealed Optical Engine — Fully sealed light path rated for dust protection, maintaining consistent brightness in varied installation environments.
• Tri-Mode Cooling (Liquid + Air + TEC) — Advanced thermal management system stabilizes critical optical components for reliable 24/7 operation.
• Eight Interchangeable Motorized Lenses — Throw ratios from 0.38:1 to 8.26:1 with lens position memory accommodate virtually any installation geometry.
• Built-In Edge Blending and Warping — Supports multi-projector display walls, curved screens, and mapped surfaces without external processors.
• HDBaseT and 3G-SDI Connectivity — Supports broadcast and long-distance signal distribution in large venue AV infrastructure.
• HDMI 2.0 ×2 / DisplayPort 1.2 / DVI-D — Full connectivity suite for commercial AV sources including 4K UHD signal distribution.
• 360° Installation and Portrait Mode — Supports floor-up, ceiling-down, and 90° portrait orientations for maximum integration flexibility.
• PIP / PBP Multi-Source Display — Simultaneous display from two digital input sources for multi-feed commercial presentations.
• 24/7 Continuous Operation Rated — Designed for always-on digital signage, museum, and fixed installation environments.

Typical Applications

• Auditorium
• House of worship
• Large venue commercial meeting space
• Government space
• Broadcast studio
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Does the DK10000Z-BK include a projection lens?
No. The projector ships as a body-only unit. Eight compatible motorized lenses are available separately at creationnetworks.net/collections/vivitek, with throw ratios from 0.38:1 to 8.26:1.

How does the 4K-UHD XPR technology compare to 3-chip 4K projectors?
Texas Instruments' single-chip XPR technology produces 8.3 million addressable pixels via pixel-shifting on a single DLP chip, resulting in a significantly more compact and lighter chassis than 3-chip systems while delivering comparable visual resolution for commercial presentation and display applications.

Is the optical system protected against dust in open installation environments?
Yes. The DK10000Z-BK's optical path is IP6X-rated for complete dust protection, maintaining consistent brightness over the laser source's 20,000+ hour rated life without filter cleaning.

Can the DK10000Z-BK be integrated into a multi-projector edge-blended display?
Yes. Built-in hardware edge blending and warping support multi-projector display arrays without external blend processors. The projector also supports Picture-in-Picture and Picture-by-Picture modes from two simultaneous digital sources.

What AV control system interfaces does the projector support?
The DK10000Z-BK includes RS-232 in/out (DB-9), LAN/HDBaseT (RJ45), and Wired Remote (3.5mm) for integration with third-party control systems including Crestron, AMX, Extron, and similar commercial AV platforms.

What warranty coverage applies to the DK10000Z-BK?
Vivitek provides commercial warranty coverage on large venue projectors. Contact creationnetworks.net for current warranty terms and support documentation.
