Vivitek 5811120055-SVV – H7 Super Long Throw Zoom Lens 3.0–5.0:1 (VL909G)

Product Overview

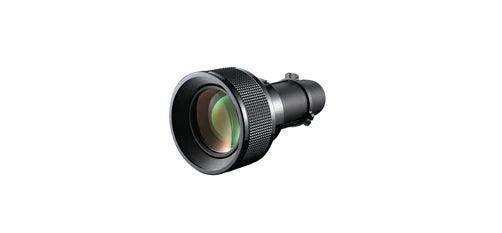

The Vivitek 5811120055-SVV (VL909G/LNS-5LZ2) is a motorized super long throw zoom lens with a 3.0–5.0:1 throw ratio for Vivitek H7-series large venue laser projectors including the DU7090Z, DU7095Z, DU7098Z, and DU7195Z. With a 1.67x zoom ratio, this is the longest throw lens in the H7 lens lineup, designed for auditoriums, arenas, and large event venues where the projector must be positioned at maximum depth from the screen. Motorized focus, zoom, and lens shift with Lens Positioning Memory enable remote alignment from rear-booth or high-ceiling installations.

Product Description

The 5811120055-SVV uses a 44.5–74.19mm focal length range, making it the longest focal length option in the H7 lens family. It is appropriate for installations where the 1.93–2.9:1 long throw lens (5811119237-SVV) does not provide sufficient throw distance — typically in very deep auditoriums, large house of worship spaces, and major event venues where the projector is in a rear control room or high ceiling booth position. The sealed optical construction resists dust and moisture in professional installation environments.

This lens is sold separately and requires a compatible H7-series Vivitek projector body. Contact Creation Networks to confirm compatibility before ordering.

Key Features

• 3.0–5.0:1 Super Long Throw Ratio — Maximum throw capability in the H7 lens lineup for deep venue auditorium and arena installations.
• 1.67x Motorized Zoom — Broad zoom range for image sizing flexibility at very long throw distances.
• Motorized Focus, Zoom, and Lens Shift — Full remote control for ceiling and rear-booth installations.
• Lens Positioning Memory (LPM) — Saves and recalls configurations for multi-layout or multi-event venues.
• Compatible with DU7090Z, DU7095Z, DU7098Z, DU7195Z — Longest throw lens in the H7-series lens family.

Technical Specifications
