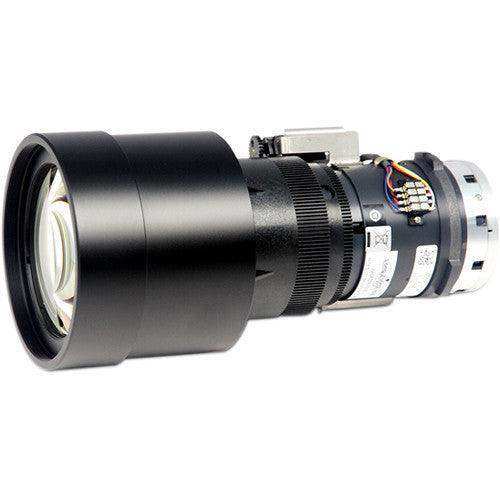

Vivitek 3797893200-SVK – D98 Long Zoom Lens 2.0–4.0:1 (D98-2040)
Vivitek 3797893200-SVK – D98 Long Zoom Lens 2.0–4.0:1 (D98-2040) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Vivitek 3797893200-SVK – D98 Long Zoom Lens 2.0–4.0:1 (D98-2040)
Product Overview
The Vivitek 3797893200-SVK (D98-2040) is a motorized long zoom lens with a 2.0–4.0:1 throw ratio for Vivitek DU9800Z and DU9900Z large venue laser projectors. With a 2.0x zoom ratio and image size coverage from 40 to 500 inches, this lens serves mid-to-large auditoriums, event venues, and house of worship installations where the projector must be positioned at moderate-to-long throw distances from the screen. Motorized focus, zoom, and lens shift with Lens Positioning Memory provide remote alignment and multi-configuration recall.
Product Description
The D98-2040 is the long throw option in the D98 lens family, positioned between the standard D98-1520 (1.5–2.0:1) and the extra-long D98-4070 (4.0–7.0:1). With a 2.0x zoom ratio — the widest in the D98 lineup — it provides significant installation flexibility in venues with variable screen sizes or where exact projector placement is constrained. The 42.6–84.8mm focal length range and f/2.17–2.64 aperture provide strong light throughput appropriate for the 18,000–22,000 lumen DU9800Z/DU9900Z projectors at these distances.
The sealed optical construction resists dust and moisture ingress. This lens is sold separately — projector body not included. Verify compatibility before ordering and contact Creation Networks for application-specific throw distance planning.
Key Features
- 2.0–4.0:1 Long Throw Ratio — Covers mid-to-large auditorium throw distances with a wide 2.0x zoom range.
- 2.0x Motorized Zoom — Widest zoom ratio in the D98 family, providing maximum installation flexibility.
- 40–500-inch Image Size — Supports display configurations from moderate conference hall screens to large arena-scale images.
- Motorized Focus, Zoom, and Lens Shift — Full remote control for post-installation adjustment in ceiling-mounted configurations.
- Lens Positioning Memory (LPM) — Saves and recalls optical configurations for multi-event venues.
- Compatible with DU9800Z and DU9900Z — Designed for the high-lumen DU9000-series large venue laser projectors.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 3797893200-SVK (D98-2040) |
| Throw Ratio | 2.0 – 4.0:1 (WUXGA) |
| Zoom Ratio | 2.0x |
| Focal Length | 42.6 – 84.8mm |
| F Number | f/2.17 – 2.64 |
| Image Size (Diagonal) | 40" – 500" |
| Lens Control | Motorized Zoom, Focus, and Lens Shift |
| Lens Positioning Memory | Yes (LPM) |
| Compatible Projectors | DU9800Z, DU9900Z |
| Sold Separately | Yes — projector body not included |
