Vivitek 3797866500-SVK – D88 Ultra-Short Throw Lens with Bracket (D88-UST01B)
Vivitek 3797866500-SVK – D88 Ultra-Short Throw Lens with Bracket (D88-UST01B) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Vivitek 3797866500-SVK – D88 Ultra-Short Throw Lens with Bracket (D...
Product Overview

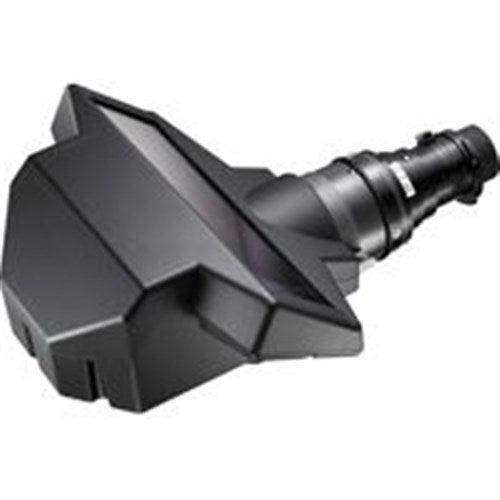

The Vivitek 3797866500-SVK (D88-UST01B) is a motorized fixed ultra-short throw lens with mounting bracket, compatible with Vivitek DU8190Z, DU8090Z, DU8195Z, DK8500Z, DK10000Z, and other D88-series large venue laser projectors. Projecting 100–350-inch images at an ultra-short throw angle, this lens enables auditorium and large venue installations where screen-to-projector depth is severely limited. The included bracket supports ceiling-mount configurations required for ultra-short throw deployments.
Product Description
Ultra-short throw lenses for large venue projectors are used primarily in auditoriums, worship spaces, and large event venues where the projector must be suspended very close to the bottom of the screen or from a low-slung ceiling position. The D88-UST01B provides motorized focus and zoom adjustment, allowing post-installation fine-tuning without accessing the projector. With a 5.64mm focal length and f/2.0 aperture, the lens produces bright, detailed images at extreme off-axis projection angles.
The mounting bracket is included and is required for proper ultra-short throw installation on compatible projectors. This lens is sold separately — projector body not included. Verify projector model compatibility before ordering. Contact Creation Networks to confirm fitment with your specific projector model and to obtain application assistance for ultra-short throw installation planning.
Key Features
- Ultra-Short Throw Design — Projects 100–350-inch images at extreme proximity for space-constrained large venue installations.
- Motorized Focus and Zoom — Remote-adjustable optics for post-installation fine-tuning without accessing the ceiling-mounted projector.
- Mounting Bracket Included — Required bracket for proper ultra-short throw ceiling installation is provided.
- f/2.0 Aperture — High light transmission for bright large-format images even at ultra-short throw angles.
- Compatible with Current D88-Series Laser Projectors — Fits DU8090Z, DU8190Z, DU8195Z, DK8500Z, DK10000Z and other current D88-mount models.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 3797866500-SVK (D88-UST01B) |
| Focal Length | 5.64mm |
| F Number | f/2.0 |
| Image Size | 100" – 350" (minimum/maximum diagonal) |
| Focus/Zoom Adjustment | Motorized |
| Mounting Bracket | Included (required for ultra-short throw installation) |
| Compatible Projectors | DU8090Z, DU8190Z, DU8195Z, DK8500Z, DK10000Z, DU6675, DW6035, DW6030, DX6535, DX6530, DX6831, DW6851, DU6871 (see compatibility notes) |
| Sold Separately | Yes — projector body not included |
Frequently Asked Questions
- Which projectors are compatible with the 3797866500-SVK (D88-UST01B)?
- The D88-UST01B is compatible with current D88-series Vivitek laser projectors including the DU8090Z, DU8190Z, DU8195Z, DK8500Z, and DK10000Z. It also supports some older D88-mount models. Contact Creation Networks for a full compatibility check with your projector.
- What is the difference between the D88-UST01 and D88-UST01B?
- The D88-UST01B (3797866500-SVK) is an updated version of the earlier D88-UST01, with revised compatibility for current D88-series laser projectors. Verify your projector model when selecting between versions.
- Is the mounting bracket included?
- Yes. The mounting bracket required for ultra-short throw ceiling installation is included with the 3797866500-SVK.
- What installation clearance is required between the projector and screen for ultra-short throw?
- Ultra-short throw large venue installation requires careful spatial planning. Contact Creation Networks for application-specific throw distance data and installation guidance for your venue configuration.
