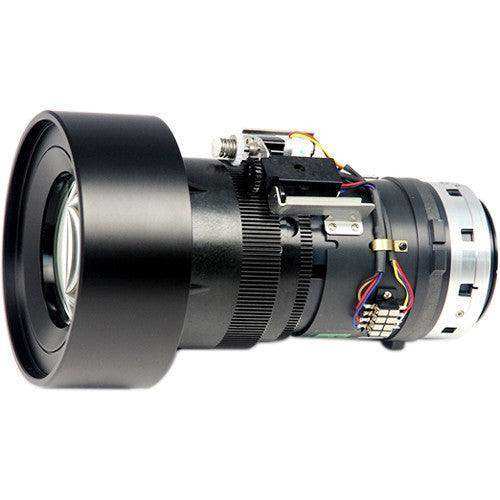

Vivitek 3797745400-SVK – D88 Long Zoom Lens 3.58–5.38:1 (D88-LOZ101)

Product Overview

The Vivitek 3797745400-SVK (D88-LOZ101) is a motorized long zoom lens with a 3.58–5.38:1 throw ratio for D88-series large venue projectors. Supporting projection distances up to approximately 60 meters with image sizes up to 500 inches, this lens is designed for large auditoriums, arenas, and event venues requiring extended throw capability. Motorized focus, zoom, and lens shift with Lens Positioning Memory support remote alignment and multi-configuration recall for professional fixed installations.

Product Description

The 3797745400-SVK (D88-LOZ101) fills the throw ratio range between the semi-long zoom (D88-SMLZ01 at 2.22–3.67:1) and the super-long zoom (D88-LOZ201 at 5.31–8.26:1), making it the appropriate choice for large venues with 30–60 meter throw distances. The sealed optical construction provides dust and moisture resistance in professional installation environments. Lens Positioning Memory allows saving and recalling up to ten optical configurations — useful in venues with variable screen sizes or multi-use layouts.

This lens is sold separately and must be installed on a compatible D88-mount Vivitek projector. Note that LPM is not available on DW6035, DW6030, DX6535, DX6530, and DX5530 projectors. Contact Creation Networks with your projector model to confirm fitment.

Key Features

• 3.58–5.38:1 Throw Ratio — Long throw range for auditoriums and arenas with 30–60 m projector-to-screen distances.
• Up to 500-inch Image Size — Large-scale display capability for major venue installations.
• Motorized Focus, Zoom, and Lens Shift — Full remote control of lens alignment without accessing the installed projector.
• Lens Positioning Memory (LPM) — Stores and recalls up to ten optical configurations for multi-use venue flexibility.
• Sealed Dust and Moisture Resistant Construction — Protects optical elements in professional installation environments.
• D88-Series Compatibility — Fits DU8090Z, DU8190Z, DU8195Z, DU8395Z, DK8500Z, DK10000Z, DU6675, DU6871, DX6831, DW6851, and other D88-mount models.

Technical Specifications

Frequently Asked Questions

What is the difference between the 3797745400-SVK (D88-LOZ101) and 3797744900-SVK (D88-LOZ201)?

The D88-LOZ101 covers 3.58–5.38:1 throw ratio for distances up to ~60 m. The D88-LOZ201 covers 5.31–8.26:1 for distances up to ~90 m. Choose based on the actual throw distance in your venue.

Is the projector body included?

No. This is the lens module only. Projector bodies are sold separately at Creation Networks.

Can LPM be used with all compatible projectors?

No. Lens Positioning Memory is not available on the DW6035, DW6030, DX6535, DX6530, and DX5530 models. It is supported on current D88-series laser projectors.
