Vivitek 3797745000-SVK – D88 Semi-Long Zoom Lens 2.22–3.67:1 (D88-SMLZ01)

Product Overview

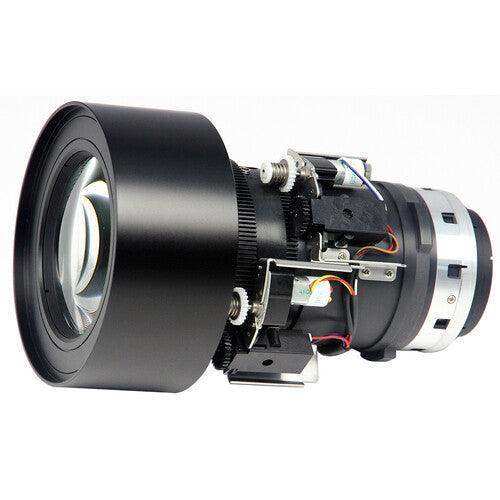

The Vivitek 3797745000-SVK (D88-SMLZ01) is a motorized semi-long zoom lens with a 2.22–3.67:1 throw ratio, designed for D88-series large venue projectors. Supporting projection distances up to approximately 40 meters (131 feet) with image sizes up to 500 inches, this lens targets auditoriums, large conference spaces, and multi-purpose venues requiring long-throw capability without reaching the extreme distances of the LOZ201. Motorized focus, zoom, and lens shift with Lens Positioning Memory simplify installation and multi-configuration use.

Product Description

The 3797745000-SVK uses a sealed optical structure for dust and moisture resistance in professional installation environments. Motorized control of all three optical axes — focus, zoom, and lens shift — allows fine-tuning from the projector remote or control system without physical access to the lens after installation. Lens Positioning Memory enables up to ten user-assigned configurations to be saved and recalled, supporting multi-screen or multi-layout venues.

This lens is sold separately and must be installed on a compatible D88-series Vivitek projector. Note that LPM is not available on DW6035, DW6030, DX6535, DX6530, and DX5530 projectors. Verify projector model compatibility before ordering. Contact Creation Networks with your projector model to confirm fitment.

Key Features

• 2.22–3.67:1 Throw Ratio — Medium-long throw range for large auditoriums and event spaces with moderate projector-to-screen distances.
• Up to 500-inch Image Size — Supports large-scale display in venues requiring very wide screen coverage.
• Max. Projection Distance ~40 m — Suitable for mid-depth large venues without requiring the extreme throw of the LOZ201.
• Motorized Focus, Zoom, and Lens Shift — Remote-controllable alignment for precision setup without accessing the mounted projector.
• Lens Positioning Memory (LPM) — Stores and recalls user-assigned optical configurations for multi-use venues.
• Sealed Construction — Dust and moisture resistant housing protects optical elements in installation environments.

Technical Specifications

Frequently Asked Questions

Which Vivitek projectors are compatible with the 3797745000-SVK?

This lens fits D88-series large venue projectors including the DU8090Z, DU8190Z, DU8195Z, DU8395Z, DK8500Z, DK10000Z, and other D88-mount models. Confirm compatibility with your specific projector model before ordering.

What is the difference between the 3797745000-SVK and the 3797744900-SVK?

The 3797745000-SVK (D88-SMLZ01) has a 2.22–3.67:1 throw ratio for medium-long throw distances up to 40 m. The 3797744900-SVK (D88-LOZ201) has a 5.31–8.26:1 ratio for very long throw distances up to 90 m.

Is the projector body included?

No. This listing is for the lens module only. Compatible projector bodies are available separately at Creation Networks.
