Sonance VP52R UTL – Ultra Thin-Line In-Ceiling Speaker

Product Overview

The Sonance VP52R UTL is an ultra-thin in-ceiling speaker from the Visual Performance Series, built for integrators working in ceiling cavities too shallow for a standard in-ceiling speaker. Sold as a pair, it targets renovation and light-gauge steel or low-clearance ceiling applications where depth is the limiting factor.

Product Description

The VP52R UTL pairs a 5.25" polypropylene cone woofer with a Ferrofluid-cooled 1" cloth dome tweeter in a chassis that mounts in just 1.4375" (36.2mm) of depth, making it one of the shallower in-ceiling options for jobs where joists, ductwork, or a shallow drop ceiling limit available space. A low-profile, paintable perforated steel grille keeps the finished appearance clean, and an optional square adapter is available for projects that need to convert a round cutout to a square trim. Because the low-profile design trades some cabinet volume for depth savings, it is best specified for background and secondary listening zones rather than a primary home theater channel. Integrators building a whole-home Sonance system can pair the VP52R UTL with other in-ceiling speakers in rooms with standard ceiling depth, reserving the ultra-thin model for the specific locations that need it. Visual Performance Series products carry a limited lifetime warranty when purchased through an authorized dealer.

Key Features

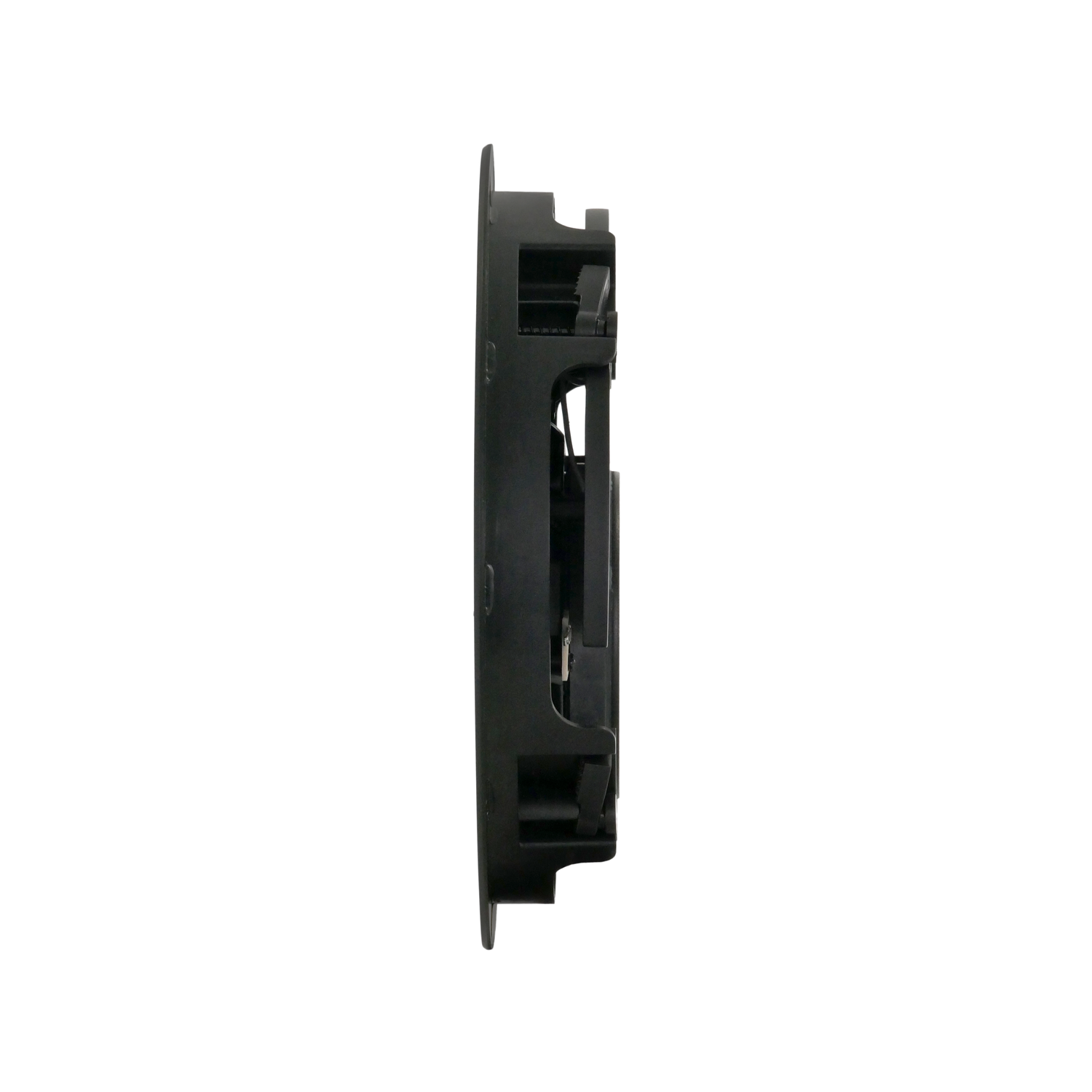

• Ultra-Thin 1.4375" Mounting Depth — Fits ceiling cavities too shallow for a standard in-ceiling speaker.

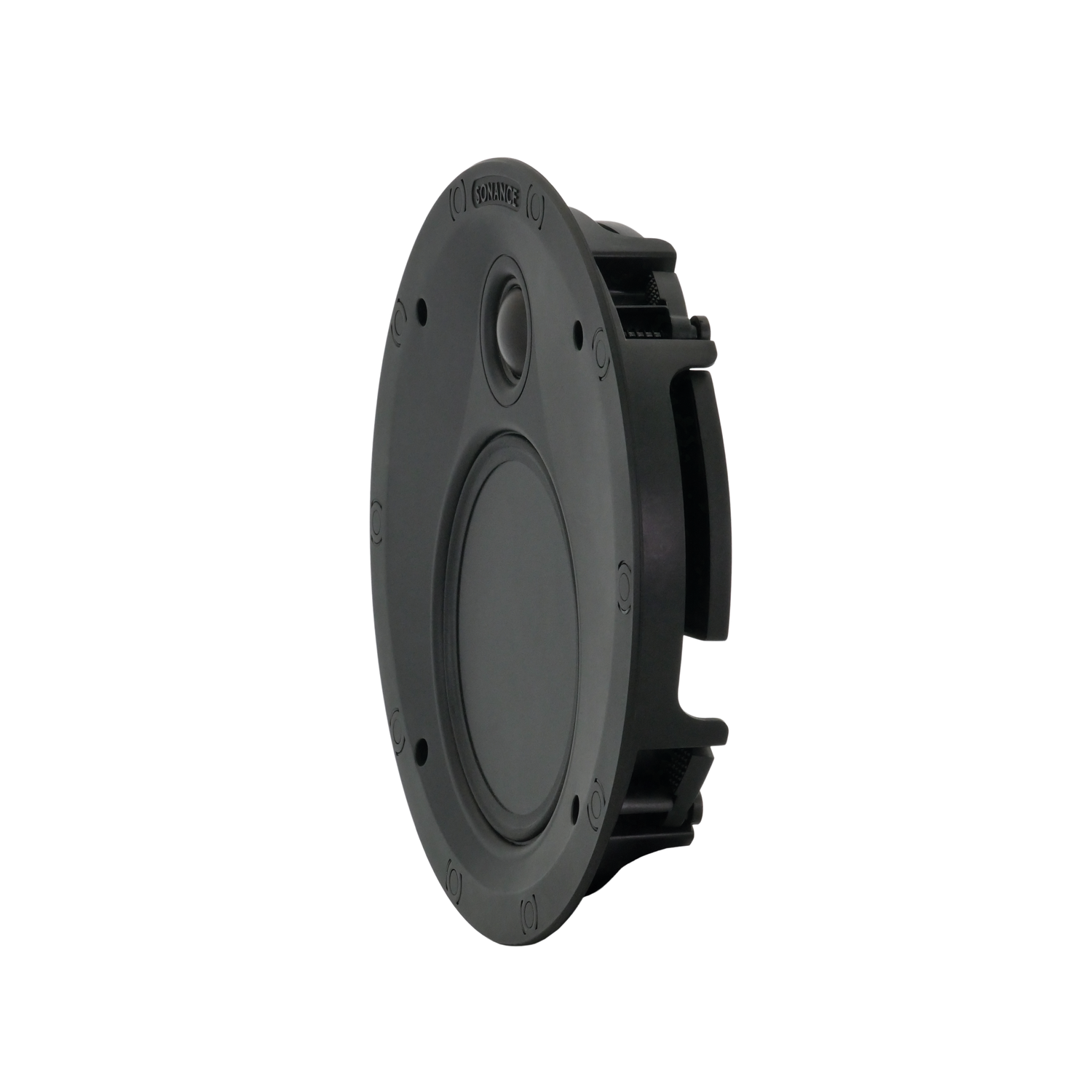

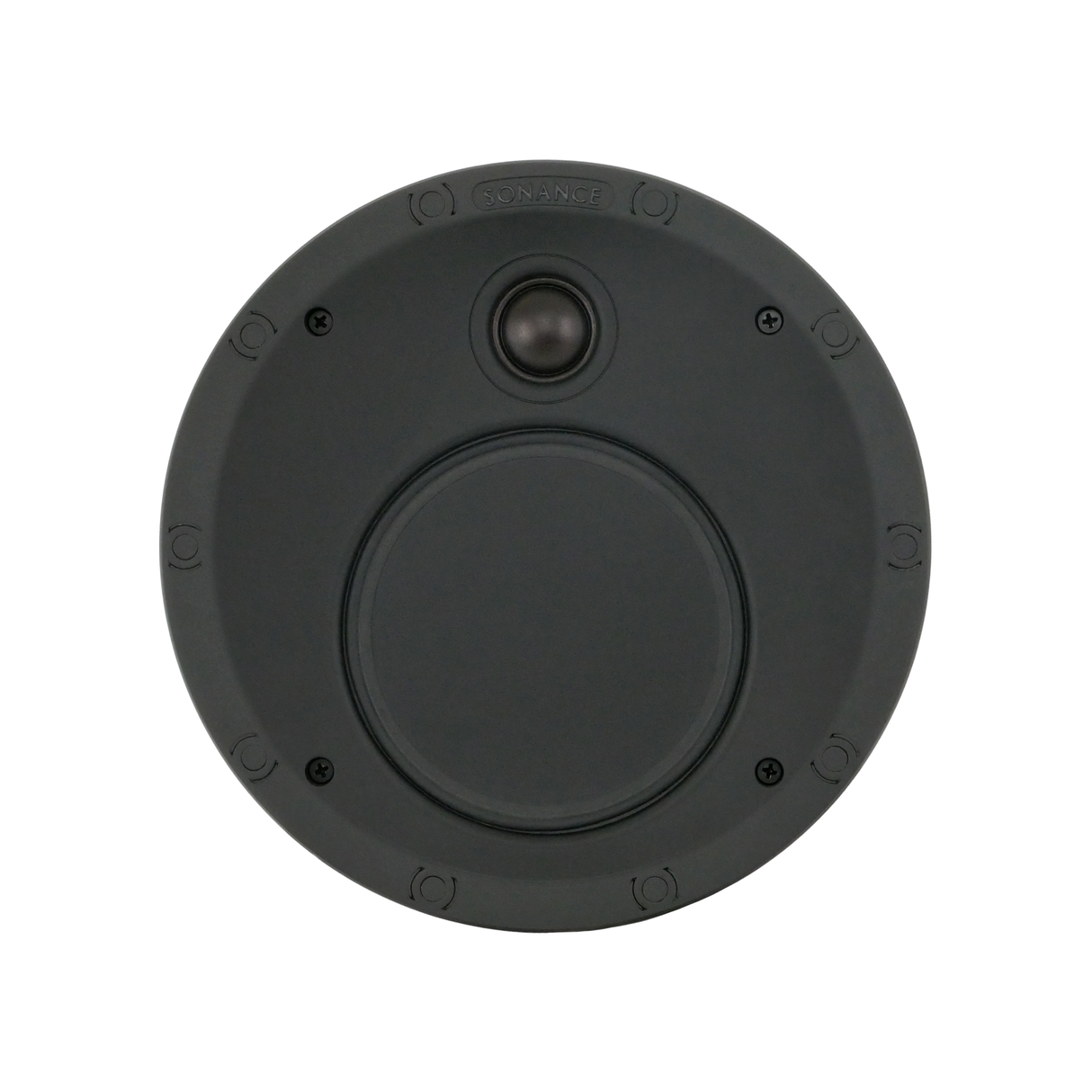

• 5.25" Polypropylene Woofer — Paired with a Ferrofluid-cooled 1" cloth dome tweeter for balanced output.

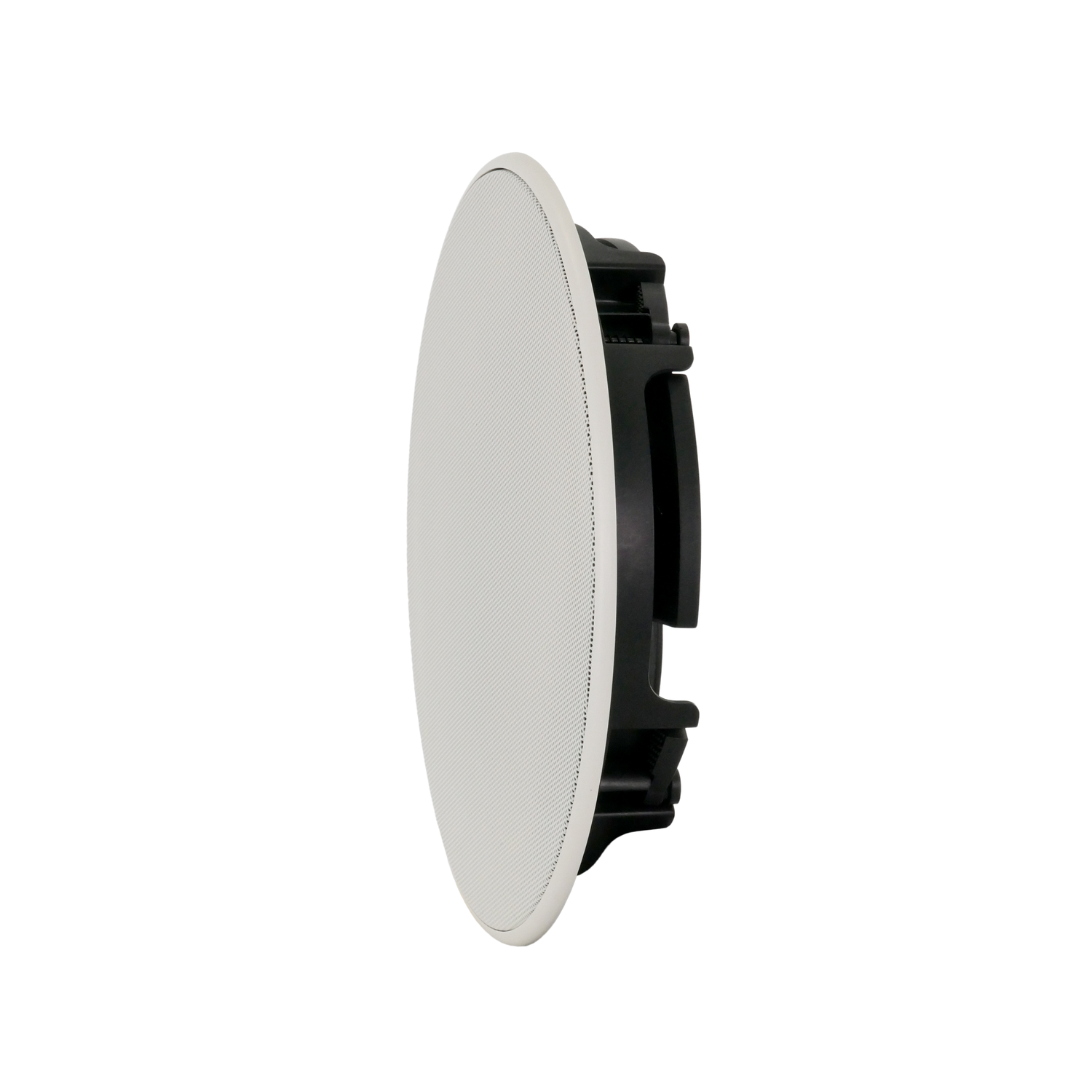

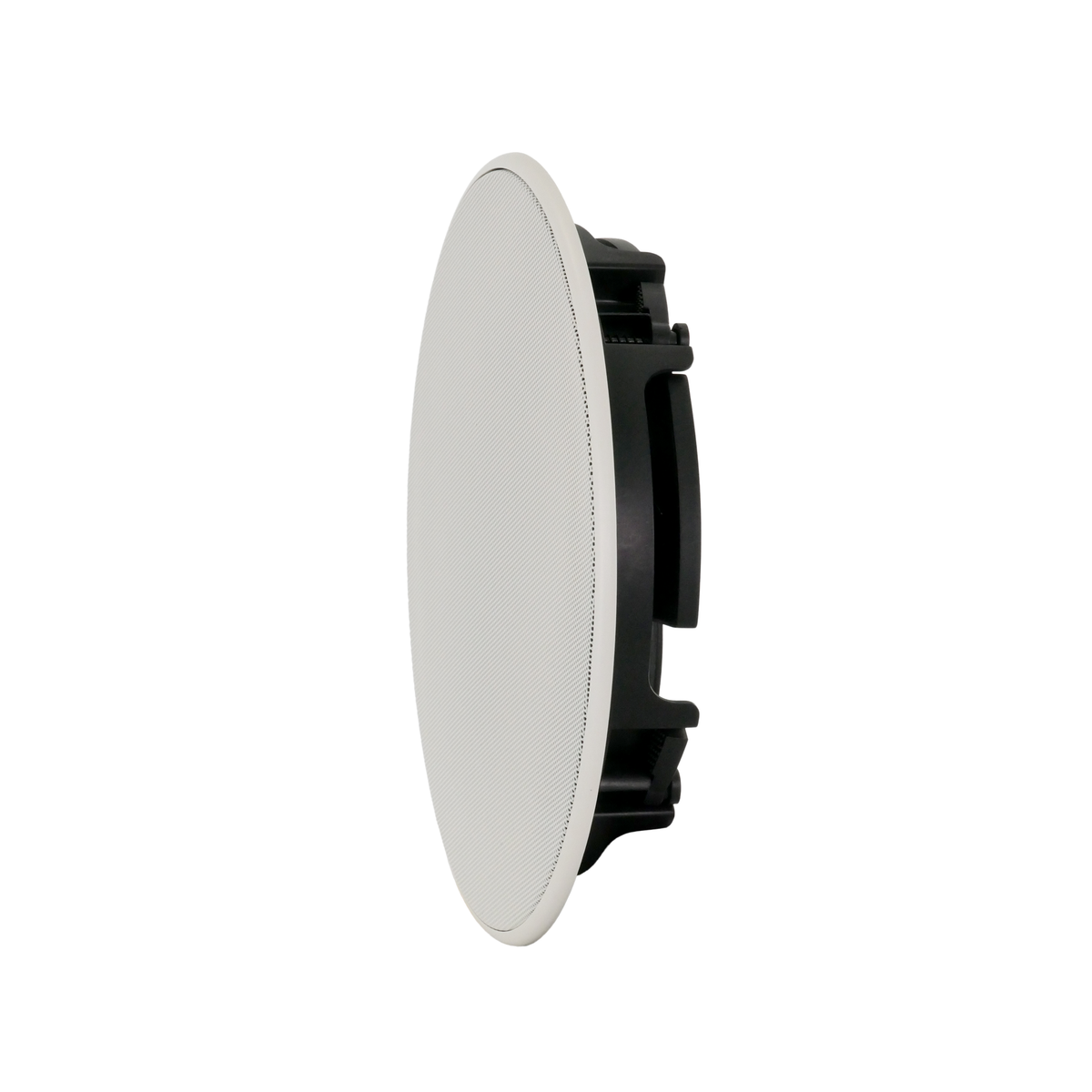

• Low-Profile Paintable Grille — A perforated steel grille can be painted to blend with the ceiling.
• Optional Square Adapter — Converts a round cutout to accept a square grille when needed.
• Sold in Pairs — Ships as a matched stereo pair for consistent left/right performance.
• Limited Lifetime Warranty — Covered under Sonance's Visual Performance Series warranty through authorized dealers.

Typical Applications

• Renovation projects with shallow ceiling cavities or limited joist depth
• Background and secondary music zones in whole-home audio systems
• Light-gauge steel or drop-ceiling applications where standard depth speakers do not fit

Technical Specifications

Frequently Asked Questions

What makes the VP52R UTL different from a standard in-ceiling speaker?

Its ultra-thin 1.4375" mounting depth is designed for ceiling cavities too shallow for standard in-ceiling models.

Is the VP52R UTL sold individually or as a pair?

It is sold as a pair for stereo listening.

What is the cutout size?

The cutout diameter is 8.25" (209.55mm).

What is the power handling rating?

It is rated for 5 watts minimum and 80 watts maximum RMS.

Can the round grille be converted to a square trim?

Yes, an optional square adapter is available for the VP52R UTL.

Is the VP52R UTL a good fit for a primary home theater channel?

It is better suited to background or secondary listening zones; a standard-depth Visual Performance or Visual Experience speaker is typically a better fit for primary theater channels.
