Sonance VX66R – Visual Experience 6.5-Inch Round Ceiling Speaker
Product Overview
The Sonance VX66R is the top round model in the VX6-series in-ceiling lineup, built for integrators who need higher power handling and premium driver materials in a 6.5-inch format. It uses a ferrofluid-cooled ceramic dome tweeter with a Kevlar and Nomex composite pivoting woofer, giving it the highest sensitivity and power rating among the VX62R/VX64R/VX66R family.
Product Description
Where the VX62R and VX64R use a textured polypropylene woofer, the VX66R steps up to a 6.5-inch (165mm) Kevlar and Nomex composite cone with a rubber surround and pivoting mount, paired with a 1.0-inch (25mm) ferrofluid-cooled ceramic dome tweeter. This combination is rated for a wider frequency response of 43Hz to 20kHz (±3dB), a sensitivity of 90dB (2.83V/1m), and power handling from 5 watts minimum up to 140 watts maximum, higher than the other round VX6 models. Like its siblings, it uses Sonance's Sinusoidal Textured Waveguide for controlled dispersion and the CDX Crossover Design to blend tweeter and woofer output smoothly. Installation uses the same 8.25-inch cut-out diameter and 4.92-inch mounting depth as the rest of the VX round platform, with support for both one-stage and two-stage Flex Frame installation. Finish options include Micro Trim, Trimless, and TRUFIG grilles, with paint or laser-print customization available. For rooms where a higher-output in-ceiling speaker is needed within a still-compact 6.5-inch footprint, the VX66R is the top choice in this series, backed by Sonance's Limited Lifetime Warranty when purchased through an authorized dealer.
Key Features
- Kevlar/Nomex Composite Woofer — 6.5-inch pivoting cone material designed for higher output and control than standard polypropylene.
- Ferrofluid-Cooled Ceramic Dome Tweeter — 1.0-inch tweeter for extended high-frequency detail.
- 140W Maximum Power Handling — Highest rating in the VX62R/VX64R/VX66R family.
- Sinusoidal Textured Waveguide — Shapes dispersion for consistent room coverage.
- Flexible Trim Options — Available in Micro Trim, Trimless, and TRUFIG finishes.
- Two-Stage Installation Support — Compatible with the Visual Experience Flex Frame system.
Typical Applications
- Primary listening rooms and home theaters needing higher output from an in-ceiling speaker
- Whole-home audio systems where a top-tier round VX model is specified
- Multi-room installations requiring consistent finish and higher-output performance
Technical Specifications
| Tweeter | 1.0" (25mm) ceramic dome, ferrofluid-cooled |
| Woofer | 6.5" (165mm) Kevlar/Nomex cone, rubber surround, pivoting |
| Frequency Response | 43Hz - 20kHz (±3dB) |
| Sensitivity | 90dB (2.83V/1m) |
| Power Handling | 5W minimum; 140W maximum |
| Cut-Out Diameter | 8.25" (209.55mm) |
| Mounting Depth | 4.92" (124.97mm) |
| Dispersion | Sinusoidal Textured Waveguide |
| Crossover | Sonance CDX Crossover Design |
| Trim Options | Micro Trim, Trimless, TRUFIG |
| Warranty | Limited Lifetime |
Frequently Asked Questions
What makes the VX66R different from the VX62R and VX64R?
The VX66R uses a Kevlar/Nomex composite woofer and is rated for up to 140 watts maximum, higher than the other round VX6 models.
What is the sensitivity of the VX66R?
It is rated at 90dB (2.83V/1m).
What cut-out size does the VX66R require?
An 8.25-inch diameter cut-out with 4.92 inches of mounting depth.
What is the frequency response of the VX66R?
It is rated from 43Hz to 20kHz (±3dB).

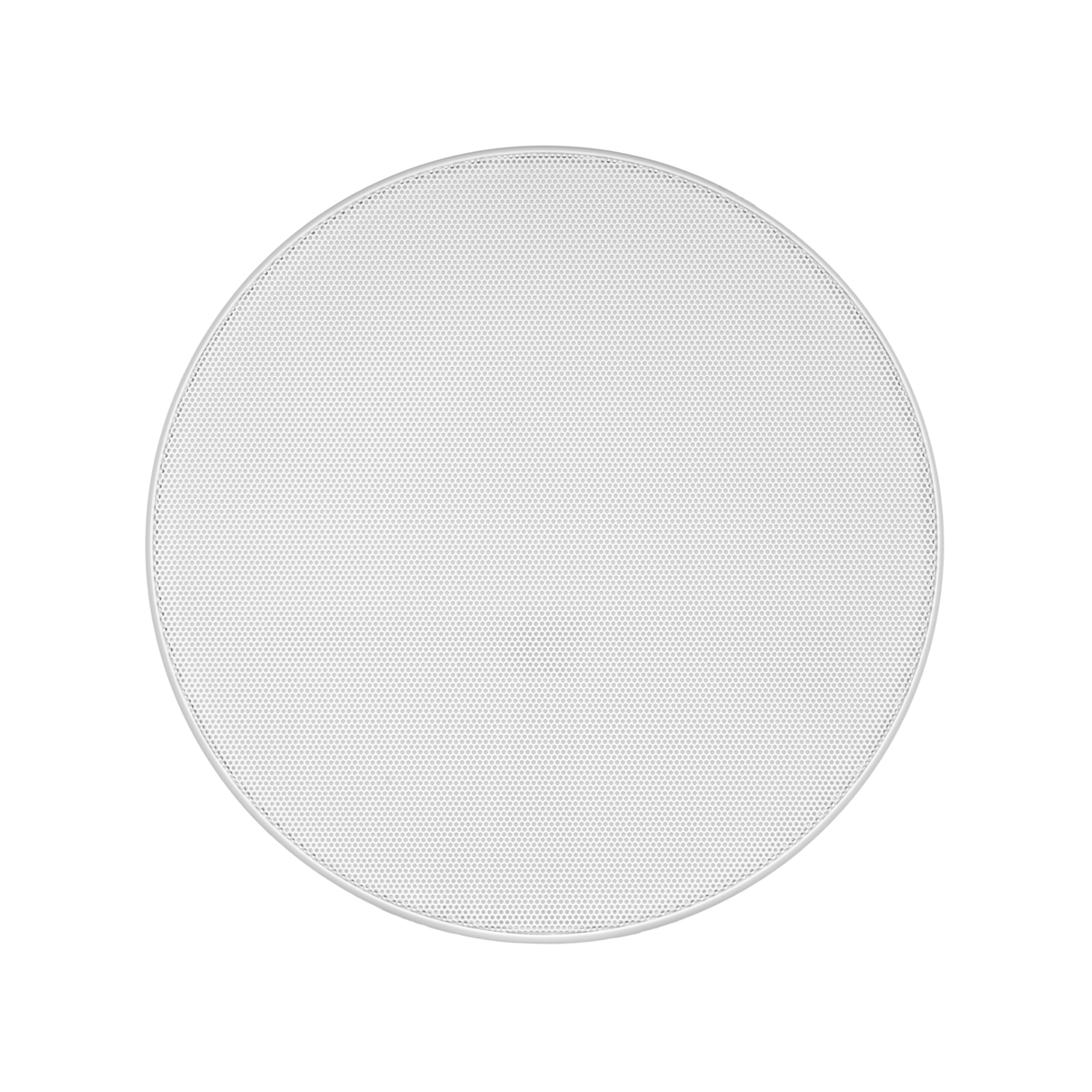

What grille finishes are available?
Micro Trim, Trimless, and TRUFIG finishes are available, with paint or laser-print customization.
Can the VX66R be installed in two stages on a phased project?
Yes, it supports both standard one-stage installation and the Visual Experience two-stage Flex Frame process.
What warranty does the VX66R carry?
Sonance's Limited Lifetime Warranty applies when purchased through an authorized dealer such as Creation Networks.
