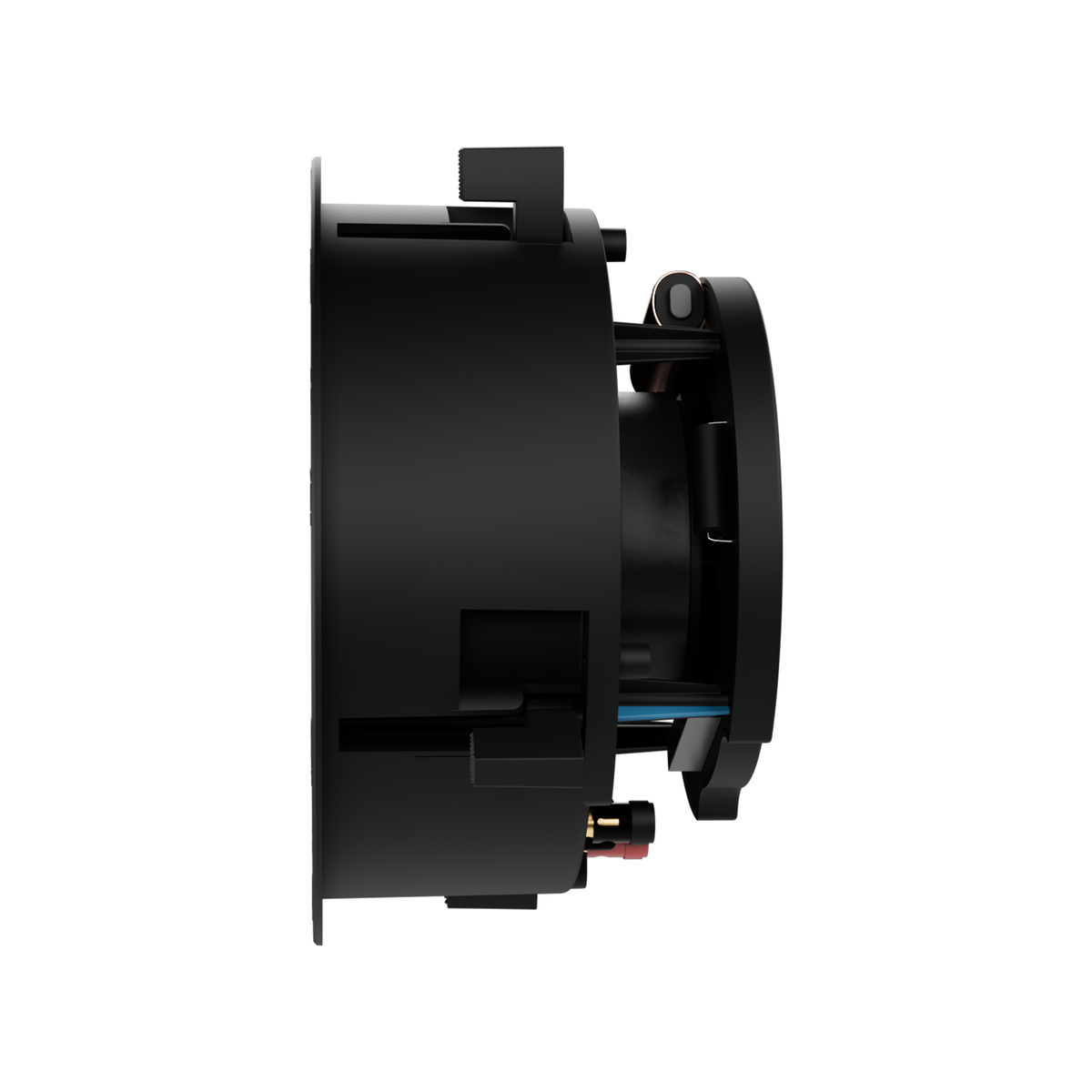

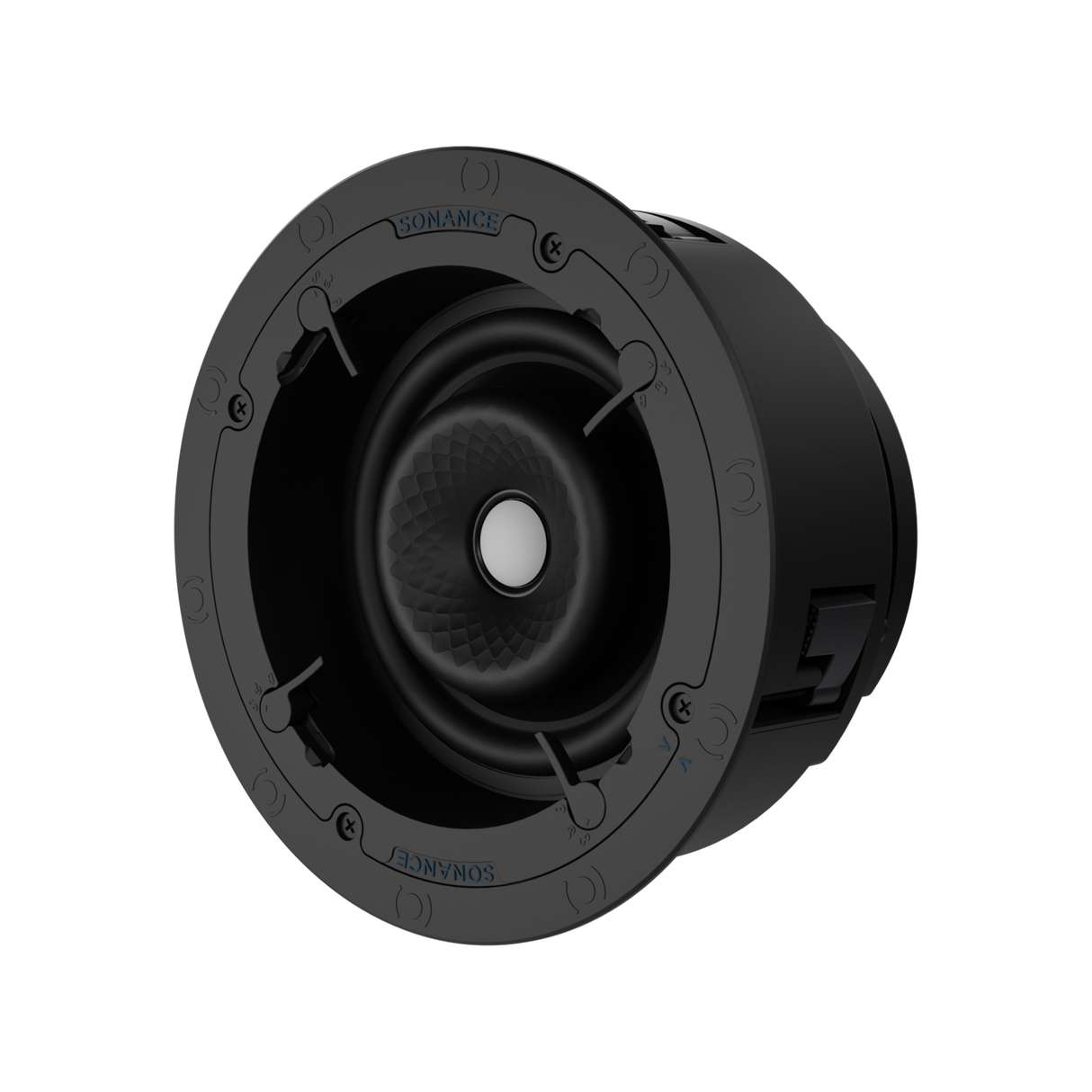

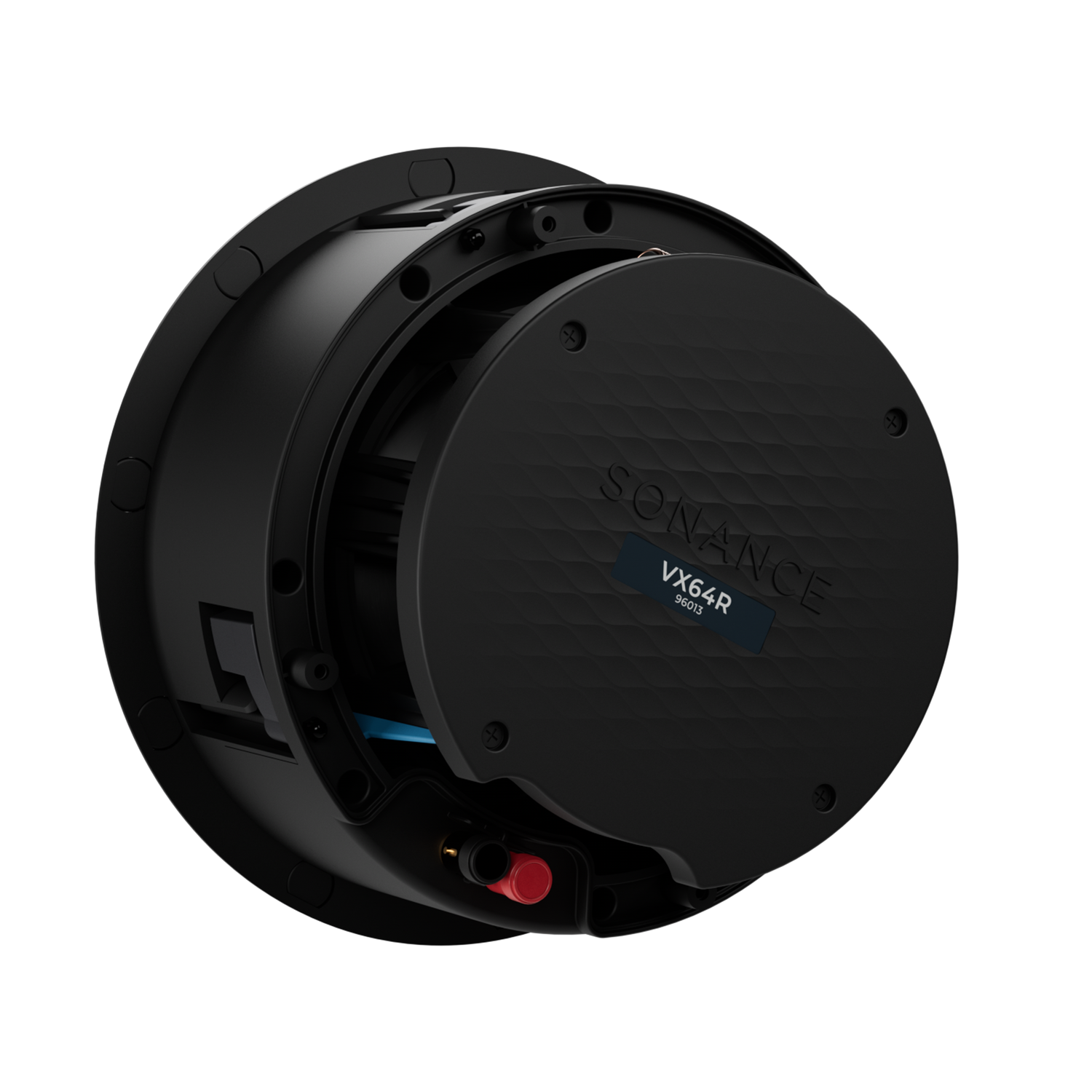

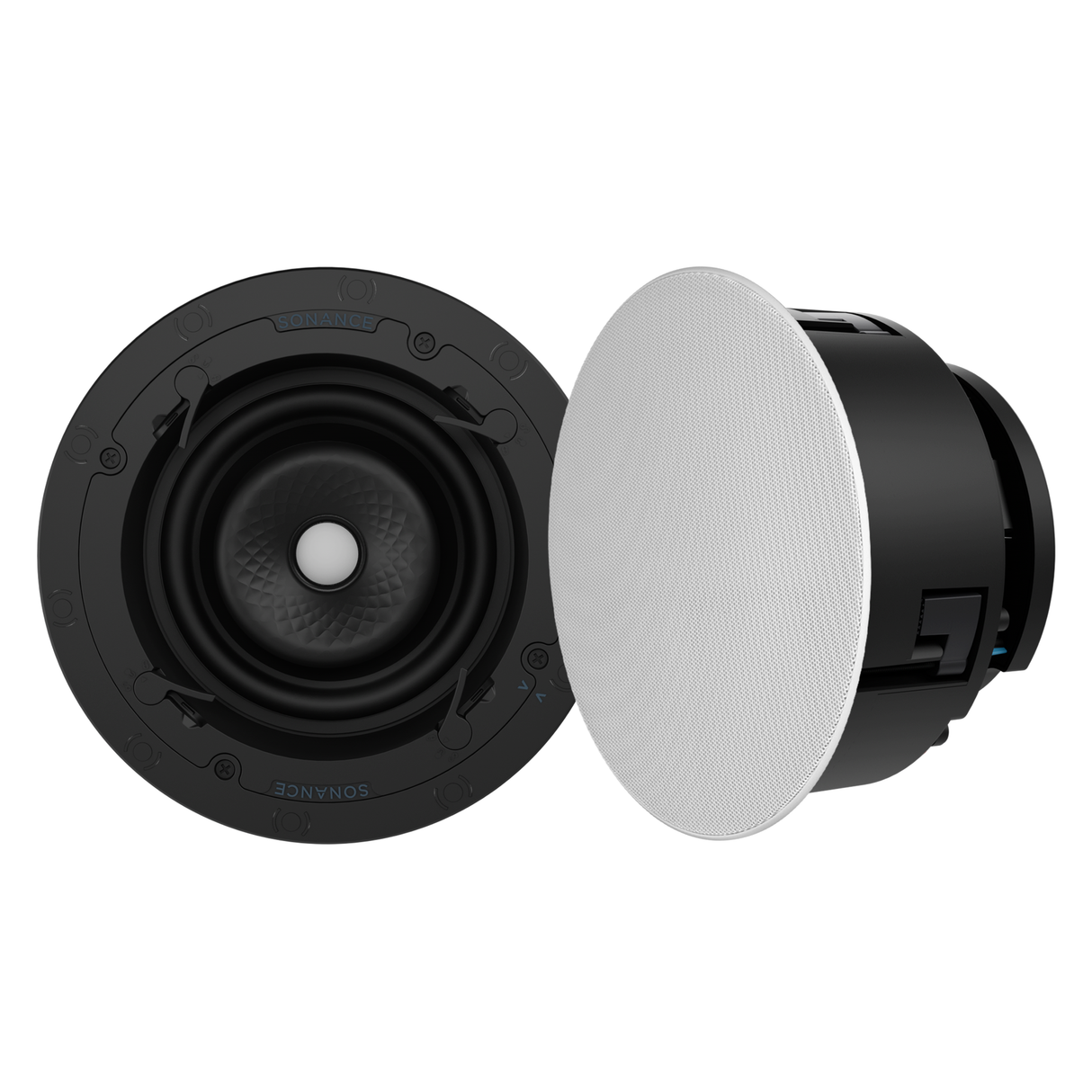

Sonance VX64R – Visual Experience 6.5-Inch Round Ceiling Speaker

Product Overview

The Sonance VX64R is a 6.5-inch round in-ceiling speaker from the Visual Experience Series, positioned as a step-up option within the round VX platform. It combines a ferrofluid-cooled ceramic dome tweeter with a pivoting textured polypropylene woofer for balanced, wide-dispersion coverage. Like other VX round speakers, it supports multiple finish and installation options.

Product Description

The VX64R uses a 1.0-inch (25mm) ceramic dome tweeter with ferrofluid cooling, paired with a 6.5-inch (165mm) textured polypropylene woofer featuring a rubber surround and pivoting mount. As with the rest of the Sonance VX round series, the pivoting woofer lets installers angle the driver toward the listening area even when the ceiling location is off-center. A Sinusoidal Textured Waveguide manages dispersion, and the Sonance CDX Crossover Design blends the tweeter and woofer output smoothly across the audio band. The VX64R is rated for a frequency response of 45Hz to 20kHz (±3dB), a sensitivity of 89dB (2.83V/1m), and power handling of 5 watts minimum to 125 watts maximum RMS; impedance is not published on the current product page. It uses the same 8.25-inch cut-out diameter and 4.92-inch mounting depth as other speakers in the VX round platform, and it can be installed using either a standard one-stage process or the two-stage Flex Frame system for phased jobs. Grille finish options include Micro Trim, Trimless, and TRUFIG, and Sonance offers paint or laser-print customization for a closer match to the ceiling finish. Coverage is backed by a Limited Lifetime Warranty from Sonance when purchased through an authorized in-ceiling speaker dealer such as Creation Networks.

Key Features

• Ferrofluid-Cooled Ceramic Dome Tweeter — 1.0-inch tweeter designed for extended, controlled high-frequency output.
• Pivoting 6.5-Inch Woofer — Textured polypropylene cone with rubber surround, adjustable toward the listening position.
• Sinusoidal Textured Waveguide — Shapes dispersion for consistent room coverage.
• CDX Crossover Design — Tuned for a smooth handoff between tweeter and woofer.

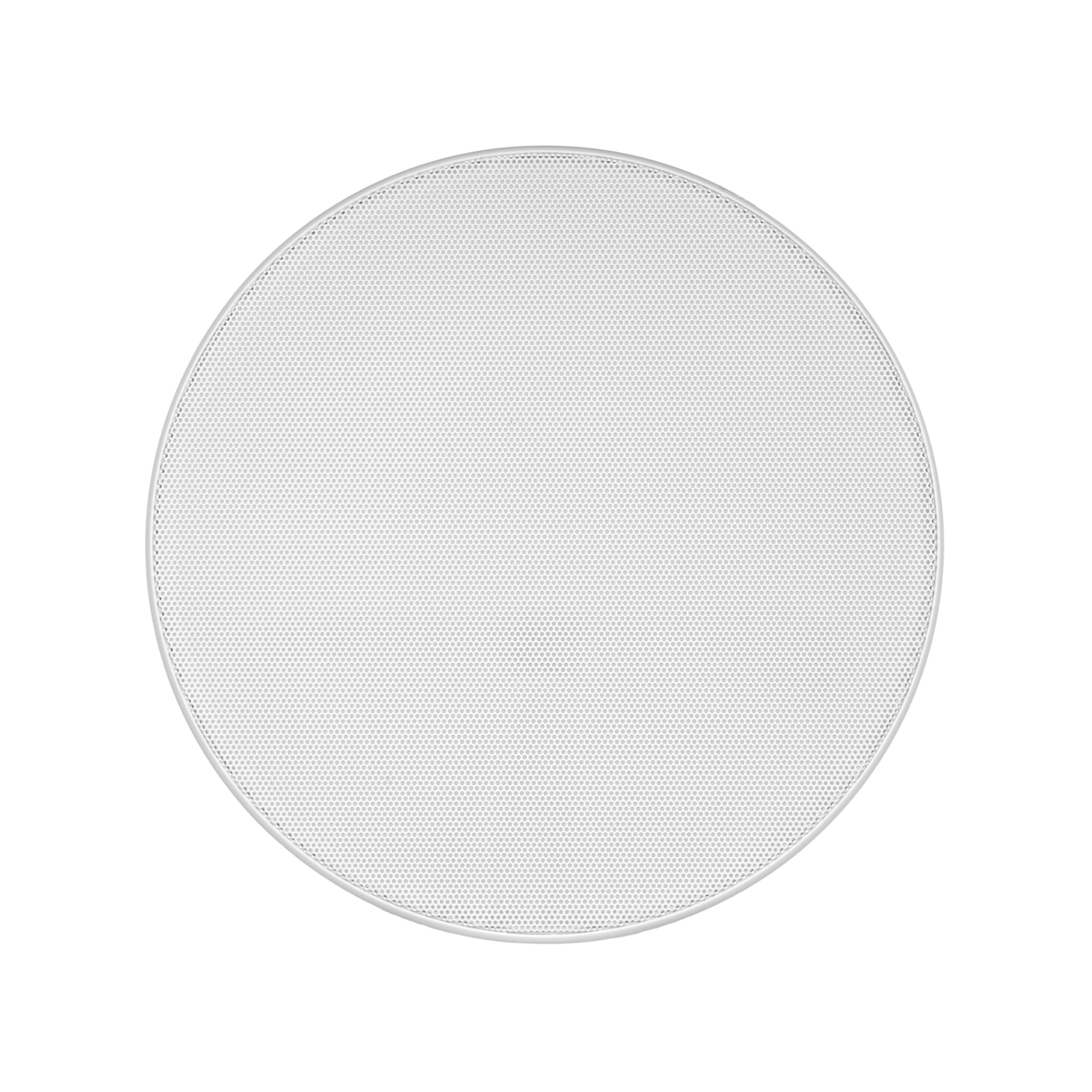

• Flexible Trim Options — Available in Micro Trim, Trimless, and TRUFIG finishes, with paint or laser-print customization.
• Two-Stage Installation Support — Compatible with the Visual Experience Flex Frame system.

Typical Applications

• Residential whole-home audio in living rooms, kitchens, and bedrooms
• Home theater surround and height channels
• Multi-room in-ceiling zones requiring consistent finish and performance

Technical Specifications

Frequently Asked Questions

What driver configuration does the VX64R use?

A 1.0-inch ferrofluid-cooled ceramic dome tweeter paired with a pivoting 6.5-inch textured polypropylene woofer.

How does the VX64R differ from the VX62R?

Both share similar dimensions and power ratings; the VX64R uses a ceramic dome tweeter, while tweeter material and fine-tuning differ between VX round models. Confirm specifics with your Creation Networks representative for project-specific selection.

What is the power handling of the VX64R?

It is rated from 5 watts minimum to 125 watts maximum RMS.

What cut-out size does the VX64R require?

An 8.25-inch diameter cut-out with 4.92 inches of mounting depth.

What grille finishes are available for the VX64R?

Micro Trim, Trimless, and TRUFIG finishes are available, with paint or laser-print customization.

Can the VX64R be installed using the Flex Frame two-stage process?

Yes, it supports both standard one-stage installation and the two-stage Flex Frame system.

What warranty applies to the VX64R?

Sonance's Limited Lifetime Warranty applies when purchased through an authorized dealer such as Creation Networks.
