Sonance VX62R – Visual Experience 6.5-Inch Round In-Ceiling Speaker

Product Overview

The Sonance VX62R is a 6.5-inch round in-ceiling speaker from the Visual Experience Series, built for integrators who need strong, evenly dispersed coverage in a residential setting. It pairs a ferrofluid-cooled tweeter with a pivoting textured polypropylene woofer to deliver clear, balanced sound. The VX62R is designed for flexible finishing, with multiple trim options to match different architectural styles.

Product Description

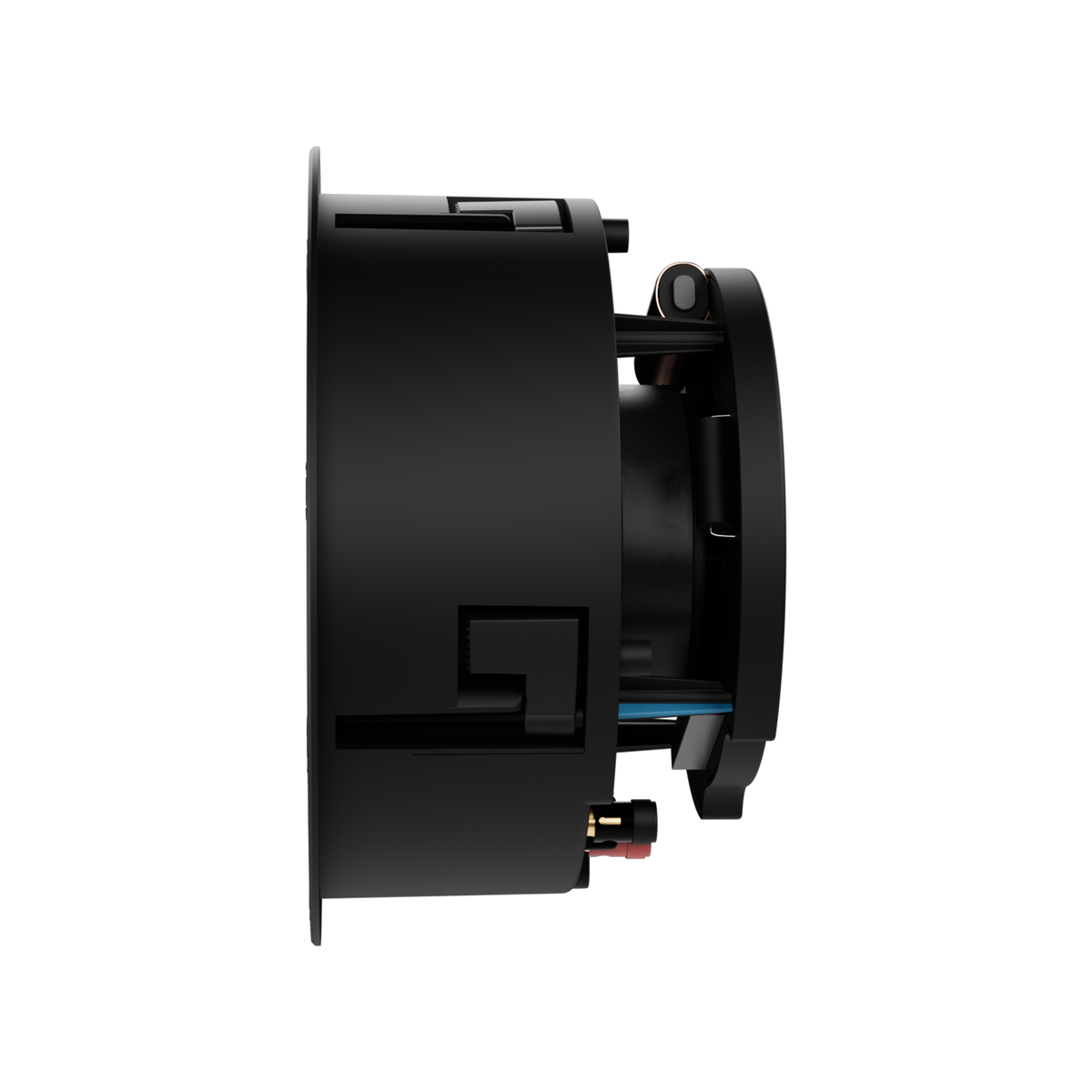

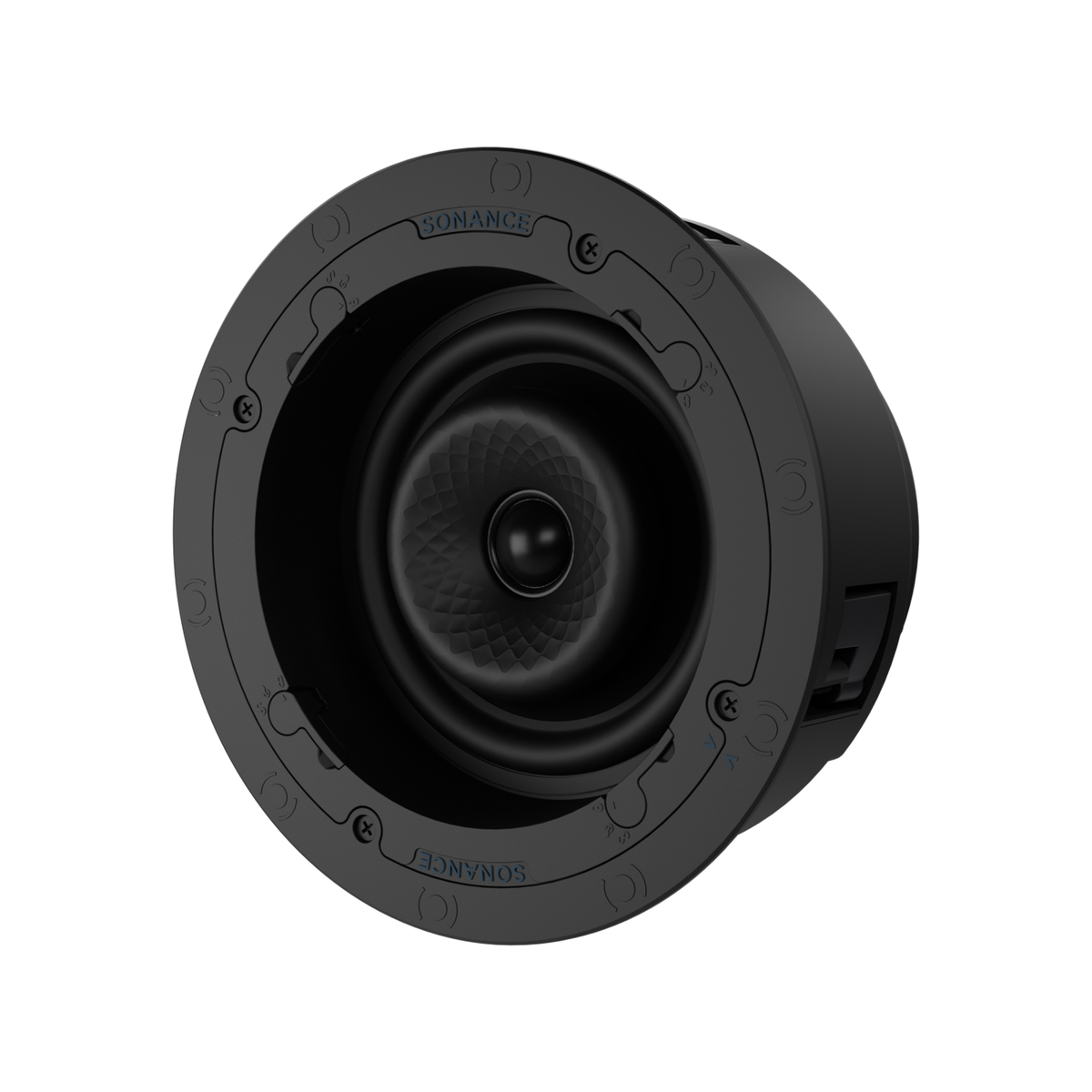

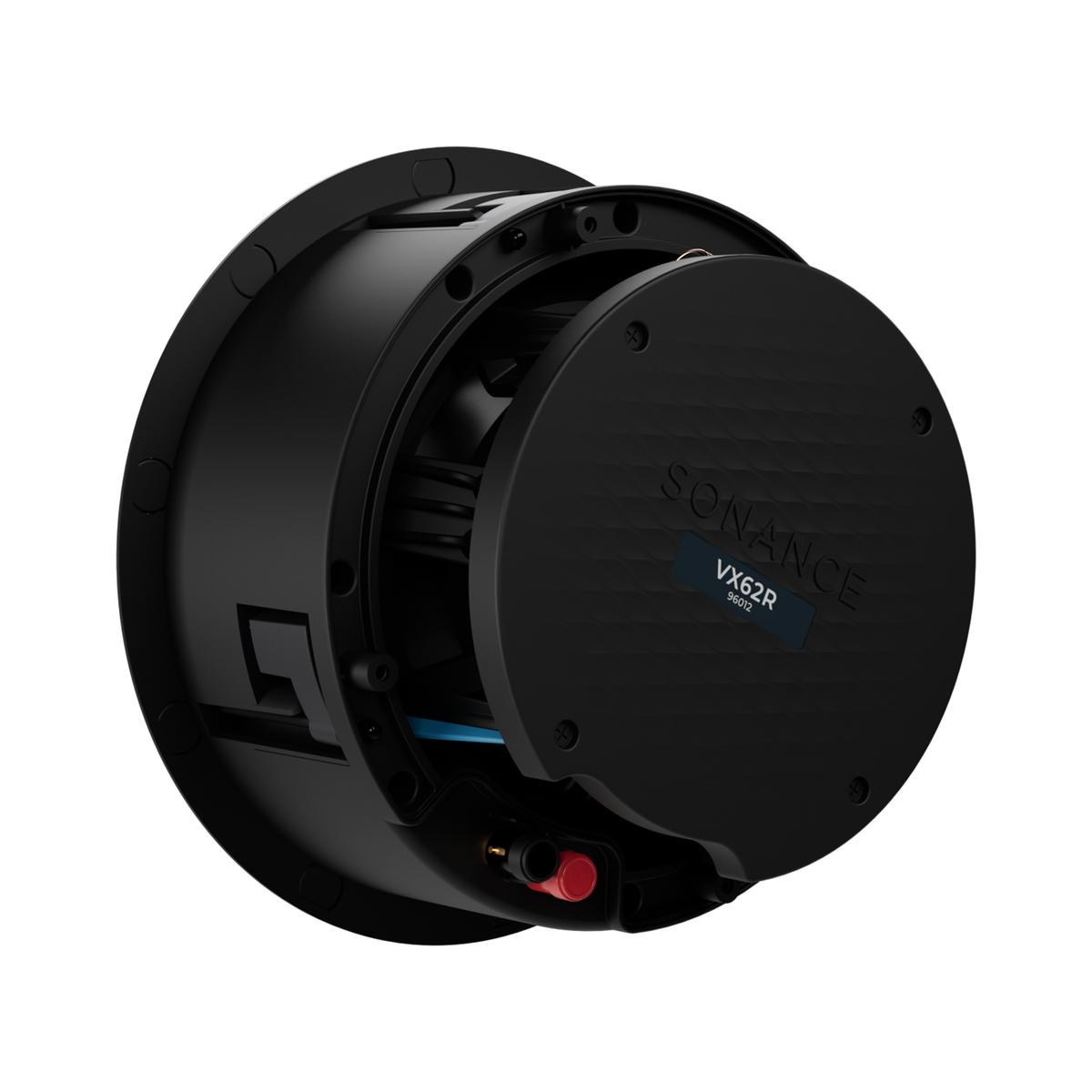

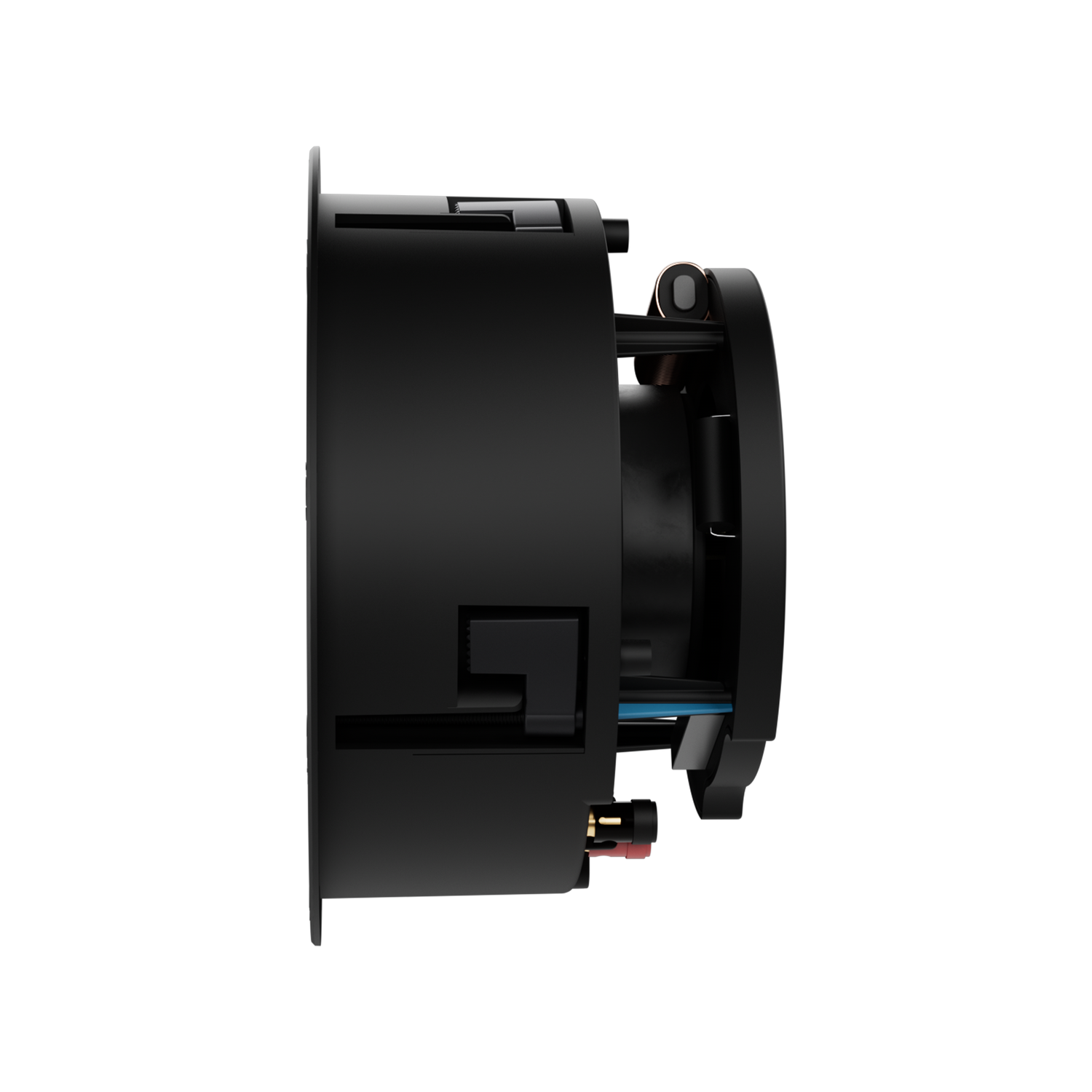

The VX62R sits in the mid-size tier of Sonance's Visual Experience round in-ceiling lineup, using a 1.0-inch (25mm) cloth dome tweeter with ferrofluid cooling and an acoustic back chamber alongside a 6.5-inch (165mm) textured polypropylene woofer with a rubber surround. The woofer is pivoting, allowing installers to angle the driver toward the primary listening area even when the ceiling location isn't directly overhead. Sonance's Sinusoidal Textured Waveguide shapes dispersion for consistent coverage off-axis, while the CDX Crossover Design is tuned to keep the handoff between tweeter and woofer smooth across the frequency range. The speaker is rated for a frequency response of 45Hz to 20kHz (±3dB), a sensitivity of 89dB (2.83V/1m), and power handling from 5 watts minimum to 125 watts maximum RMS. Installation uses an 8.25-inch cut-out diameter with a 4.92-inch mounting depth, and the speaker supports both standard one-stage installation and the Visual Experience two-stage Flex Frame process for phased projects. Finish options include Micro Trim, Trimless, and TRUFIG grilles, plus paint or laser-print customization, giving designers control over how visible the in-ceiling speaker location is in the finished room. The VX62R carries Sonance's Limited Lifetime Warranty, with a 5-year limited warranty on grille components, when purchased through an authorized dealer.

Key Features

• Ferrofluid-Cooled Tweeter — 1.0-inch cloth dome tweeter with acoustic back chamber for extended, controlled high-frequency output.
• Pivoting 6.5-Inch Woofer — Textured polypropylene cone with rubber surround, adjustable to aim sound toward the listening area.
• Sinusoidal Textured Waveguide — Shapes dispersion for consistent coverage across the room.
• CDX Crossover Design — Tuned for a smooth handoff between tweeter and woofer.

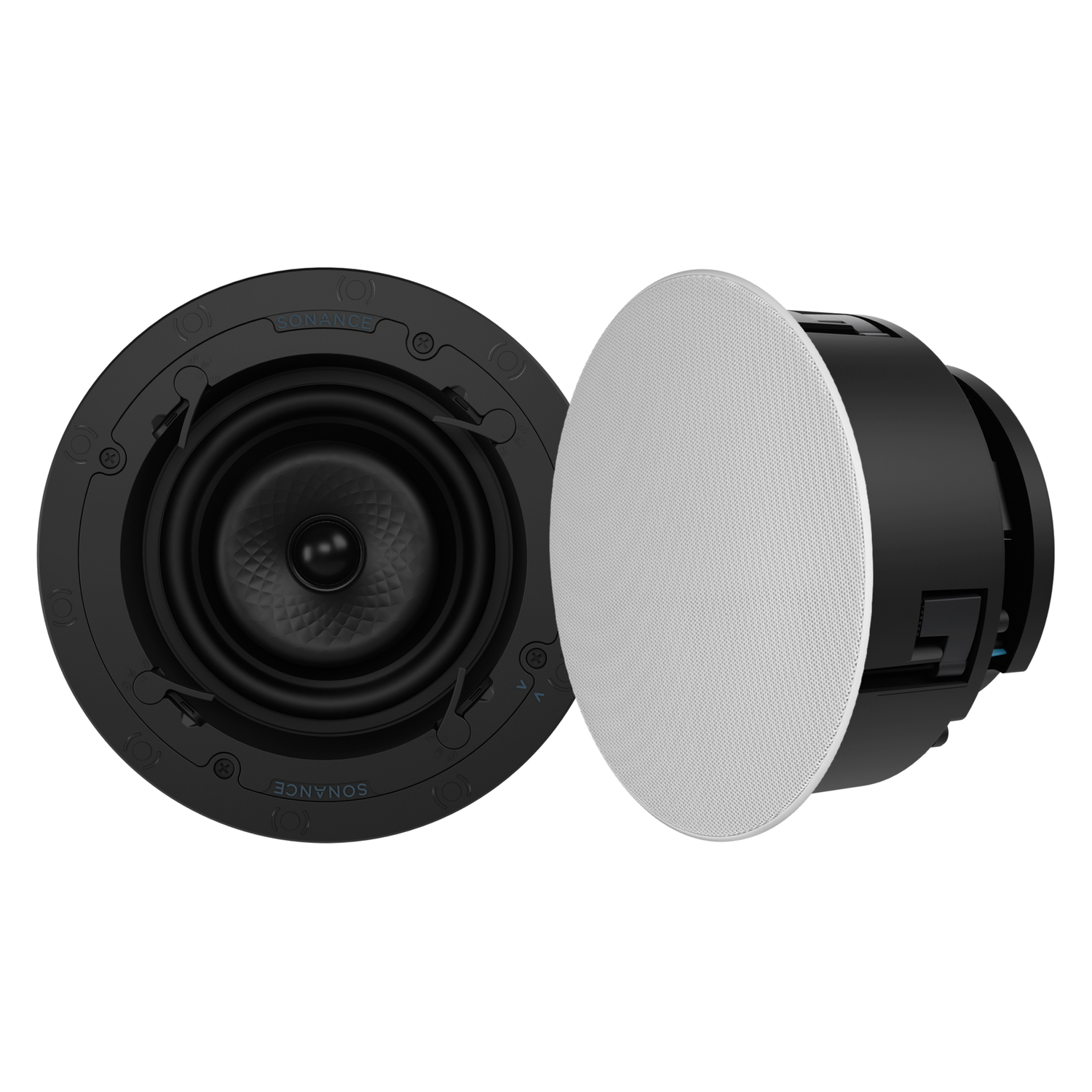

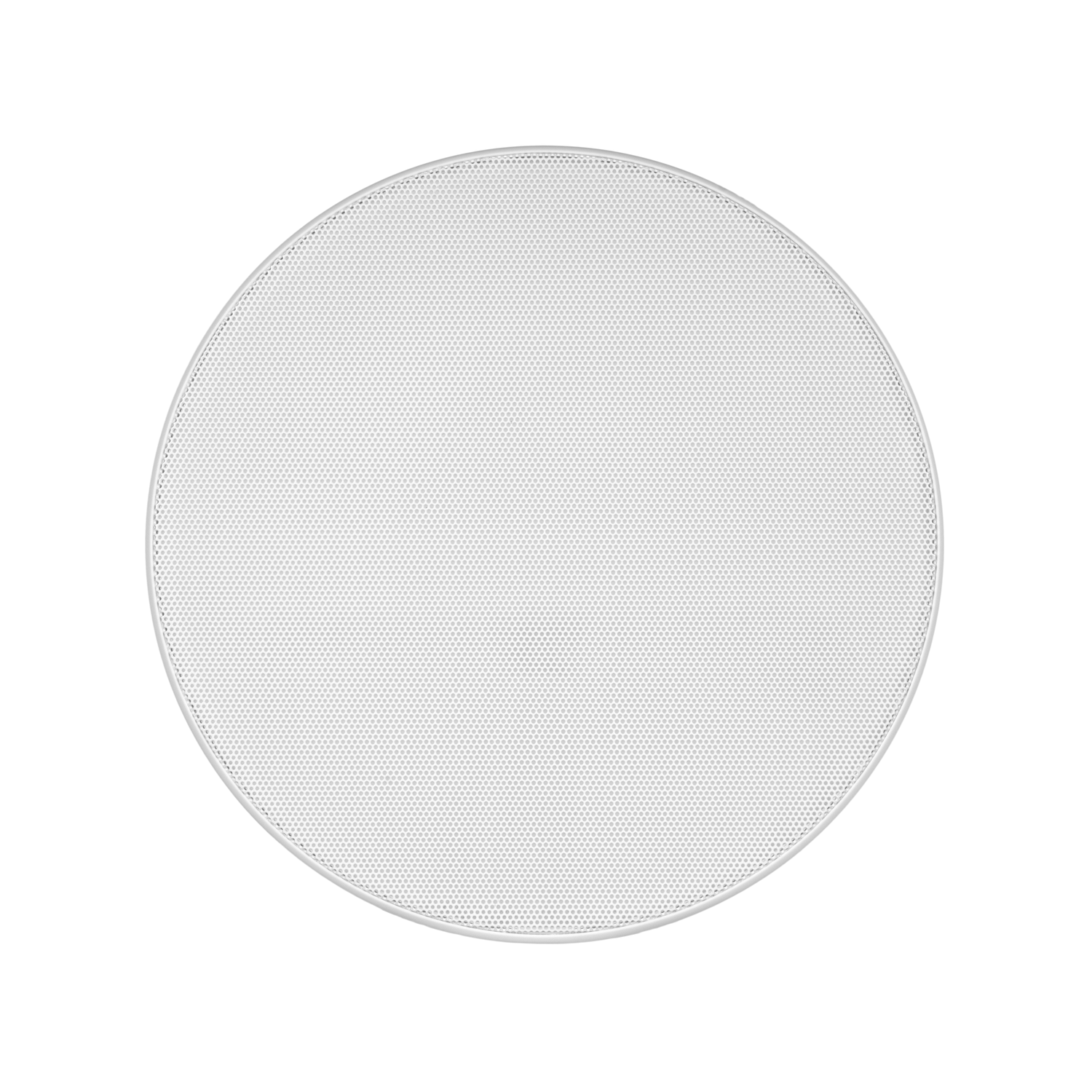

• Flexible Trim Options — Available in Micro Trim, Trimless, and TRUFIG finishes, with paint or laser-print customization.
• Two-Stage Installation Support — Compatible with the Visual Experience Flex Frame system for phased projects.
• Limited Lifetime Warranty — Covers the speaker, with a 5-year limited warranty on grille components.

Typical Applications

• Residential whole-home audio in living rooms, kitchens, and bedrooms
• Home theater surround and height channels
• Multi-room in-ceiling zones requiring consistent finish and performance

Technical Specifications

Frequently Asked Questions

What size driver does the VX62R use?

It uses a 6.5-inch (165mm) pivoting woofer paired with a 1.0-inch (25mm) ferrofluid-cooled tweeter.

What is the power handling of the VX62R?

It is rated from 5 watts minimum to 125 watts maximum RMS.

What cut-out size is required for the VX62R?

An 8.25-inch diameter cut-out with 4.92 inches of mounting depth is required.

What grille finish options are available?

The VX62R is available with Micro Trim, Trimless, or TRUFIG grille finishes, plus paint or laser-print customization.

Can the VX62R be installed in phases on a large project?

Yes, it supports the Visual Experience two-stage Flex Frame installation process in addition to standard one-stage mounting.

What is the frequency response of the VX62R?

It is rated from 45Hz to 20kHz (±3dB).

What warranty does the VX62R carry?

It carries Sonance's Limited Lifetime Warranty, with a 5-year limited warranty on grille components, when purchased through an authorized dealer like Creation Networks.
