Sonance VX66 – Medium Rectangle In-Wall Speaker

Product Overview

The Sonance VX66 is a medium rectangle in-wall loudspeaker from the Visual Experience Series, built for integrators and homeowners who want discreet, high-fidelity sound without a visible cabinet. Paired with a Kevlar/Nomex woofer and a Ferrofluid-cooled ceramic dome tweeter, it targets accurate, full-range reproduction for primary listening zones. It is a strong fit for distributed audio and home theater surround applications where clean walls matter as much as clean sound.

Product Description

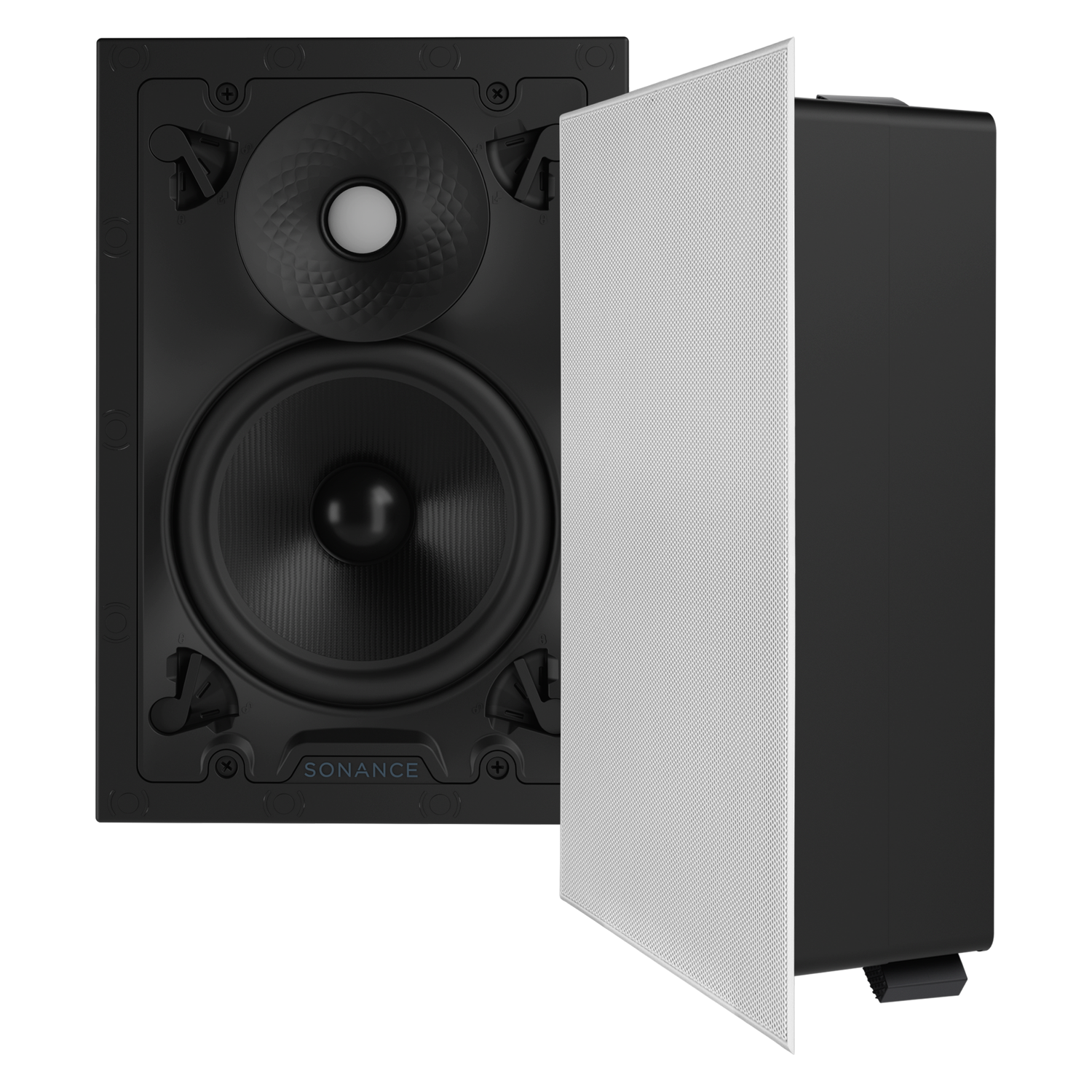

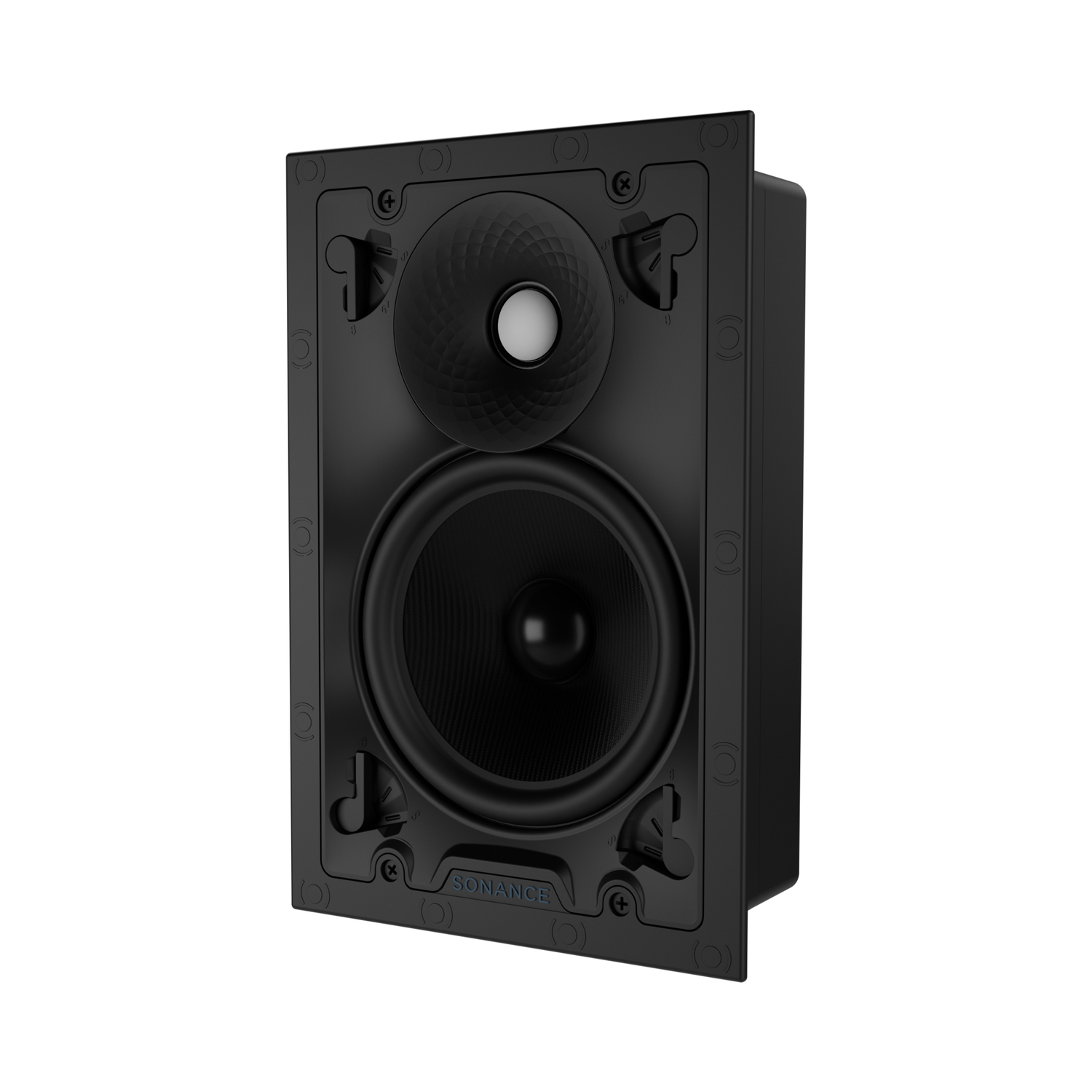

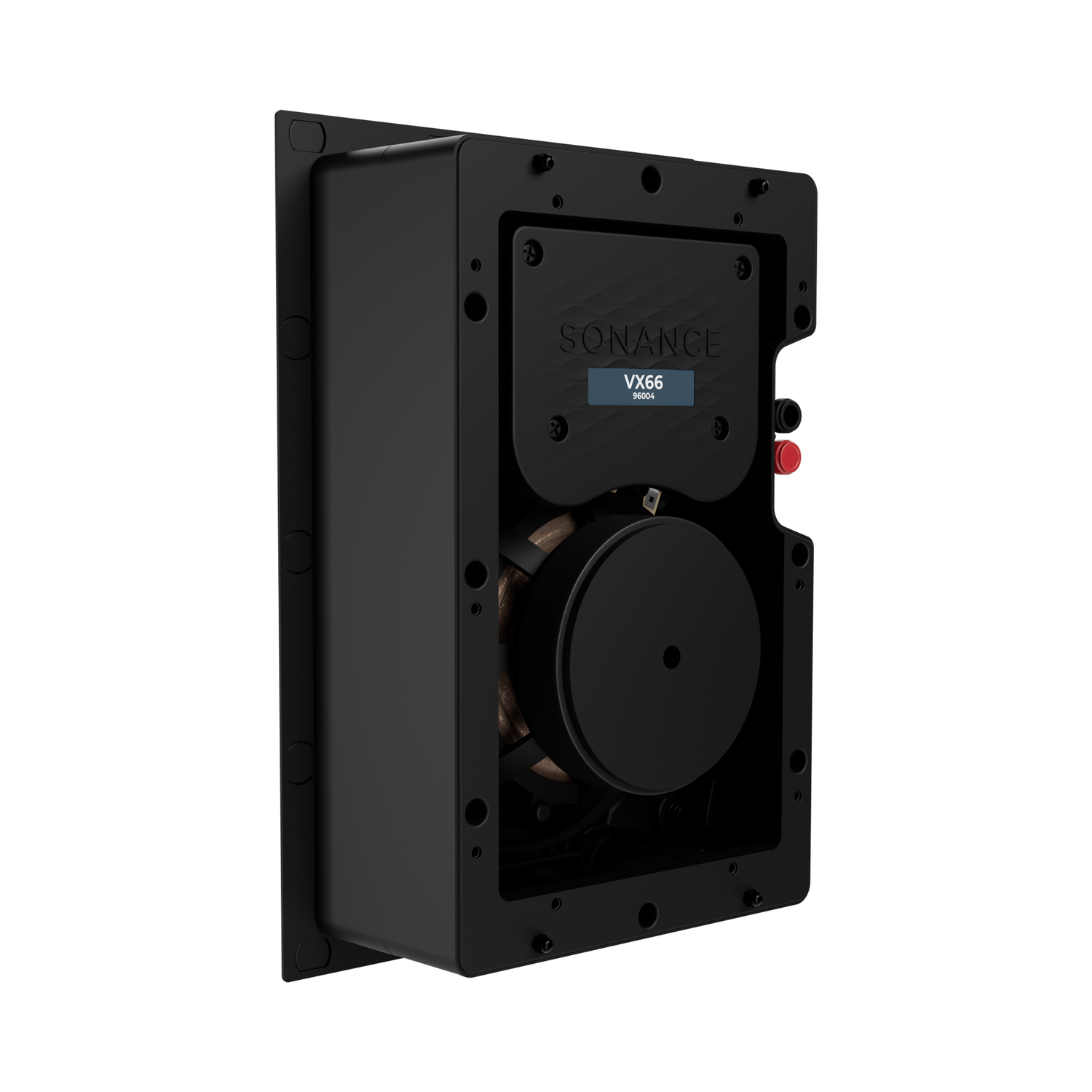

The VX66 in-wall speaker pairs a 6.5" Kevlar/Nomex cone woofer with a rubber surround and a 1.0" ceramic dome tweeter cooled by Ferrofluid for extended thermal stability at higher output. Sonance's CDX crossover network is tuned to keep tonal balance consistent across the volume range, so dialogue and music stay clear whether the system is playing quietly in a study or driven harder in a media room. A sinusoidal textured waveguide shapes dispersion for even coverage across a wide listening area, reducing the need for excessive toe-in or additional speakers. The rectangular cabinetless design mounts into a standard drywall cutout and supports a two-stage installation process, letting electricians and low-voltage crews rough in the bracket and wiring before drywall closes, with the driver and grille added later during trim-out. Integrators sourcing 8-ohm in-wall speakers for a whole-home Sonance system can pair the VX66 with matching in-ceiling models from the same Visual Experience line; browse the full lineup of in-ceiling speakers to complete a multi-room design. Grilles are available in a factory Brilliant White satin finish, and custom paint or laser-printed patterns can be ordered to match architectural finishes. The result is a speaker built for rooms where the audio system needs to disappear into the wall while still delivering accurate, full-bandwidth sound.

Key Features

• Kevlar/Nomex Woofer — A 6.5" Kevlar/Nomex cone with rubber surround handles midrange and bass duty with low distortion.
• Ferrofluid-Cooled Tweeter — The 1.0" ceramic dome tweeter uses Ferrofluid cooling for stable high-frequency output at higher volumes.
• Sonance CDX Crossover — A purpose-tuned crossover network preserves tonal balance from low to high listening levels.
• Sinusoidal Textured Waveguide — Waveguide loading around the tweeter widens and evens out dispersion across the listening area.
• Two-Stage Installation — Optional preconstruction bracket placement lets crews finish wiring before drywall closes.
• Multiple Grille Options — Micro trim, trimless, and TRUFIG-mounted grille styles are available for different finish preferences.
• Limited Lifetime Warranty — Visual Experience Series speakers purchased through an authorized dealer carry a limited lifetime warranty.

Typical Applications

• Primary and secondary listening zones in residential whole-home audio systems
• Home theater surround and side-channel placement
• Media rooms, living rooms, and open-concept great rooms
• Light commercial spaces such as offices and small conference rooms

Technical Specifications

Frequently Asked Questions

What is the mounting depth of the VX66?

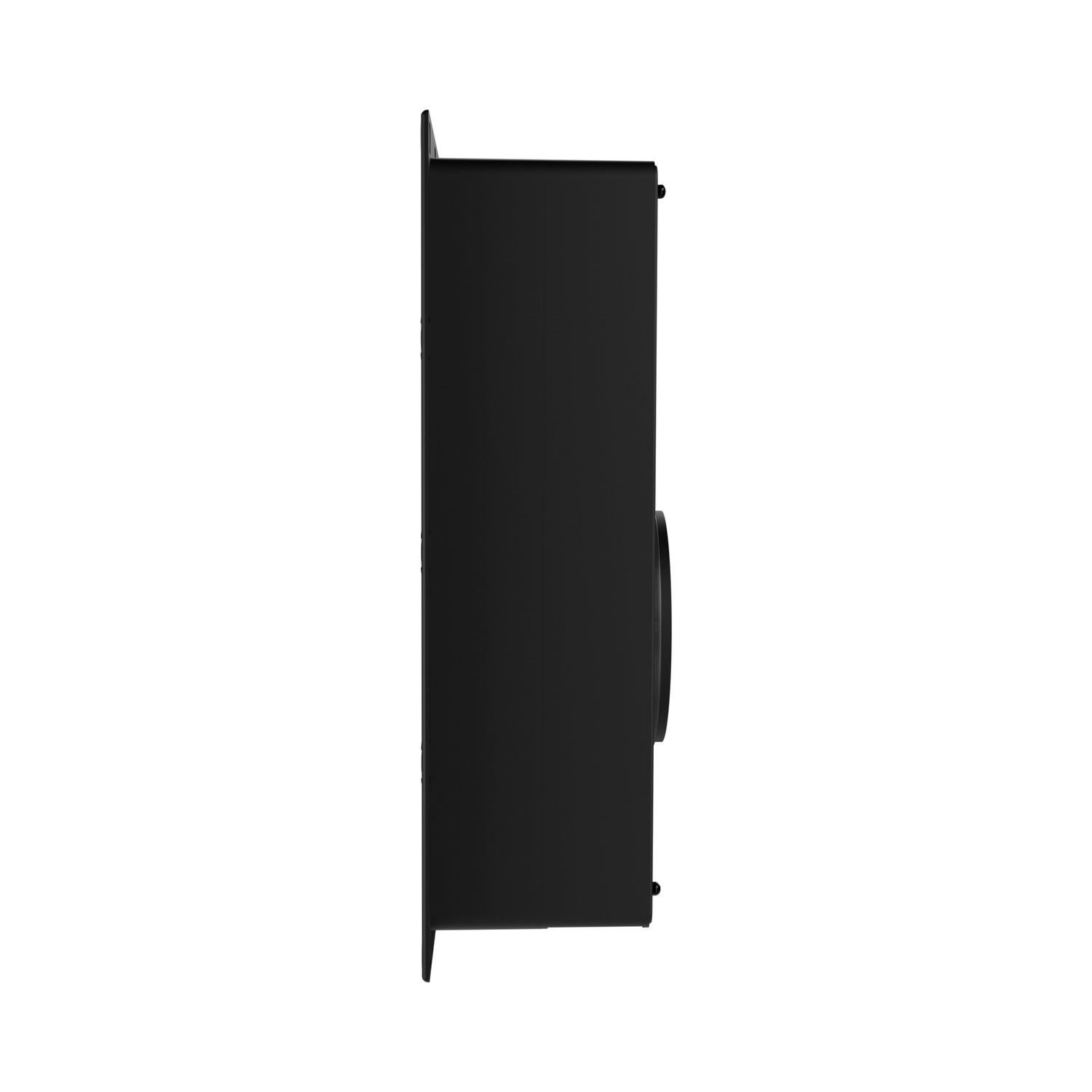

The VX66 requires 3.48" (88.39mm) of mounting depth behind the wall surface.

What is the rated power handling?

The VX66 is rated for 5 watts minimum and 140 watts maximum RMS power handling.

What cutout size does the VX66 require?

The wall cutout measures 6.94" wide by 10.75" high.

Can the VX66 be installed before drywall is hung?

Yes, the two-stage installation design allows the bracket and wiring to be placed before drywall closes, with the speaker and grille finished later.

What grille finishes are available?

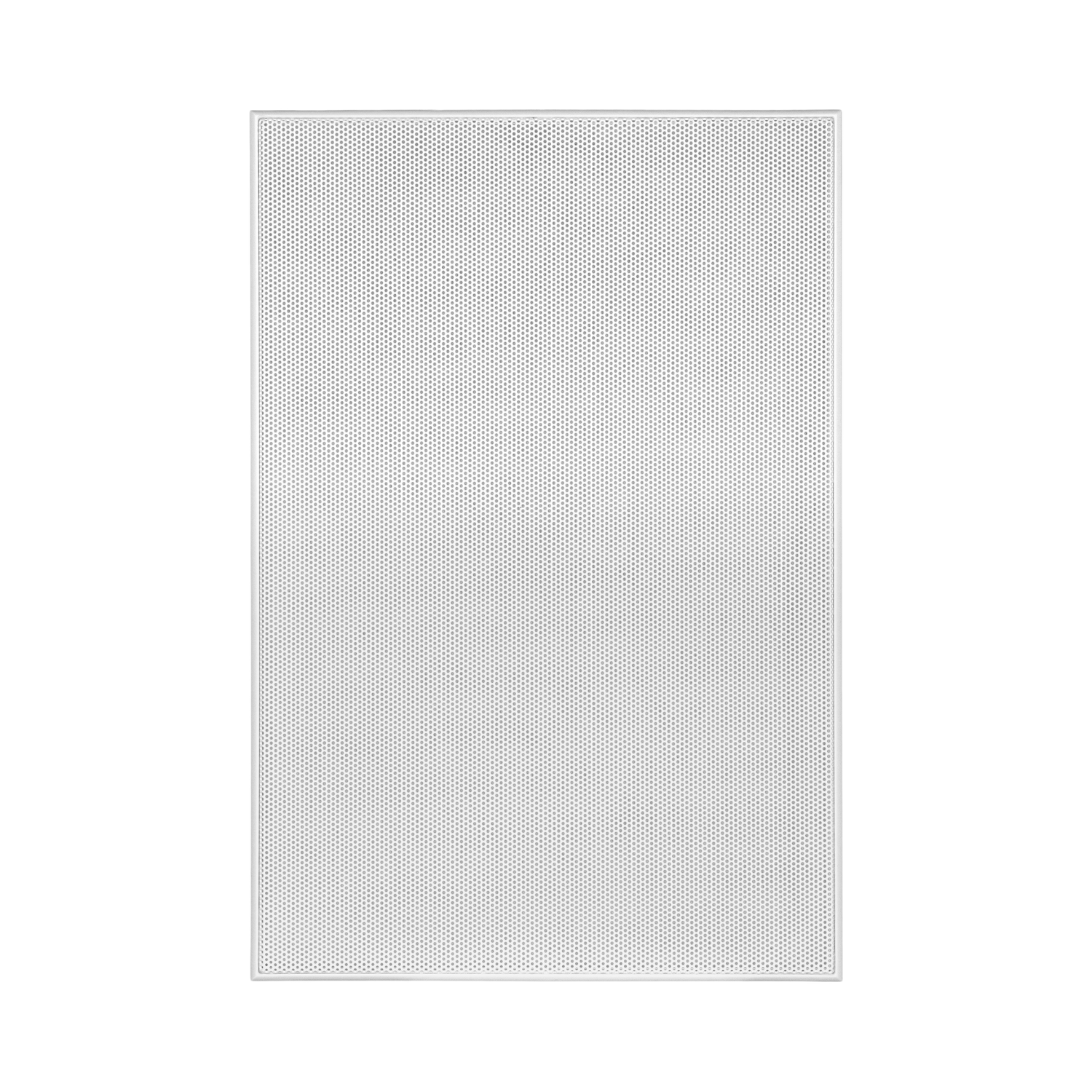

The VX66 ships in a Brilliant White satin finish, with custom paint or laser-printed grille options available to order.

What is the frequency response of the VX66?

Sonance rates the VX66 at 43Hz to 20kHz, ±3dB.

Is the VX66 covered by a warranty?

Yes, Visual Experience Series speakers purchased from an authorized Sonance dealer carry a limited lifetime warranty.
