Sonance VX62 – Visual Experience 6.5-Inch Rectangle Speaker

Product Overview

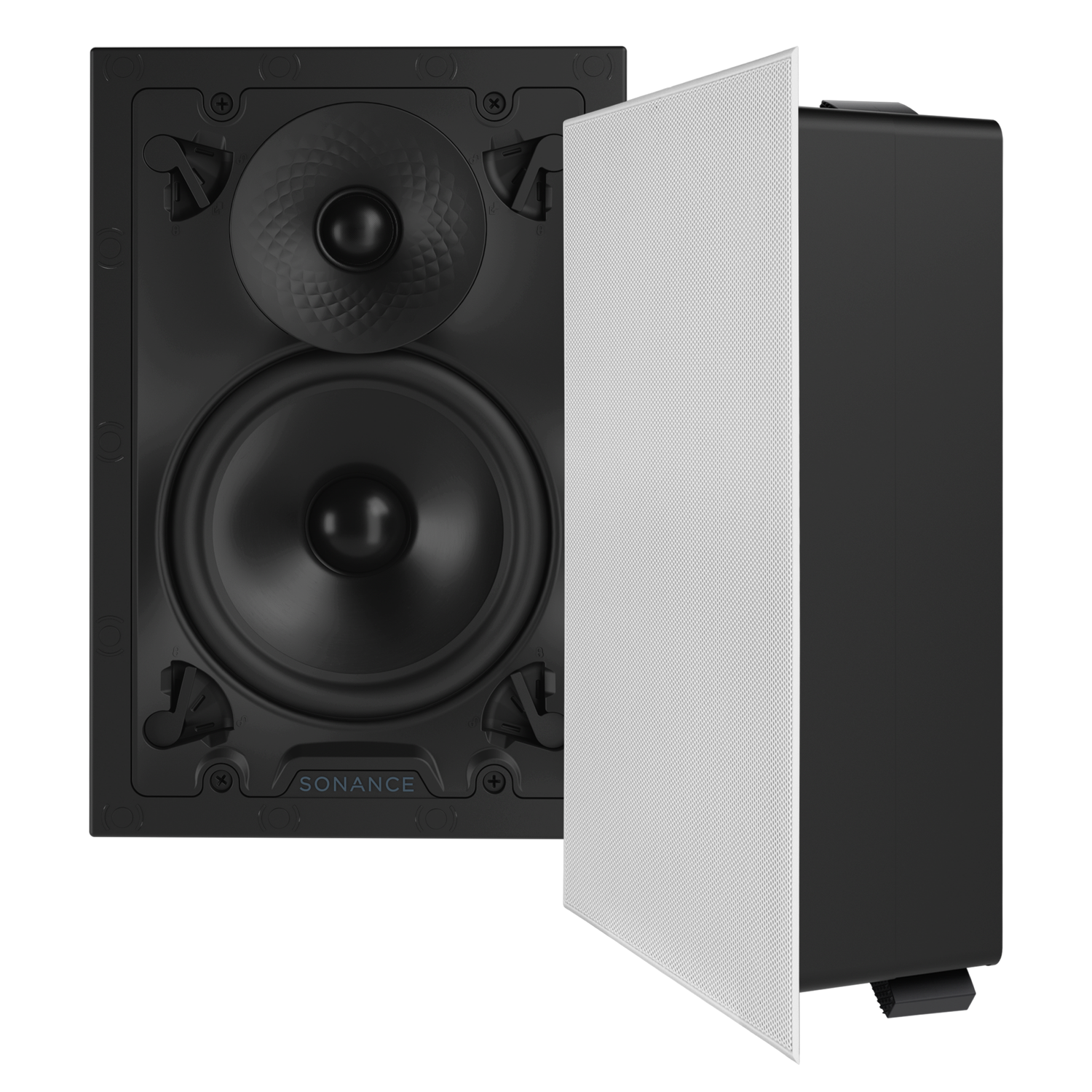

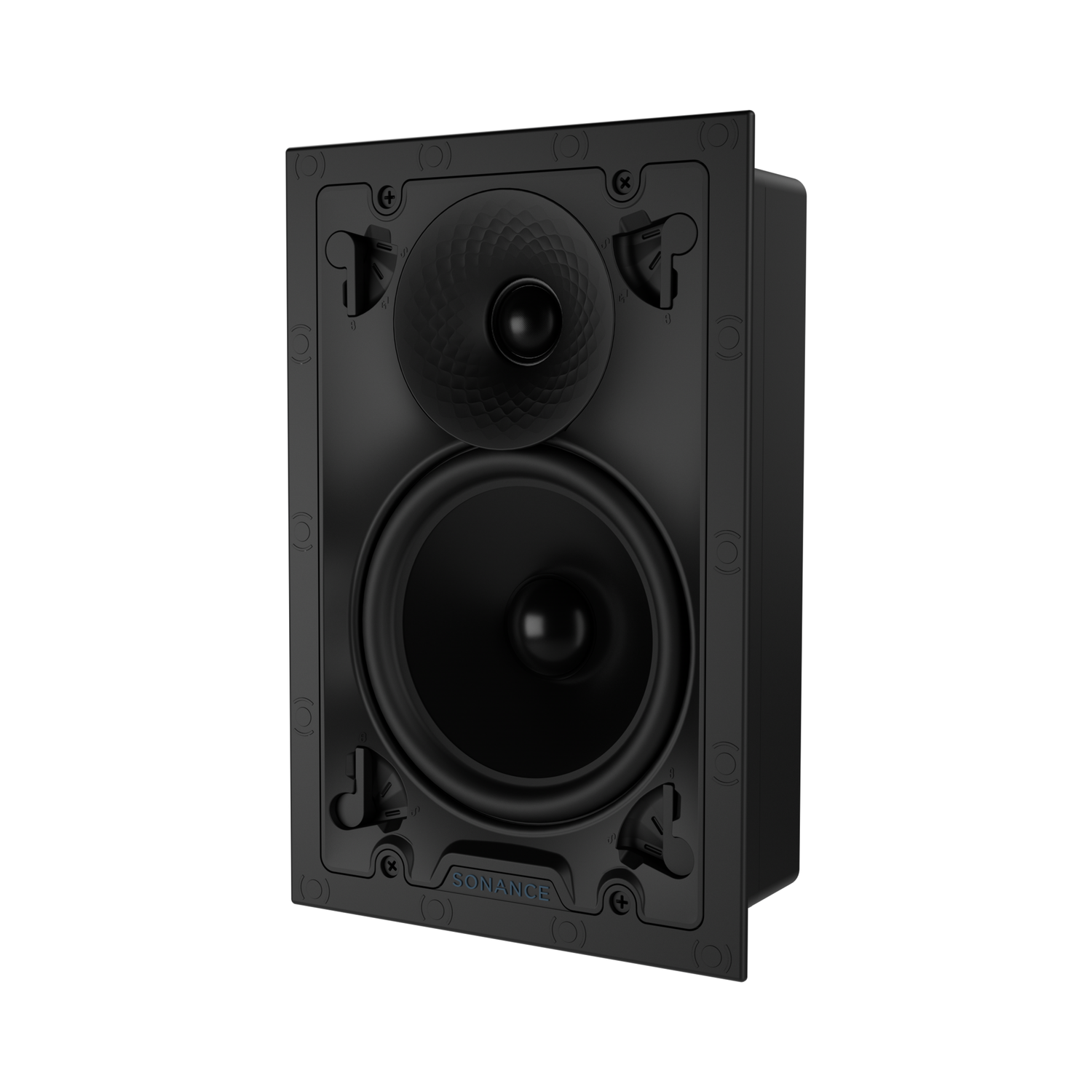

The Sonance VX62 is a medium rectangle speaker from the Visual Experience Series, built around a 6.5-inch pivoting woofer and a ferrofluid-cooled tweeter. It is designed for integrators who need the coverage of a 6.5-inch driver in a rectangle footprint rather than a round cut-out, suited to both in-wall and in-ceiling installation. The VX62 supports flexible finish and installation options to match a range of architectural styles.

Product Description

The VX62 uses a 1.0-inch (25mm) cloth dome tweeter with ferrofluid cooling paired with a 6.5-inch (165mm) textured polypropylene woofer with a rubber surround, the same core driver combination found in the round VX62R but housed in a rectangle format. This makes it a practical option where a rectangle cut-out fits the wall or ceiling layout better than a round one, without giving up the coverage of a 6.5-inch woofer. Sonance's CDX Crossover Design blends the tweeter and woofer for warmth and detail across volume levels, while the Sinusoidal Textured Waveguide manages dispersion for consistent coverage off-axis. The VX62 is rated for a frequency response of 45Hz to 20kHz (±3dB), a sensitivity of 89dB (2.83V/1m), and power handling from 5 watts minimum to 125 watts maximum RMS; impedance is not published on the current product page. Installation requires a 6.94-inch by 10.75-inch rectangle cut-out with a 3.48-inch mounting depth, and the speaker supports both standard one-stage installation and the two-stage Flex Frame process for phased projects. Grille finishes include Micro Trim, Trimless, and TRUFIG, giving designers control over how visible the in-wall speaker or in-ceiling location appears in the finished room. The VX62 carries Sonance's Limited Lifetime Warranty, with a 5-year limited warranty on select extreme-environment models, when purchased through an authorized dealer.

Key Features

• Ferrofluid-Cooled Tweeter — 1.0-inch cloth dome tweeter for extended, controlled high-frequency output.
• Pivoting 6.5-Inch Woofer — Textured polypropylene cone with rubber surround for full-range coverage.
• Rectangle Footprint — Delivers 6.5-inch driver performance in a rectangle cut-out for flexible placement.
• Sinusoidal Textured Waveguide — Shapes dispersion for consistent room coverage.
• CDX Crossover Design — Tuned for warmth and detail at all volume levels.

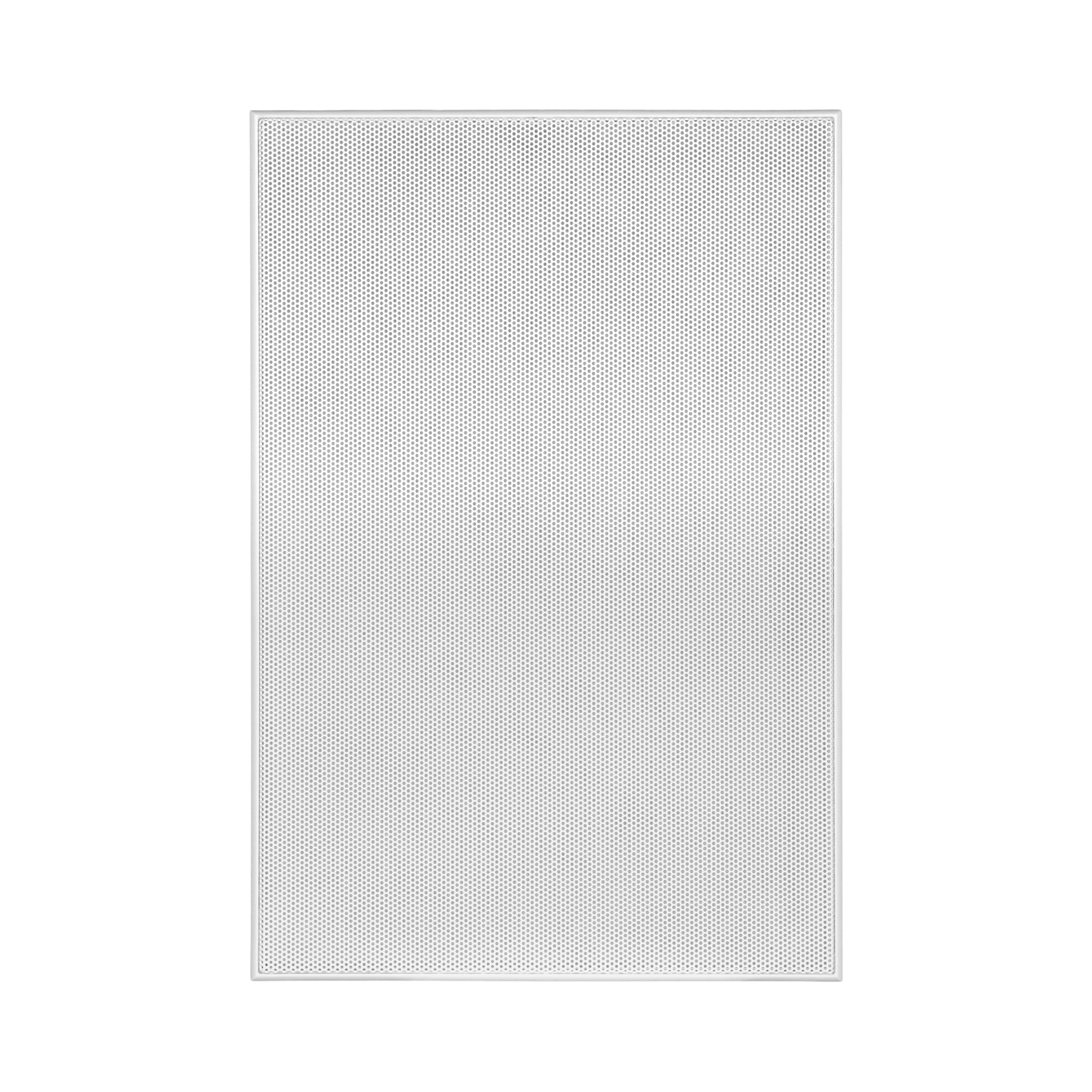

• Flexible Trim Options — Available in Micro Trim, Trimless, and TRUFIG finishes.
• Two-Stage Installation Support — Compatible with the Visual Experience Flex Frame system.

Typical Applications

• Residential whole-home audio in living rooms, kitchens, and bedrooms
• Home theater main and surround channels in a rectangle footprint
• Multi-room in-wall or in-ceiling zones requiring consistent finish and performance

Technical Specifications

Frequently Asked Questions

What size driver does the VX62 use?

A 6.5-inch (165mm) pivoting woofer paired with a 1.0-inch (25mm) ferrofluid-cooled tweeter.

What cut-out size does the VX62 require?

A 6.94-inch by 10.75-inch rectangle cut-out with 3.48 inches of mounting depth.

What is the power handling of the VX62?

It is rated from 5 watts minimum to 125 watts maximum RMS.

Can the VX62 be used in both walls and ceilings?

Yes, the rectangle format supports both in-wall and in-ceiling installation depending on the project layout.

What grille finishes are available for the VX62?

Micro Trim, Trimless, and TRUFIG finishes are available.

Does the VX62 support two-stage Flex Frame installation?

Yes, it supports both standard one-stage installation and the two-stage Flex Frame process for phased projects.

What warranty does the VX62 carry?

Sonance's Limited Lifetime Warranty applies, with a 5-year limited warranty on select extreme-environment models, when purchased through an authorized dealer.
