Sonance VX62LCR – In-Wall LCR Channel Speaker
Product Overview
The Sonance VX62LCR is an in-wall left-center-right (LCR) speaker from the Visual Experience Series, built for home theater installers who need a dedicated front or center channel behind the screen wall. Its dual-woofer, single-tweeter configuration is designed for clear dialogue and precise imaging, making it a natural match for a discreet, flush-mounted theater or media room build.
Product Description

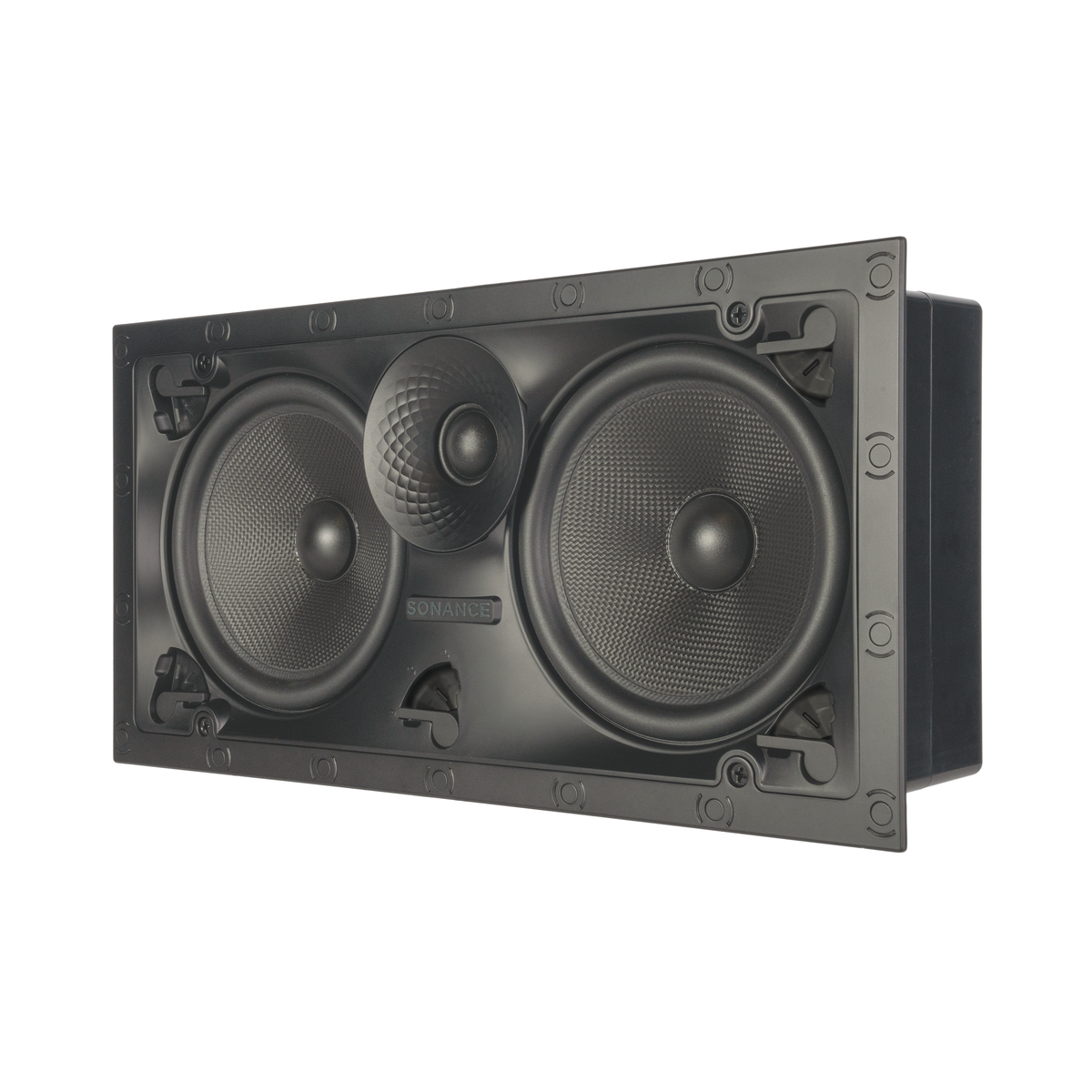

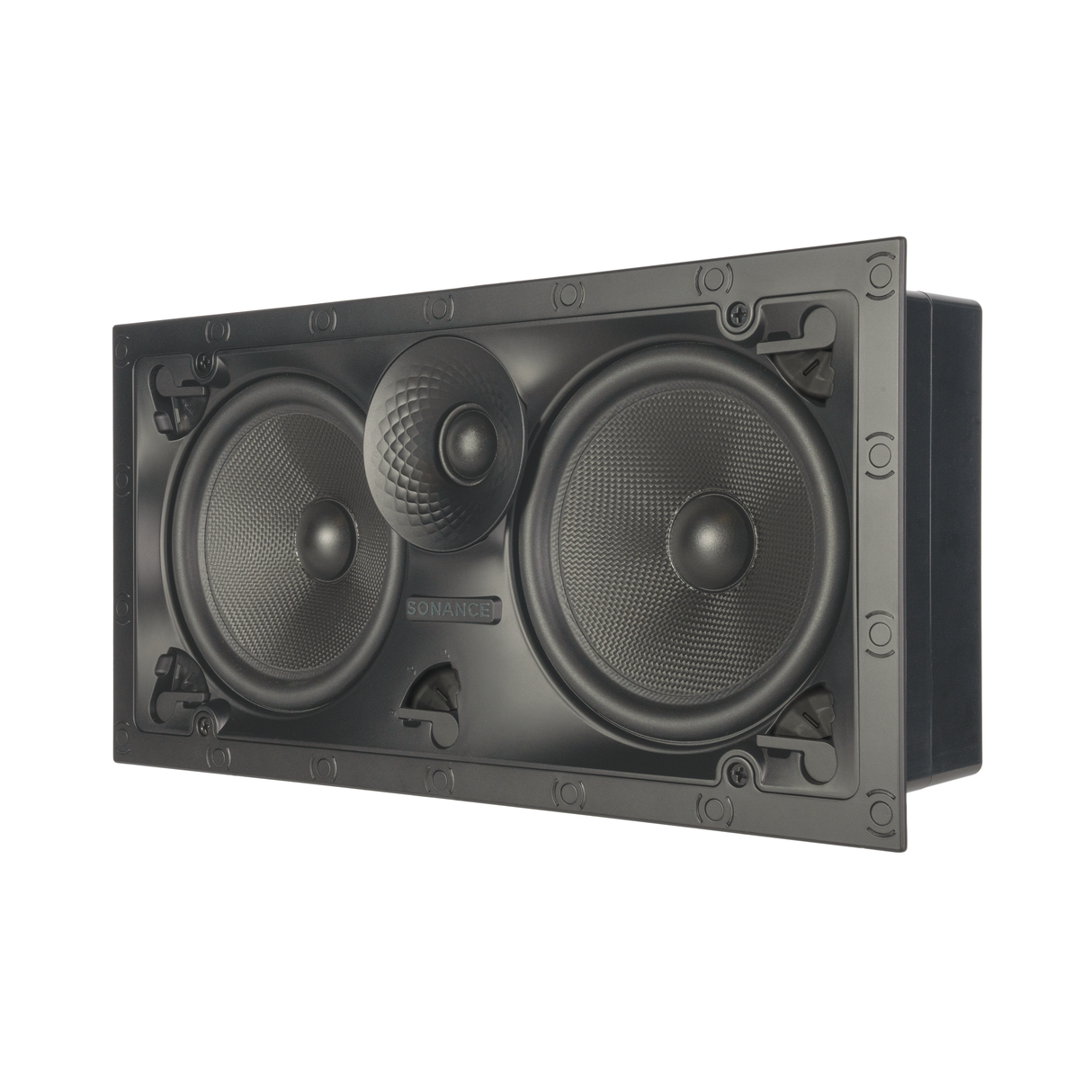

The VX62LCR uses two 6.5" textured polypropylene woofers flanking a single 1.0" cloth dome tweeter, a driver layout intended for center and front-channel placement where clear vocal reproduction and accurate imaging matter most. The tweeter is Ferrofluid-cooled and sits in its own acoustic back chamber to reduce interaction with the woofers, while Sonance's CDX crossover design keeps tonal balance consistent from quiet dialogue to loud action scenes. A two-piece Flex Frame simplifies installation into a standard wall cavity, and the speaker accepts Micro Trim, trimless, or TRUFIG grille options to match different finish preferences. Integrators building a complete Sonance home theater can pair the VX62LCR with matching surround models; see the current in-ceiling speakers lineup for rear and side channels. Because the VX62LCR is purpose-built for LCR duty rather than general stereo listening, it is best specified for dedicated home theater and media room front-stage channels rather than as a standalone music speaker.
Key Features
- Dual 6.5" Woofer Array — Two textured polypropylene woofers with rubber surrounds are positioned around a center tweeter for LCR-optimized output.
- Ferrofluid-Cooled Tweeter — The 1.0" cloth dome tweeter sits in its own acoustic back chamber for cleaner high-frequency detail.
- Sonance CDX Crossover — A tuned crossover network keeps dialogue and effects balanced across the volume range.
- Two-Piece Flex Frame — Simplifies installation into a standard wall cutout for front, center, or rear-channel placement.

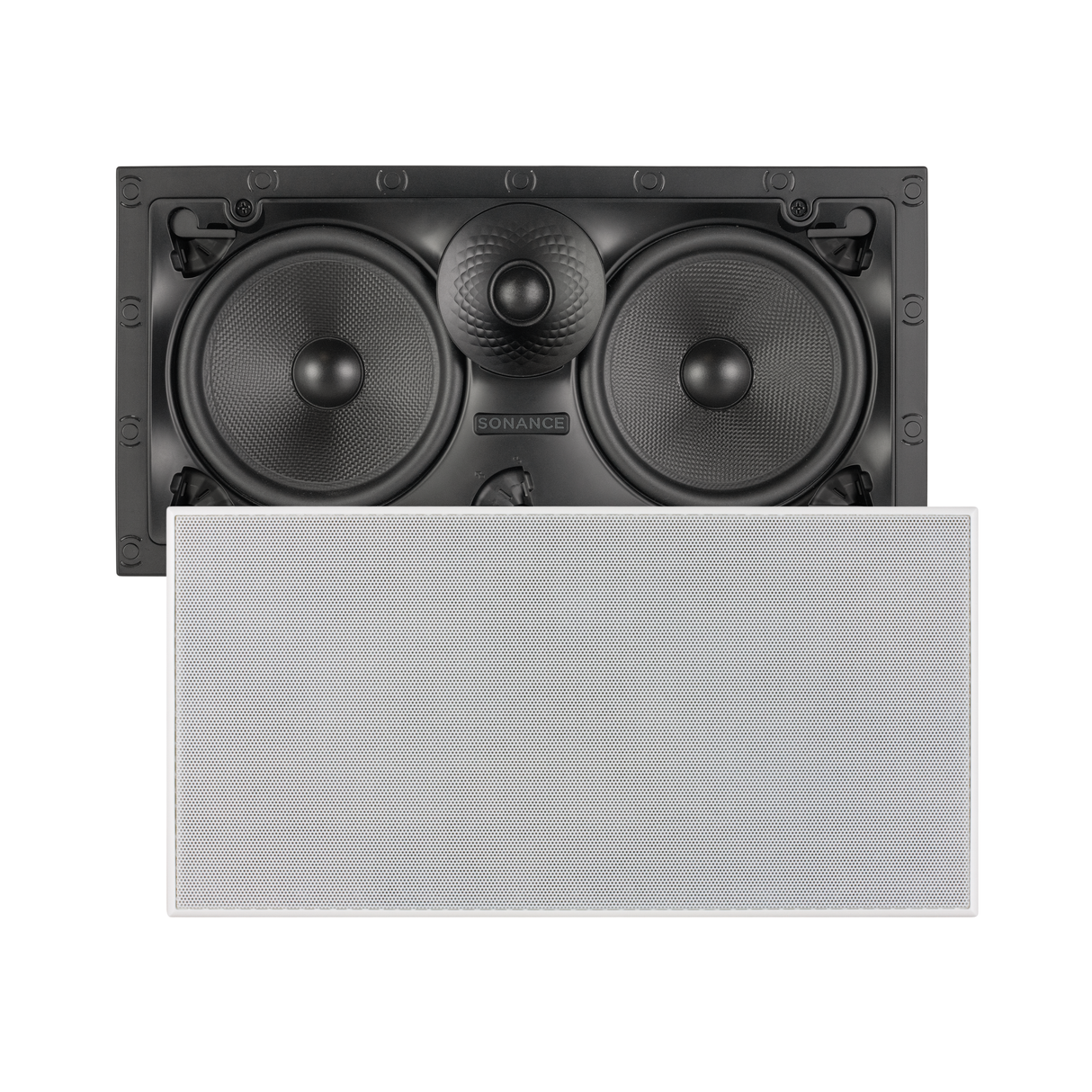

- Multiple Grille Options — Micro Trim, trimless, and TRUFIG-mounted grilles are available to match the room's finish.
- Limited Lifetime Warranty — Visual Experience Series speakers purchased through an authorized dealer carry a limited lifetime warranty.
Typical Applications
Purpose-built for front, center, and surround channel placement in residential home theaters and dedicated media rooms.
Technical Specifications
| Tweeter | 1.0" (25mm) cloth dome, Ferrofluid-cooled, acoustic back chamber |
| Woofers | Two 6.5" (165mm) textured polypropylene cones, rubber surrounds |
| Frequency Response | 45Hz – 20kHz (±3dB) |
| Sensitivity | 89dB (2.83V/1m) |
| Power Handling | 5W minimum; 125W maximum (RMS) |
| Cutout Dimensions | 6.94" x 14.57" (176.21mm x 370.08mm) |
| Mounting Depth | 3.5" (88.9mm) |
| Finish | Brilliant White (Satin) |
Frequently Asked Questions
What channel positions is the VX62LCR designed for?
It is engineered for front, center, or surround channel duty in a home theater layout.
What is the mounting depth?
The VX62LCR requires 3.5" (88.9mm) of mounting depth.
What cutout size is needed?
The wall cutout measures 6.94" by 14.57".
What is the power handling rating?
Sonance rates the VX62LCR at 5 watts minimum and 125 watts maximum RMS.
What grille styles are available?
Micro Trim, trimless, and TRUFIG-mounted grille options are available.
Can the VX62LCR be used as a stereo pair for music listening?
It is optimized for LCR home theater duty; for general stereo or whole-home music listening, a standard two-way in-wall or in-ceiling model is typically a better fit.
