Sonance VXXT6R – IP66 Extreme Outdoor In-Ceiling Speaker
Sonance VXXT6R – IP66 Extreme Outdoor In-Ceiling Speaker is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sonance VXXT6R – IP66 Extreme Outdoor In-Ceiling Speaker
Product Overview
The Sonance VXXT6R is an IP66-rated round in-ceiling speaker from the Visual Experience Extreme line, built for outdoor soffits, covered patios, pool areas, and other moisture-prone spaces where a standard indoor in-ceiling speaker would not hold up.
Product Description
The VXXT6R uses a waterproof cloth dome tweeter with Ferrofluid cooling paired with a 6.5" polypropylene woofer fitted with a Santoprene surround, materials chosen specifically to resist moisture, humidity, and temperature swings in exterior installations. The speaker carries an IP66 weatherproof rating, meaning it is protected against dust ingress and powerful water jets from any direction, and Sonance's XPC grille retention system creates a magnetic lock between the speaker and grille strong enough to resist wind and pressure-washing. At 3.62" mounting depth with an 8.25" cutout, it installs into standard soffit or covered-ceiling framing, and it is available with round or square, micro trim or trimless bezel styles. Integrators speccing a Sonance outdoor audio zone can pair the VXXT6R with other outdoor speakers for patios, decks, and pool areas, keeping the same Extreme-line weatherproofing throughout the space.
Key Features
- IP66 Weatherproof Rating — Protected against dust ingress and powerful water jets for exterior installation.
- Waterproof Tweeter — A Ferrofluid-cooled cloth dome tweeter is built specifically for outdoor moisture exposure.
- Santoprene Woofer Surround — The 6.5" polypropylene woofer uses a Santoprene surround for weather resistance.

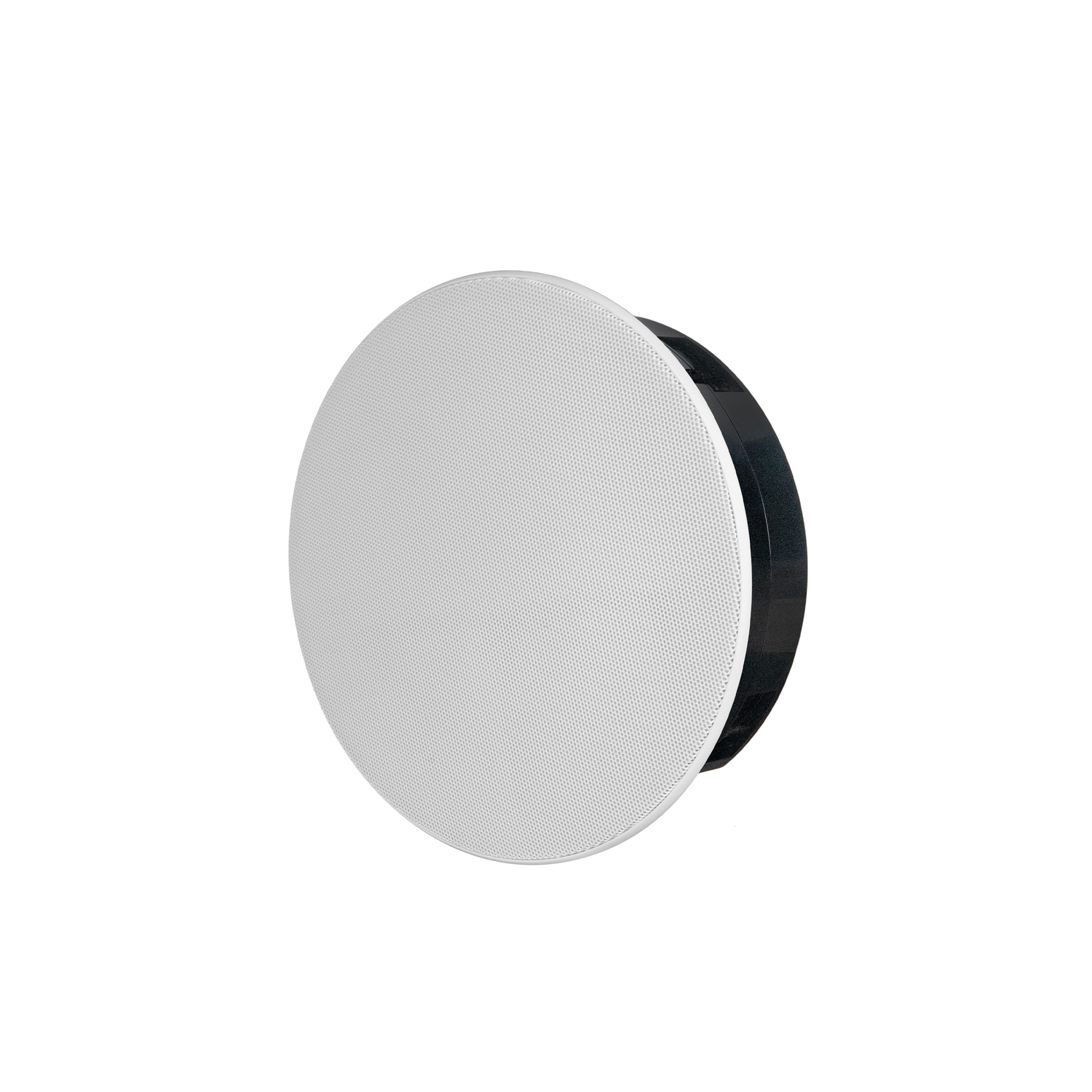

- Sonance XPC Grille Retention — A magnetic grille lock resists wind and pressure-washing without visible screws.
- Round or Square Bezel Options — Available in micro trim or trimless bezel styles to match the space.
Typical Applications
- Covered patios, porches, and soffits
- Pool decks and other moisture-prone outdoor spaces
- Coastal properties requiring weather-resistant materials
Technical Specifications
| Tweeter | 1.0" (25mm) waterproof cloth dome, Ferrofluid-cooled |
| Woofer | 6.5" (165mm) polypropylene cone, Santoprene surround |
| Impedance | 8 ohms nominal |
| Frequency Response | 45Hz – 20kHz (±3dB) |
| Sensitivity | 89dB (2.83V/1m) |
| Power Handling | 5W minimum; 125W maximum (RMS) |
| Dimensions | 9.17" diameter x 3.74" depth |
| Cutout Diameter | 8.25" (209.55mm) |
| Mounting Depth | 3.62" |
| Weight | 10.8 lbs (4.9kg) |
| Weather Rating | IP66 |
| Finish | Brilliant White (Satin) |
Frequently Asked Questions
Is the VXXT6R rated for direct exposure to rain?
It carries an IP66 rating, which protects against dust ingress and powerful water jets from any direction.
What is the impedance of the VXXT6R?
It is rated at 8 ohms nominal.
What is the mounting depth?
The VXXT6R requires 3.62" of mounting depth.
What cutout size is needed?
The cutout diameter is 8.25" (209.55mm).
How does the grille stay attached outdoors?
Sonance's XPC grille retention system uses a magnetic lock designed to resist wind and pressure-washing.
What is the power handling rating?
It is rated for 5 watts minimum and 125 watts maximum RMS.
How much does the speaker weigh?
The VXXT6R weighs 10.8 lbs (4.9kg).
