Sonance VX86 – Premium 8-Inch Rectangle In-Wall Speaker
Product Overview

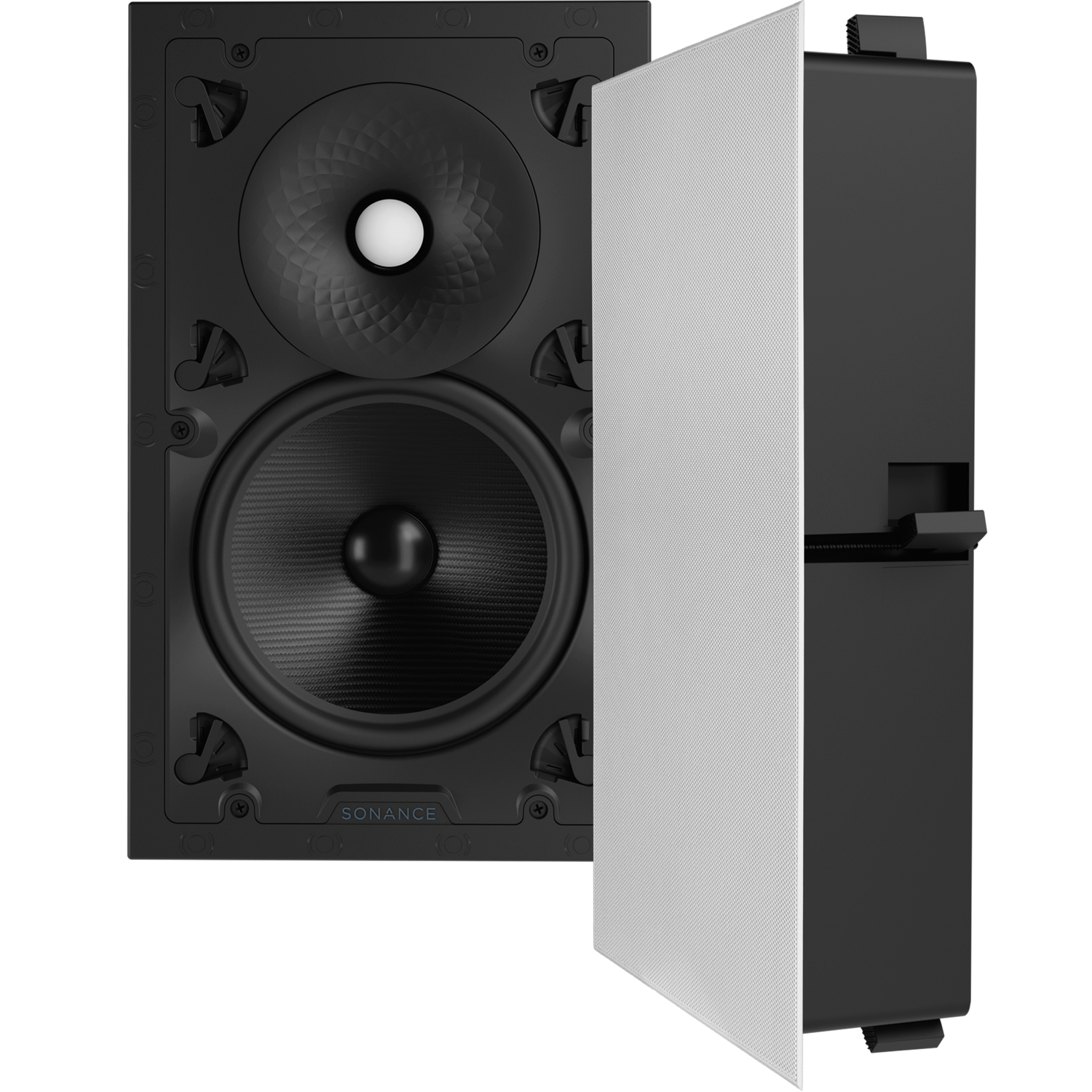

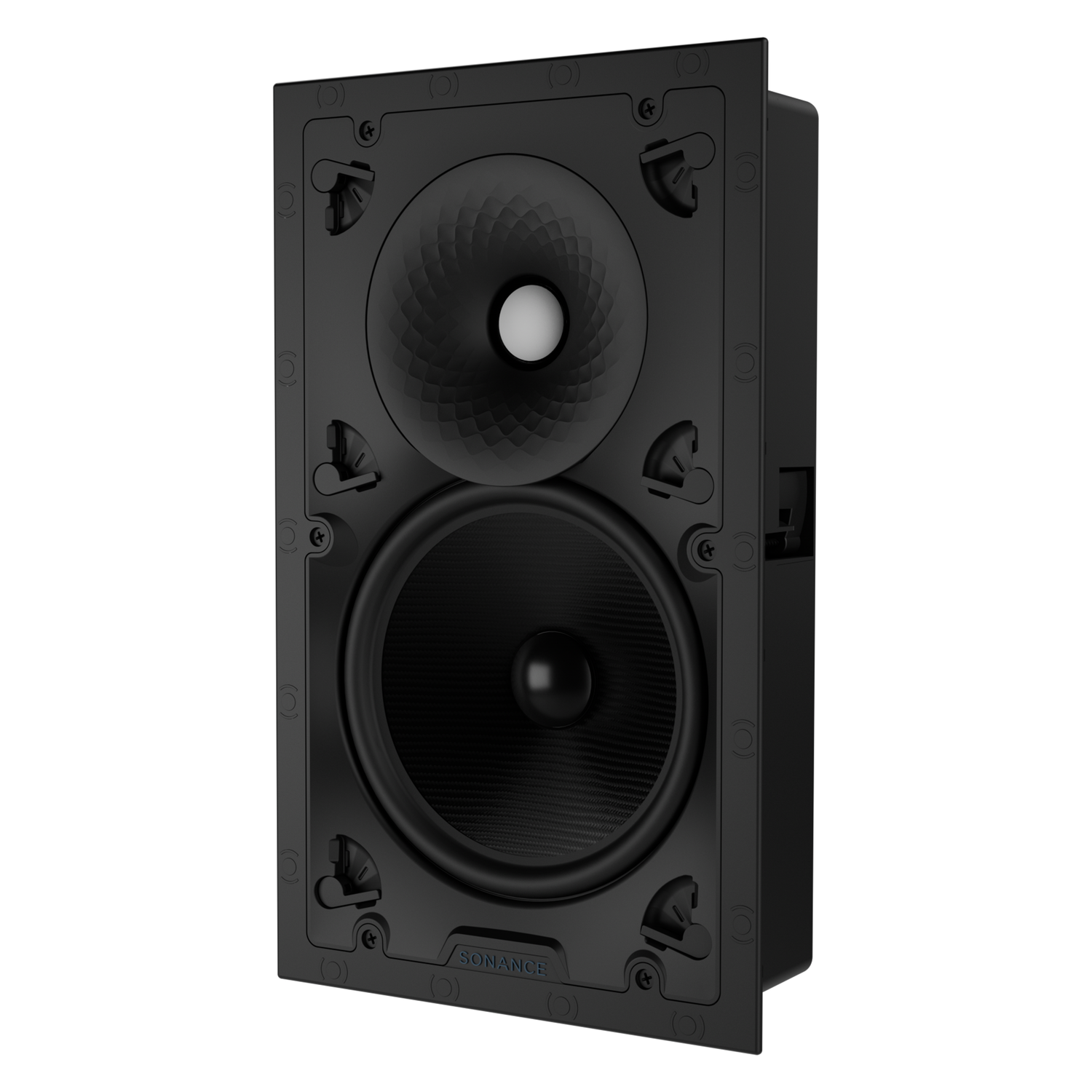

The Sonance VX86 is the flagship 8-inch rectangle in-wall speaker in the Visual Experience Series, pairing a Ferrofluid-cooled ceramic-dome tweeter with an 8-inch Kevlar/Nomex woofer. It is finished with a white micro trim grille and built for integrators specifying the top performance tier for in-wall stereo or multi-zone audio.
Product Description
The VX86 uses a 1.2-inch ceramic-dome tweeter, Ferrofluid-cooled for improved power handling, above an 8-inch Kevlar/Nomex-cone woofer with a rubber surround, extending frequency response down to 34Hz (±3dB) with 91dB sensitivity and handling 5W minimum to 150W maximum RMS, the highest power rating in the VX8 rectangle family. The 8.5" x 14.5" cutout and shallow 3.64-inch mounting depth make it workable in wall cavities that cannot accommodate deeper enclosures. Sonance's CDX crossover keeps tonal balance consistent from quiet background listening up through higher playback levels, and the waveguide design is intended to spread coverage evenly across a room rather than concentrating it narrowly on-axis. It supports both one-stage and optional two-stage installation, and is sold as a pair with a white micro trim grille, with trimless and TRUFIG finishes also available through Sonance. Integrators building out a full zone can compare it with the VX82 in the wider in-wall speaker lineup when deciding which rectangle tier fits a given room's requirements.
Key Features
- Ferrofluid-Cooled Ceramic Tweeter — 1.2-inch ceramic-dome tweeter cooled for improved power handling and detail.
- Kevlar/Nomex Woofer — 8-inch woofer cone with a rubber surround for extended, controlled bass output.
- 150W Power Handling — 5W minimum to 150W maximum RMS, the highest rating in the VX8 rectangle line.
- Shallow Mounting Depth — 3.64-inch mounting depth suits wall cavities too shallow for deeper enclosures.
- Two-Stage Installation Option — Supports preconstruction wiring with a later snap-in speaker module.
- Limited Lifetime Warranty — Covered under Sonance's warranty for Visual Experience Series products.
Typical Applications
- Primary living rooms and home theaters
- Reference-quality multi-zone whole-home audio systems
- Light-commercial spaces such as executive suites and showrooms
Technical Specifications
| Tweeter | 1.2" (30mm) ceramic dome, Ferrofluid-cooled |
| Woofer | 8" (203mm) Kevlar/Nomex cone, rubber surround |
| Frequency Response | 34Hz–20kHz (±3dB) |
| Sensitivity | 91dB (2.83V/1m) |
| Power Handling | 5W minimum; 150W maximum (RMS) |
| Cut-Out Dimensions | 8.5" x 14.5" (215.9mm x 368.3mm) |
| Mounting Depth | 3.64" (92.46mm) |
| Color | Brilliant White (Satin) |
Frequently Asked Questions
How does the VX86 differ from the VX82?
The VX86 uses a Kevlar/Nomex woofer with higher power handling (150W vs. lower ratings on the VX82) and sits at the top of the rectangle tier.
What mounting depth does the VX86 require?
It requires just 3.64 inches of mounting depth with an 8.5" x 14.5" cutout, suiting shallower wall cavities.
What amplifier power does the VX86 need?
It is rated 5W minimum to 150W maximum RMS; match it to an amplifier channel within that range.
Does the VX86 support two-stage installation?
Yes, it supports a two-stage module system in addition to standard one-stage mounting.
What grille options are available for the VX86?

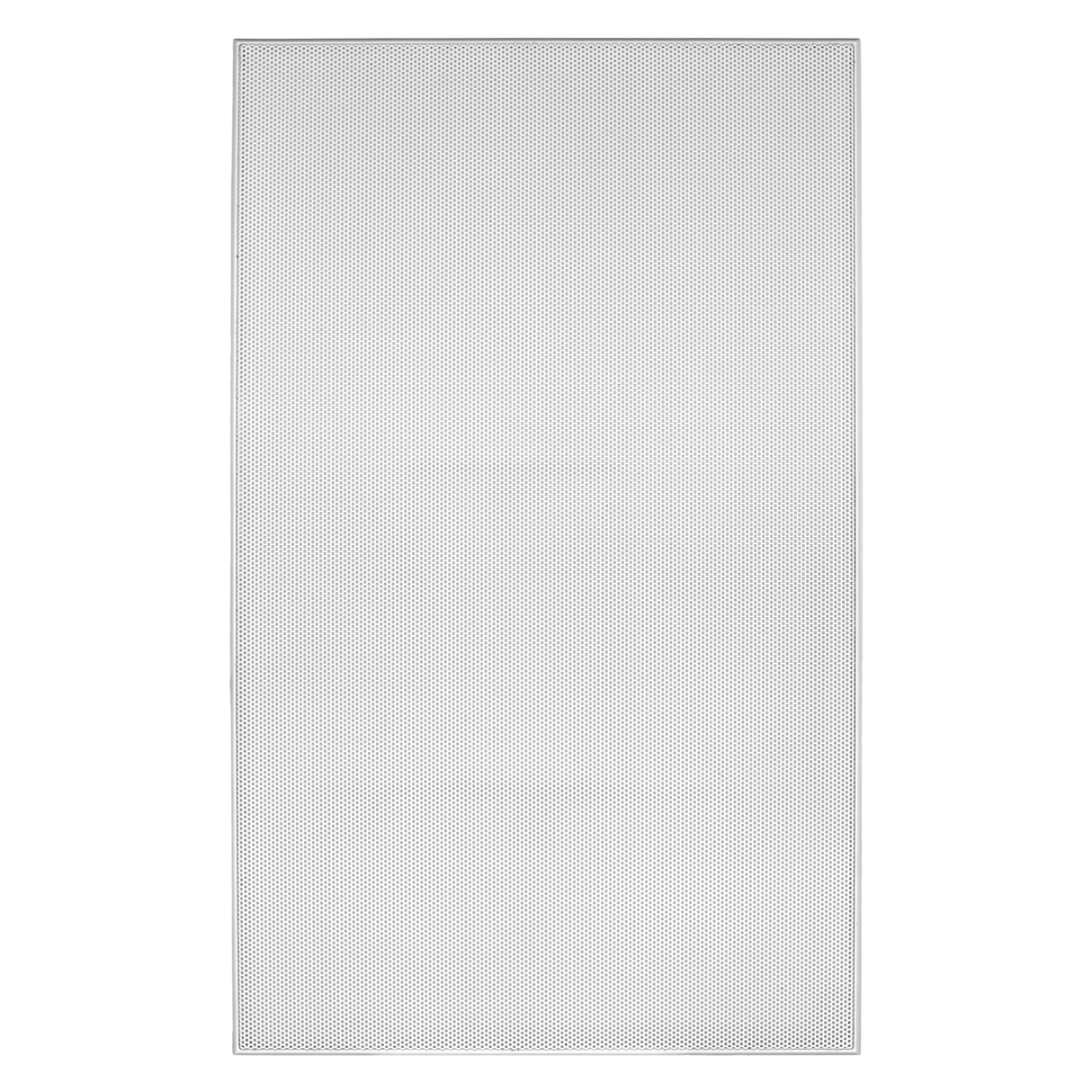

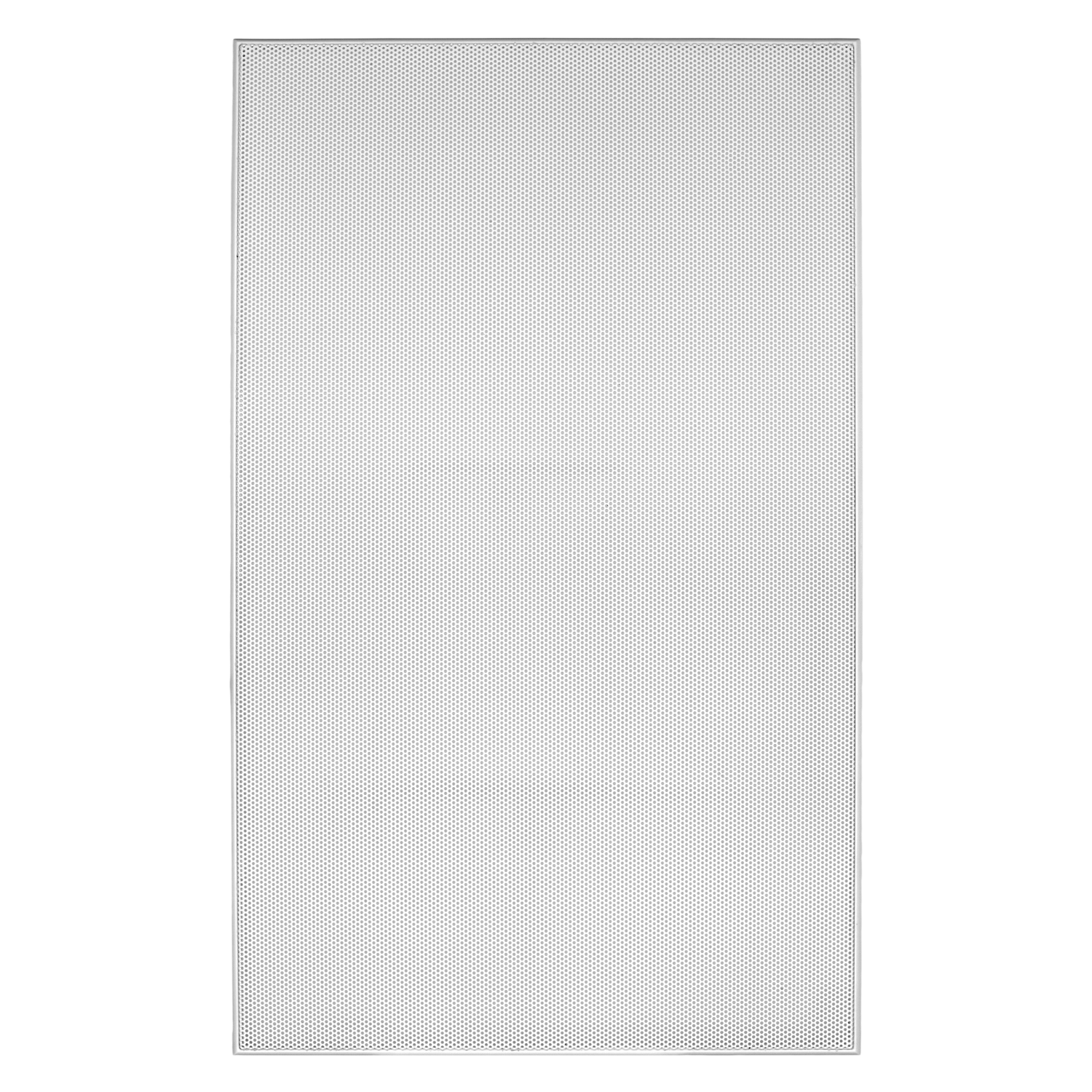

It ships with a white micro trim grille and also supports trimless and TRUFIG finishes.
Is the VX86 backed by a warranty?
Yes, it carries Sonance's Limited Lifetime Warranty on Visual Experience Series products from authorized dealers.
