Visionary Solutions DuetE-2 – 4K UHD AV over IP Encoder

Product Overview

The Visionary Solutions PacketAV DuetE-2 is a 4K UHD AV over IP encoder that converges visually lossless video, Dante/AES67 audio, USB, and control onto a single Gigabit Ethernet port with PoE. Built for commercial AV installation, it lets integrators distribute any HDMI or USB-C source across an enterprise network for conference room presentation, digital signage, and campus-wide AV distribution. Among the first AV over IP endpoints with USB-C connectivity, the DuetE-2 accepts laptop and BYOD sources directly without adapters. Pair it with the matching DuetD-2 decoder to build a scalable networked AV matrix in increments of one.

Product Description

The DuetE-2 encodes sources up to 4K60 4:2:0 using Visionary's JPEG2000-based, dynamically optimized compression codec, which uses content analysis to preserve fine computer graphics and full-motion video at adjustable bitrates of 50 to 800 Mbps. Three selectable local inputs — two HDMI and one USB-C (DisplayPort Alt Mode) — plus an HDMI loop-through output allow the encoder to act as a local presentation switcher in a boardroom or multi-purpose room, with auto-switching, control-system, or web-browser input selection. Cinema-quality, ultra-low latency of approximately one frame keeps presenter video and program audio aligned in live commercial meeting spaces.

Because video, Dante/AES67 audio, control, and PoE power share the main Gigabit LAN port — with VLAN tagging available to separate audio and video traffic — a single CAT5e/6 run completes the installation. The Ethernet expansion port acts as power sourcing equipment (PSE), passing network connectivity and PoE through to downstream devices or daisy-chained endpoints when PoE+ feeds the main port. Dante/AES67 embedding and de-embedding at 24-bit/48 kHz supports up to four network audio channels alongside a balanced stereo analog input. Independent routing lets you matrix video, audio, USB, IR, and RS-232 separately, while enterprise security features — AES-256 stream encryption, 802.1x authentication, HTTPS API, and SSH — satisfy corporate and government network policies. The DuetE-2 deploys on existing enterprise networks or a separate private AV network with low-cost Gigabit switches, and rack-mount kits support high-density head-end installation.

Key Features

• 4K UHD over 1GbE — Encodes cinema-quality video for distribution on standard Gigabit networks without fiber or 10G switches.
• USB-C Source Input — Connects laptops, tablets, and mobile devices supporting DisplayPort Alt Mode directly for BYOD presentation sharing.

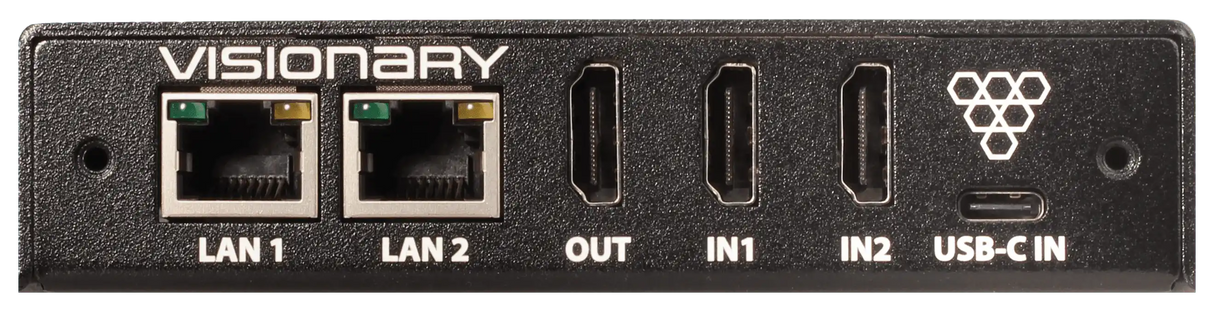

• Three-Input Local Switcher — Two HDMI inputs plus USB-C with HDMI loop-through support auto-switching or control-system selection.
• Dante/AES67 Audio Convergence — Embeds and de-embeds up to 4 channels of networked audio on the same port as video.
• Ultra-Low Latency — Approximately one frame (17 ms @ 1080p60 and 4K60 4:2:0) for live, in-room AV distribution.
• Single PoE Network Drop — One CAT5e/6 cable carries video, audio, USB, control, and power for clean commercial installation.
• Ethernet Expansion Port with PoE Pass-Through — Networks and powers downstream LAN devices or daisy-chained endpoints.
• Independent Signal Routing — Separately matrix video, Dante/AES67 audio, USB, IR, and RS-232 across the system.
• Enterprise Security — AES-256 encryption, 802.1x, HTTPS API, and SSH for corporate and government deployments.

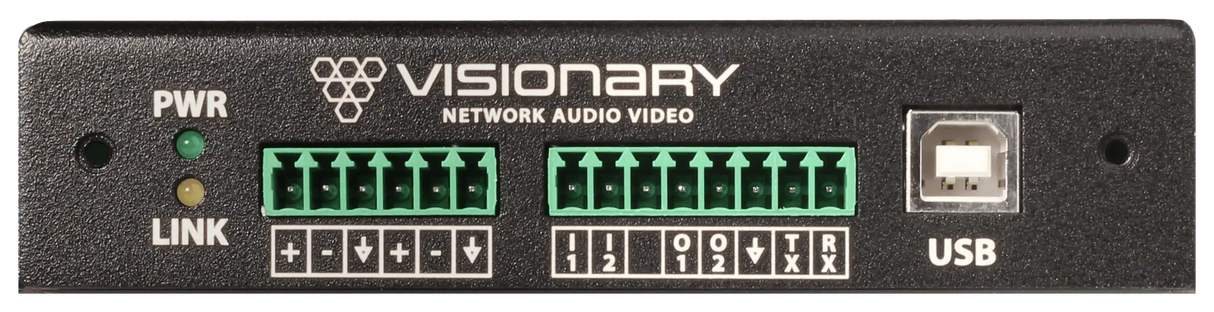

• KVM, RS-232, IR, CEC, and GPIO over IP — Extends peripheral and device control to any endpoint on the network.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Training room
• House of worship
• Government space
• Commercial meeting space
• All-hands room
• Auditorium

Technical Specifications

Frequently Asked Questions

Which decoder pairs with the DuetE-2?
The DuetD-2 decoder is the direct companion endpoint, and the DuetE-2 also interoperates with other Visionary 4-Series decoders such as the D4200.

Will every laptop work with the USB-C input?
Source devices must support DisplayPort Alt Mode for USB Type-C or Thunderbolt. Most modern business laptops qualify, but verify your fleet before deployment.

Do I need a dedicated AV network?
No. The DuetE-2 deploys on existing enterprise IP networks or a physically separate private network, using standard protocols, IGMP-capable Gigabit switches, and CAT5e/6 cabling.

How is the encoder powered?
Via PoE on the main LAN port (standard PoE, 15 W or lower). Supplying PoE+ enables PoE pass-through to devices on the Ethernet expansion port.

Can I control sources connected to the encoder?
Yes. RS-232, IR, CEC, GPIO, and USB 2.0 all extend over IP, and third-party control drivers are available for Crestron, Q-SYS, Symetrix, and RTI.

Is the DuetE-2 appropriate for secure environments?
Yes. It supports AES-256 stream encryption, 802.1x network authentication, HTTPS secure API, and SSH management, and is TAA compliant.
