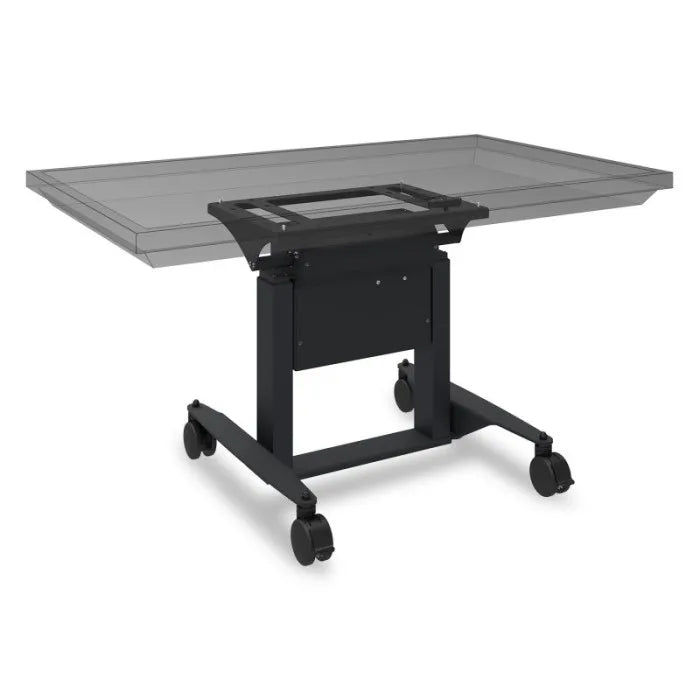

ViewSonic VB‑EBT‑001 e‑Box Motorized Mobile Cart with Tilt & Height Adjustment

Product Overview

The ViewSonic VB-EBT-001 e-Box Motorized Mobile Cart combines motorized height adjustment (approximately 26") with a 90° tilt capability, enabling displays up to approximately 86" to transition between landscape, portrait, and flat tabletop orientations via wired remote. The double-column steel frame with integrated cable management supports demanding classroom and boardroom deployments.

Product Description

AV integrators specifying carts for flex-learning classrooms, hybrid meeting rooms, and multi-use collaborative spaces need a solution that goes beyond simple height adjustment. The VB-EBT-001's 90° tilt function converts a wall-mode presentation display into a horizontal collaboration table or a vertical portrait kiosk without additional hardware. The quiet, fast motor minimizes class or meeting disruption during transitions. A wired remote provides intuitive control of both height and tilt axes. The heavy-duty double-column frame prevents sway at full extension, and integrated cable management maintains a professional appearance through repeated adjustments.

Key Features

• ~26" Motorized Height Adjustment — wired remote adjusts for seated-to-standing sightlines
• 90° Motorized Tilt — transitions display between landscape, portrait, and horizontal table modes
• Double-Column Steel Frame — rigid structure prevents sway at full height with heavy panels
• Integrated Cable Management — routes power and signal cables throughout all tilt positions
• Wired Remote Control — single controller operates both height and tilt independently
• Quiet Fast Motor — rapid transitions with minimal noise disruption

Technical Specifications

Frequently Asked Questions

Can the tilt and height be adjusted simultaneously?

The wired remote controls both axes independently. Simultaneous operation depends on the motor controller firmware; consult the installation guide or ViewSonic support for confirmation.

What display weight does the VB-EBT-001 support?

The cart is rated for displays up to approximately 86" in the interactive flat-panel class. Exact weight capacity should be confirmed from the current ViewSonic product datasheet as specifications may vary by configuration.

Is cable management maintained through the full tilt range?

Yes. The integrated cable management is designed to route cables through the full 0°-90° tilt range without binding or disconnection.

Is this compatible with non-ViewSonic panels?

The cart uses a universal VESA mounting interface and can support most commercial panels within the size and weight specifications.
