ViewSonic VB-BWS-009 BalanceBox WinX-4B with 650-180 Mount Frame & 2x Enameled Whiteboard for 86" Displays

Product Overview

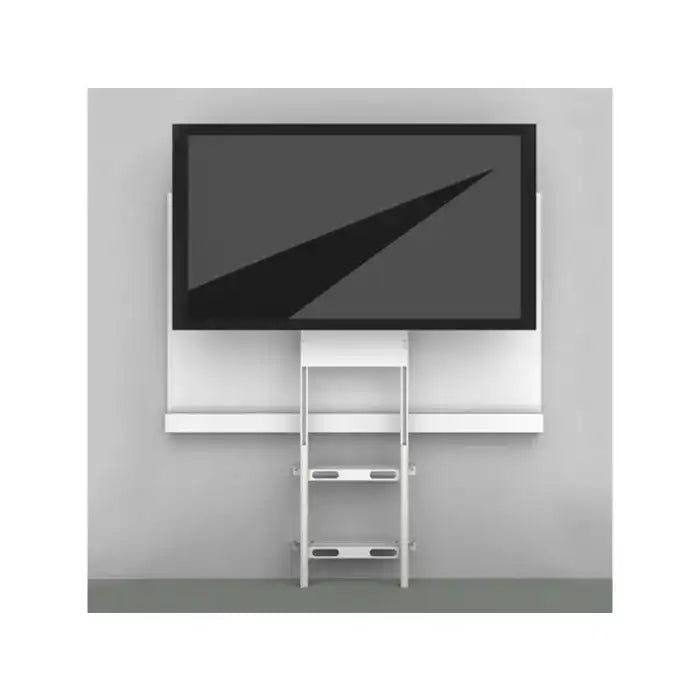

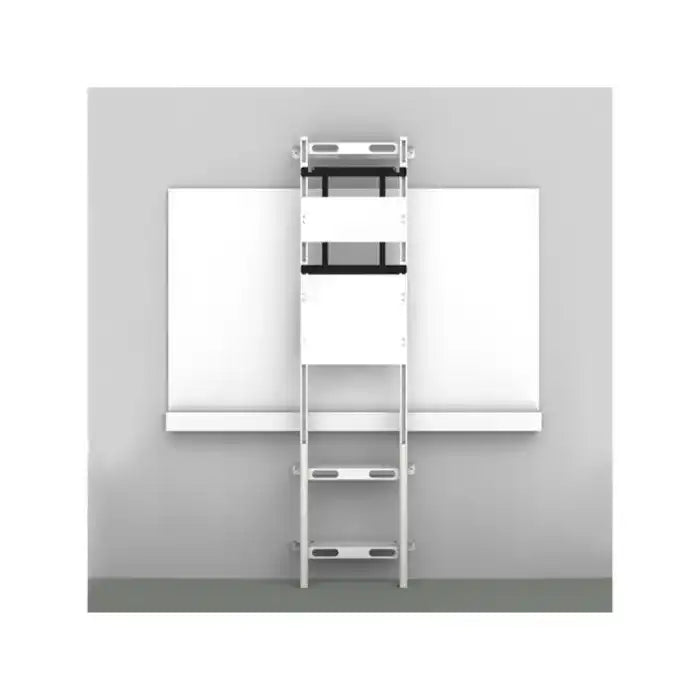

The ViewSonic VB-BOW-001 BalanceBox Over-The-Whiteboard Floor Support enables secure installation of the BalanceBox 400 height-adjustable display system in rooms with existing whiteboards or non-load-bearing walls, eliminating the need to remove existing surfaces. The steel floor-mount structure spans approximately 93" wide and supports loads up to 495 lbs (225 kg), providing a stable base independent of wall anchoring.

Product Description

IT facilities managers and AV integrators regularly face retrofit scenarios where stud spacing, concrete walls, or existing whiteboards make direct wall-mounting impractical. The VB-BOW-001 resolves this by providing a freestanding floor-to-ceiling or floor-anchored support column structure that positions the BalanceBox 400 wall-mount hardware above the existing whiteboard surface. The 11" depth keeps the display close to the room's front wall while the 26" height clearance accommodates most standard whiteboard dimensions. The heavy-steel frame carries up to 495 lbs, supporting even the heaviest commercial interactive flat panels. Ideal for classroom renovations, corporate meeting room upgrades, and multi-use spaces.

Key Features

• No Whiteboard Removal Required — mounts over existing whiteboards for cost-effective retrofits
• 495 lb (225 kg) Load Capacity — supports the heaviest large-format commercial displays
• 93" Wide Span — stabilizes the BalanceBox mount across standard wall widths
• 11" Slim Depth — keeps the display close to the wall for minimal room intrusion
• Compatible with Non-Load-Bearing Walls — floor-anchored design removes wall-structure dependency
• Heavy Steel Construction — engineered for permanent, high-traffic educational and corporate installations

Technical Specifications

Frequently Asked Questions

Does the VB-BOW-001 require any wall anchoring?

The unit is primarily floor-supported. Depending on installation conditions, supplemental wall anchoring may be recommended for seismic or high-traffic environments. Consult the installation guide for site-specific guidance.

Which BalanceBox products are compatible?

The VB-BOW-001 is designed for the BalanceBox 400 series wall-mount hardware and is typically used with the BalanceBox 400 lift mechanism and the appropriate VESA adapter bracket.

Will it fit over a standard classroom whiteboard?

Yes. The 26" clearance height and 93" width accommodate most standard classroom whiteboards. Verify your existing whiteboard dimensions before ordering.

Can I mount any display brand on this system?

Yes, via the appropriate VESA adapter bracket (VB-BLV-001 or compatible). The VB-BOW-001 itself is the floor support; the display attaches through the BalanceBox wall-mount and VESA bracket.
