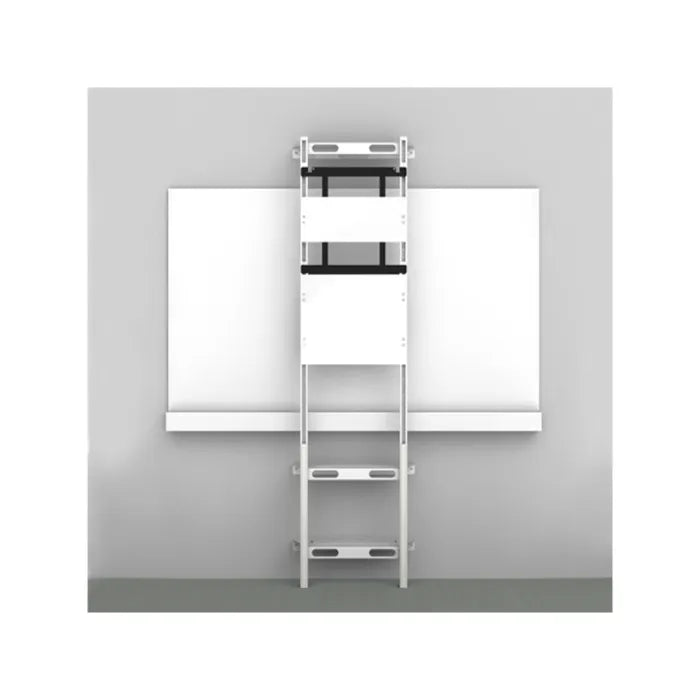

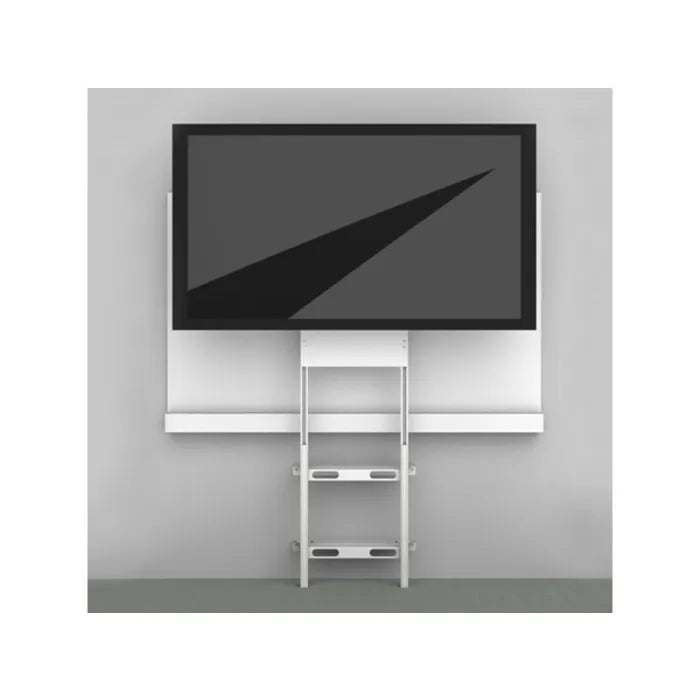

ViewSonic VB‑BOW‑001 BalanceBox Over‑The‑Whiteboard Floor Support

Product Overview

The ViewSonic VB-BOW-001 BalanceBox Over-The-Whiteboard Floor Support provides a freestanding structural solution for deploying the BalanceBox 400 height-adjustable system above existing whiteboards or on walls that cannot support direct hardware attachment. Built from heavy steel with a white powder-coat finish, it spans approximately 93" wide, is 11" deep, and carries loads up to 495 lbs (225 kg).

Product Description

This second listing of the VB-BOW-001 serves AV integrators and facilities teams who need the same robust over-whiteboard floor-support solution for BalanceBox 400 installations. Whether the constraint is a non-load-bearing wall, a masonry surface, or the desire to preserve an existing whiteboard, the VB-BOW-001 provides the structural independence to complete the deployment cleanly. The 26" height clearance is sufficient for most classroom and conference-room whiteboards. At approximately 50.7 lbs, two installers can position and anchor it without heavy lifting equipment. Cable pathways keep wiring organized from floor level to the display.

Key Features

• Over-Whiteboard Installation — preserves existing whiteboards while adding a motorized display system
• 495 lb (225 kg) Load Capacity — handles the heaviest commercial interactive flat panels
• Floor-Independent Structural Support — eliminates reliance on wall studs or masonry anchors
• 93" Wide Span — matches standard classroom front-wall widths
• White Steel Finish — blends with typical classroom and boardroom wall surfaces
• Integrated Cable Routing — keeps power and signal cables neatly managed

Technical Specifications

Frequently Asked Questions

Is this the same product as the other VB-BOW-001 listing?

Yes. Both listings represent the same VB-BOW-001 unit. This listing may reflect a different fulfillment source or bundle configuration. Specifications are identical.

Does it ship fully assembled?

The unit ships partially assembled and requires final positioning and floor anchoring on-site. Hardware and installation instructions are included.

What is the recommended wall clearance behind the unit?

The 11" depth positions the BalanceBox wall-mount hardware approximately 11" from the existing wall surface, which is sufficient for most whiteboard profiles.

Is this compatible with non-ViewSonic displays?

Yes, through the appropriate VESA adapter bracket. The VB-BOW-001 is a structural support; display compatibility depends on the VESA bracket selected.
