ViewSonic VB‑BLW‑003 Height‑Adjustable Wall Mount

Product Overview

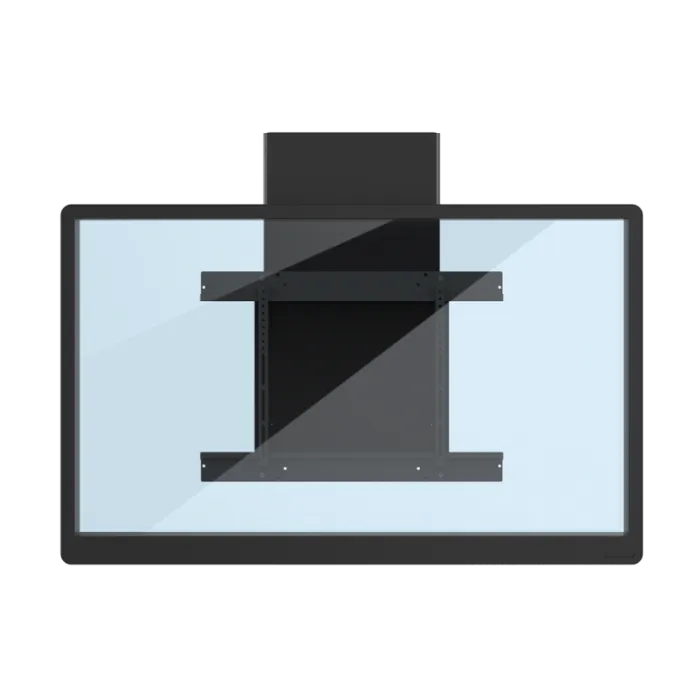

The ViewSonic VB-BLW-003 BalanceBox 400-90 Wall Mount is the highest-capacity wall mount in the BalanceBox 400 series, designed for 86" large-format interactive panels weighing 145.5 to 209 lbs, delivering 15.75 inches of spring-tension vertical adjustment without electricity. Engineered for AV integrators and IT facilities managers deploying the largest interactive displays in classrooms, training rooms, and enterprise boardrooms, this wall mount provides professional ergonomic height flexibility at maximum 400-series capacity in a compact 3.2" depth profile.

Product Description

The VB-BLW-003 supports 86" interactive panels in the 145.5 to 209 lb weight class — the top capacity in the BalanceBox 400 series. This makes it the appropriate wall mount for 86" interactive flat panels that fall below the 650-series threshold. The spring-tension mechanism provides 15.75" of smooth vertical height adjustment for ergonomic display positioning without any power source. Mount depth is approximately 3.2" with a net weight of approximately 60.9 lbs, providing a low-profile, space-efficient wall installation. Black finish integrates cleanly into professional educational and enterprise interiors. The VB-BLW-003 is appropriate for dedicated classroom walls where 86" panels are permanently installed but require height adjustability for different audiences and presenter configurations. For 86" panels heavier than 209 lbs, the BalanceBox 650 series wall mounts should be considered.

Key Features

• Load Capacity: 145.5 to 209 lbs (66–95 kg) — Highest capacity in the BalanceBox 400 series.
• 15.75" Spring-Tension Height Adjustment — Power-free ergonomic repositioning for large displays.
• Designed for 86" Interactive Panels — Matches the largest common classroom display size.
• Slim 3.2" Depth — Low-profile wall installation.
• No Electricity Required — Installs in any wall without power connections.
• Black Finish — Professional appearance for educational and corporate environments.

Technical Specifications

Frequently Asked Questions

Q: What is the maximum display weight the VB-BLW-003 supports?
A: 209 lbs (95 kg). For displays heavier than 209 lbs, use the BalanceBox 650-series wall mounts (VB-BLW-004 or VB-BLW-005).

Q: How does this compare to the 650-series wall mounts?
A: The 400-90 provides 15.75" of height adjustment vs. 25.6" for the 650 series. The 650 series also handles higher weight ranges (up to 280 lbs).

Q: Does height adjustment require electricity?
A: No. The spring-tension mechanism is fully manual and power-free.

Q: What wall structure is required?
A: The wall must support the combined weight of the mount (60.9 lbs) plus the display (up to 209 lbs). Professional structural assessment is recommended for 86" installations.

Q: What VESA patterns are supported?
A: Uses BalanceBox 400-90 series brackets. Consult ViewSonic's VESA compatibility guide for your 86" panel model.
