ViewSonic VB‑BLV‑001 Universal VESA Bracket (BalanceBox Series)

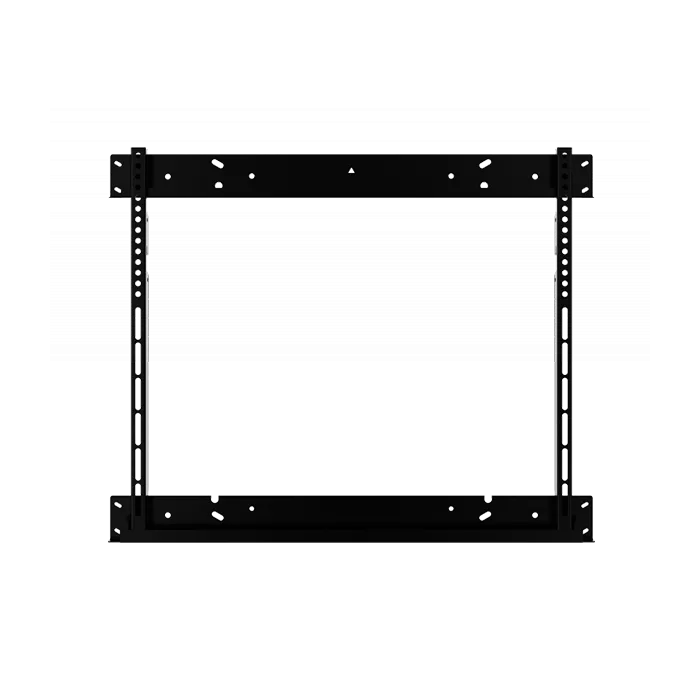

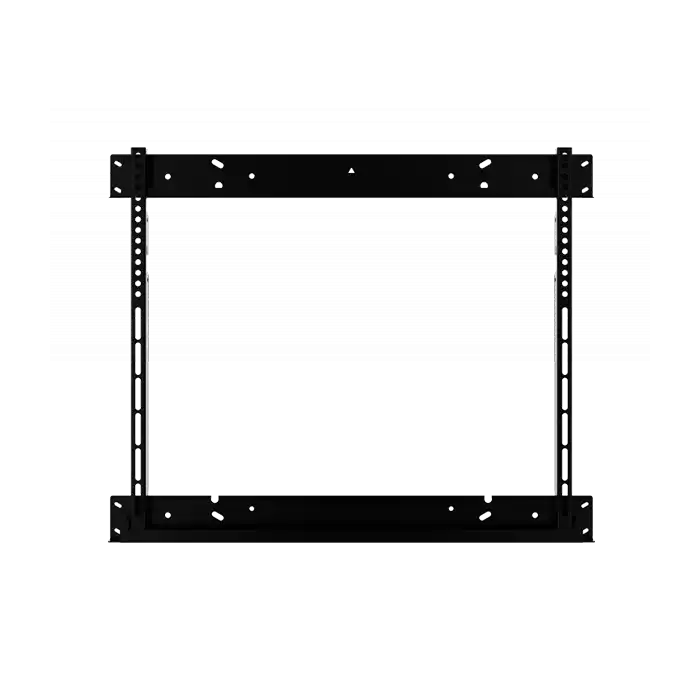

The ViewSonic VB‑BLV‑001 is a universal mounting bracket designed to interface with the BalanceBox furniture systems from ViewSonic. It provides a flexible mounting solution by supporting VESA patterns from 200 × 200 up to 800 × 600, enabling the attachment of large-format displays to stands, carts or floor supports.
Constructed from structural steel with a black powder‑coated finish, the bracket offers exceptional durability and high load capacity, making it suitable for heavy displays and shared‑use environments.
Ideal for educational, corporate or digital signage installations where the display must be mounted on a mobile stand, wall support or floor base, the VB‑BLV‑001 ensures compatibility and strength across diverse AV environments.
Features Chart
| Feature | Benefit |
|---|---|
| VESA support 200 × 200 to 800 × 600 mm | Broad compatibility with many display brands and sizes |
| Load capacity up to ~396 lbs | Supports heavy interactive displays safely |
| Structural steel construction | Ensures durability and secure mounting over time |
| Universal bracket design | Works with BalanceBox 400, BalanceBox 650, mobile and floor supports |
| Black powder‑coat finish | Professional aesthetic suitable for shared spaces |
Specifications Table
| Specification | Detail |
|---|---|
| Supported VESA Patterns | From 200 × 200 mm to 800 × 600 mm |
| Maximum Load Capacity | Approximately 396 lbs (≈ 180 kg) |
| Material | Structural steel |
| Finish/Color | Black powder‑coated |
| Net Weight | Approx. 11.4 lbs (≈ 5.2 kg) |
| Physical Dimensions | Approx. 36.3″ (W) × 29.2″ (H) × 1.3″ (D) |
| Warranty | 90 days |
