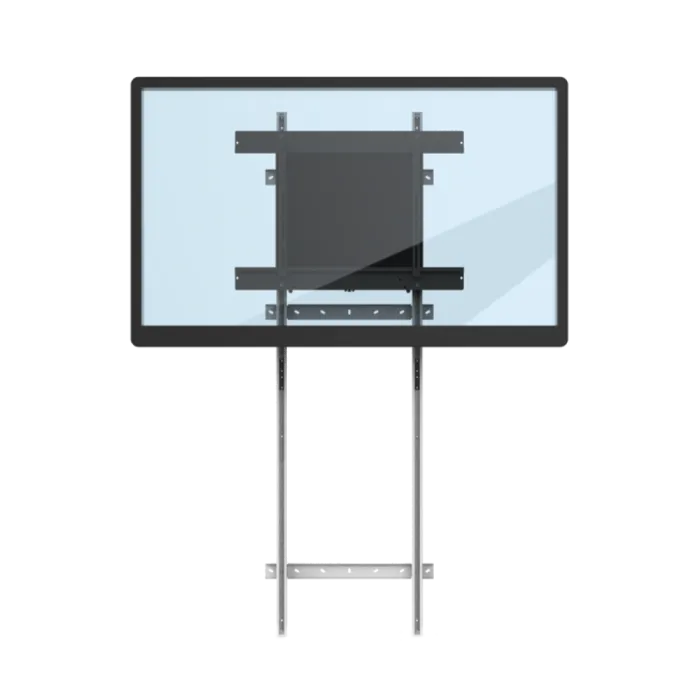

ViewSonic VB‑BLF‑003 BalanceBox 400‑90 Height‑Adjustable Floor Mount

Product Overview

The ViewSonic VB-BLF-003 BalanceBox 400-90 Floor Mount is a heavy-capacity floor-standing display mount engineered for large interactive panels up to 86" diagonal weighing 145.5 to 209 lbs, providing 15.75 inches of spring-tension height adjustment without any electrical connection. Designed for AV integrators and facilities managers who need to install large-format displays where wall mounting is impractical, this floor mount delivers stable, ergonomic positioning with a professional floor-standing profile. The spring-balance mechanism allows smooth height transitions even under maximum load.

Product Description

The VB-BLF-003 is the highest-capacity floor mount in the BalanceBox 400 series, supporting 86" interactive flat panels in the 145.5 to 209 lb weight class. This makes it the appropriate floor mount choice for 86" panels that fall below the BalanceBox 650 series threshold. The spring-tension mechanism provides 15.75" of smooth vertical travel for ergonomic height adjustment from seated to standing viewing configurations, requiring no electrical power and no tools. The floor mount design eliminates the need for wall reinforcement or structural drilling, making it ideal for renovation projects, rented spaces, or environments with masonry or curtain-wall construction. For panels heavier than 209 lbs, the BalanceBox 650 series floor mounts should be selected.

Key Features

• Load Capacity: 145.5 to 209 lbs — Highest capacity in the BalanceBox 400 series floor mount lineup.
• 15.75" Spring-Tension Height Adjustment — Power-free, tool-free ergonomic repositioning.
• Compatible with 86" Interactive Panels — Matches the largest common classroom display size.
• Floor Mount — No Wall Required — Integrated support base; no structural wall drilling needed.
• No Electricity Required — Installs in any space without power infrastructure.
• Black Finish — Professional appearance for educational and corporate environments.

Technical Specifications

Frequently Asked Questions

Q: Is any wall anchoring required for the VB-BLF-003?
A: No. This is a free-standing floor mount. No wall drilling or structural anchoring is required.

Q: What is the maximum display weight this floor mount supports?
A: 209 lbs (95 kg). For panels heavier than 209 lbs, use the BalanceBox 650 series floor mounts.

Q: Does height adjustment require electricity?
A: No. The spring-tension mechanism is fully manual. No electrical connection is needed.

Q: What VESA patterns are compatible?
A: The VB-BLF-003 uses BalanceBox 400-90 series brackets. Consult ViewSonic's VESA compatibility guide for your specific display model.

Q: How does the 400-90 differ from the 650-series floor mounts?
A: The 400-90 provides 15.75" of height adjustment vs. 25.6" for the 650 series. The 650 series also supports heavier panels (up to 280 lbs).
