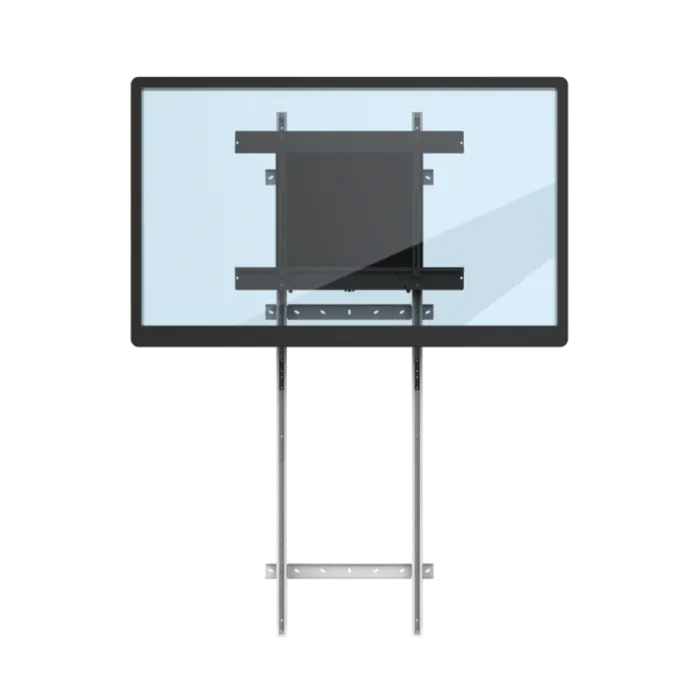

ViewSonic BalanceBox 400-40 Floor Mount, Black, Spring Tension Adjustment, 15.75" Height Range, VESA Compatible for 55" Displays up to 94.7lbs

Product Overview

The ViewSonic VB-BLF-001 BalanceBox 400-40 Floor Mount delivers professional height-adjustable display mounting for 55" interactive panels weighing 50.7 to 94.7 lbs, providing 15.75 inches of spring-tension vertical travel without electricity. Designed for AV integrators and facilities managers who need ergonomic display positioning without wall modification, this floor-standing mount delivers stable, adjustable support for classrooms, corporate lobbies, video conferencing rooms, and digital signage installations. The spring-balance mechanism enables effortless height transitions across the full 15.75" range under full display load.

Product Description

The VB-BLF-001 is the entry-level floor mount in the BalanceBox 400 series, designed for 55" interactive flat panels in the 50.7 to 94.7 lb weight range. The compact frame dimensions — 24.4" × 41.0" × 4.9" — allow it to integrate discreetly into modern interiors, while the integrated floor support base provides rock-solid stability without wall anchoring. The spring-tension mechanism offers 15.75" of smooth vertical height travel for ergonomic display positioning across a wide range of user heights and audience configurations. Net weight is 85.9 lbs with a gross shipping weight of 91.8 lbs, making it manageable for two-person installation. VESA compatibility ensures secure attachment to standard 55" display mounting patterns. Black finish blends professionally into classroom, corporate, and public AV environments. Backed by a 90-day warranty.

Key Features

• Load Capacity: 50.7 to 94.7 lbs — Matched for 55" interactive flat panels.
• 15.75" Spring-Tension Height Adjustment — Tool-free, power-free ergonomic repositioning.
• Floor Mount — No Wall Required — Integrated floor support base eliminates wall drilling.
• VESA Compatible — Secure attachment to standard 55" display VESA mounting patterns.
• Compact Dimensions (24.4" × 41.0" × 4.9") — Discreet footprint for modern interiors.
• No Electricity Required — Zero ongoing energy costs; installs anywhere.
• Black Finish — Professional appearance for educational and corporate deployments.

Technical Specifications

Frequently Asked Questions

Q: Does this mount require any wall anchoring?
A: No. The VB-BLF-001 is a free-standing floor mount with an integrated support base. No wall drilling is required.

Q: Does height adjustment require electricity or tools?
A: No. The spring-tension mechanism is fully manual. No power or tools are needed for height adjustment.

Q: What VESA patterns are supported?
A: Compatible with standard VESA mounting patterns for 55" displays. Verify your panel's VESA spec against the mount's bracket specifications.

Q: What is the warranty period?
A: 90 days from date of purchase.

Q: Can I use this mount for a 65" panel?
A: No — the 400-40 series is sized for 55" panels up to 94.7 lbs. For 65"–75" panels, use the VB-BLF-002 (400-70 series).
