ViewSonic TeamJoin UMB202 – 4K Video Bar System for Microsoft Teams Rooms

Product Overview

The ViewSonic TeamJoin UMB202 is a 4K video bar system for Microsoft Teams Rooms, combining a 4K Sony camera sensor, 6-microphone beamforming array with Direction-of-Arrival voice tracking, and front-facing speaker system in a single all-in-one bar form factor. Designed for conference rooms of varying sizes, the UMB202 delivers auto-framing, 5x digital zoom with electronic pan/tilt, and 8-meter microphone coverage for clear, professional video conferencing without manual camera adjustment or separate speakerphone hardware. Pairs with the ViewSonic TeamJoin TRS10 computing engine and MRC1010-TN touch console for a complete Microsoft Teams Rooms system, or integrates with other certified Teams Rooms compute platforms.

Product Description

The UMB202 is a 3-in-1 unified video bar that replaces the separate camera, microphone, and speaker devices typically required for conference room video conferencing into a single USB-connected bar unit. The 4K Sony camera sensor provides high-resolution video capture with accurate color reproduction, while intelligent auto-framing automatically adjusts the field of view to keep all participants in frame as they move around the room or as group size changes.

Direction-of-Arrival (DOA) voice tracking locks audio focus to the location of the active speaker in the room, reducing background noise from other directions and delivering cleaner audio for remote participants. The 6-microphone beamforming array provides 8-meter coverage, suitable for mid-size to large conference rooms without additional microphone hardware. The 8W + 3W front-facing speaker system delivers room-filling audio for remote participant voices and content audio.

5x digital zoom with electronic pan and tilt provides camera flexibility for different room configurations and content sharing scenarios without manual camera repositioning. The UMB202 is designed to pair with the ViewSonic MPC310-W31-TU computing engine and MRC1010-TN touch console as the TRS10-UB bundle, or can be used independently as an add-on to the TRS10 bundle or other Microsoft Teams Rooms certified compute platforms.

Key Features

• 4K Sony Camera Sensor — Ultra HD 4K video capture with advanced Sony sensor for accurate color reproduction and high-resolution video in Microsoft Teams meetings.

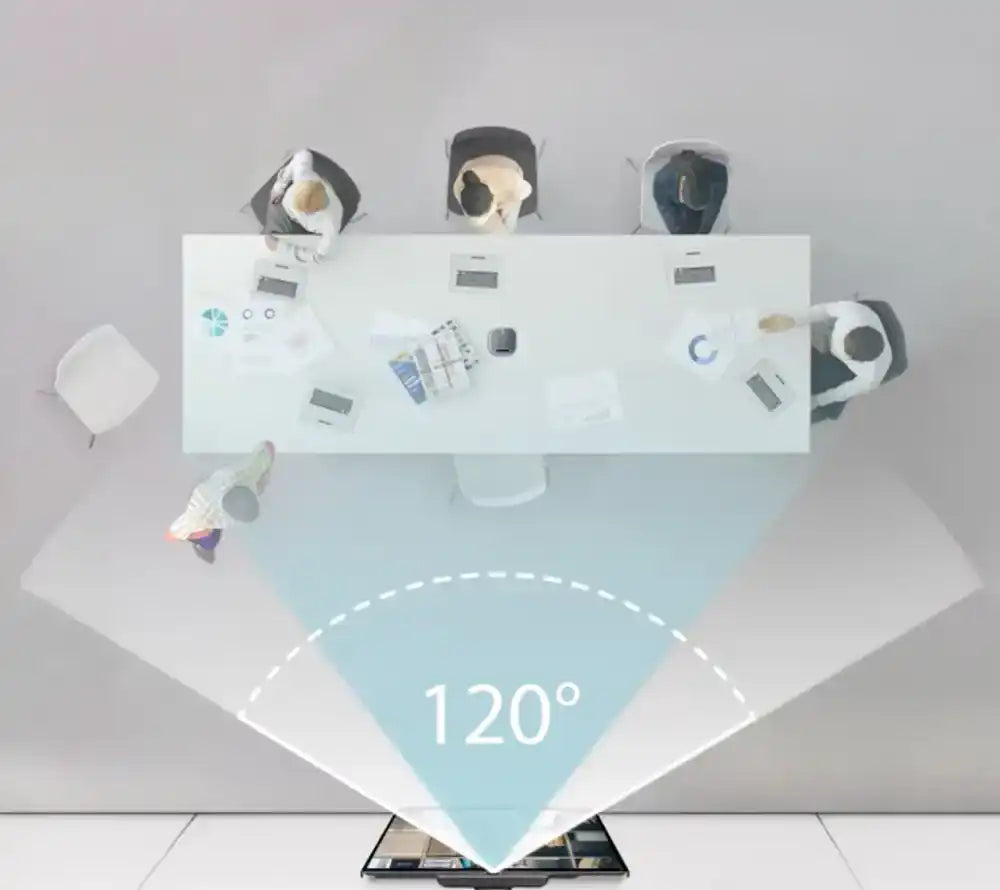

• Intelligent Auto-Framing — Automatically adjusts field of view to keep all room participants in frame as they move or as group composition changes.
• 5x Digital Zoom with Electronic Pan/Tilt — Camera flexibility for different room sizes and content sharing scenarios without manual repositioning.
• Direction-of-Arrival Voice Tracking — Locks audio focus to the active speaker location, reducing background noise and delivering cleaner remote audio.
• 6-Microphone Beamforming Array — 8-meter wide-area mic coverage for mid-size to large conference rooms without additional microphone hardware.

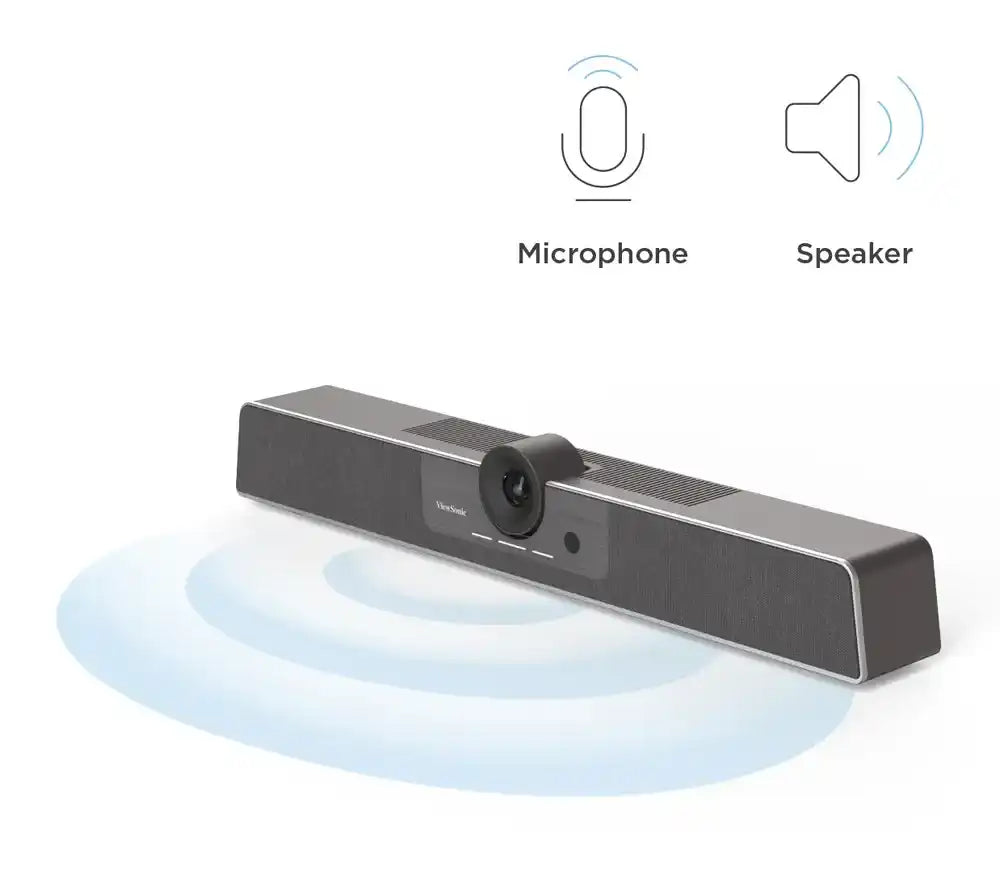

• 8W + 3W Front-Facing Speaker System — Room-filling audio for remote participant voices and content sound without an external speakerphone.
• All-in-One Bar Form Factor — Single USB-connected bar replaces separate camera, microphone, and speaker devices for simplified installation.
• Microsoft Teams Rooms Compatible — Certified for use with ViewSonic TeamJoin TRS10 and TRS10-UB bundles; integrates with other certified Teams Rooms compute platforms.

Typical Applications

• Conference room Microsoft Teams Rooms camera and audio system for mid-size to large meeting spaces
• Boardroom video conferencing upgrade with auto-framing and DOA voice tracking
• Training room and all-hands room Teams Rooms video bar for group video conferencing
• Add-on camera and audio for TRS10 compute-only Teams Rooms bundle

Technical Specifications

Frequently Asked Questions

Can the UMB202 be used without the ViewSonic TRS10 computing engine?
Yes. The UMB202 connects via USB and is compatible with other Microsoft Teams Rooms certified compute platforms. It is not exclusive to the ViewSonic ecosystem.

How large a room does the UMB202 support?
The 6-microphone beamforming array provides 8-meter coverage, suitable for mid-size to large conference rooms. For very large rooms, additional microphone hardware may be required.

Does the UMB202 require manual camera adjustment?
No. Intelligent auto-framing automatically adjusts the field of view based on room occupancy. The 5x digital zoom with electronic pan/tilt can also be controlled manually if preferred.

What is included in the TRS10-UB bundle versus buying UMB202 separately?
The TRS10-UB bundle includes the UMB202, MPC310-W31-TU computing engine, and MRC1010-TN touch console — a complete Teams Rooms system. Purchasing the UMB202 separately is appropriate for integrators adding it to the TRS10 bundle or a third-party compute platform.

What is the warranty?
3-year limited warranty. Contact Creation Networks for service contract options.
