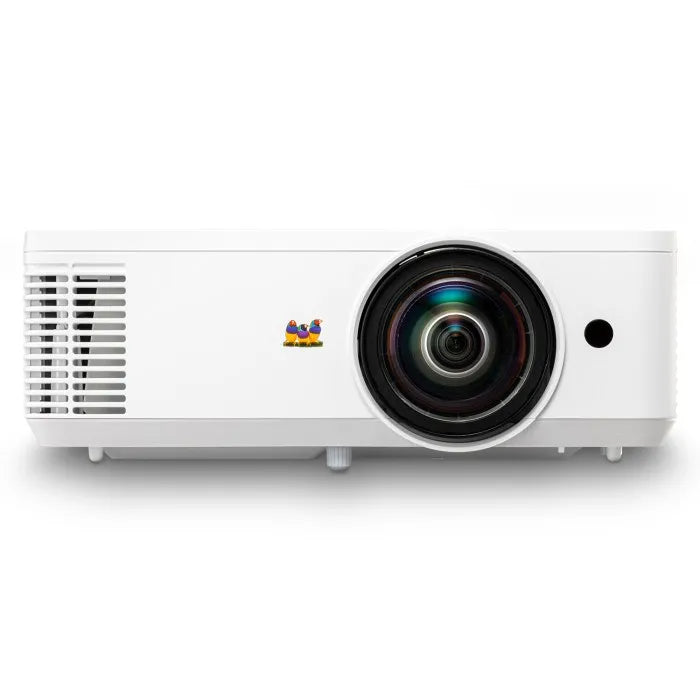

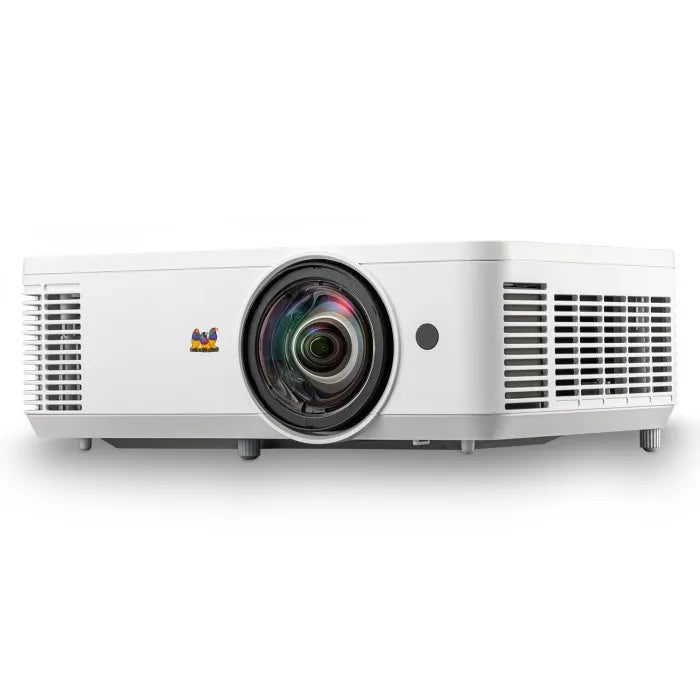

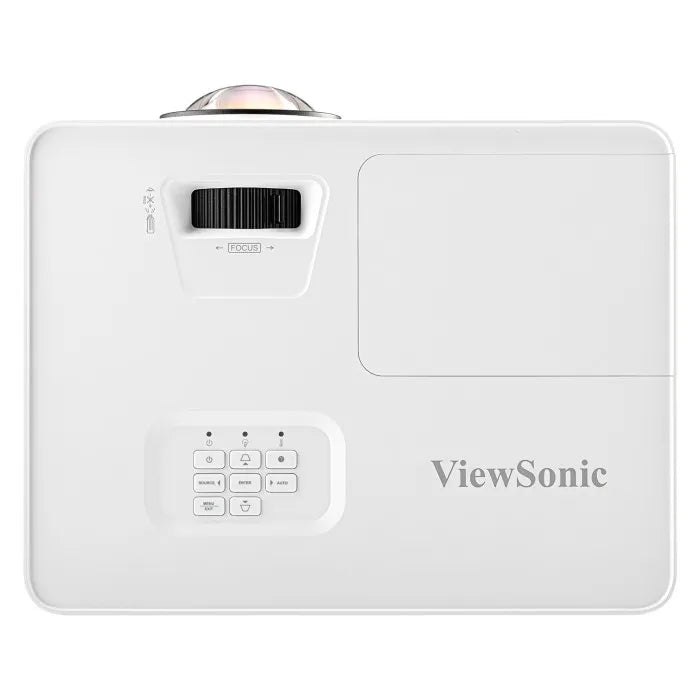

ViewSonic PS502X 4,000 ANSI Lumens XGA Short Throw DLP Projector
The ViewSonic PS502X is a high-brightness short throw projector tailored for business and education, providing XGA resolution with 4,000 ANSI lumens for sharp, vibrant images up to 300 inches in ambient-lit environments. Its SuperColor technology delivers a wide color gamut for lifelike visuals, while the 15,000:1 dynamic contrast ensures deep blacks and enhanced detail for engaging presentations. Benefits include shadow-free projections, cost-effective large-screen solutions with lower cost-per-inch than commercial displays, and quick setup to minimize distractions in dynamic settings.
Built with a compact DLP lamp-based chassis weighing just 6.3 lbs, it features a sealed design for durability, a 240W lamp with up to 12,000 hours in Dynamic Eco mode, and instant on/off for efficient operation. The robust construction includes a Kensington lock slot and cTUVus certification, supporting versatile table or ceiling mounting without tools.
Ideal for classrooms, conference rooms, and training spaces requiring bright, large-scale displays. Compatible with ViewSonic PJ-WMK-305 and PJ-WMK-007 mounts, wireless HDMI dongles powered via USB-A, and devices up to Full HD resolution via dual HDMI 1.4 ports.
Features Chart
| Feature | Benefit |
|---|---|
| 4,000 ANSI Lumens | Bright, washout-free images in high-ambient light |

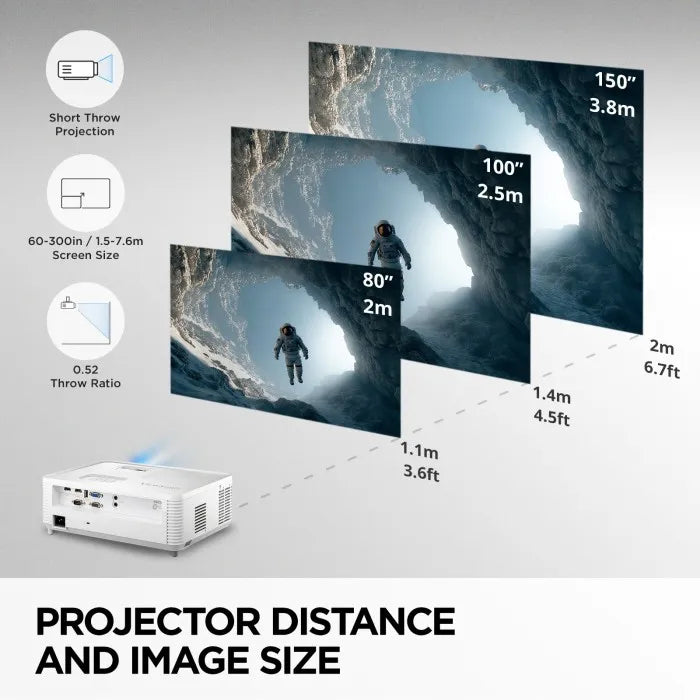

| 0.61 Short Throw Ratio | 100" screen from 4.3 ft, eliminating shadows and glare |
| SuperColor Technology | Wide gamut for vibrant, accurate colors in any lighting |
| Dual HDMI 1.4 Ports | Seamless multi-device connectivity and source switching |
| Auto Keystone ±19° | Effortless distortion-free alignment from any angle |
Specifications Table
| Specification | Detail |
|---|---|
| Native Resolution | 1024 x 768 (XGA) |
| Brightness | 4,000 ANSI Lumens |
| Contrast Ratio | 15,000:1 (Dynamic) |
| Light Source Life | 12,000 hours (Dynamic Eco) |
| Throw Ratio | 0.61:1 |
| Image Size | 30–300 inches |
| Speakers | 16W x 1 |

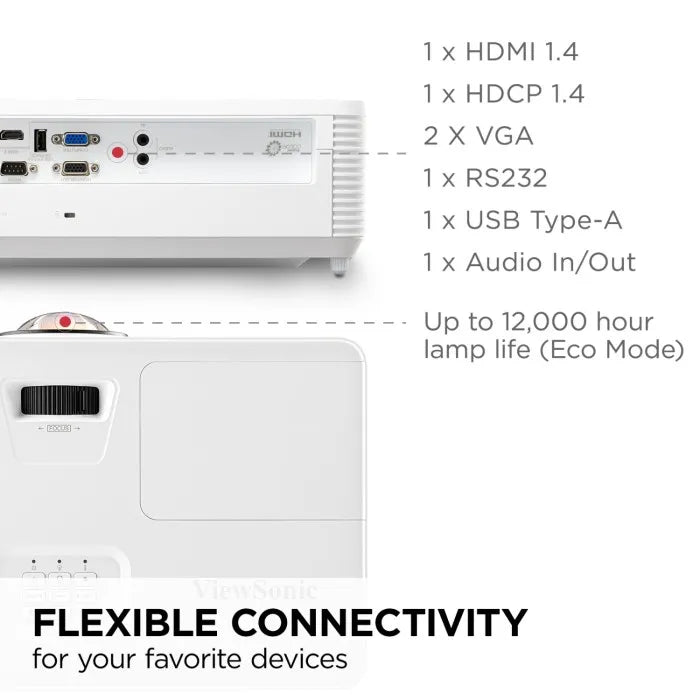

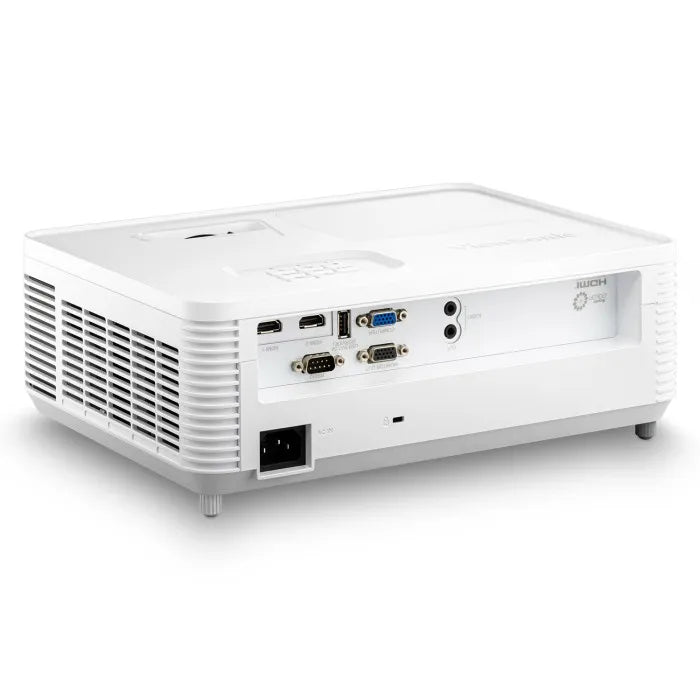

| Inputs | 2x HDMI 1.4 (HDCP 1.4), VGA In, 3.5mm Audio In, USB-A 2.0 |
| Outputs | VGA Out, 3.5mm Audio Out, RS-232 |
| Dimensions (WxDxH) | 12.2 x 9.2 x 4.5 inches |
| Weight | 6.3 lbs |
